  • PAL-PAN16

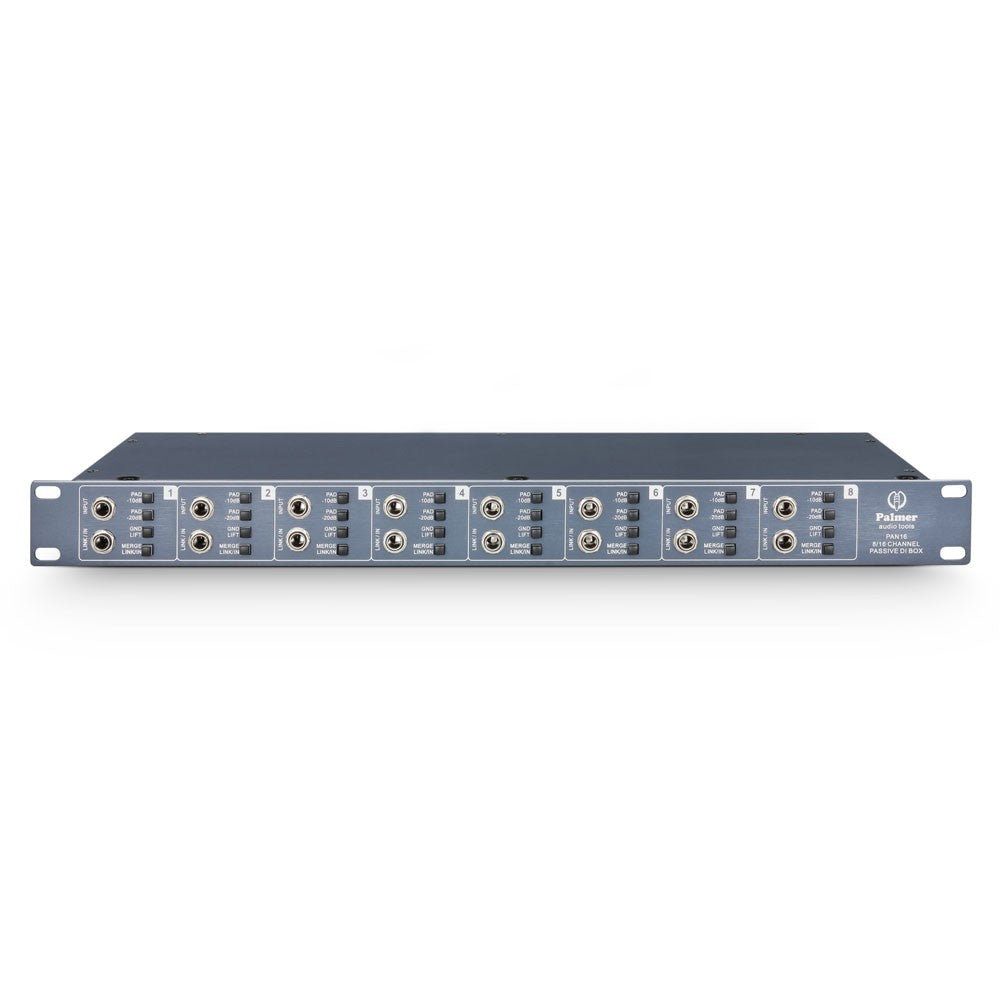

    Palmer PAN 16 19" DI Box 8 Channels passive

    1 In Stock

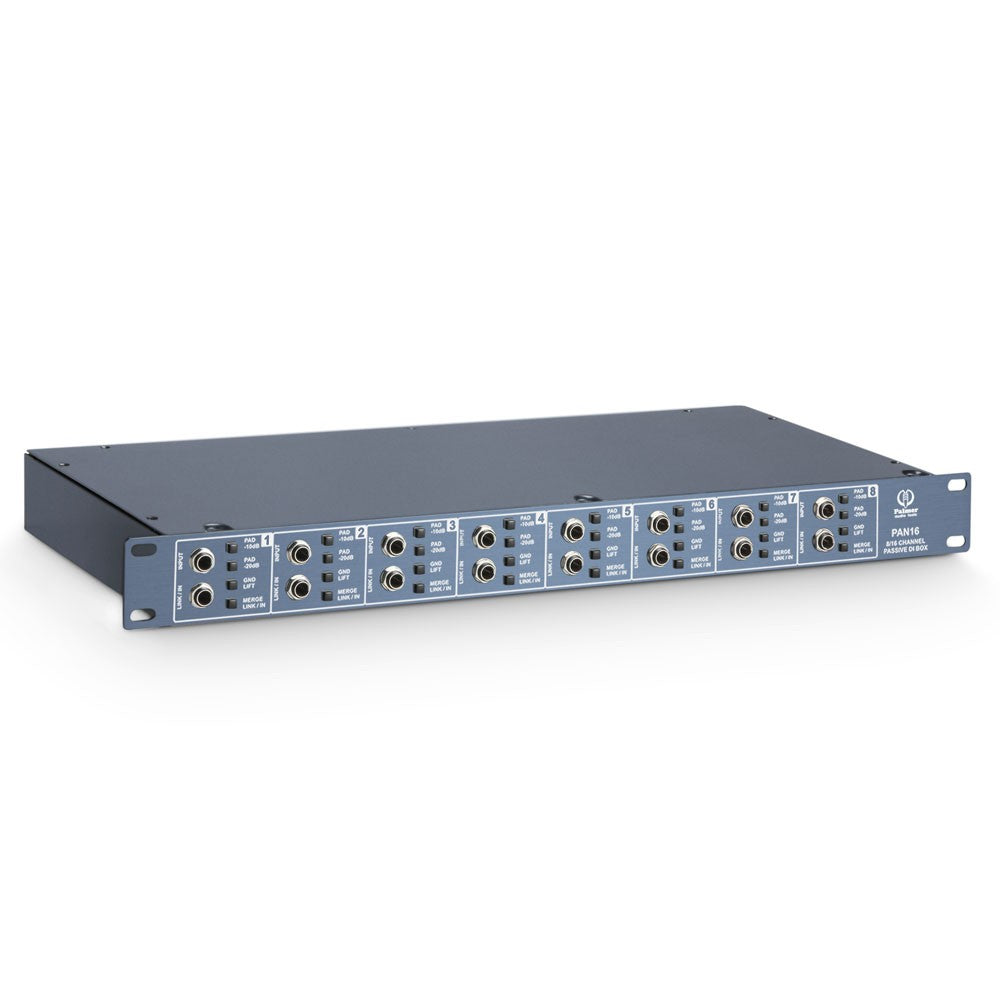

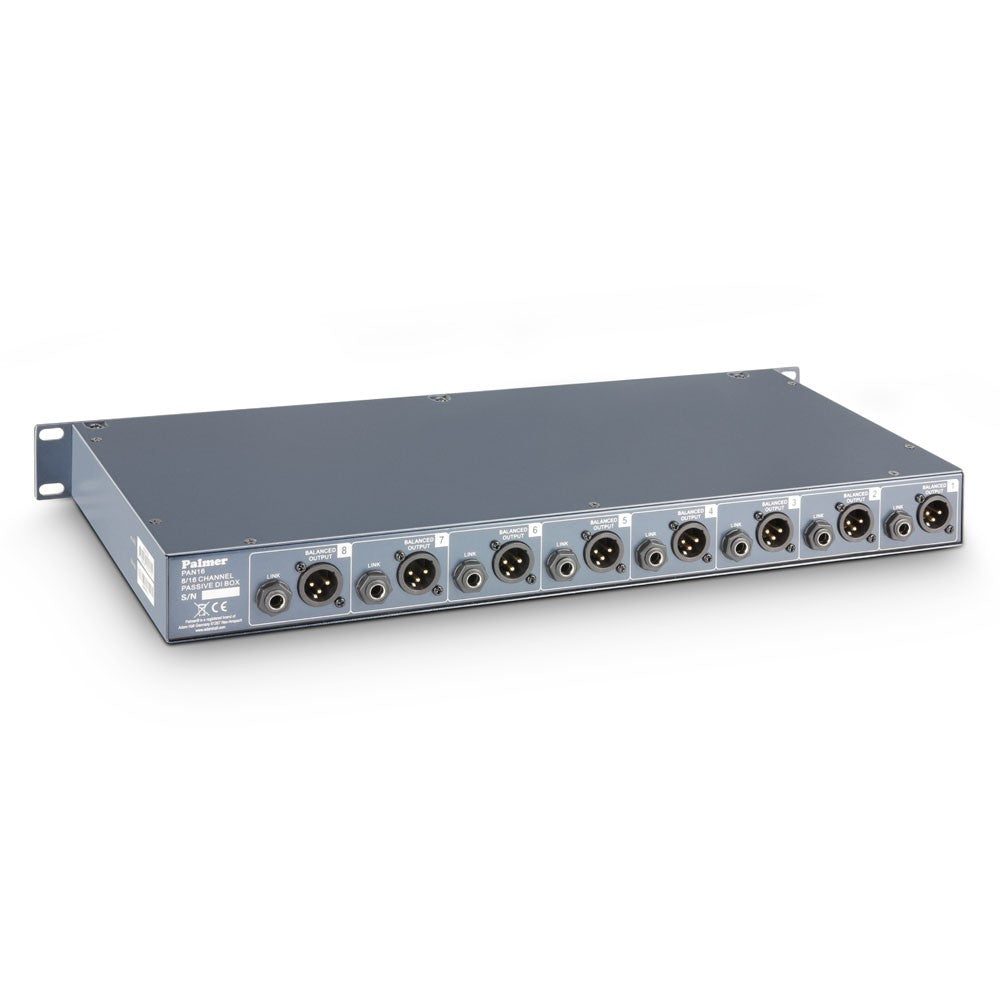

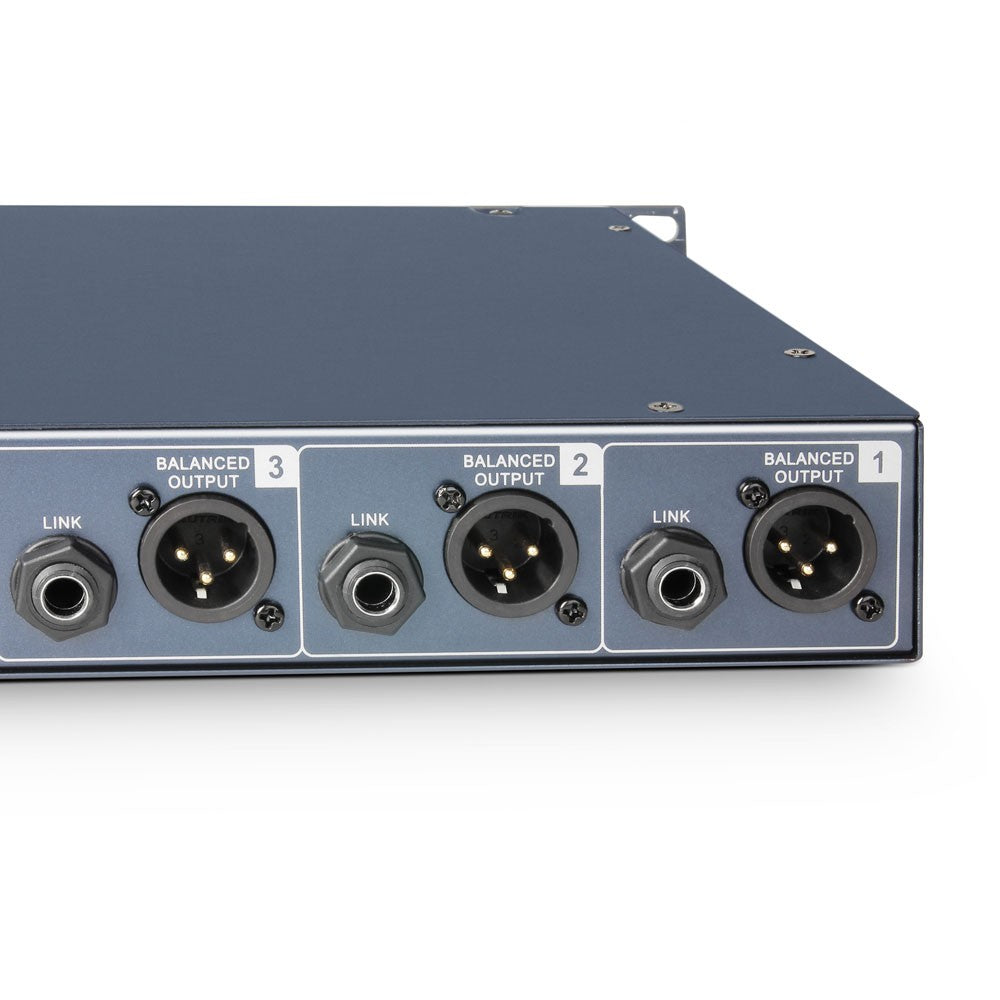

    The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device


    • Single space 8-channel rackmount microphone splitter
    • Transformer isolated and direct outputs
    • Channel pair link switches for doubling outputs or merging inputs
    • Individual ground lift on each channel
    • Suitable for phantom powered condenser microphones and DI boxes


    Product type DI Boxes
    Type passive
    Channels 8
    Inputs 8 / 16
    Input connectors 6.3 mm jack
    Max. input level + 54 dBu
    Input impedance (@ 60 Hz) 1 M Ohm(s)
    Input pad 0 / -30 dB
    Outputs 4 (+ 4 Parallel Thru out)
    THRU outputs/channel 2
    Output connectors 6.3 mm jack, XLR
    Max. output level +4 dBu
    Output impedance 600 Ohm(s)
    Frequency response 10 - 40000
    Transformer balanced Yes
    Ratio 10 : 1

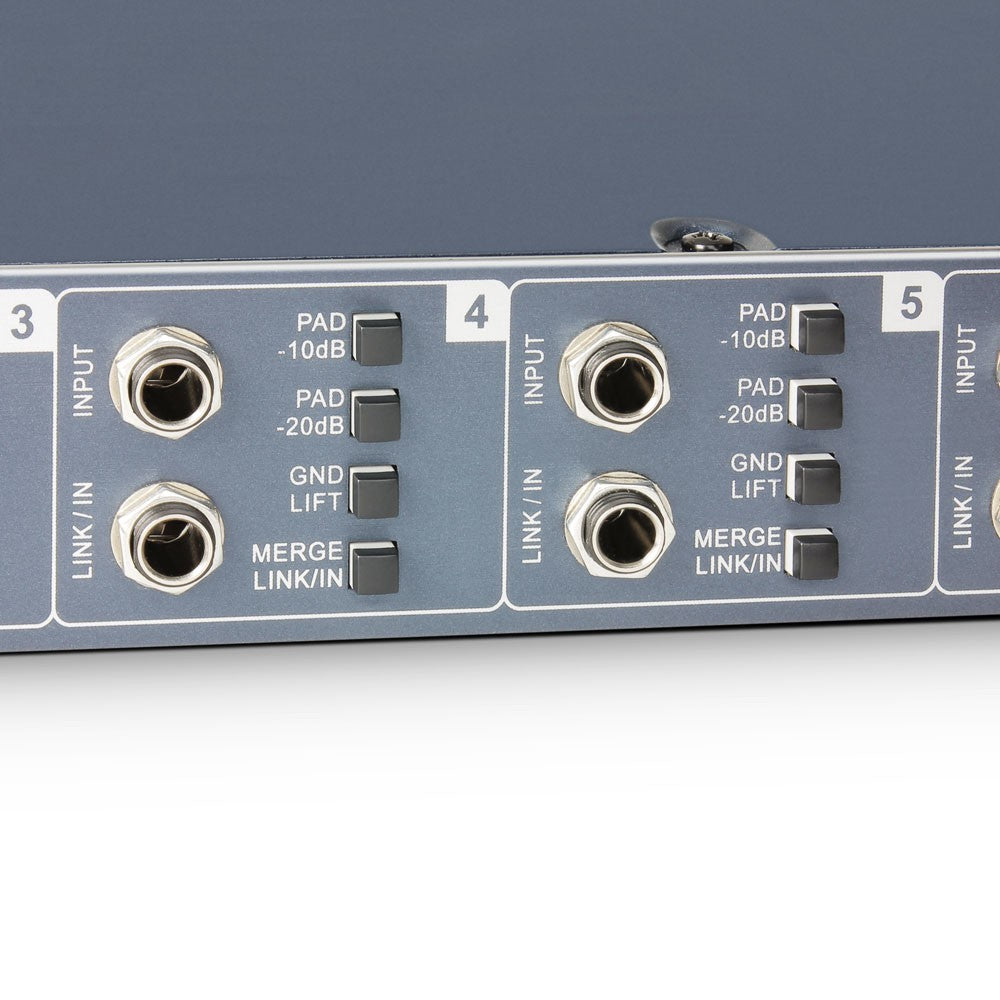

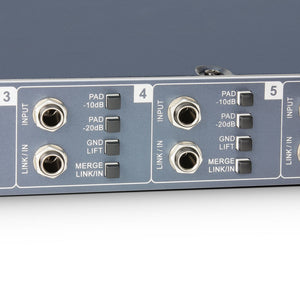

    Controls ground lift, merge, PAD -10dB, PAD -20dB
    Cabinet material sheet steel
    Cabinet surface Powder coated
    Width 480 mm
    Width 19 "
    Depth 200 mm
    Height 45 mm
    Height 1 U
    Weight 2,39 kg
