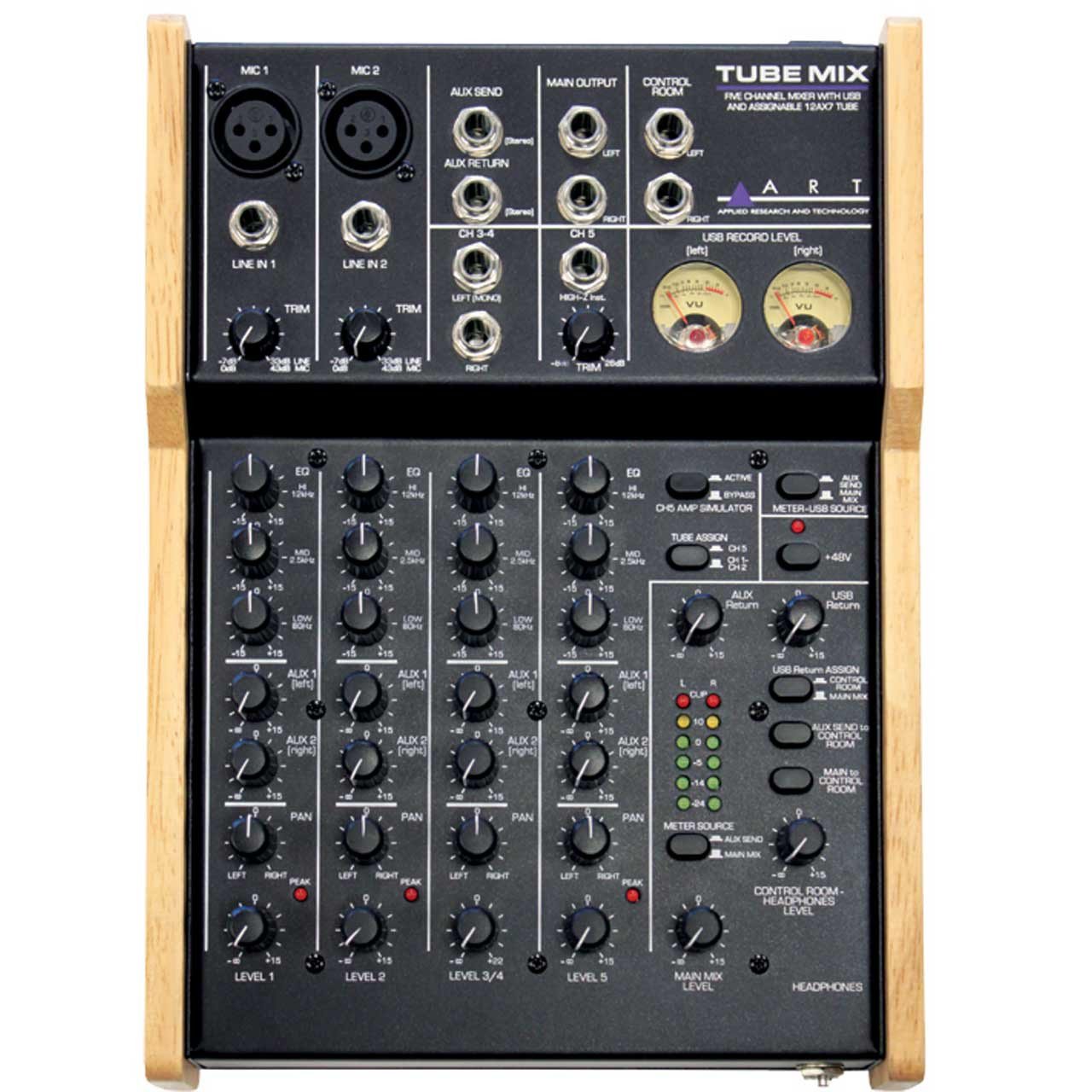

ART TubeMix PRODUCT FEATURES:
Fully Featured Tube Driven Five Channel Stereo USB Mixer
Two Wide Dynamic Range Low Noise Mic Preamp Channels
Dedicated High Impedance Instrument Input with Amp Simulator
Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
Switchable Low Noise +48V Phantom Power for Condenser Microphones
Precise VU Meters and Wide Range LED Meters with Selectable Source
Fully Featured Input Channels
Flexible Control Room / Monitor Section
USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux -
ART TubeMix TECHNICAL SPECIFICATIONS:
Input Impedance:
Microphone: 3.5k Ω
Line (CH1, CH2, CH3/4), 10k Ω
CH5 (Inst.), 1M Ω
Output Impedance:
Main, Control Room (Balanced/Unbalanced), 150/100 Ω
AUX Outputs, 150 Ω
Headphones, 100 Ω
Frequency Response: 20-100kHz + 1dB
Maximum Input Level:
CH1, CH2 (Mic), +9dBu
CH1 CH2 (Line In), +20dBu
CH3/4 (EQ Flat), +20dBu
CH5 (EQ Flat), +16dBu
AUX Return, +24dBu
Maximum Output Level:
Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu
Aux Send, +20dBu
Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω
Maximum Gain:
LINE IN to Main output (balanced), +63dB
CH 5 to Main output (balanced), 56dB
CH3/4 to Main output (balanced), +30dB
Power Requirements: 18 VAC, 1000mA
Dimensions: 3.3”H x 7.8"W x 10.4"D (84mm x 198mm x 265mm)
Weight: 5.5 lbs (2.5 kg)
USB Computer Interface:
USB class compliant plug-and-play Mac and PC interface
A/D, D/A:
16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
