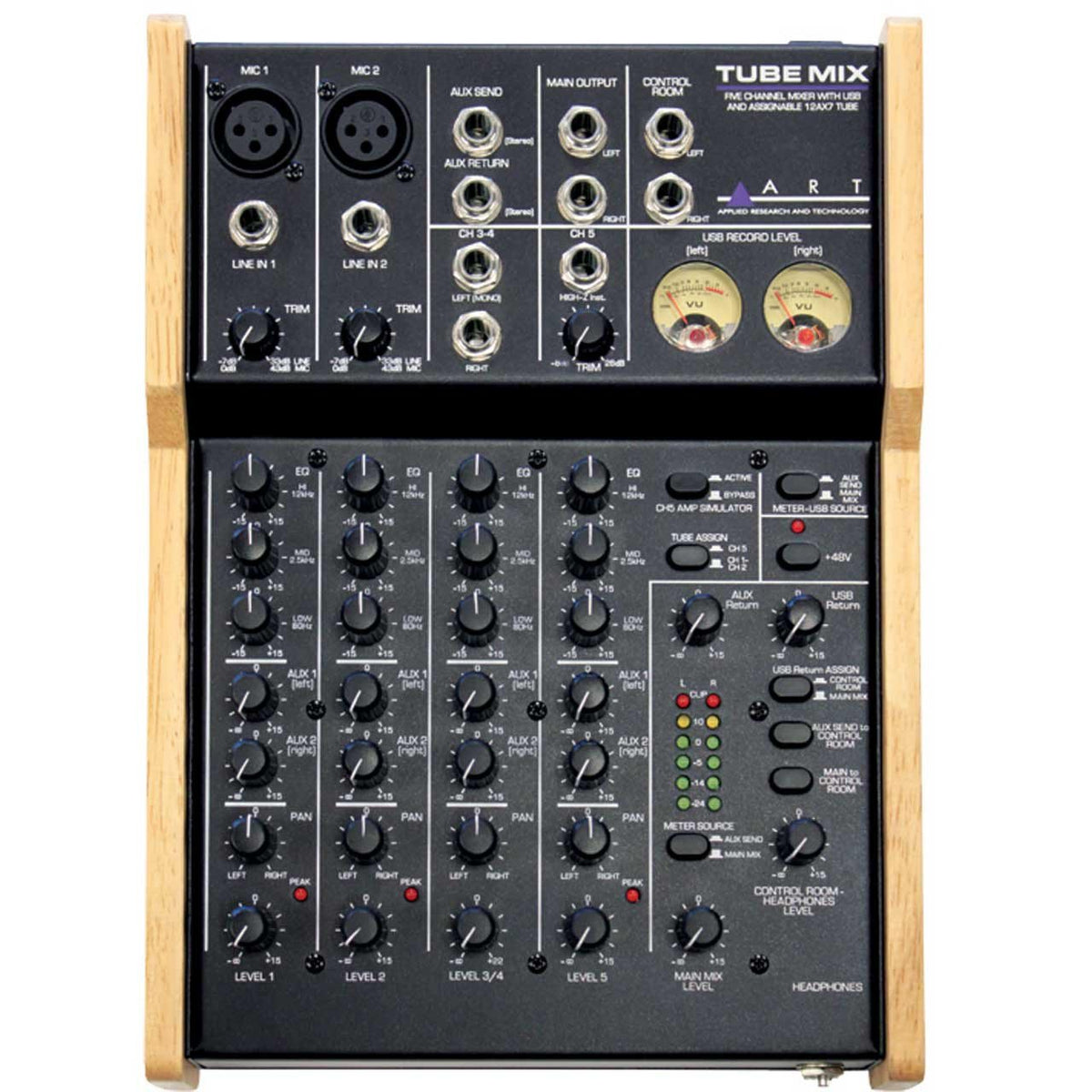

ART TubeMix Analogue Mixer with USB


2 IN STOCK

The TubeMix by ART is an analog mixer, featuring 2 microphone pre-amps, an instrument input and a stereo input for a maximum of 5 simultaneous ins. The tube circuit can be applied to create either a dual-channel preamp, or stacked and used for the instrument input. The TubeMix has a class-compliant USB interface, and a pair of very classy VU meters too!


    • ART TubeMix PRODUCT FEATURES:

      Fully Featured Tube Driven Five Channel Stereo USB Mixer
      Two Wide Dynamic Range Low Noise Mic Preamp Channels
      Dedicated High Impedance Instrument Input with Amp Simulator
      Integrated 12AX7 Tube can be Applied to Either Microphone or Instrument Inputs
      Switchable Low Noise +48V Phantom Power for Condenser Microphones
      Precise VU Meters and Wide Range LED Meters with Selectable Source
      Fully Featured Input Channels
      Flexible Control Room / Monitor Section
      USB 2.0 compliant. No special drivers needed with most modern versions of Windows, Mac OS, and Linux
    • ART TubeMix TECHNICAL SPECIFICATIONS:

      Input Impedance:
      Microphone: 3.5k Ω
      Line (CH1, CH2, CH3/4), 10k Ω
      CH5 (Inst.), 1M Ω
      Output Impedance:
      Main, Control Room (Balanced/Unbalanced), 150/100 Ω
      AUX Outputs, 150 Ω
      Headphones, 100 Ω

      Frequency Response: 20-100kHz + 1dB

      Maximum Input Level:
      CH1, CH2 (Mic), +9dBu
      CH1 CH2 (Line In), +20dBu
      CH3/4 (EQ Flat), +20dBu
      CH5 (EQ Flat), +16dBu
      AUX Return, +24dBu
      Maximum Output Level:
      Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu
      Aux Send, +20dBu
      Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω

      Maximum Gain:
      LINE IN to Main output (balanced), +63dB
      CH 5 to Main output (balanced), 56dB
      CH3/4 to Main output (balanced), +30dB

      Power Requirements: 18 VAC, 1000mA
      Dimensions: 3.3”H x 7.8"W x 10.4"D (84mm x 198mm x 265mm)
      Weight: 5.5 lbs (2.5 kg)

      USB Computer Interface:
      USB class compliant plug-and-play Mac and PC interface
      A/D, D/A:
      16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Need more info on the ART TubeMix? Click HERE for the manufacturer's website >>>
