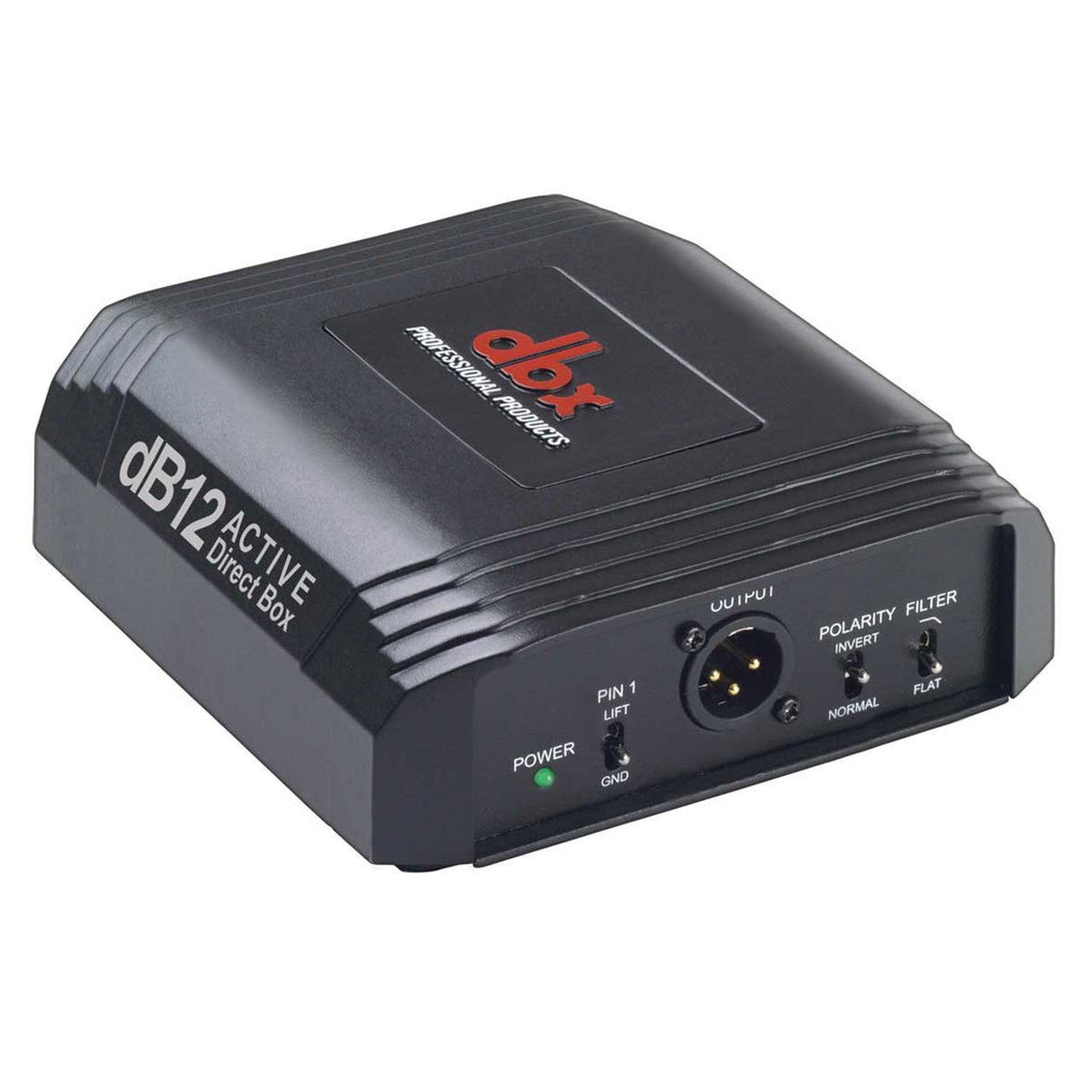

dbx db12 PRODUCT FEATURES:
Premium Performance
Rugged Design
Stackable Chassis with Durable Rubber Foot
Gold-plated Neutrik® XLR Connector
Premium Chrome Toggle Switches
Hi-Z 1/4" Input Jack
Parallel 1/4" Thru Jack
Transformer Isolated
Premium Shielded Custom dbx Transformer
Balanced XLR Lo-Z Output
3-Way 0/20/40 dB Pad Switch
Flat/High-Cut Filter Switch
Output Polarity Invert Switch
Ground Lift Switch
4 Year Warranty!
Phantom Powered
Green LED Phantom Power Indicator
+48V Phantom Operation
Low-Noise Active Circuitry
-
dbx db12 TECHNICAL SPECIFICATIONS:
Input: 1 instrument/line/speaker level
Input Connectors: 1/4” jack
Input Type: Unbalanced, RF filtered
Insert Impedance: 150k Ohm typical
Max Input: +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
Output: (Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
Output Connectors: XLR male balanced
Output Impedance: 150k Ohm typical
Max Output: 0dBu
Transformer: Custom dbx mu-metal-shielded
Frequency Response: 20Hz to 20kHz, +/-2.5dB
Noise: <-105dB unweighted, 22kHz BW
THD: <0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Unit Weight: 1.4 lbs / 0.65 kg
