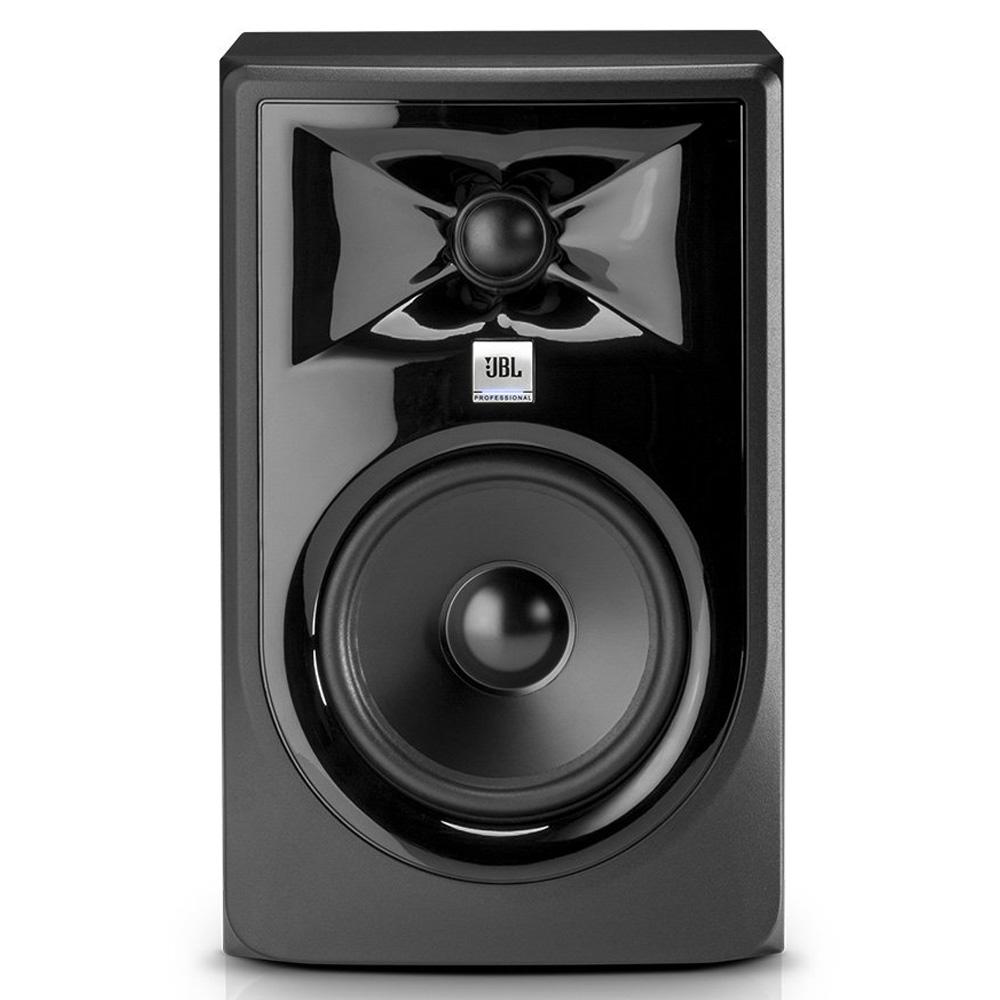

JBL LSR 305P MkII - Powered 5" Two-Way Studio Monitor (SINGLE)

Type: Active Studio Monitors

FEATURES
TECH SPECS

JBL LSR 305P MkII PRODUCT FEATURES:
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

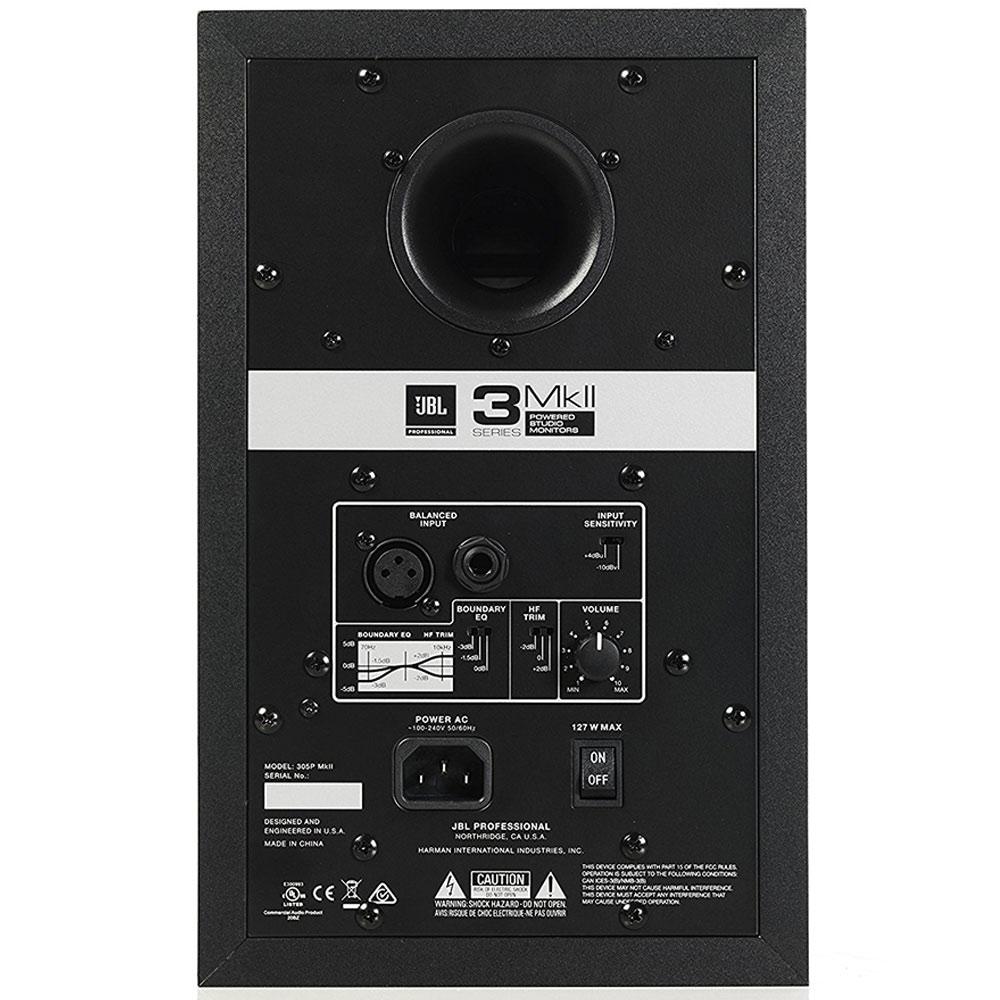

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
JBL 305P MkII TECHNICAL SPECIFICATIONS:
LF DRIVER SIZE: 203mm (5")
HF DRIVER SIZE: 25mm (1")
HF DRIVER TYPE: Soft dome
CROSSOVER: 1725Hz 4th order acoustic Linkwitz-Riley

POWER CONFIGURATION: Bi-amplified
HF DRIVER POWER AMP: 41W, Class-D
LF DRIVER POWER AMP: 41W, Class-D

FREQUENCY RANGE (-10dB): 43Hz – 24kHz
LOW FREQUENCY EXTENSION: (-10dB) 43Hz
MAXIMUM CONTINUOUS SPL: 94dB
MAXIMUM PEAK SPL: 108dB

CABINET DIMENSIONS (H x W x D): 298 x 185 x 231mm
NET WEIGHT: 4.73 kg

JBL LSR 305P MkII - Powered 5" Two-Way Studio Monitor (SINGLE)

JBL LSR 305P MkII PRODUCT FEATURES:

JBL 305P MkII TECHNICAL SPECIFICATIONS:
