$299.00$351.76
PRE-TUBEPRE

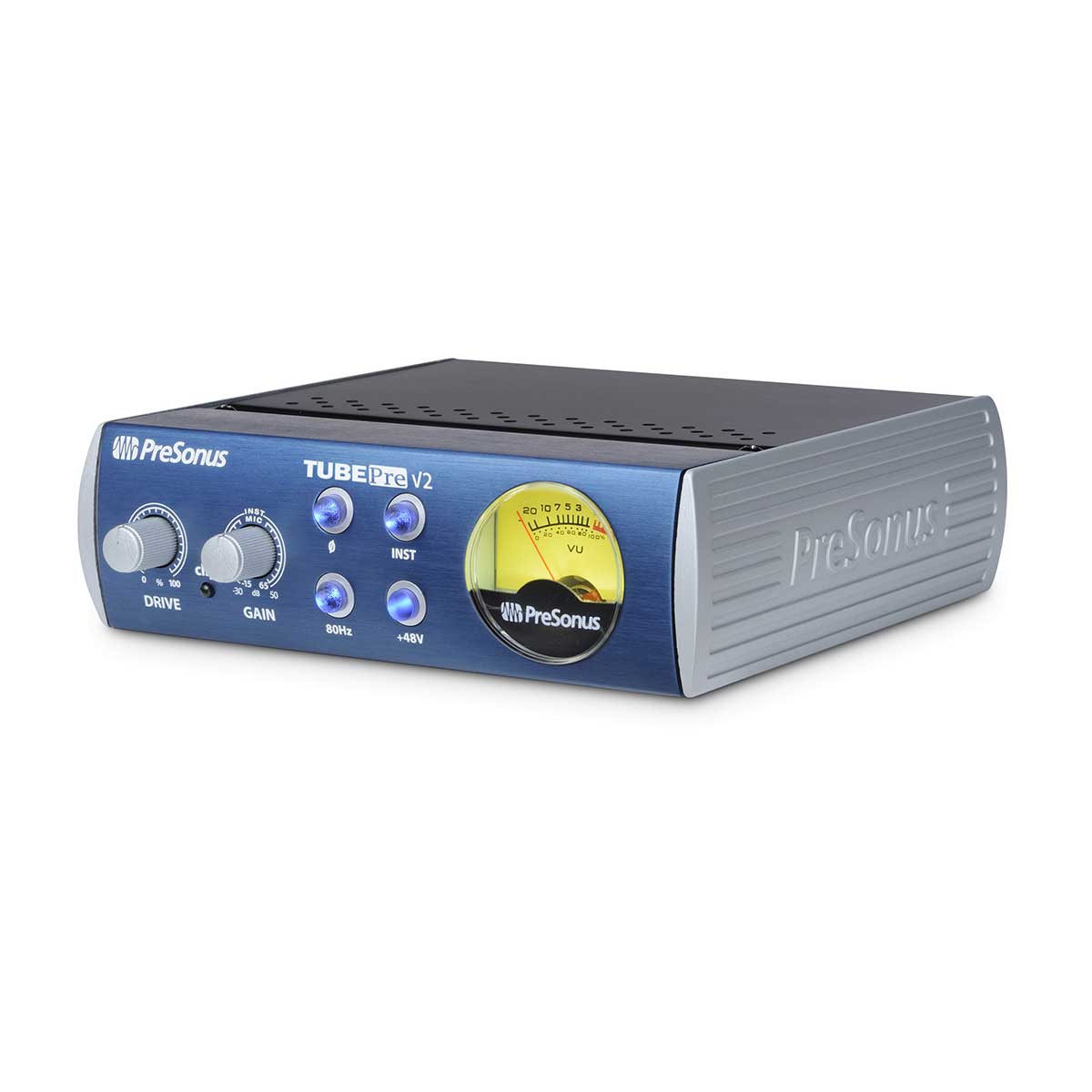

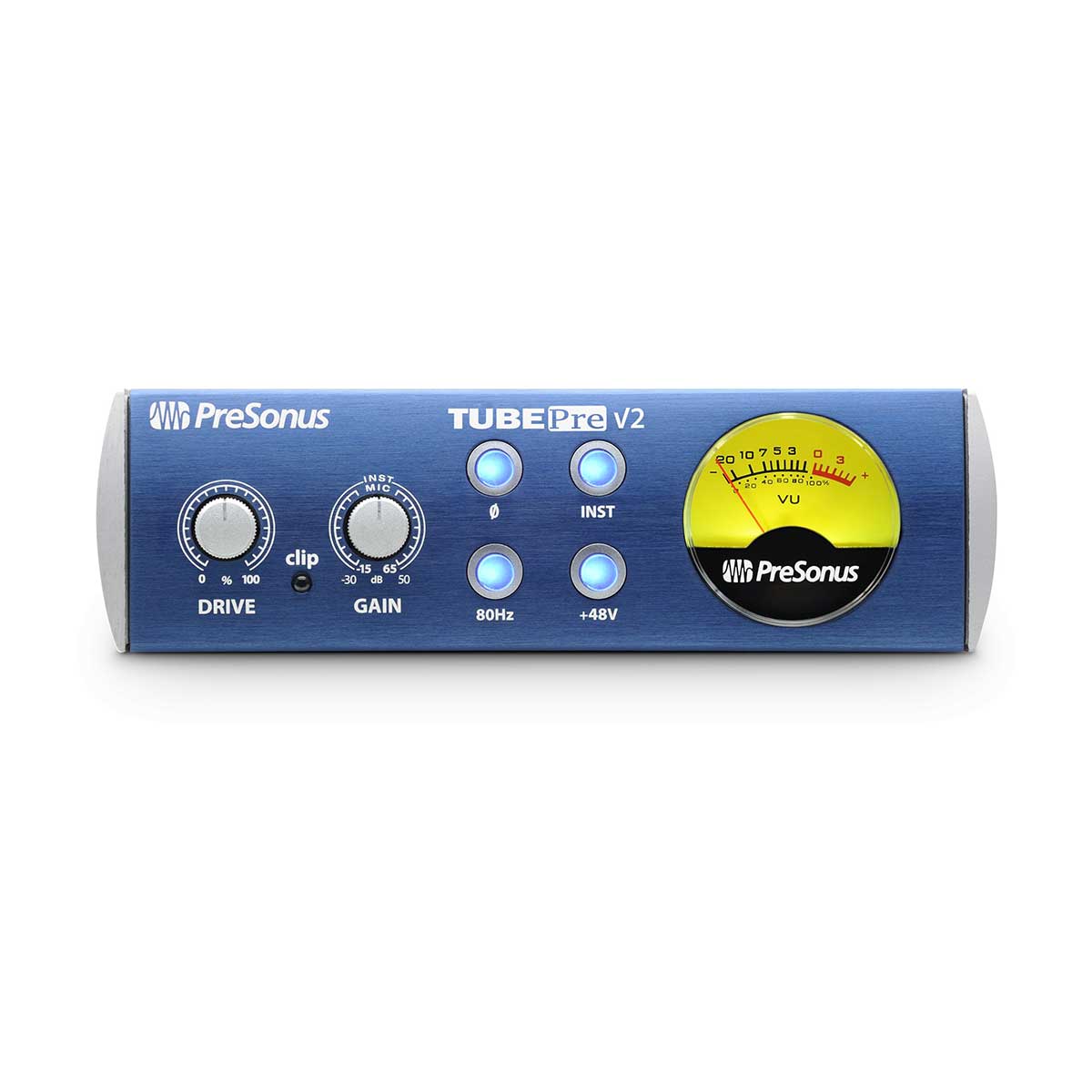

PreSonus TubePre V2 Tube Preamp
Compact and affordable, the ever-popular TubePre V2 professional tube preamplifier employs our popular XMAX Class A solid-state preamp, followed in the signal path by a 12AX7 vacuum-tube stage. A dual-servo (no capacitors) gain stage lets you boost the signal to smoking hot levels without significantly increasing noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class. Built tough enough for serious gigging, the TubePre V2 is a great choice for guitars and microphones alike.
Type: Preamps/Channel Strips
Features
- XMAX Class A preamp input stage
- 12AX7 dual-servo vacuum tube output stage
- Input Gain control
- 48V phantom power
- 80 Hz high-pass filter
- -20 dB pad
- Instrument input select
- Polarity-reverse switch
- Backlit VU meter
- Clip LED

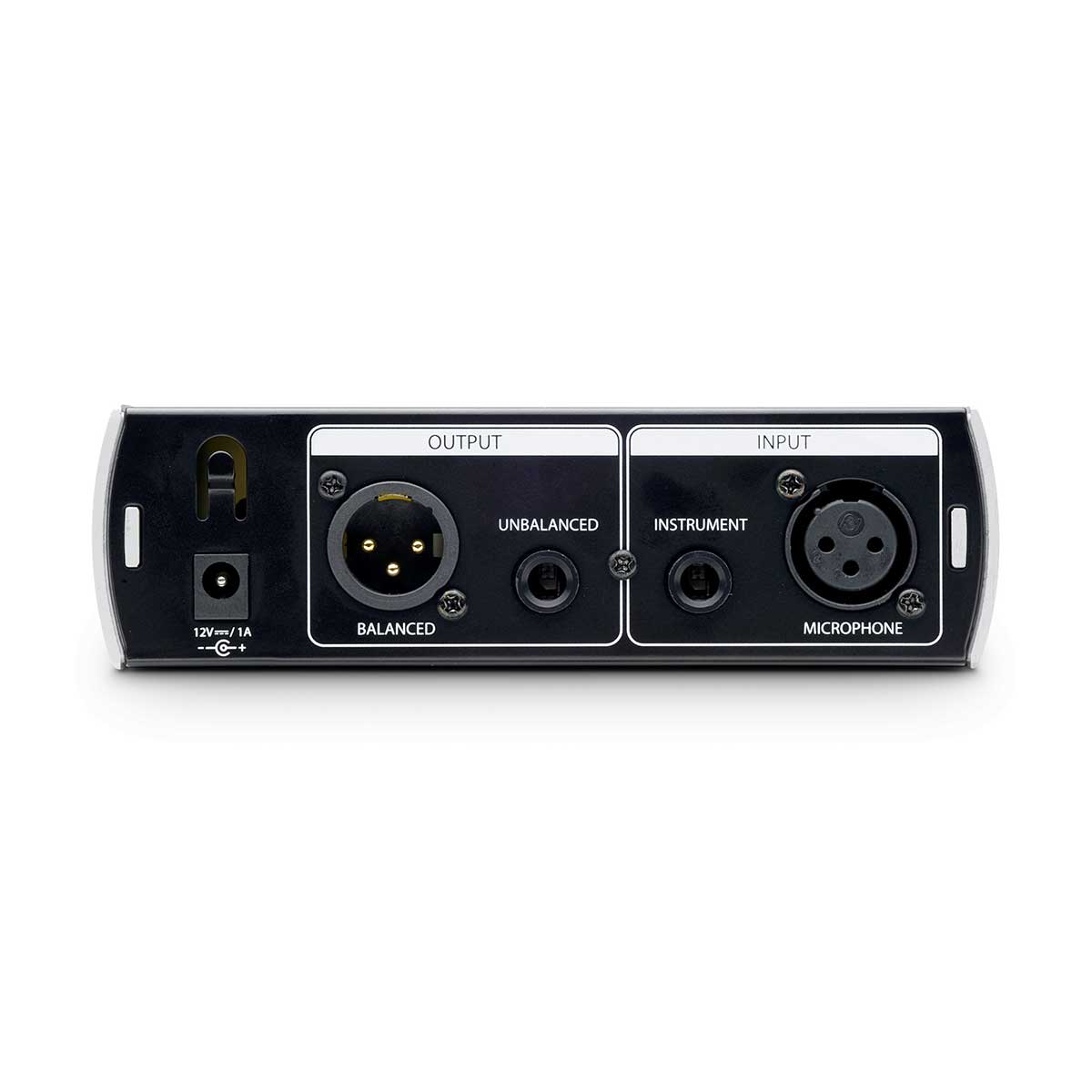

Input/Output
- 1 unbalanced ¼” instrument input
- 1 balanced XLR mic input
- 1 unbalanced ¼” line output
- 1 balanced XLR line output
Physical
- Compact 1/3U rack-mount chassis
- External 12 VDC, 1A power supply
Technical Specifications
Mic Input |
|
|---|---|
| Connector Type | XLR, female, balanced |
| EIN | -131 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Ω, unwtd |
| Frequency Response | 20 Hz – 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain |
| THD+N | 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd |
| Dynamic Range | 115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd |
| Input Impedance | 1.3 kΩ |
| Phantom Power | +48 VDC, 10 mA |
Instrument Input |
|
|---|---|
| Connector Type | ¼” TS, female, unbalanced |
| Input Impedance | 1 MΩ |
Analog Output |
|
|---|---|
| Connector Types | XLR, male, balanced ¼” TS, female, unbalanced |
| Maximum Output | +20 dBu |
| Output Impedance | 51Ω |
Tube Stage |
|
|---|---|
| Type | 12AX7 |
Power |
|
|---|---|
| External Power Adapter | +12 VDC, 1A, center-pin positive |
| PSU Barrel Dimensions | 5.5 mm O.D., 2.1 mm I.D., 9.5 mm length |
Physical |
|
|---|---|
| Dimensions | 1/3U rack-mountable (screw-mount to standard rack tray, not included) |
| Height | 1.75” (44.45 mm) |
| Depth | 5.5” (139.7 mm) |
| Width | 5.5” (139.7 mm) |
| Weight | 5 lb. (2.27 kg) |
