UA-710
Universal Audio 710 Twin-Finity Mic Preamp & D.I.
The 710 Twin-Finity combines the classic retro warmth of UA tube design with the transient bite of solid-state. The 710 was designed specifically to add the tonal versatility and sonic inspiration that's missing from generic audio interface preamps. The key to its sonic flexibility lies in its innovative circuit design, featuring a solid-state transimpedance input amp simultaneously driving separate, phase-aligned tube and solid-state gain stages, which are then summed to a single output.
Type: Preamps/Channel Strips
-
-
Universal Audio 710 Twin-Finity PRODUCT FEATURES:

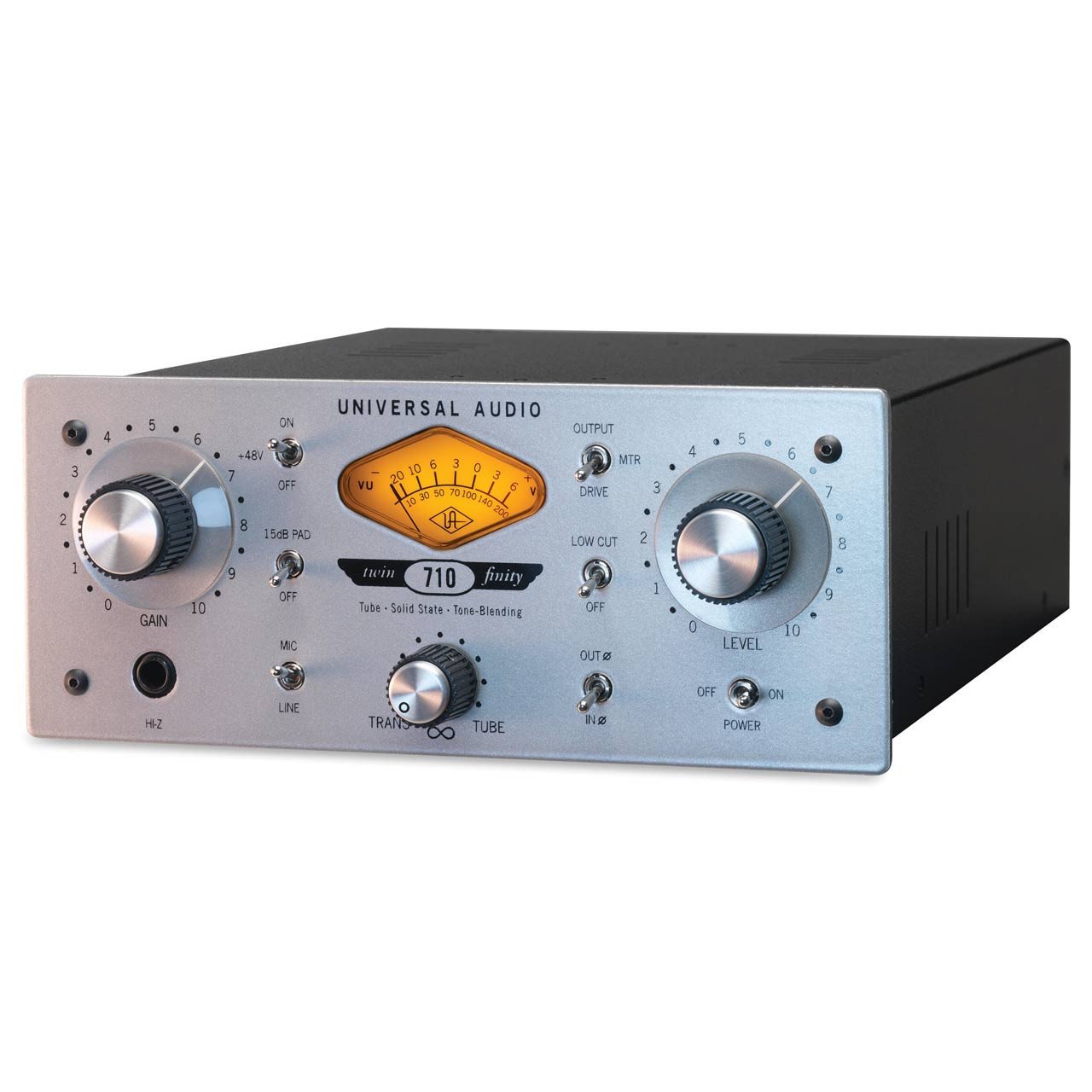

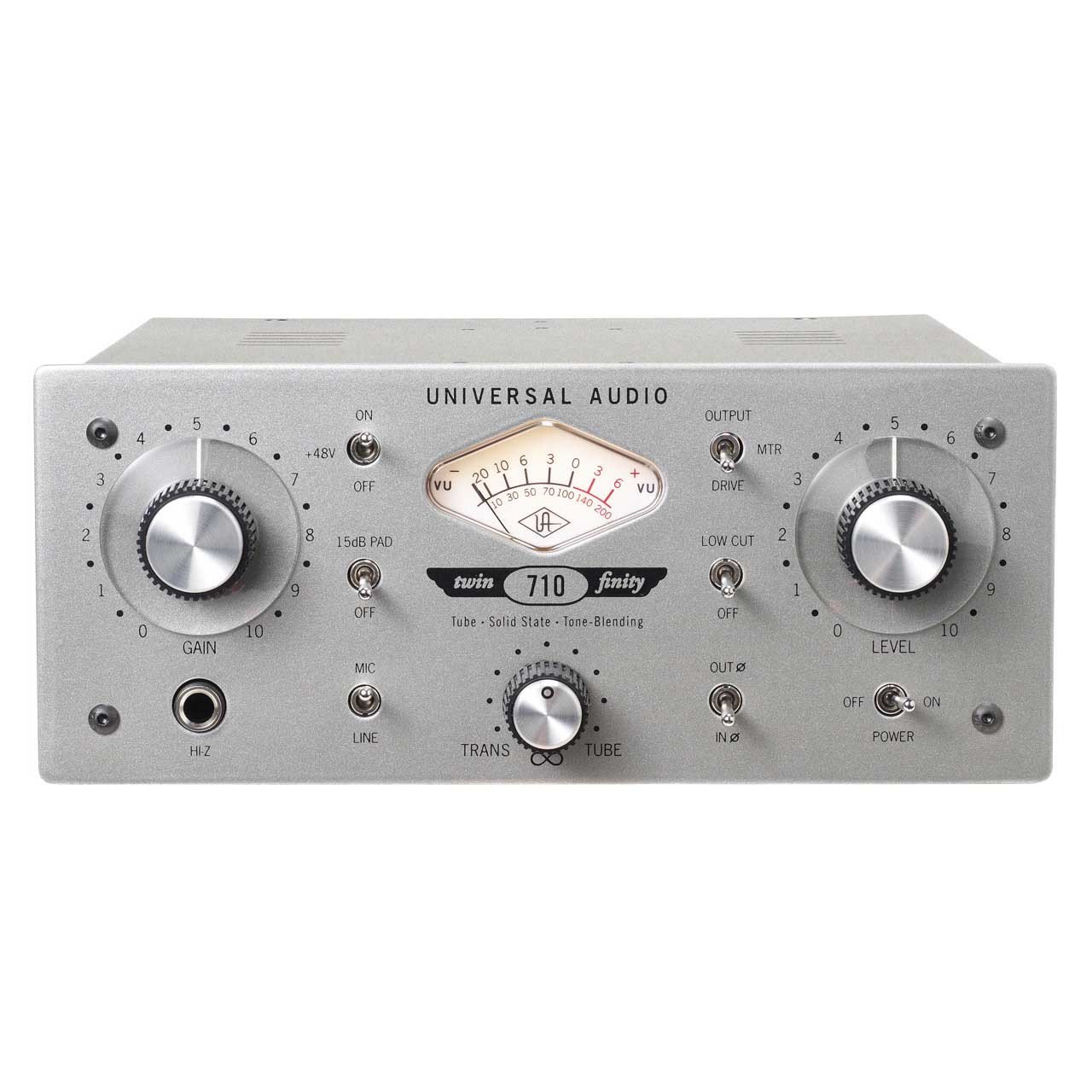

The mix between the 310 volt single-ended class-A triode tube stage and solid-state transimpedance stage is controlled via the "Blend Knob" labeled "∞". Blending is continually variable between 100% tube and 100% solid-state offering a practically infinite range of unique pre-amp tones and the ability to easily dial-in your own signature sound.
Like all our other preamp designs, the 710 features dual gain-stage controls (Gain/Level) which can radically vary the amount of coloration and distortion by allowing you to crank up the input gain like a guitar amp. The VU meter features a unique "Drive" mode allowing you to see how hard you are driving the input stage.
* Twin-Finity™ Tone-Blending Mic/Line Preamp & Hi-Z Instrument DI
Versatility makes the 710 the perfect preamp partner for any mic collection. Plus, the discrete JFET DI input circuit can also easily handle any electric instrument. Guitar and bass players will especially appreciate the 710s ability to bring out the best of both active and passive pickups. The 710 Twin-Finity includes a 19" rack-kit for mounting one or two units.
* Dual-Path 310 volt Class-A Tube and Transimpedance Solid State Preamp
* Phase-Aligned "Tone-Blending" of Tube and Solid State
* Dual Gain Stages: Wire with Gain to Creamy to Crunchy
* Discrete JFET DI with 2.2M ohm Ultra Hi-Z impedance
* Monolithic Balanced Output Stage -
Universal Audio 710 Twin-Finity TECHNICAL SPECIFICATIONS:
General
Inputs
Microphone (Female XLR)
Balanced Line (Female XLR)
Unbalanced Instrument (1/4" jack) (D.I.)

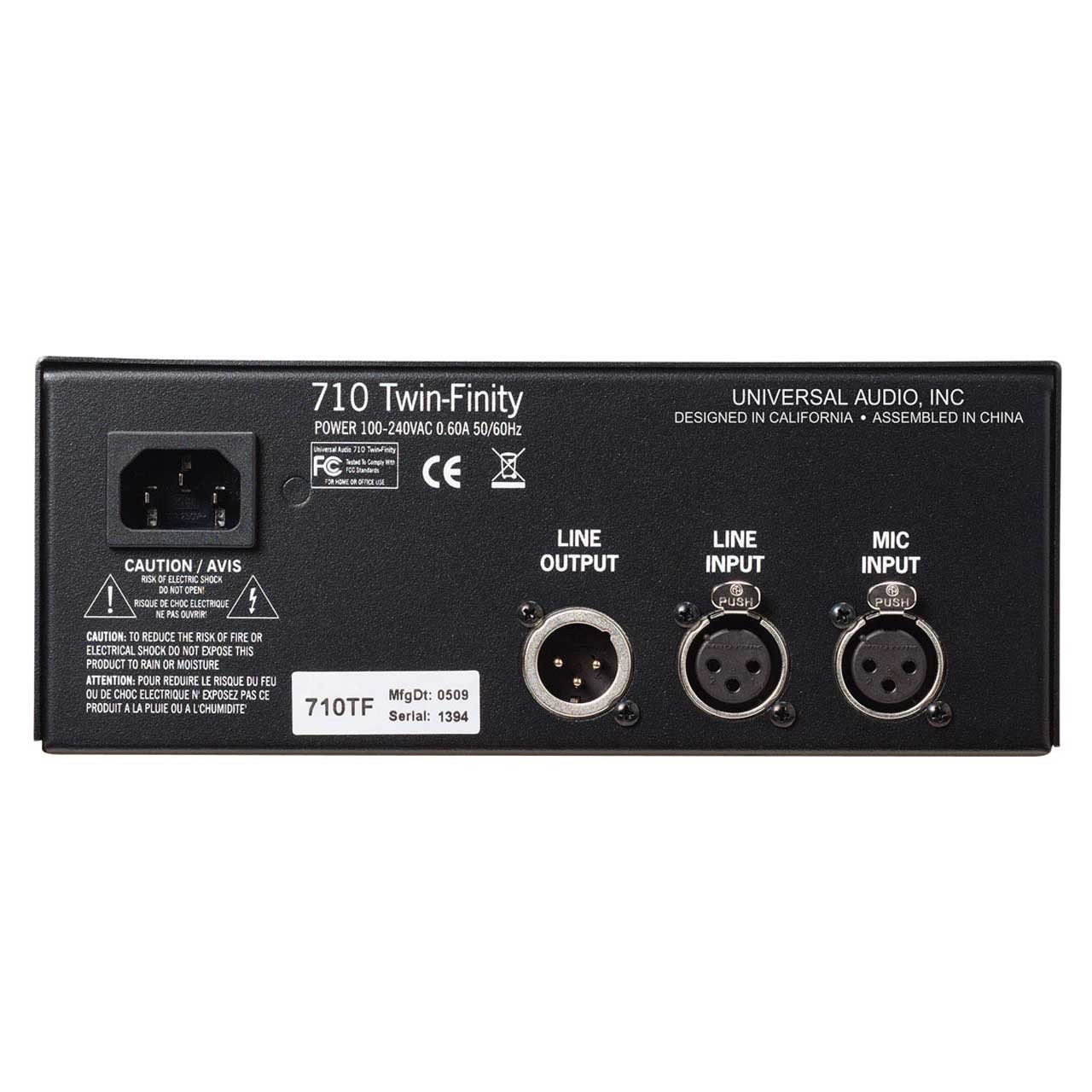

Outputs
Balanced Line (Male XLR)
Type
Tube & Solid-State Phase-Aligned Tone-Blending Mic Pre & DI
Tube Complement
12ax7
Pad
-15dB
High Pass Filter
75Hz
Maximum Power Consumption
160mA @120VAC
20W
Power Requirements
100-240VAC
Dimensions
8.45W x 3.5H x 10.25D
Weight
5.25 lb
Impedance
Mic Input Impedance
2K ohms
Line Input Impedance
10K ohms
Hi-Z Input Impedance
2.2M ohms
Internal Output Impedance
600 ohms
Gain/Levels
Gain Range for Unit
-Infinity to 70dBu
Mic Range Gain Pot
10 ~ 60 dBu
Line Range Gain Pot
-10 ~ 40 dBu
Hi-Z Range Gain Pot
-10 ~ 40 dBu
Maximum Mic Input Level Gain @min SS
+18 dBu
Maximum Mic Input Level Gain @min Tube 1% THD
-7 dBu dBu +8 dBu w/pad
Maximum Line Input Level Gain @ Min SS
30
Maximum Line Input Level Gain @ Min Tube 1% THD
+8 dBu
Maximum Hi-Z Input Level Gain Min SS
+18
Maximum Hi-Z Input Level Gain Min Tube 1% THD
+8 dBu
Maximum Output Level into 600 ohms
+18 dBu
Maximum Output Level into 100k ohms
+28 dBu
Tube Clipping Level
Same as Max In
Solid-State Clipping Level
Same as Max In
Frequency Response
Mic Frequency Response
20Hz to 100kHz +/- 0.2 dBu
Line Frequency Response
20Hz to 100kHz +/- 0.2 dBu
Hi-Z Frequency Response
20Hz to 100kHz +/- 0.2 dBu
Distortion
Min THD+Noise @ +4dBU
0.1% tube 0.005% solid-state
