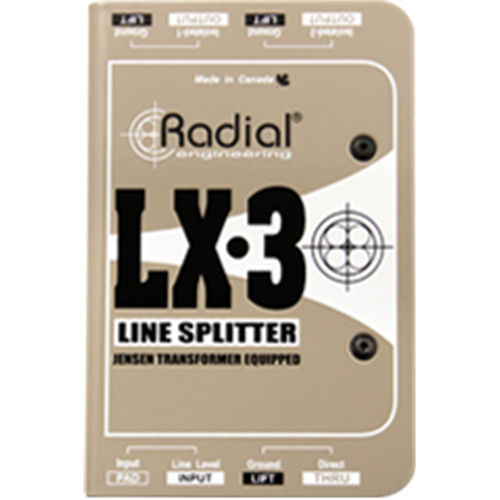

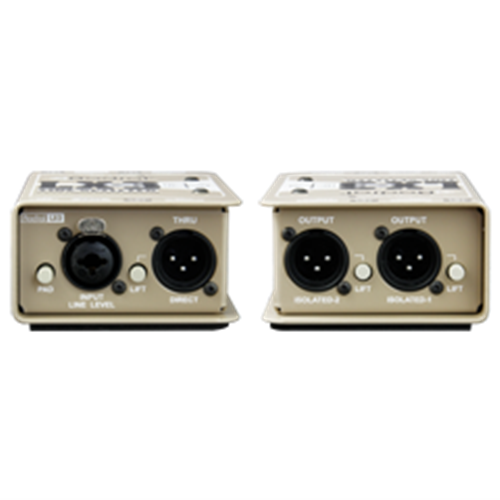

The LX-3 is a passive line-level splitter that distributes a balanced audio signal to multiple destinations noiselessly. Premium Jensen isolation transformers for exceptional audio quality, and XLR/¼" combo inputs for easy connectivity. The LX-3 has three XLR outputs, two of which are transformer isolated, as well as an input pad to handle extra-hot signals. Both units have ground lifts on each XLR output to further reduce buzz and hum from ground loops, ensuring that the signal reaches each destination noise-free.
FEATURES

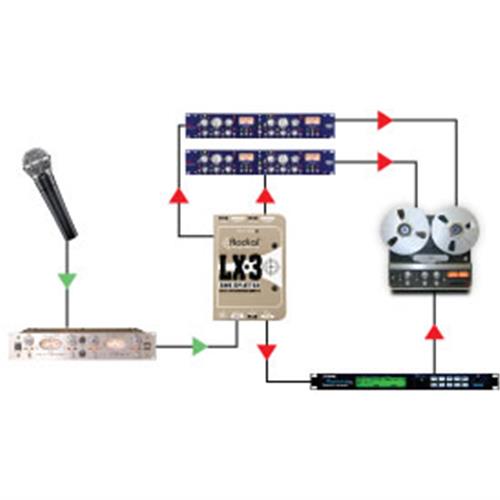

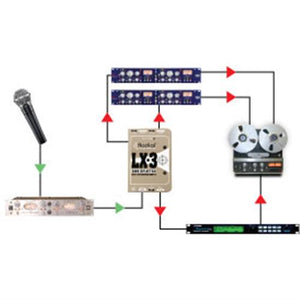

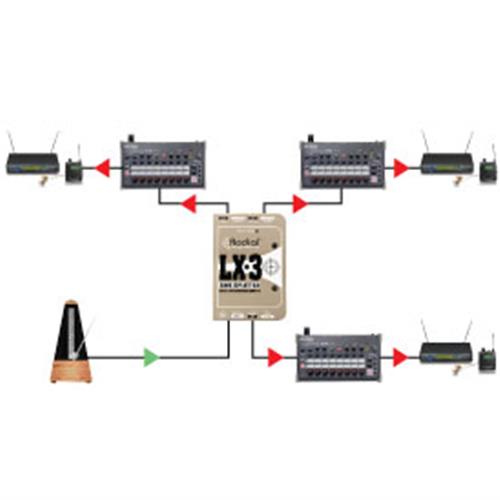

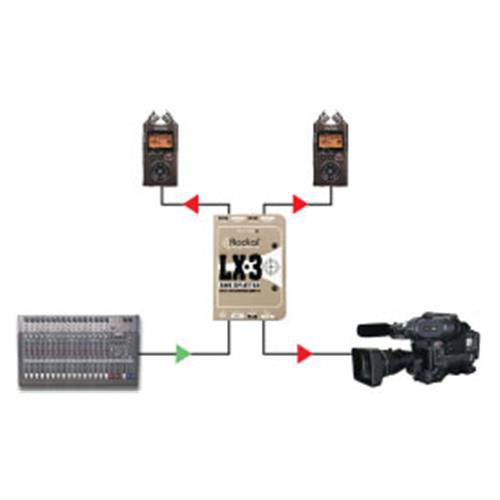

- Send one audio signal to three destinations simultaneously
- Jensen® transformer equipped for exceptional audio quality
- Eliminates hum and buzz caused by ground loops
- 14-gauge steel construction and military-grade circuit board for incredible durability
SPECIFICATIONS
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Jensen JT-123-FLPCH | |
| Number of channels: | 1 In, 3 Out | |
| Frequency response: | 20Hz - 20kHz +/-0.5dB | |
| Dynamic range: | 140dB | |
| Gain: | -1.5dBu | |
| Phase Deviation: | +0.6° @ 20Hz | |
| Input Impedance: | 712Ω | |
| Output Impedance: | 112Ω | |
| Common Mode Rejection Ratio: | 105dB @ 60Hz, 70dB @3kHz | |
| Noise Floor: | -120dBu | |
| Maximum Input: | +20dBu | |
| Features | ||
| Input pad, Ground lift | ||
| Input Connectors: | Combo XLR / 1/4" | |
| Output Connectors: | XLR iso and direct | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 84mm x 127mm x 48mm (3.3" x 5" x 2") | |
| Weight: | 0.7kg (1.5lbs) | |
| Shipping size (L x W x D): | 102 x 76 x 165mm (4" x 3" x 6.5") | |
| Shipping weight: | 0.87 kg (1.92 lbs) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
