  • RA-LX-3

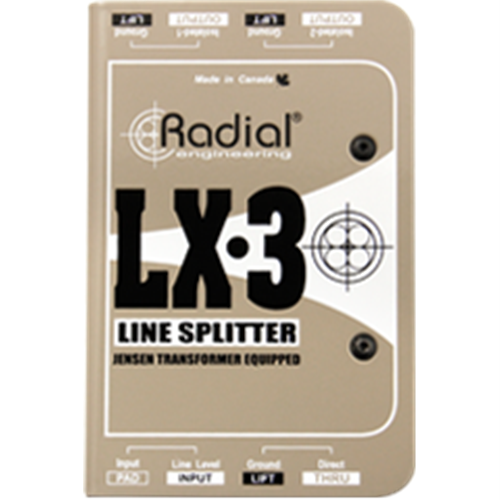

    Radial Engineering LX-3 Passive Line-Level Splitter

    5 In Stock

    The LX-3 is a passive line-level splitter that distributes a balanced audio signal to multiple destinations noiselessly. Premium Jensen isolation transformers for exceptional audio quality, and XLR/¼" combo inputs for easy connectivity. The LX-3 has three XLR outputs, two of which are transformer isolated, as well as an input pad to handle extra-hot signals. Both units have ground lifts on each XLR output to further reduce buzz and hum from ground loops, ensuring that the signal reaches each destination noise-free.

    FEATURES

    • Send one audio signal to three destinations simultaneously
    • Jensen® transformer equipped for exceptional audio quality
    • Eliminates hum and buzz caused by ground loops
    • 14-gauge steel construction and military-grade circuit board for incredible durability

    SPECIFICATIONS

    Audio circuit type: Passive, transformer based
    Transformer: Jensen JT-123-FLPCH
    Number of channels: 1 In, 3 Out
    Frequency response: 20Hz - 20kHz +/-0.5dB
    Dynamic range: 140dB
    Gain: -1.5dBu
    Phase Deviation: +0.6° @ 20Hz
    Input Impedance: 712Ω
    Output Impedance: 112Ω
    Common Mode Rejection Ratio: 105dB @ 60Hz, 70dB @3kHz
    Noise Floor: -120dBu
    Maximum Input: +20dBu
    Features
    Input pad, Ground lift

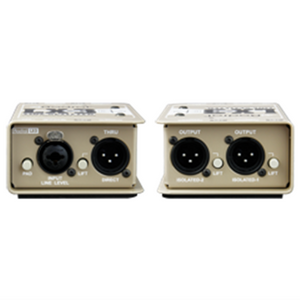

    Input Connectors: Combo XLR / 1/4"
    Output Connectors: XLR iso and direct
    General
    Construction: 14-gauge steel
    Size (L x W x D): 84mm x 127mm x 48mm (3.3" x 5" x 2")
    Weight: 0.7kg (1.5lbs)
    Shipping size (L x W x D): 102 x 76 x 165mm (4" x 3" x 6.5")
    Shipping weight: 0.87 kg (1.92 lbs)
    Power: Passive, no power required
    Conditions: For use in dry locations only between 5°C and 40°C
    Warranty: Radial 3-year, transferable
