RA-Cablink

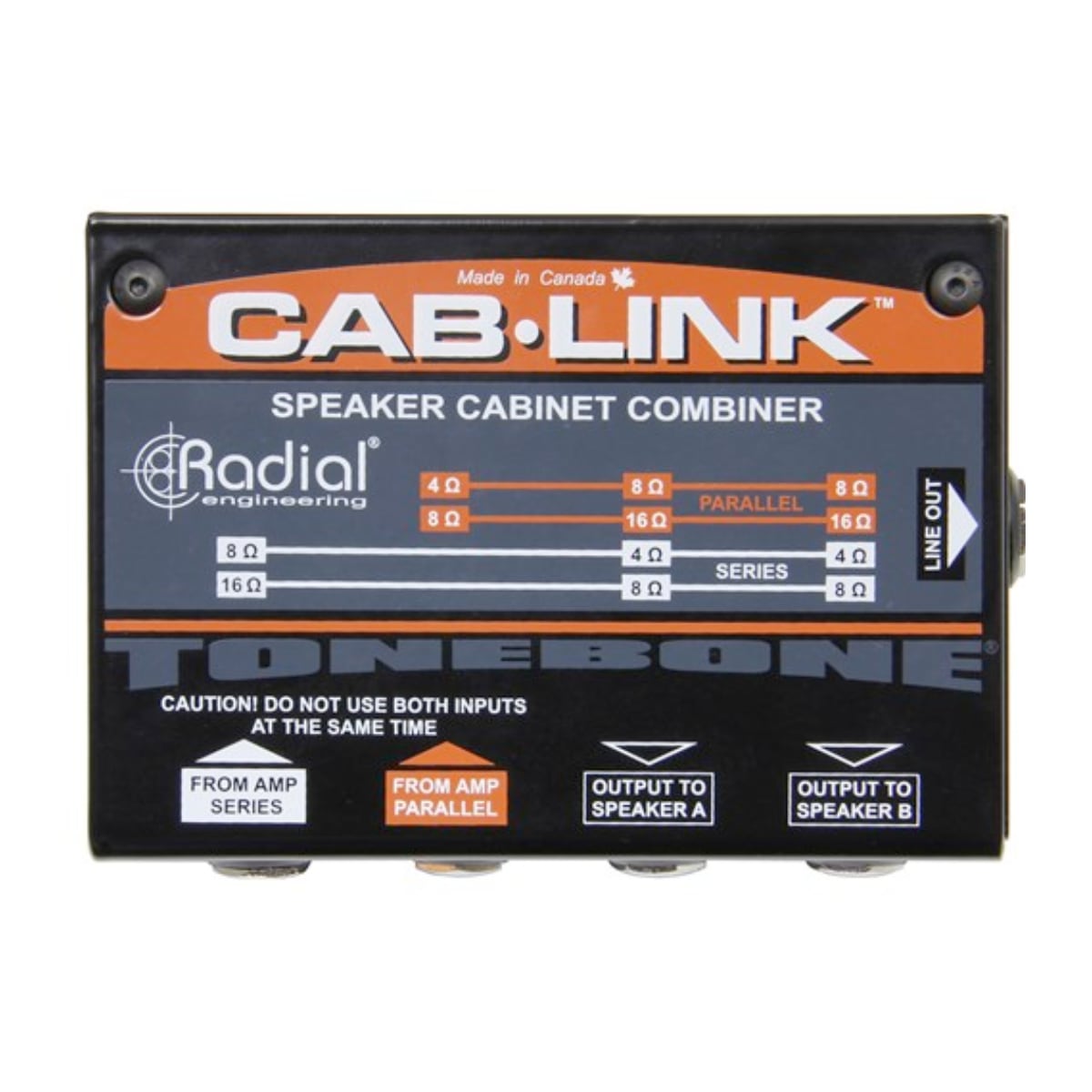

Radial Engineering Cab-Link Passive Spkr Cab merger for 2 guitar cabs
Type: Pedals & Effects
The Cab-Link provides a simple and compact solution for players who have a single speaker output on their amplifier but want to connect to two cabinets simultaneously.
FEATURES
-
Connect one amplifier output to two speaker cabinets
-
Can used in series or parallel configuration
-
Compact and completely passive, no need for power
-
Additional line output with level control
The Cab-Link is a completely passive audio merger that allows you to connect a single amp head with two speaker cabinets. It has a maximum power rating of 400 Watts and can be operated in series or parallel configuration depending on the impedance ratings of the amplifier and cabinets. 14 gauge steel construction and high-quality components ensure the Cab-Link will last for years, and a ¼” line output with variable level control provides additional flexibility for signal routing.
SPECIFICATIONS
| Audio circuit type: | 100% passive | |
| Maximum Power Rating: | 400W | |
| Features | ||
| Level Control | ||
| Input Connectors: | 1/4" Series or Parallel | |
| Output Connectors: | 1/4" Speaker A, Speaker B, Line Out | |
| Extras: | Trim Control for Line Out | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 4.63" x 3.25" x 1.38" (11.8cm x 8.3cm x 3.5cm) | |
| Weight: | 1.16lb (0.52kg) | |
| Shipping size (L x W x D): | 6.25" x 4.25" x 3" (15.9cm x 10.8xm x 7.6cm) | |
| Shipping weight: | 1.46lb (0.7kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
