$229.00$259.00
RA-CAT-MINI-RX

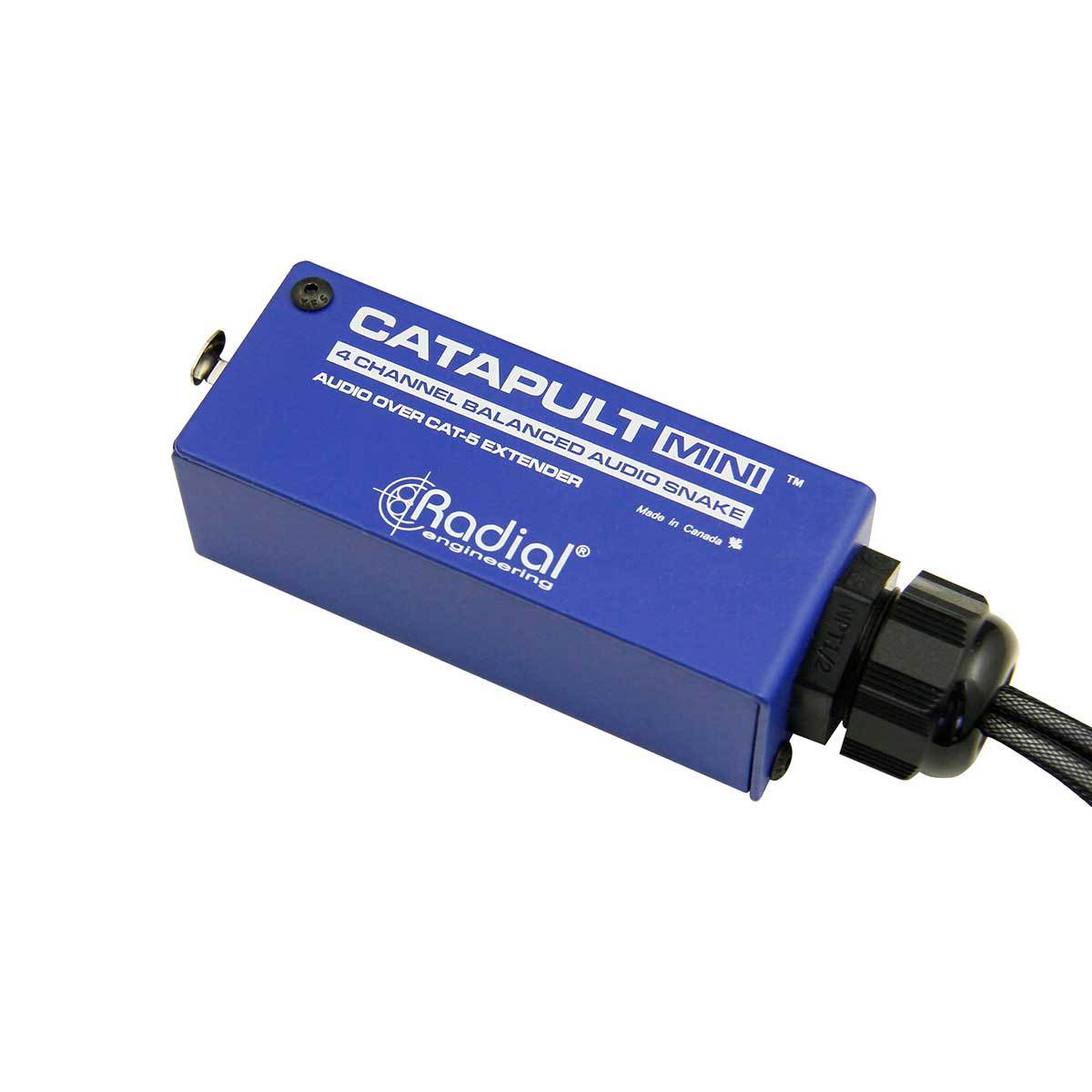

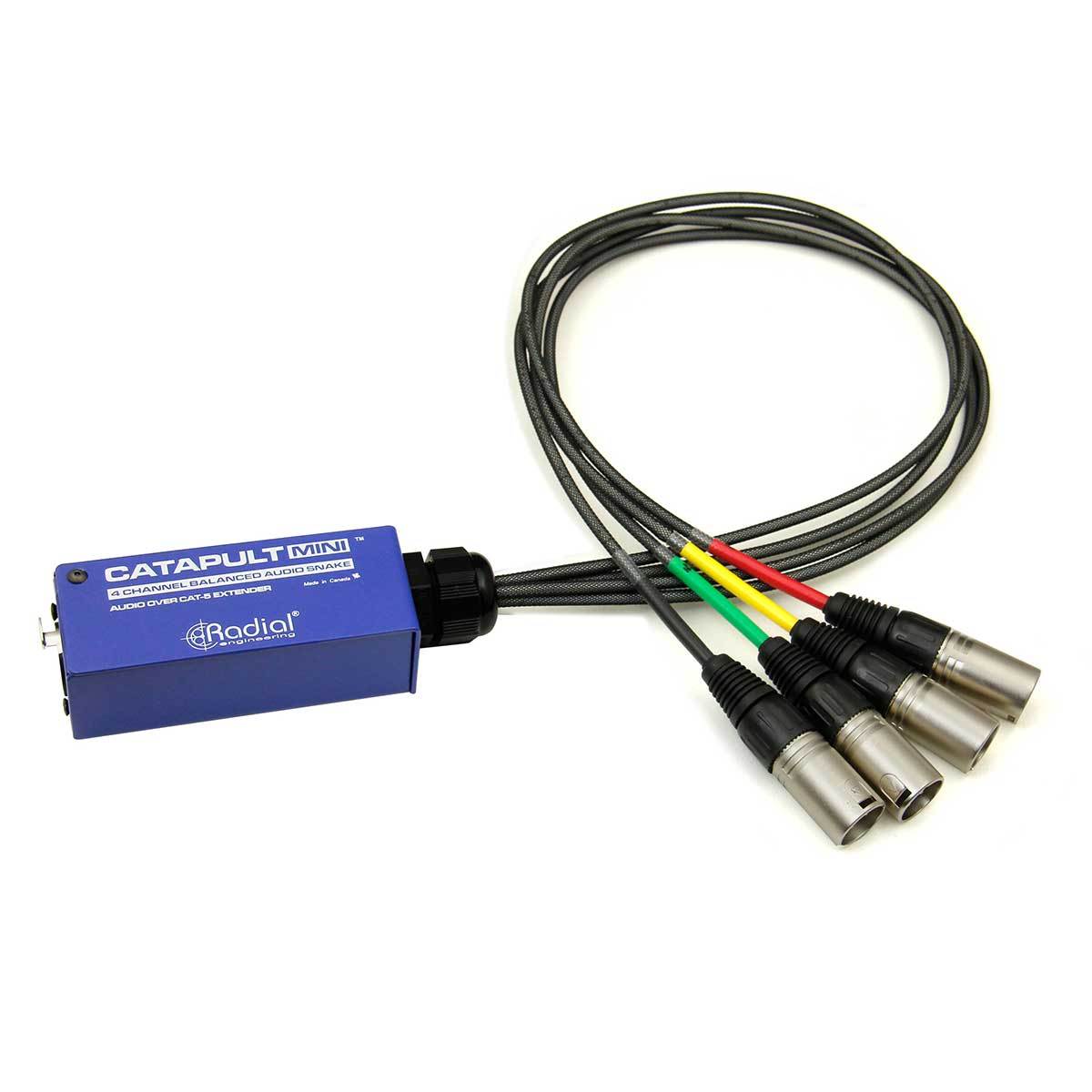

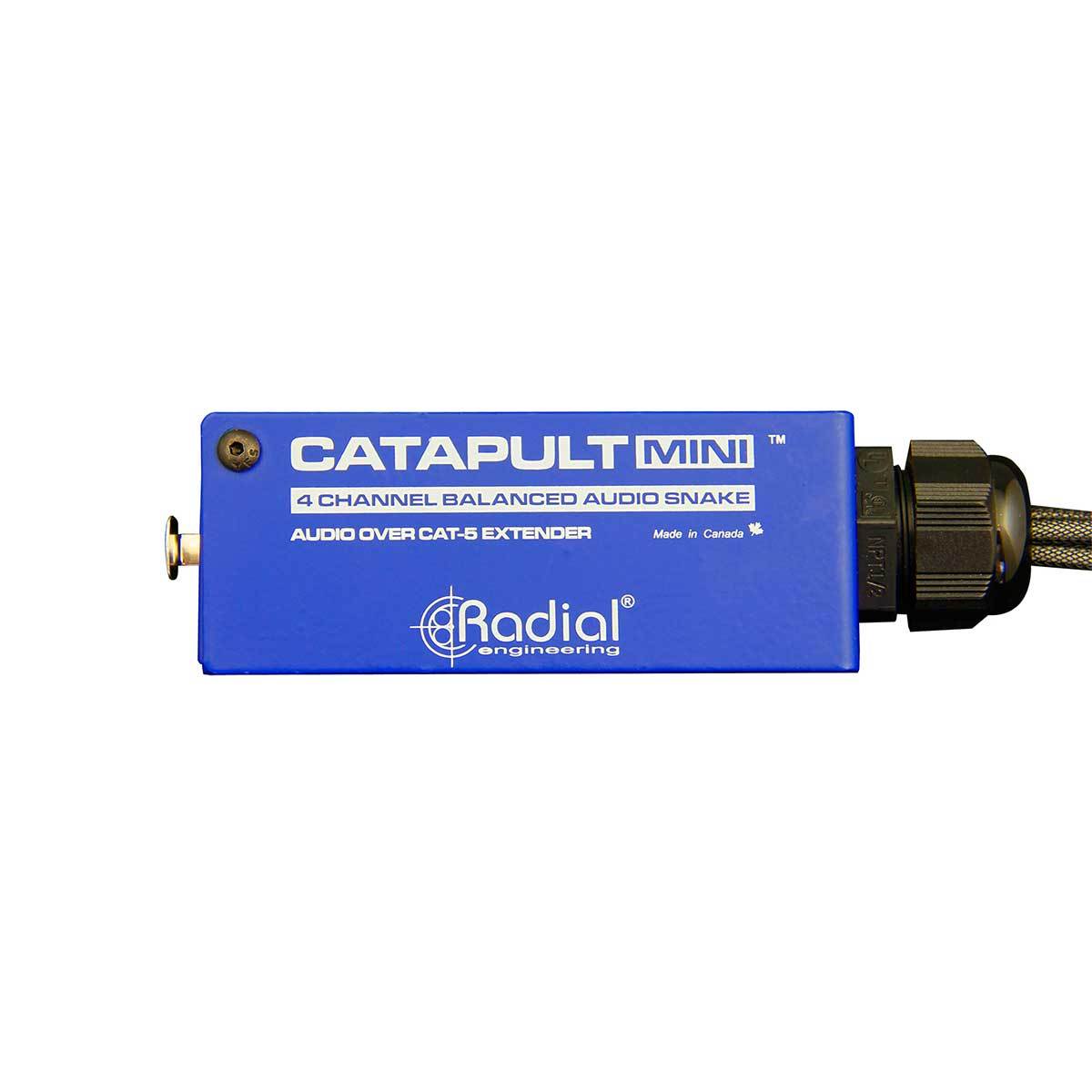

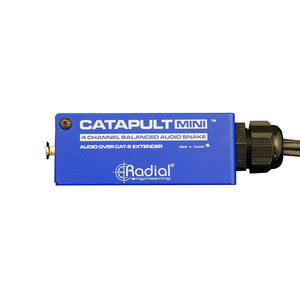

Radial Engineering Catapult MINI RX 4-Channel Cat 5 Audio Snake Receiver
The Radial Catapult Mini RX is a 4-channel compact audio snake that allows you to send analog audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable.
Type: Audio Snake
-
-
Product Features:
Send four channels of analog audio over a single Cat 5/6 cable
Works with a building’s existing cable infrastructure
Compact and lightweight, yet durable and rugged
Economical Cat 5/6 cable replaces bulky multichannel audio snakes
-
Technical Specifications:
Audio circuit type: Passive splitter Frequency response: 7Hz ~ 20KHz Dynamic range: 140dB Total harmonic distortion: 0.0005% @ 1kHz Common Mode Rejection Ratio: >103dB Maximum Input: +35dBu Features Ground lift Input Connectors: XLR, RJ45 Output Connectors: XLR, RJ45 General Construction: 16-gauge steel chassis & outer shell Size (L x W x D): 4.125" x 1.56" x 1.31" (105 x 40 x 33mm) Weight: 0.85lb (0.4kg) Shipping size (L x W x D): 6.25" x 4.25" x 3" (159 x 108 x 76mm) Shipping weight: 1.1lb (0.5kg) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable
