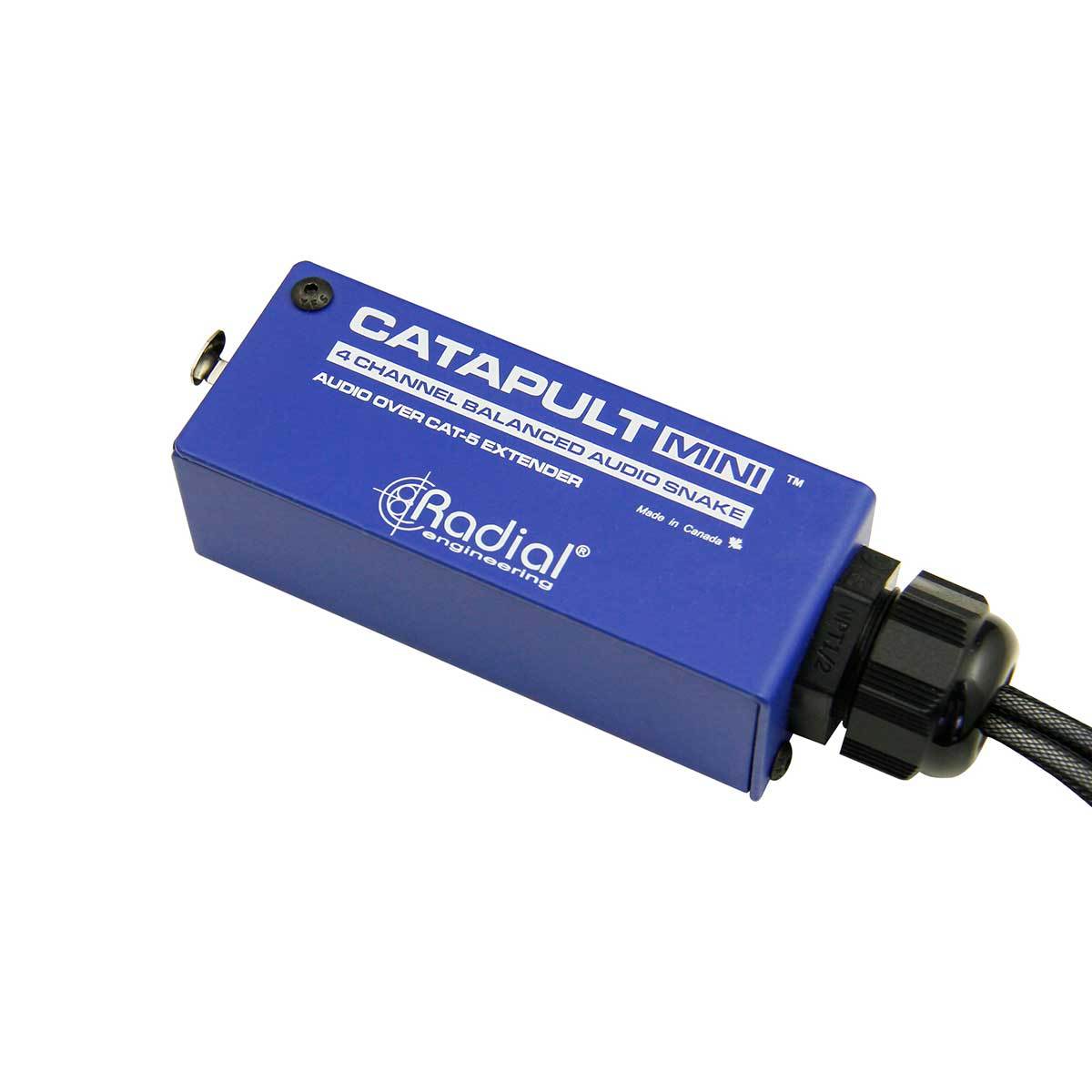

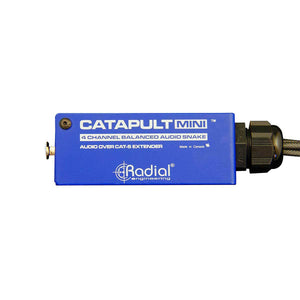

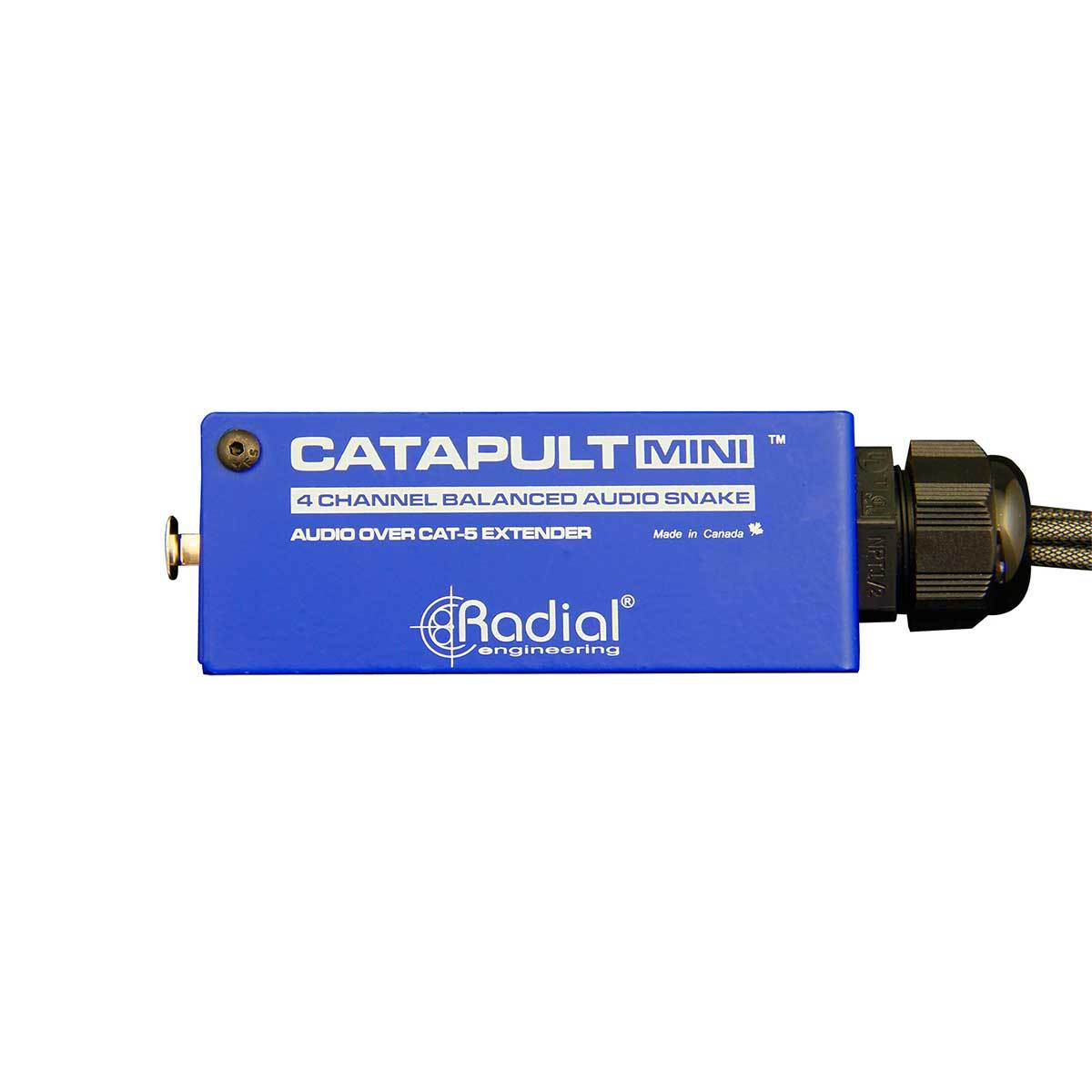

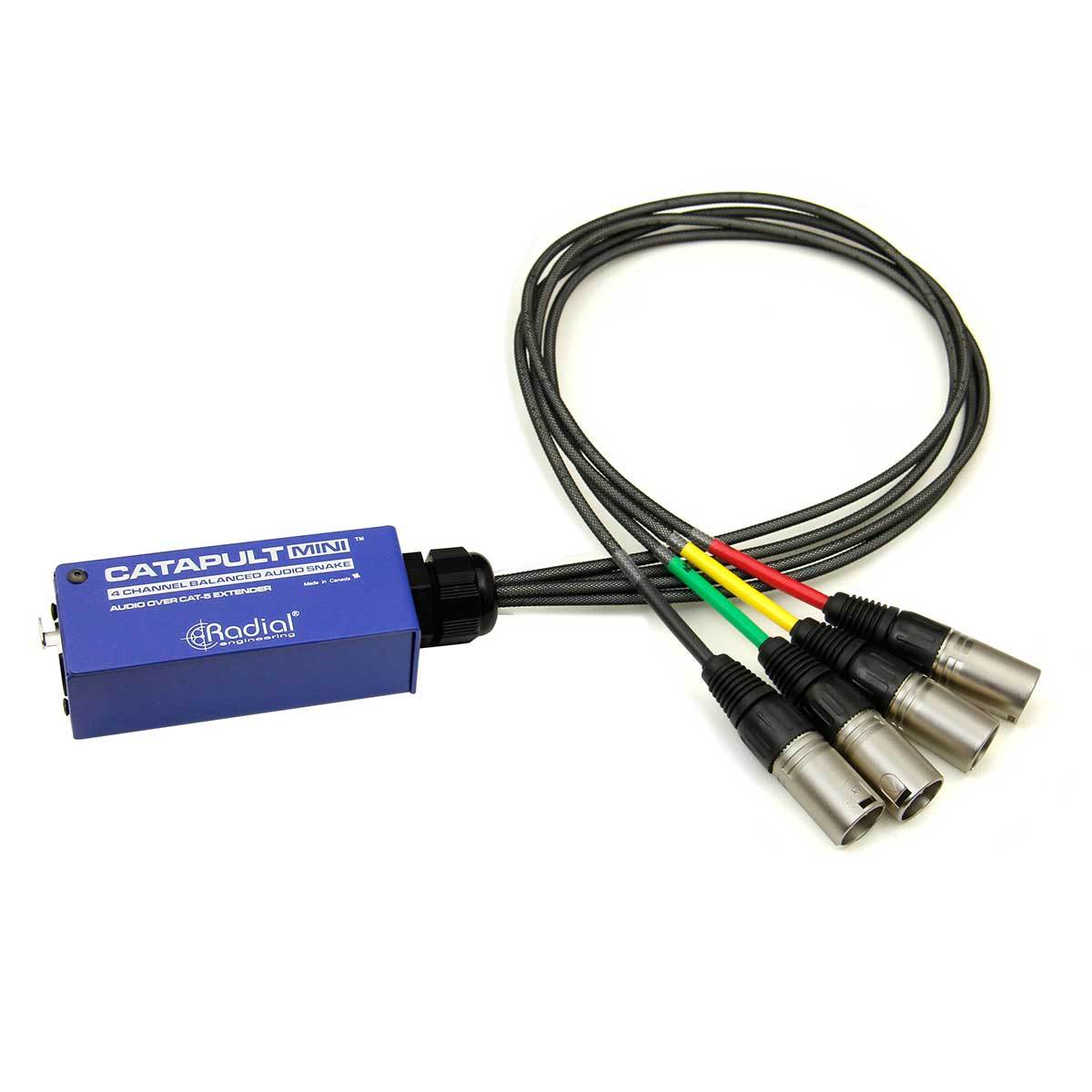

    Radial Engineering Catapult MINI RX 4-Channel Cat 5 Audio Snake Receiver

    5 In Stock

    The Radial Catapult Mini RX is a 4-channel compact audio snake that allows you to send analog audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable.

      • Product Features:

        Send four channels of analog audio over a single Cat 5/6 cable

        Works with a building’s existing cable infrastructure

        Compact and lightweight, yet durable and rugged

        Economical Cat 5/6 cable replaces bulky multichannel audio snakes

      • Technical Specifications:

        Audio circuit type: Passive splitter
        Frequency response: 7Hz ~ 20KHz
        Dynamic range: 140dB
        Total harmonic distortion: 0.0005% @ 1kHz
        Common Mode Rejection Ratio: >103dB
        Maximum Input: +35dBu
        Ground lift
        Input Connectors: XLR, RJ45
        Output Connectors: XLR, RJ45
        Construction: 16-gauge steel chassis & outer shell
        Size (L x W x D): 4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
        Weight: 0.85lb (0.4kg)
        Shipping size (L x W x D): 6.25" x 4.25" x 3" (159 x 108 x 76mm)
        Shipping weight: 1.1lb (0.5kg)
        Power: Passive, no power required
        Conditions: For use in dry locations only between 5°C and 40°C
        Warranty: Radial 3-year, transferable
