RA-JDX-48

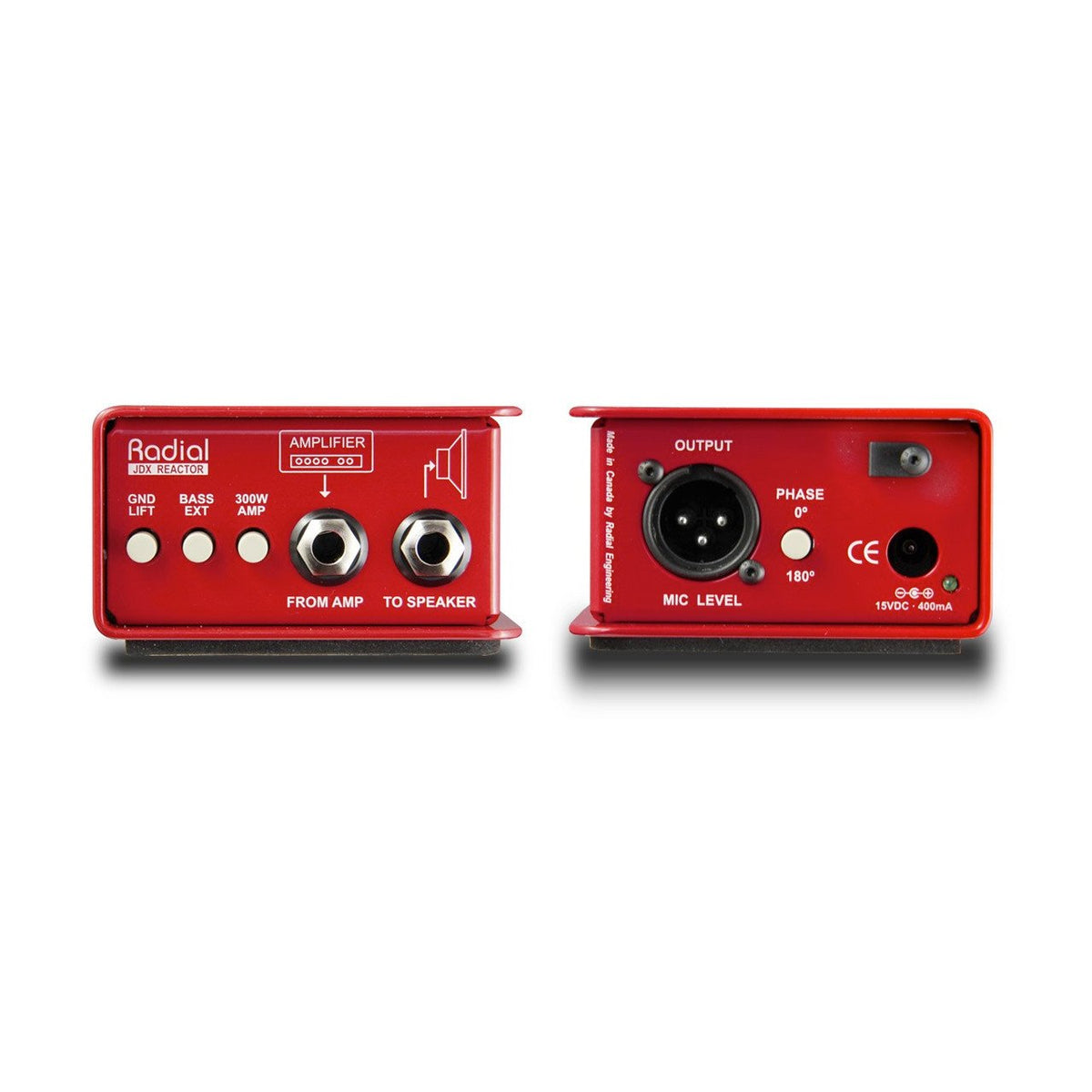

Radial Engineering JDX Reactor Guitar Amp Direct Box

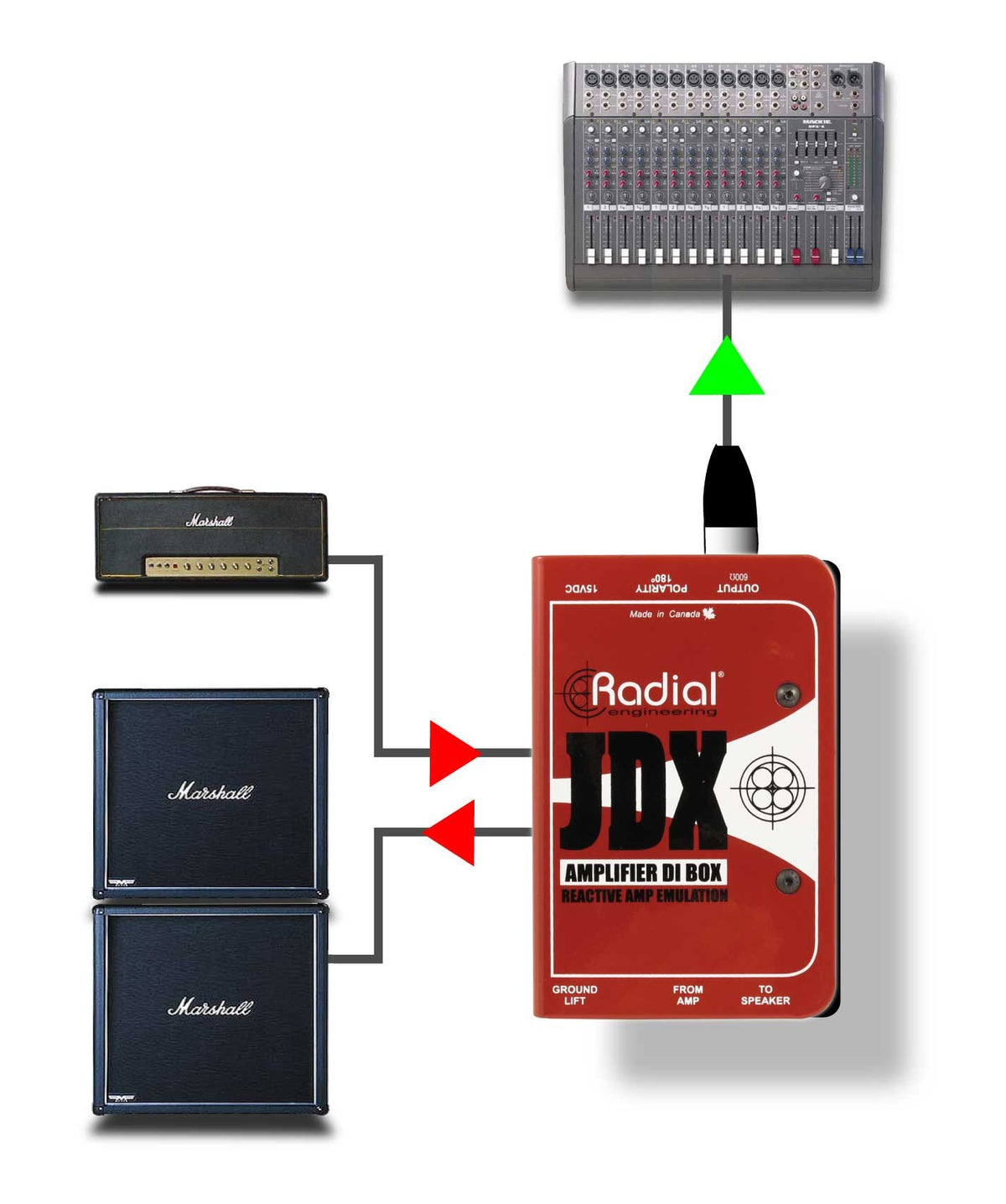

The Radial JDX Reactor™ is a direct box designed to capture the explosive dynamics and warmth of a on stage electric guitar amplifier. Just connect it between the guitar amp head and speaker cabinet. This will deliver a sound that is similar to a well placed microphone while eliminating the frustrating inconsistencies. Get a consistent sound gig after gig!
Type: DI Boxes
-
-
Radial Engineering JDX Reactor PRODUCT FEATURES:
- Capture the sound of both your guitar amp head and cabinet
- Delivers consistent tone show after show
- Works equally well on electric guitar and bass
- Also great for recording direct without a mic
-
Radial Engineering JDX Reactor TECHNICAL SPECIFICATIONS:
Specifications Specifications are subject to change without notice. Audio circuit type: Discrete Class-A - Transformer Isolated Frequency response: Shaped for Guitar Use Dynamic range: 114dB Noise floor: -100dBu below 0dBu Maximum input: 120W @ 8Ω Maximum output: +14dBu (clip level) Thermal input limit: +49 VAC (from amplifier) Total harmonic distortion: <0.015% (+10dBu input @ 1KHz) Inter-modulation distortion: 0.03% (+10dBu input @ 1KHz) Input impedance: 15kΩ Output impedance: 2kΩ (XLR out) Features 180° polarity reverse: Inverts signal polarity at the XLR output Ground lift: Disconnects ground at the input transformer Filter: Active speaker emulation band-pass filter XLR configuration: AES standard (pin-2 hot) General Power: +15VDC/400mA adapter Included Construction: 14 gauge steel chassis and outer shell Finish: Durable powder coat Size: Size: 5" x 6.25" x 2" (127 x 159 x 51mm) Weight: 2.80lbs (1.28 kg) Warranty: Radial 3-year, transferable
