Radial Engineering

RA-JDX-48

Radial JDX Reactor Guitar Amp Direct Box

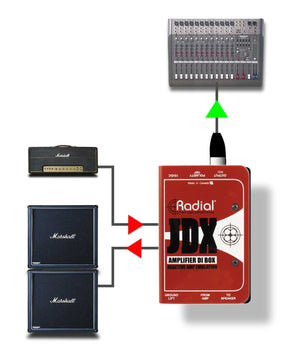

The Radial JDX Reactor™ is a direct box designed to capture the explosive dynamics and warmth of a on stage electric guitar amplifier.  Just connect it between the guitar amp head and speaker cabinet. This will deliver a sound that is similar to a well placed microphone while eliminating the frustrating inconsistencies. Get a consistent sound gig after gig!


    • Radial Engineering JDX Reactor PRODUCT FEATURES:

      • Capture the sound of both your guitar amp head and cabinet
      • Delivers consistent tone show after show
      • Works equally well on electric guitar and bass
      • Also great for recording direct without a mic
    • Radial Engineering JDX Reactor TECHNICAL SPECIFICATIONS:

      Specifications
      Specifications are subject to change without notice.
      Audio circuit type: Discrete Class-A - Transformer Isolated
      Frequency response: Shaped for Guitar Use
      Dynamic range: 114dB
      Noise floor: -100dBu below 0dBu
      Maximum input: 120W @ 8Ω
      Maximum output: +14dBu (clip level)
      Thermal input limit: +49 VAC (from amplifier)
      Total harmonic distortion: <0.015% (+10dBu input @ 1KHz)
      Inter-modulation distortion: 0.03% (+10dBu input @ 1KHz)
      Input impedance: 15kΩ
      Output impedance: 2kΩ (XLR out)
      Features
      180° polarity reverse: Inverts signal polarity at the XLR output
      Ground lift: Disconnects ground at the input transformer
      Filter: Active speaker emulation band-pass filter
      XLR configuration: AES standard (pin-2 hot)
      General
      Power: +15VDC/400mA adapter Included
      Construction: 14 gauge steel chassis and outer shell
      Finish: Durable powder coat
      Size: Size: 5" x 6.25" x 2" (127 x 159 x 51mm)
      Weight: 2.80lbs (1.28 kg)
      Warranty: Radial 3-year, transferable
