RA-Powerhouse

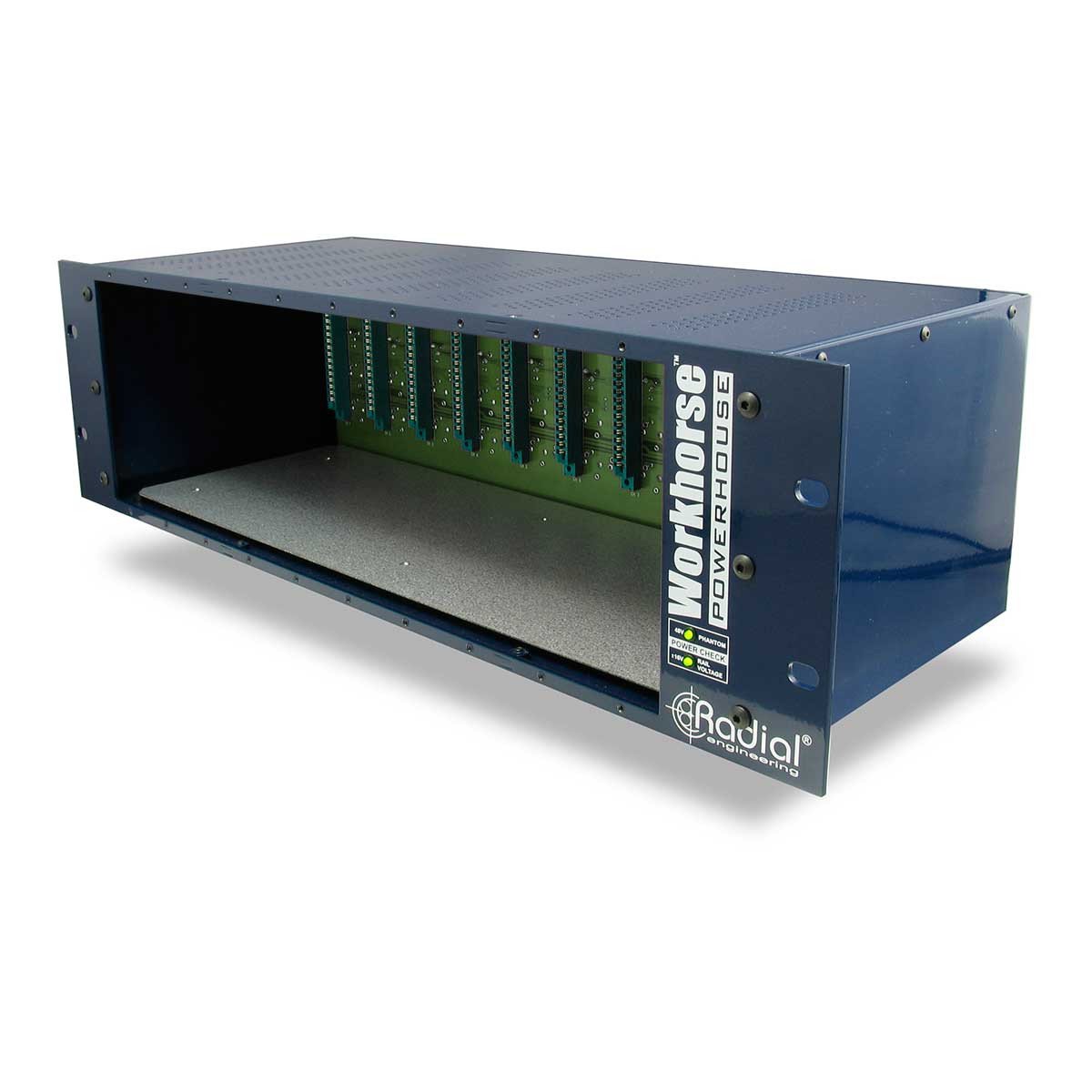

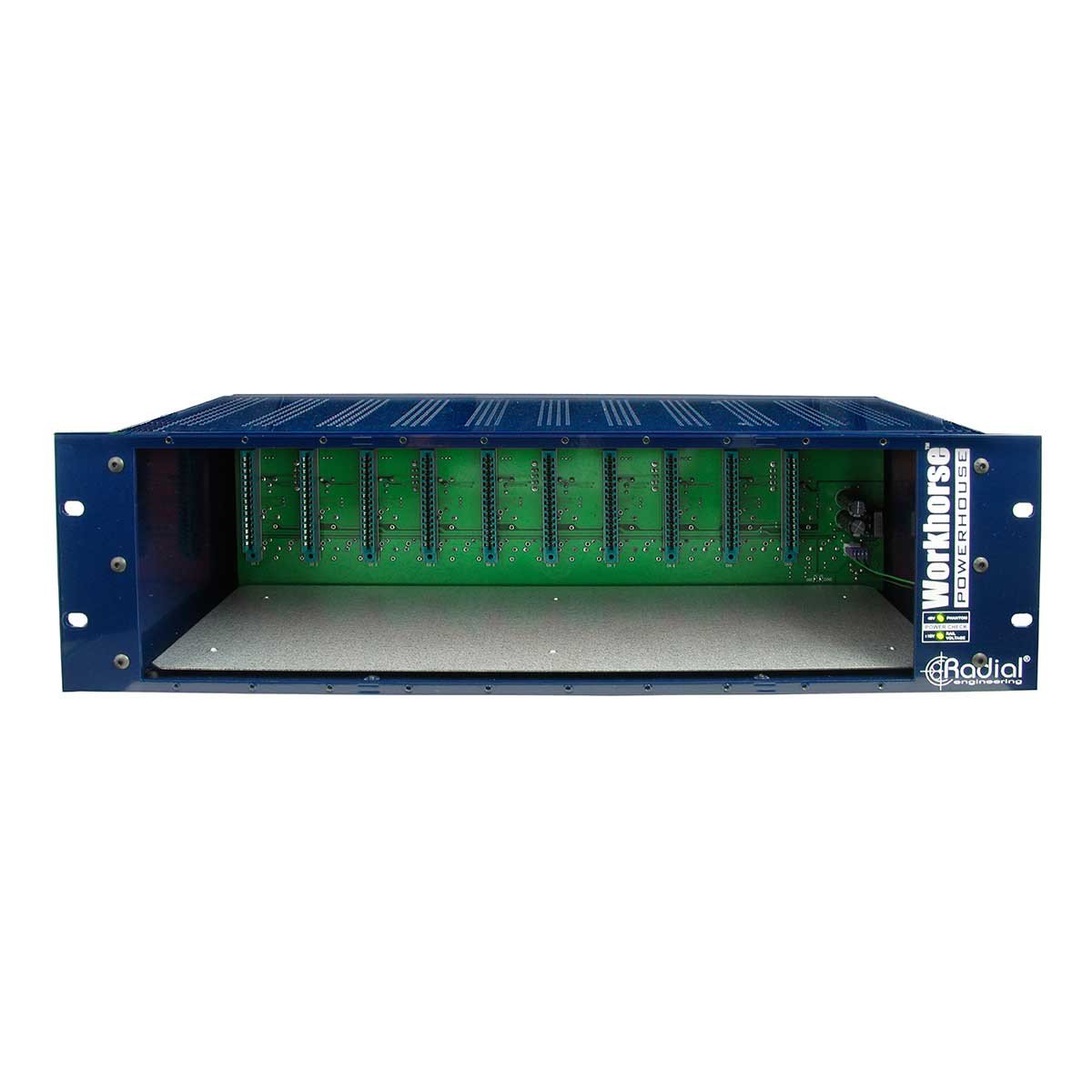

Radial Engineering Workhorse Powerhouse 10-Slot 500 Series Rack
If you have a lot of 500 series modules and you need to utilise your rack at maximum capacity the Radial Powerhouse is a safe bet. Plenty of power available to power them all. The Powerhouse is a 10 module 500 series power-rack designed to accommodate both older and newer 500 series modules and provide the studio with maximum density in a standard 19" rack frame.
Type: 500 Series - Chassis
-
-
RADIAL Powerhouse PRODUCT FEATURES:
- maximum density 10-slot design

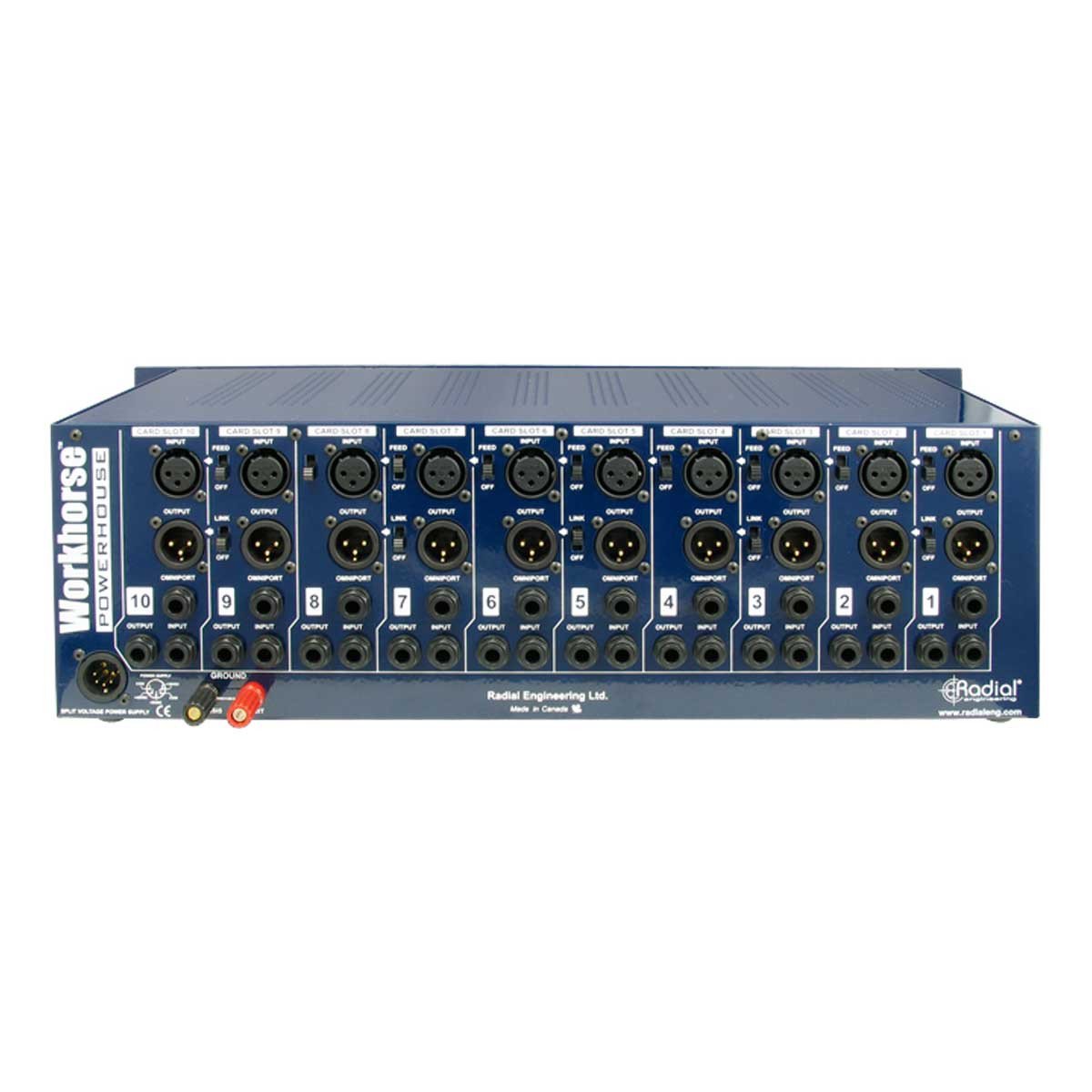

- Individual XLR & ¼" TRS i/o on each slot
- Easy-Glide module alignment tray
- Innovative feed and link functions
- will work with pretty much all 500 series modules.
-
RADIAL Powerhouse TECHNICAL SPECIFICATIONS:
Specifications Specifications are subject to change without notice. Circuit type: Connection buss from modules to connectors Format: 19" rack mount, 3 rack space Number of slots: 10 Input connectors: 10 balanced XLR male, 10 ¼" TRS Output connectors: 10 balanced XLR female, 10 ¼" TRS Compatibility: Adheres to the Whos-Doc and VPR Alliance Functions Omniport: Yes Feed switch: Yes Stereo link: Yes 48V phantom power: Yes on all channels Electrical Available current: 1600 milliamps Average current 160 mA per slot Card slot impedance: Module dependent Ground connections: Chassis & audio ground XLR pin wiring: AES standard: pin-1 ground, pin-2 (+), pin-3 (-) Power supply: External 100V - 240V AC with 48V Phantom PSU Connection: Locking 5 pin XLR female on cable Product Size (W x H x L) Coming soon Shipping Size (W x H x L) Coming soon Product Weight Coming soon Shipping Weight Coming soon
