Radial Engineering

RA-Powerhouse

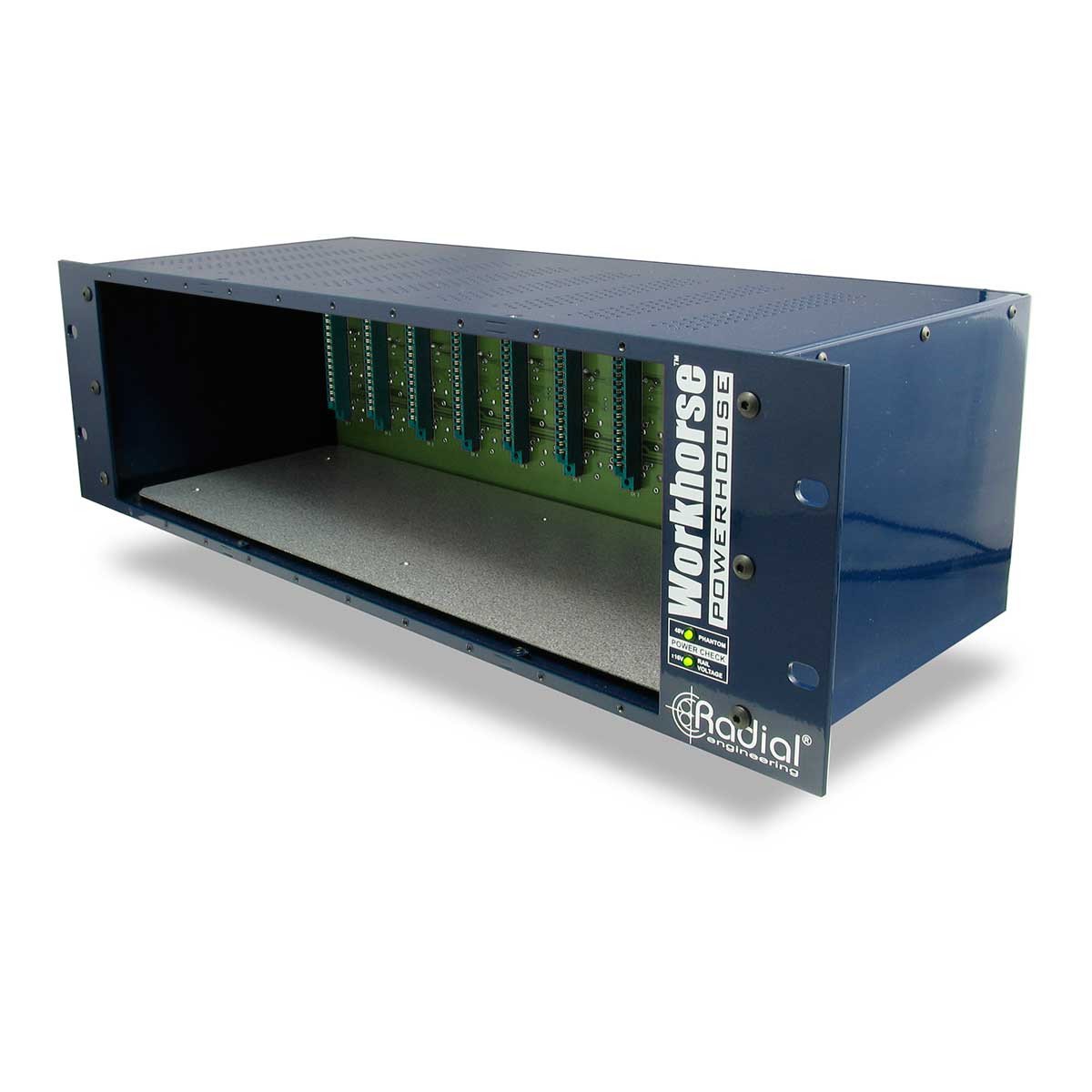

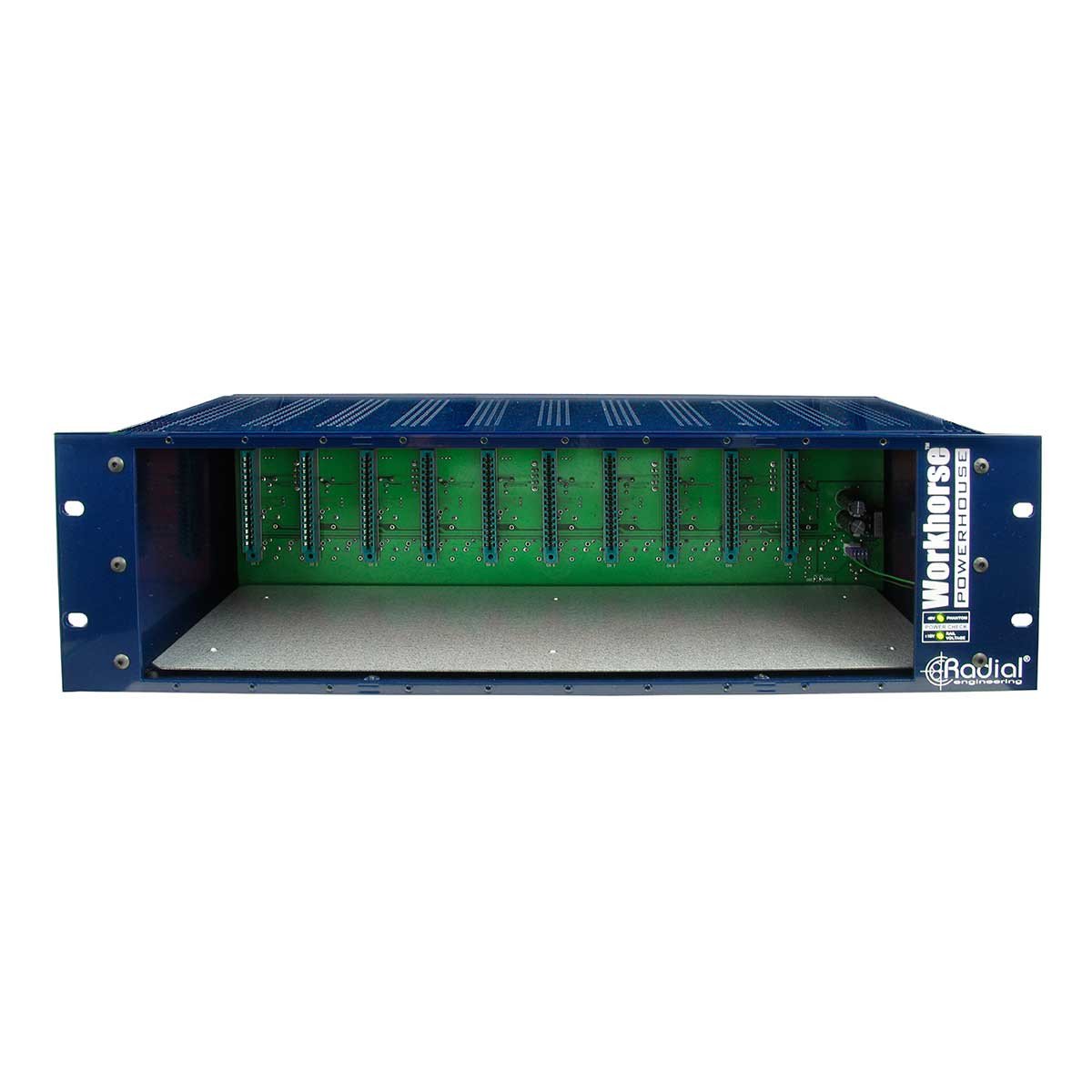

Radial Workhorse Powerhouse 10-Slot 500 Series Rack

If you have a lot of 500 series modules and you need to utilise your rack at maximum capacity the Radial Powerhouse is a safe bet. Plenty of power available to power them all.  The Powerhouse is a 10 module 500 series power-rack designed to accommodate both older and newer 500 series modules and provide the studio with maximum density in a standard 19" rack frame.


    • RADIAL Powerhouse PRODUCT FEATURES:

      • maximum density 10-slot design
      • Individual XLR & ¼" TRS i/o on each slot
      • Easy-Glide module alignment tray
      • Innovative feed and link functions
      • will work with pretty much all 500 series modules.
    • RADIAL Powerhouse TECHNICAL SPECIFICATIONS:

      Specifications
      Specifications are subject to change without notice.
      Circuit type: Connection buss from modules to connectors
      Format: 19" rack mount, 3 rack space
      Number of slots: 10

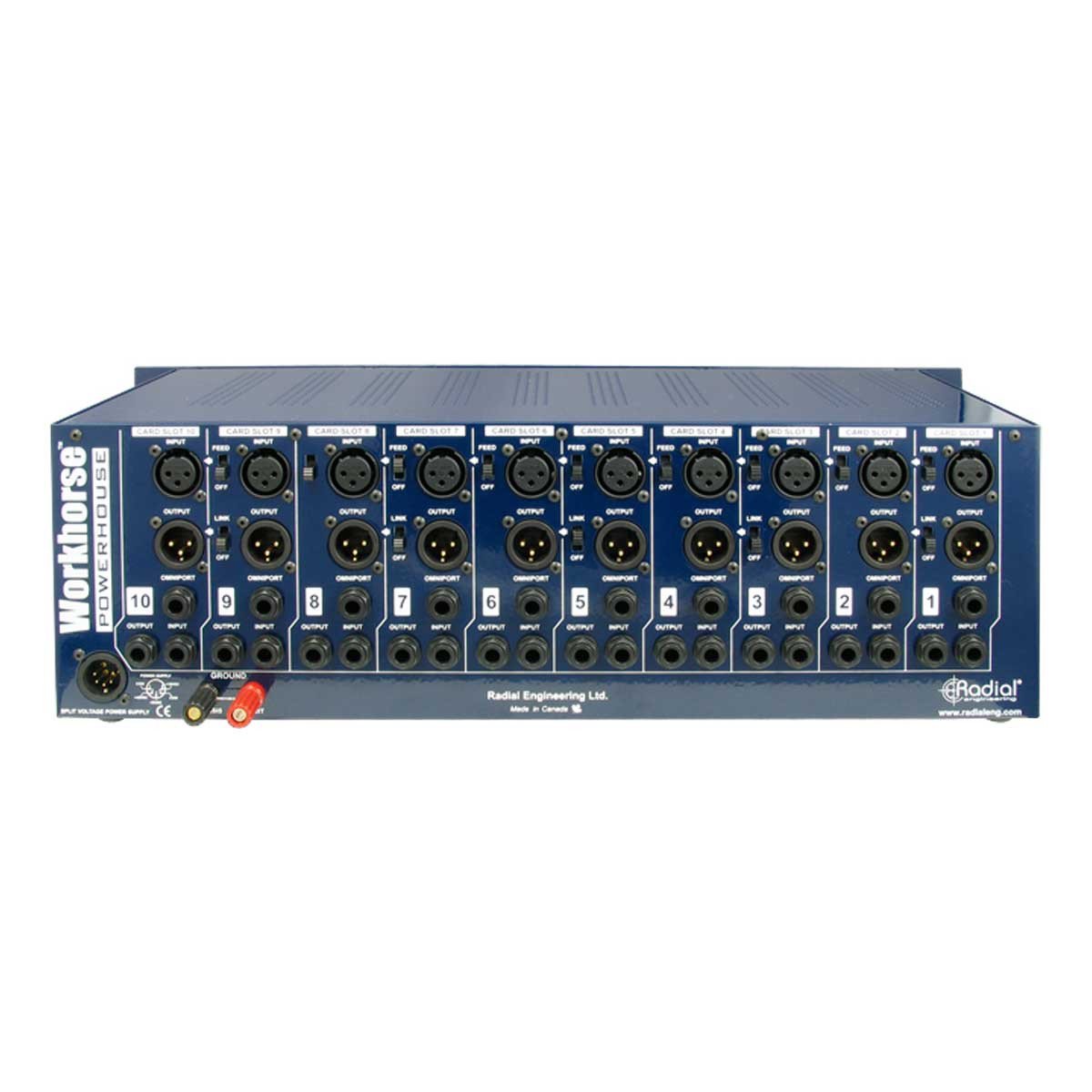

      Input connectors: 10 balanced XLR male, 10 ¼" TRS
      Output connectors: 10 balanced XLR female, 10 ¼" TRS
      Compatibility: Adheres to the Whos-Doc and VPR Alliance
      Functions
      Omniport: Yes
      Feed switch: Yes
      Stereo link: Yes
      48V phantom power: Yes on all channels
      Electrical
      Available current: 1600 milliamps
      Average current 160 mA per slot
      Card slot impedance: Module dependent
      Ground connections: Chassis & audio ground
      XLR pin wiring: AES standard: pin-1 ground, pin-2 (+), pin-3 (-)
      Power supply: External 100V - 240V AC with 48V Phantom
      PSU Connection: Locking 5 pin XLR female on cable
      Product Size (W x H x L) Coming soon
      Shipping Size (W x H x L) Coming soon
      Product Weight Coming soon
      Shipping Weight Coming soon
Need more info on the Radial Workhorse Powerhouse?>>>
