  • 3DIO-FS-ProII

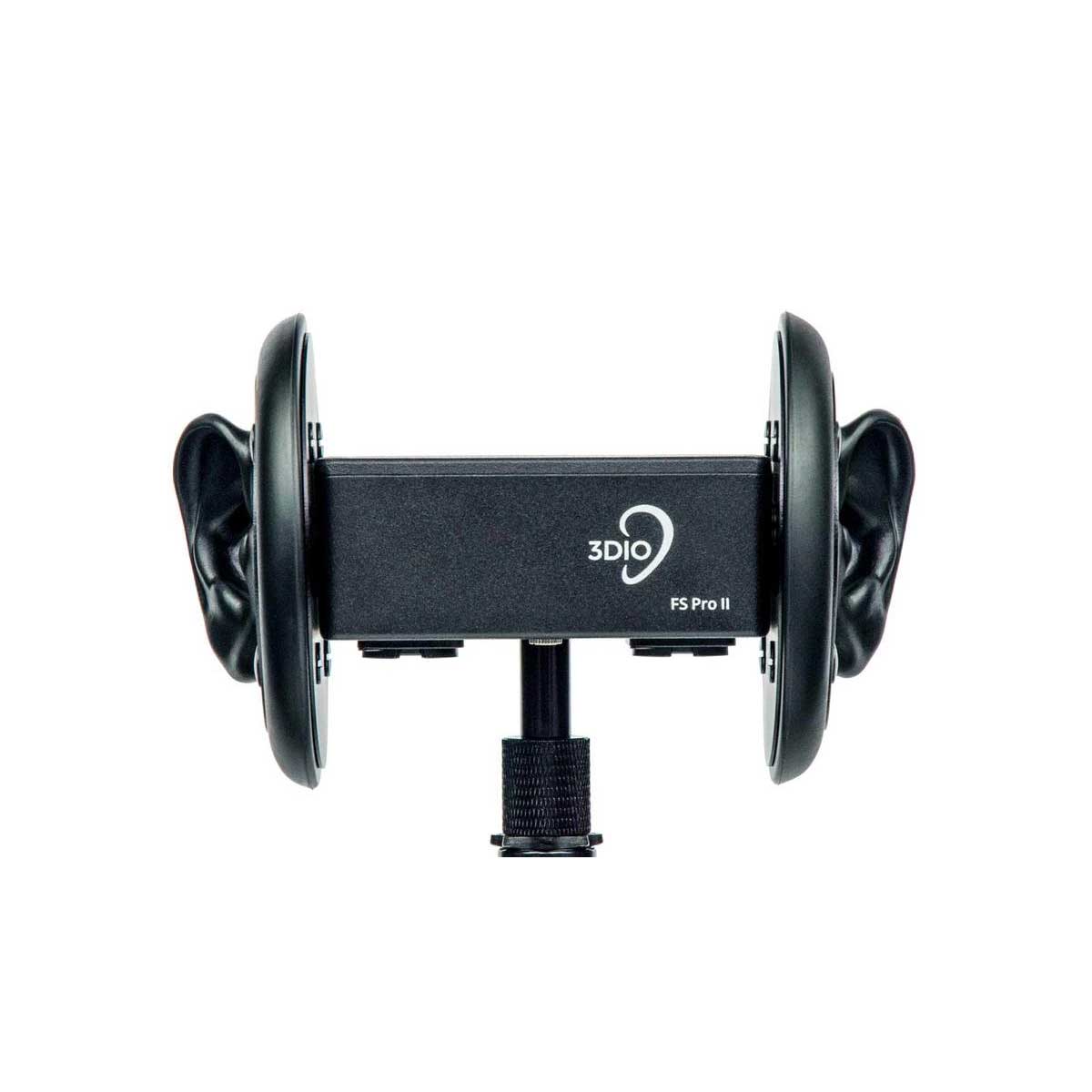

    3Dio Free Space Pro II Binaural Microphone

    1 In Stock


    XLR Phantom Power Output
    This upgraded version of the Free Space includes two balanced stereo XLR outputs that support phantom power. Power the Free Space Pro II using the 48V supply from a pre-amp, digital recorder or mixing console. The Free Space Pro II also includes an 1/8" stereo jack output that is powered by the internal 9V battery. The phantom power works regardless of the state of the 9V battery.

    The Free Space Pro II comes standard with a 5/8" microphone stand adapter installed in the base. The microphone stand adapter is removable. The base of the microphone has a 1/4"-20 female thread mounting hole that can be connected to a hot-shoe adapter or used to mount directly onto a tripod or grip handle.

    The Free Space Pro II contains a 9V alkaline battery within the chassis. The exchangeable battery is used to power the microphone capsules.

    Why does it sound so natural?
    The Free Space Pro II captures sound just like we hear it in the real world with our own ears. When you listen back over headphones or 3D capable speakers, you hear the sound as if you were there at the time of recording. The effect is so powerful because the Free Space Pro II design is based on 13+ years of research into binaural technology and human hearing.

    Microphone Capsules
    The Free Space Pro II uses matched DPA 4060 hi-sensitivity capsules.

    For more information, see the User Guide.

    For examples, see our Examples Page.

    What's Included
    Every Free Space microphone ships with an 8" long 3.5mm (1/8") stereo TRS M2M cable. All Free Space microphones include the silicone ears. No need to purchase the prosthetic ear accessory.


    Dimensions: 7.5" x 4.5" x 4.5" | 190mm x 110mm x 110mm (WxHxD)
    Weight: 1.66 lbs | 755g
    Output: 3.5mm (1/8") stereo jack (mic level output)
    Output: Two (2) 3-Pin XLR, Balanced Outputs

    Microphone Specifications
    Directional Pattern Omnidirectional
    Cartridge Type Pre-polarized condenser
    Frequency Range 20 Hz - 20 kHz
    Frequency range, ±2 dB Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
    Sensitivity, nominal, ±3 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) 71 dB(A)
    Total harmonic distortion (THD) < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
    Dynamic range Typ. 100 dB
    Max. SPL, peak before clipping 134 dB
    Output impedance 30 - 40 Ω
    Power supply (for full performance) Min. 5 V - max. 50 V. 48 V phantom power ±4 V for full performance
    Microphone diameter 5.4 mm (0.21 in)
    Temperature range -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH) Up to 90%
    Battery 9V Alkaline
