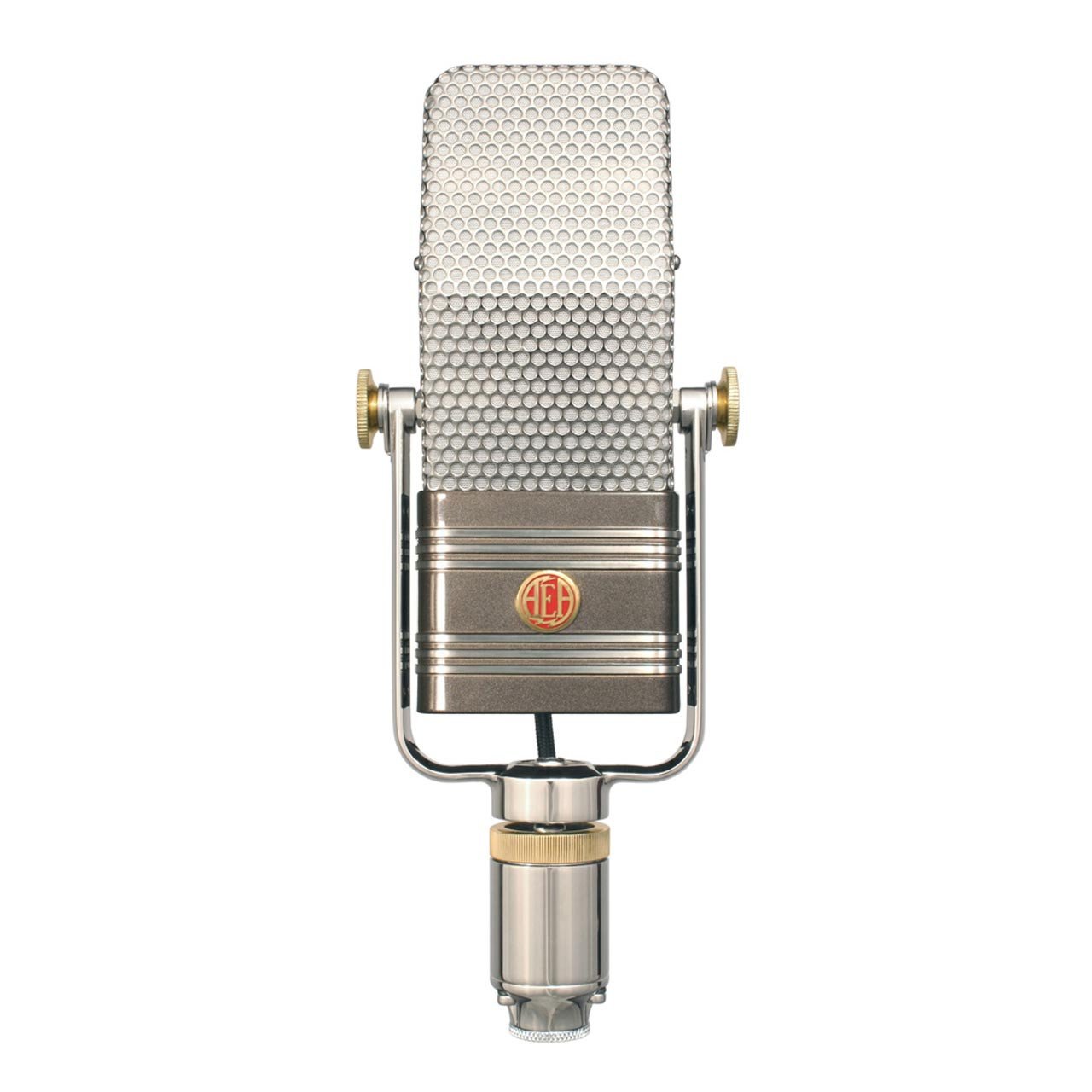

AEA A440 Phantom Powered Big Ribbon Microphone


With the release of the A440, AEA has synthesized more than 30 years of experience with high performance microphones.

The A440 is the quietest ribbon microphone ever produced. The A440 combines all the warmth and beauty of the classic 44, both sonically and visually, but with a signal so hot you'll have to try it to believe it. Like the rest of AEA's Big Ribbon Mics™, it needs little EQ, takes it nicely when you want it, and is free of resonances in audible range. The A440 is unlike any other product on the market today and no professional studio should be without one.


    • PRODUCT FEATURES:

      Like its cousin, the R44CX, The A440 is based on the RCA 44BX, but is phantom powered and uses a Lundahl transformer. It uses the same RCA NOS ribbon element, only 1.8 microns thick, which is from material originally manufactured for RCA. It also features the museum quality shell with a durable bronze investment cast yoke. An umber paint with red medallion transformer case and bright nickel finishes with polished brass accents is standard. The microphone package includes a three meter cloth covered Accusound Silver Triplex cable, a zippered canvas bag, and AEA 44VC case for proper shipping and storage.

      The A440, like the rest of AEA's maufactured product lines, is manufactured and assembled in the U.S.A.

      The A440 combines phantom power with the Big RibbonTM sound for the first time. With the release of the A440, AEA has synthesized more than 30 years of experience with high performance mics. The A440 has its own personality, but visually and sonically shares a close kinship with the R44. With a sensitivity of -32.5 dBV per Pascal (94 dB SPL) and an equivalent noise level to 6 dB SPL(A), it has a dynamic range as wide as any microphone on the market.

      The A440 shares all the pleasing characteristics of AEA's other Big RibbonTM microphones such as a fast transient response, and no unpleasant resonances. Combining this with active electronics results results in a strong, distinctive sound unlike any other microphone.

      The 44 remains a studio favorite 50+ years after RCA ceased production because it still sounds very good to both musicians and their audiences. Like its long ribbon siblings, it will sound good virtually anywhere you use it.
    • TECHNICAL SPECIFICATIONS:

      • Phantom powered Big RibbonTM microphone
      • JFET active electronics in the AEA TRP tradition
      • Exceptionally low equivalent noise level 6 dB(A)
      • Long ribbon sound in the 44 tradition
      • Authentic RCA New Old Stock ribbon material
      • Investment cast bronze yoke and machined brass parts, no zinc
      • Single-diaphragm with well-controlled, native figure-8 polar pattern
      • Consistent horizontal polar response, on and off axis
      • 90o null-plane helps reject difficult acoustics
      • High SPL capability: 132.5 dB with a load of 1 k Ohm
      • Hand built to order
      • Computer matched to production reference standards
      • Frequency Response: 20 Hz to 20 kHz
      • Maximum SPL: 132.5 dB SPL with a 1 kΩ load for < 1% THD
      • Output Sensitivity: 30 mV (-33.5 dBV) /Pa 1 Pa = 94 dB SPL
      • Equivalent Noise Level: 6 dB SPL, A-weighted per IEC 651
      • Dynamic Range: 126.5 dB
      • Signal to Noise Ratio: 88 dB (A) (94 dB SPL minus equivalent noise)
      • Output Impedance: 92 Ω broadband
      • Recommended Load: 1 kΩ or greater
      • Powering: P48 phantom power, 9 mA
      • Polarity: Pin 2 high for positive pressure on the front of the microphone.
      • Connector: XLR-3M wired to a 3 meter captive cable

      Directional Pattern:
      • Polar Pattern: Native Figure-8 (Bi-Directional)
      • Horizontal: Level changes with angle, frequency response is consis-
      tent, null at right angles to major axis 90° / 270°
      • Vertical: Level changes with angle, reduced HF response above and
      below 0° / 180° axis, null at right angles to major axis 90° / 270°
      Transducer element
      • Ribbon Thickness: 1.8 μ (0.0000018 m) of pure aluminum
      • Ribbon Width: 4.7 mm Ribbon Length: 59.7 mm
