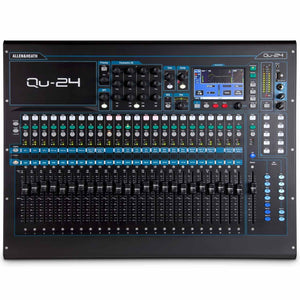

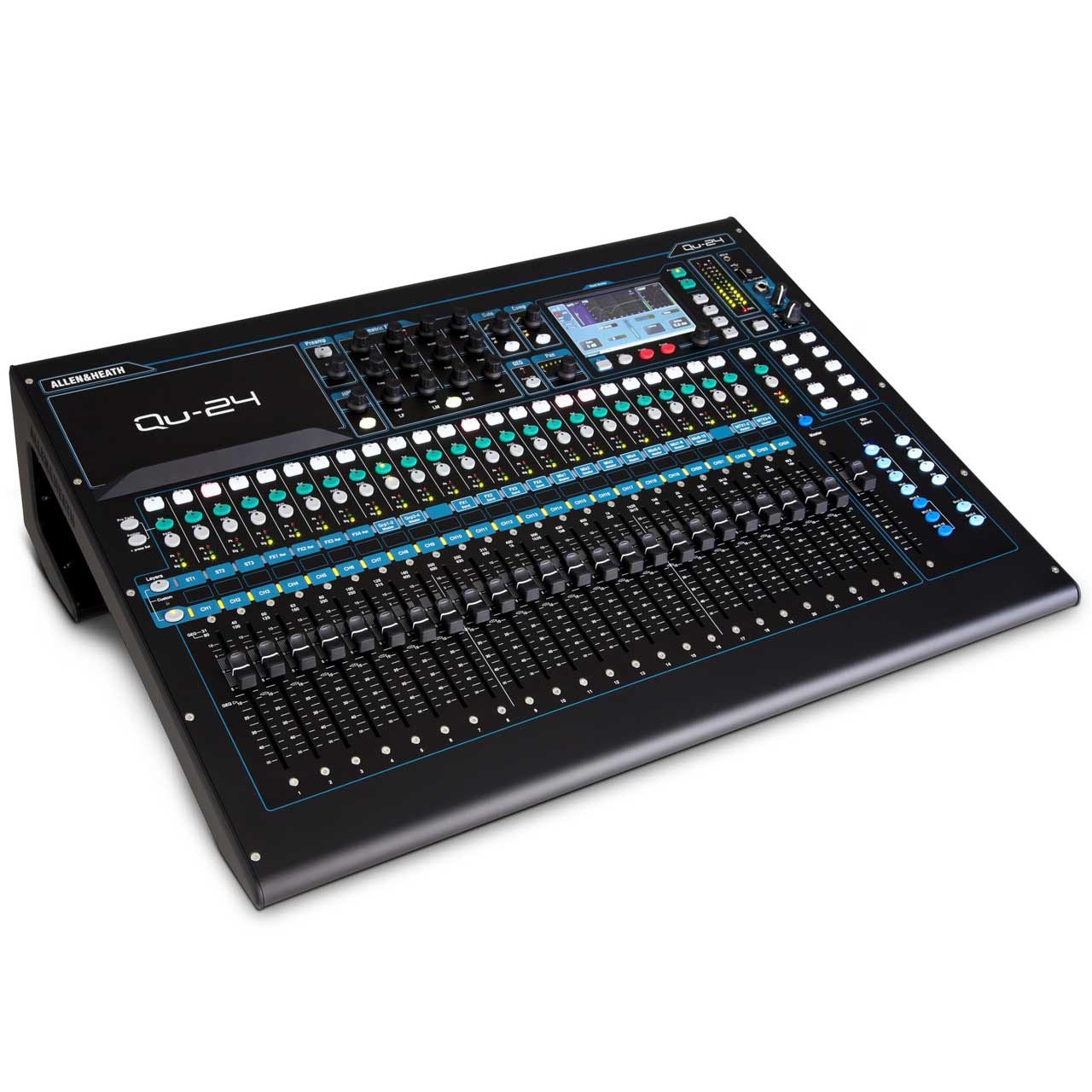

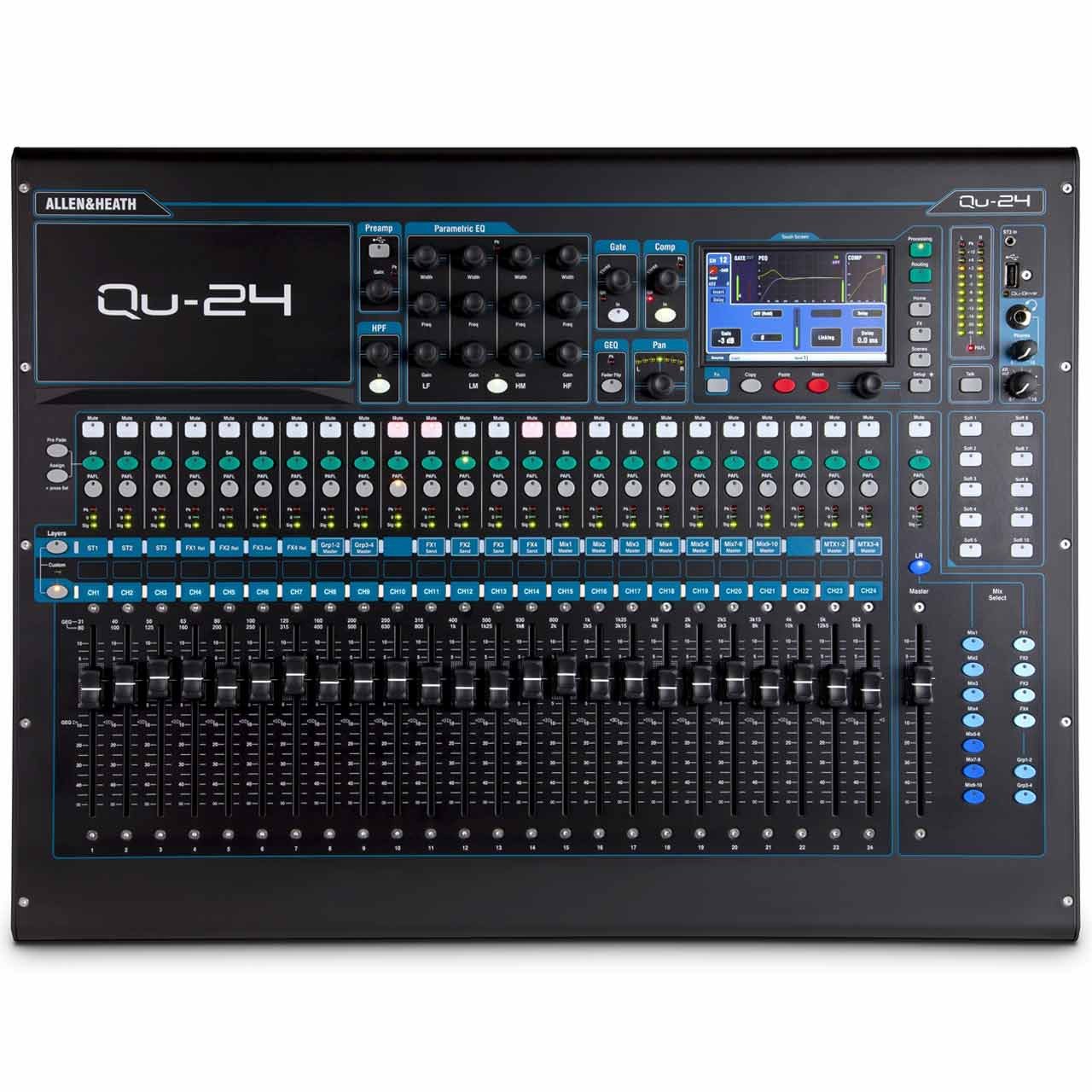

Allen & Heath QU-24 Digital Mixer


The Allen & Heath QU-24 Digital Mixer features a responsive touchscreen, 25 motor faders and acclaimed AnalogiQ recallable preamps. The Qu-24 combines exceptional ease of use with class-leading audio performance.


      • QU-24 PRODUCT FEATURES:

        30 IN / 24 OUT DIGITAL MIXER

        “The Qu-24 looks set to become a favourite
        small venue live console.”

        9/10 Music Tech Magazine

      • QU-24 TECHNICAL SPECIFICATIONS:

        • 24 Mic / Line Inputs (TRS + XLR)
        • 25 Motor Faders
        • 3 Stereo Inputs (TRS)
        • 4 Stereo FX Returns
        • 20 Mix Outputs (XLR)
        • 2 Stereo Groups
        • 2 Stereo Matrix Outs
        • 4 Mute Groups
        • 4 DCA Groups
        • 4 FX Engines
        • 4 FX Sends / Returns
        • 10 Soft Keys
        • USB Audio Streaming
        • DAW MIDI Control
        • AES Digital Out
        • Recallable AnaLOGIQTM Preamps
        • Qu-Drive direct Multitrack Recording / Playback on USB drives
        • 800×480 Touchscreen
        • iLive FX Library
        • dSNAKETM Remote Audio Port
        • Compatible with ME Personal Mixing System
        • Qu-Pad iPad App
        • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
        • Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
        • Built-in Signal Generator
        • RTA with Peak Band indication

        ACCESSORIES

        • AR2412 – 24 inputs, 12 outputs AudioRack with dSNAKETM connection and expansion port for personal monitoring.
        • AR84 – 8 inputs, 4 outputs AudioRack with dSNAKETM connection.
        • AH7000 – 80m drum of Neutrik EtherFlex Cat5 with locking connectors.
        • AH8721 – 120m drum of Klotz Cat5 with locking connectors.
        • LEDLamp – variable brightness 18” gooseneck lamp.
Need more info on the QU-24? Click HERE for the official Allen & Heath product listing >>>
