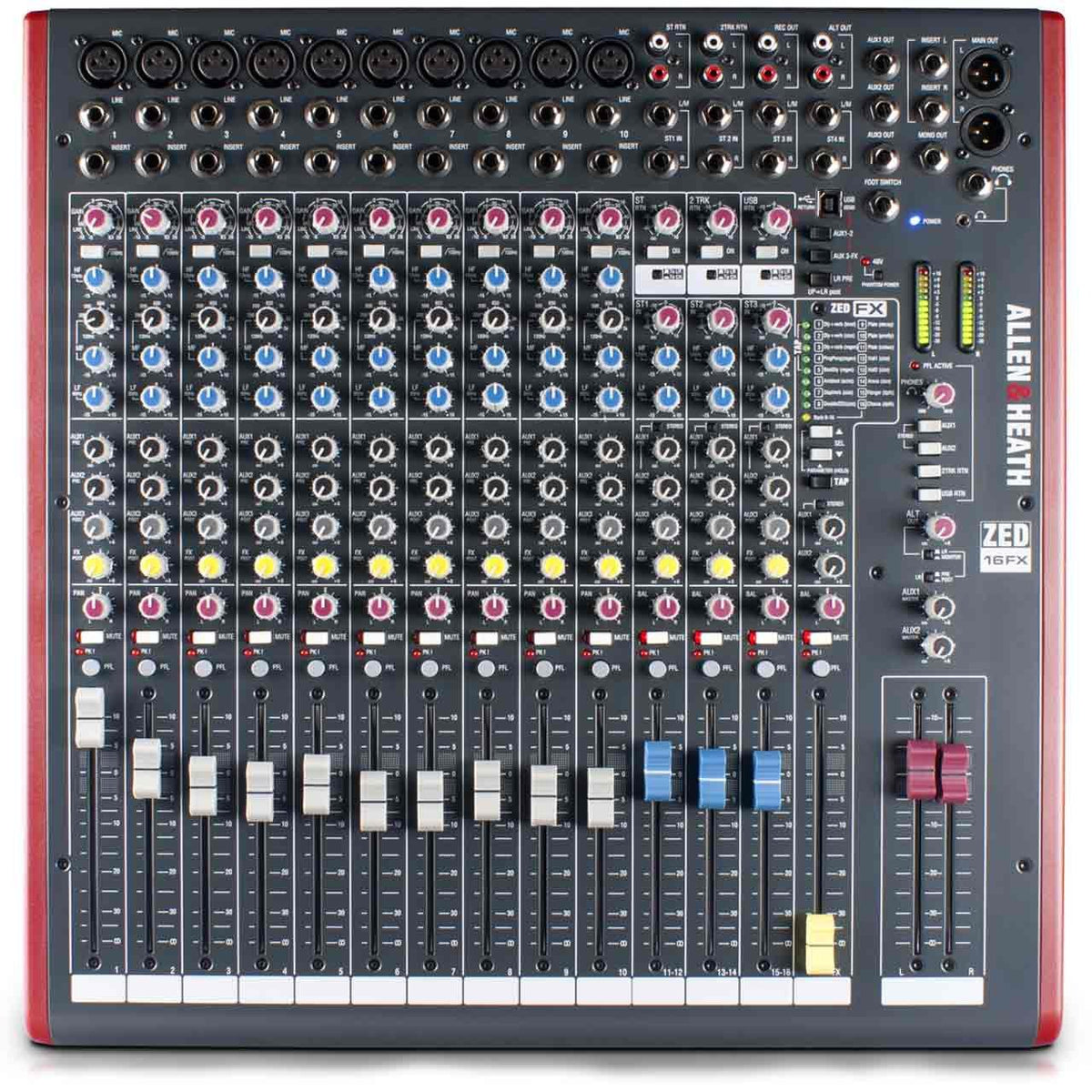

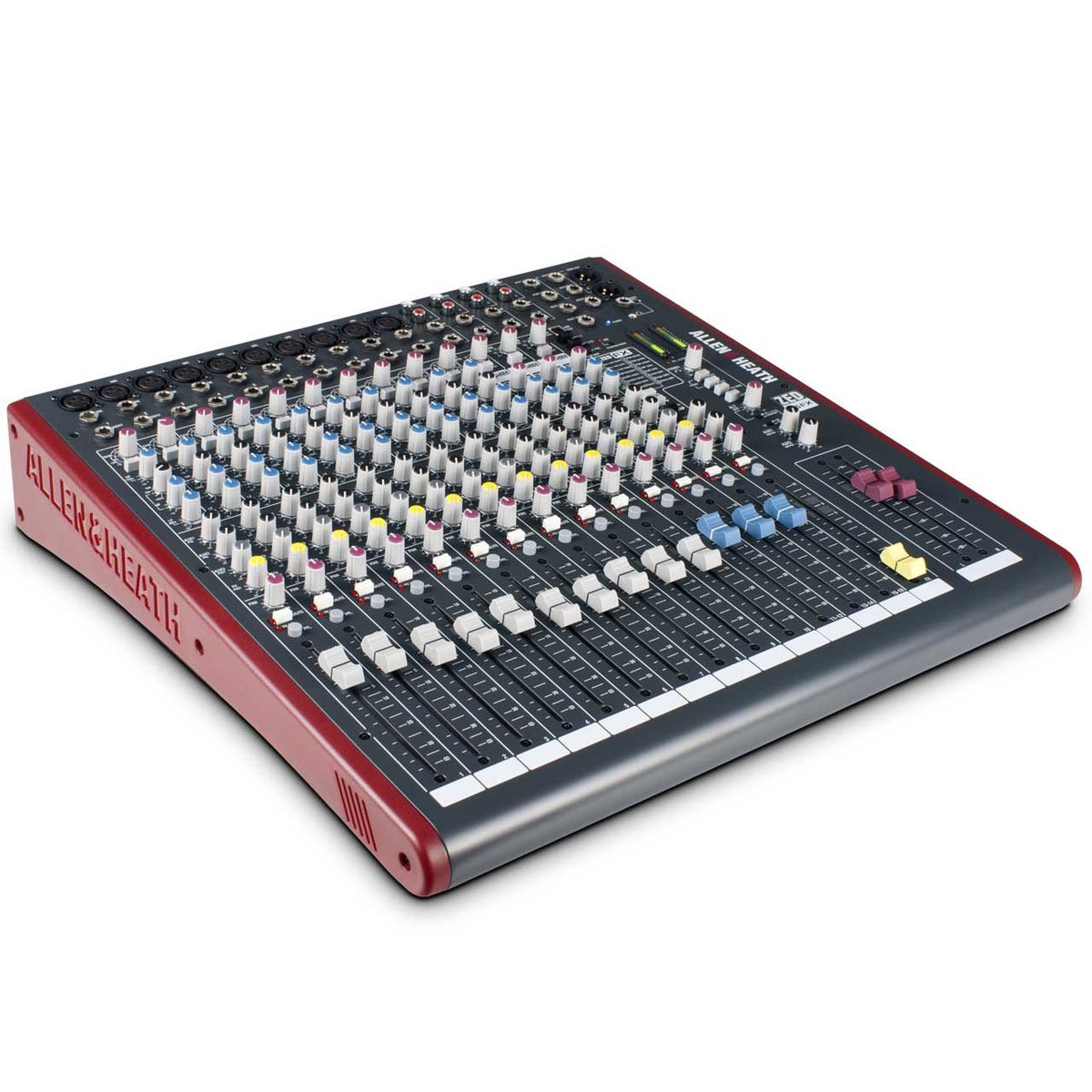

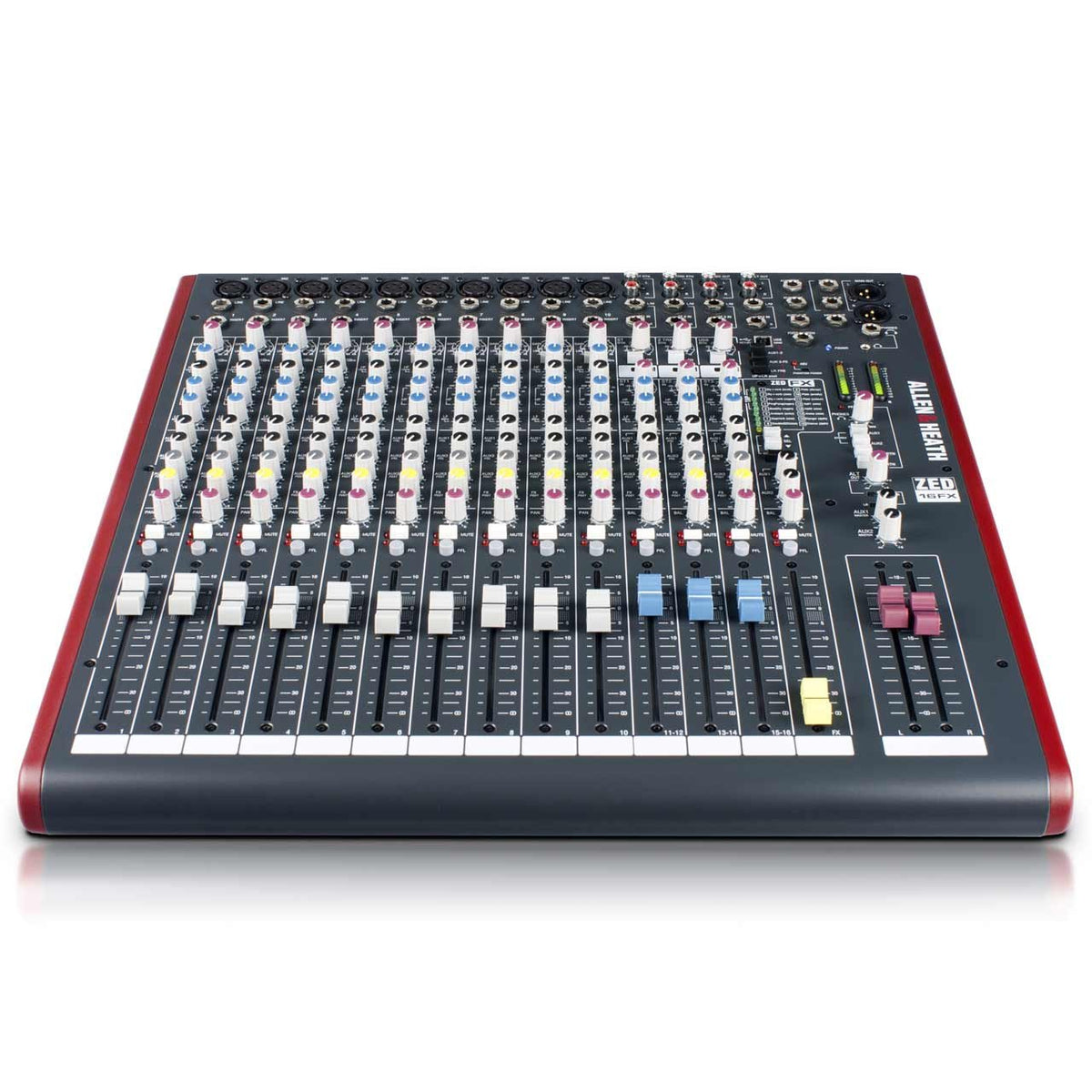

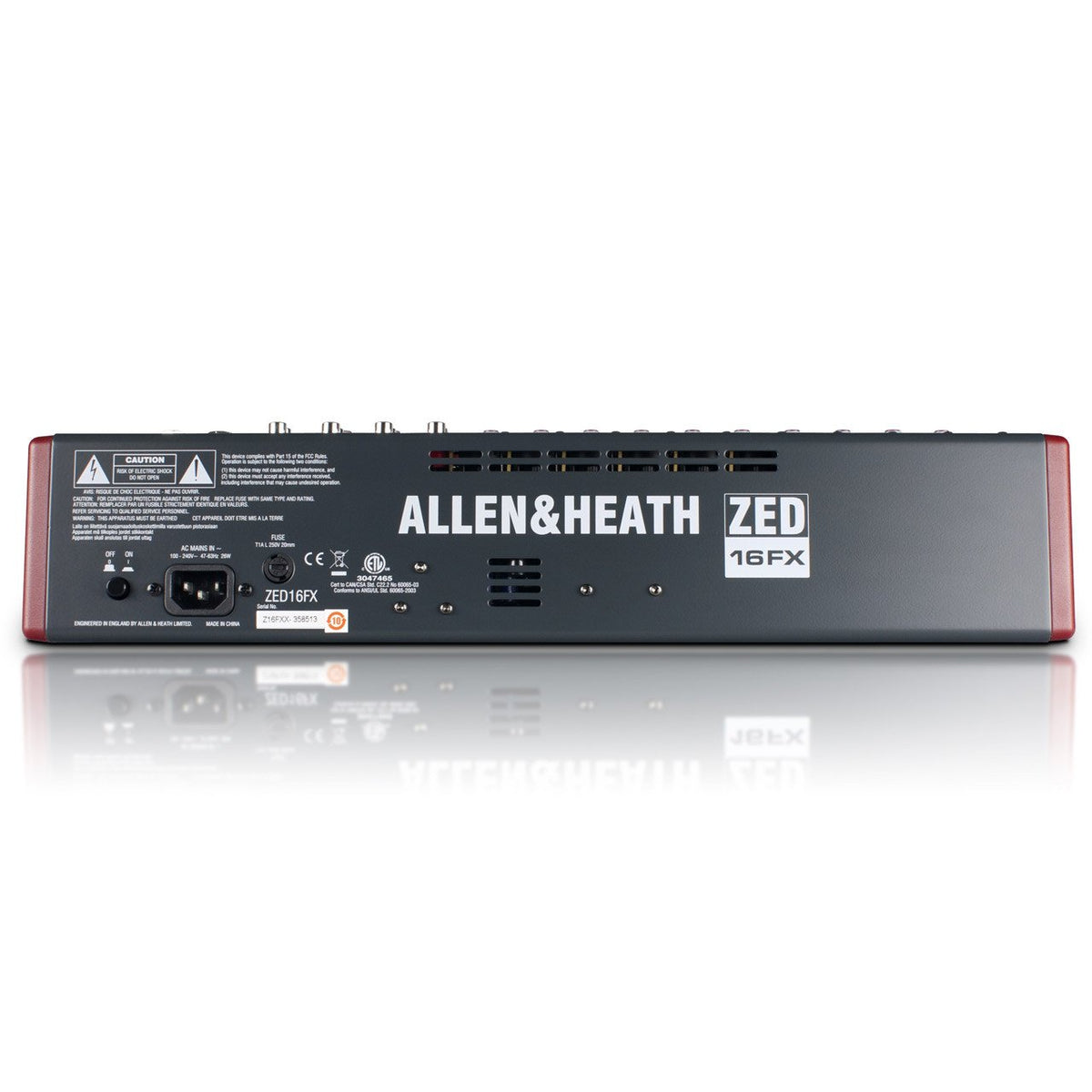

Allen & Heath ZED-16FX - Analogue Mixer With USB

Please contact me with information about availability and pricing for Allen & Heath ZED-16FX - Analogue Mixer With USB

The ZED-16FX adds four extra Mic/Line inputs and in-built FX to the popular ZED-14! With a total of 10 channel-strips and 2 x independent stereo mixes, or 4 x discrete outputs, the ZED-16FX is perfect for a range of applications in the project studio and live mixing. Free Sonar LE software included. ZED-16FX is ideal for groups who need to travel light. It gives musicians, venues and hire companies access to 10 full mono channels, 3 stereo channels and a high quality FX unit in a compact, rack mountable format. Configurable USB audio in/out makes it easy to capture stereo recordings.


      USB audio flexibility
      Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:

      Send options
      1) Main Mix Left + Right (Post-fade)

      2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2

      4) Auxes 3-4

      Return options
      To Stereo 3 channel

      ZED-16FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

      ZED-16FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.

      Based on the proven pre-amps from the hugely successful PA series, ZED-16FX has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

      10 mono mic/line  inputs
      3 stereo channels with 2-band EQ
      16 internal time-delay effects
      Neutrik mic XLRs
      Neutrik 1/4 inch jacks
      Channel insert
      Super wide gain DuoPreTM mic line input
      3 band EQ with MusiQ
      2 pre-fade Aux sends
      1 post-fade Aux send
      1 internal FX send
      Illuminated mute
      Sound image pan
      Illuminated PFL & peak warning indicator
      ALPS 100mm faders
      Stereo returns & playback
      All inputs with level control
      12 bar meters
      Mono/stereo function on auxes 1&2
      Monitor output section
      Alt stereo output source
      Configurable USB stereo audio in/out
      Cakewalk SONAR LE bundled with mixer
      Rack ears available

      SONAR LE – Provided Free!
      We’ve included Cakewalk SONAR LE with this ZED mixer so you can start recording your own music today with the most complete introductory music production software for Windows PC. Based on Cakewalk’s award-winning SONAR X3 digital audio workstation, SONAR LE has been enhanced with cutting-edge instruments, effects, and creative tools to make creating your own music as simple and intuitive as possible, no matter what your experience level.
      You can use SONAR LE and your ZED mixer together in many ways – e.g. straightforward recording of a stereo mix, recording tracks individually to build up a song, or using the USB port and software as an effects loop.
      Key Features
      32 audio tracks
      64 MIDI tracks
      Seamlessly record, edit and mix using award-winning Skylight Interface
      Edit audio and MIDI intelligently with Smart Tool
      Premium Cakewalk instruments including full Studio Instruments suite and Square I
      Mix using a professional Console view and 10 studio-quality effects
      1 GB of content including loops, MIDI Groove Clips and templates
      Save and share music using Gobbler,YouTube Export and SoundCloud

      SONAR LE System Requirements
      Minimum system requirements
      Windows 7 or Windows 8 (32 and 64-bit). XP and Vista are no longer officially supported
      Intel Core 2 Duo E8200 2.67 GHz / AMD Phenom Quad Core 9750 2.4 Ghz or higher
      2GB of RAM
      1280x800 minimum screen resolution
      4.5GB for minimal install, 20GB recommended
      Broadband internet connection for download
      Gobbler requires internet connection
