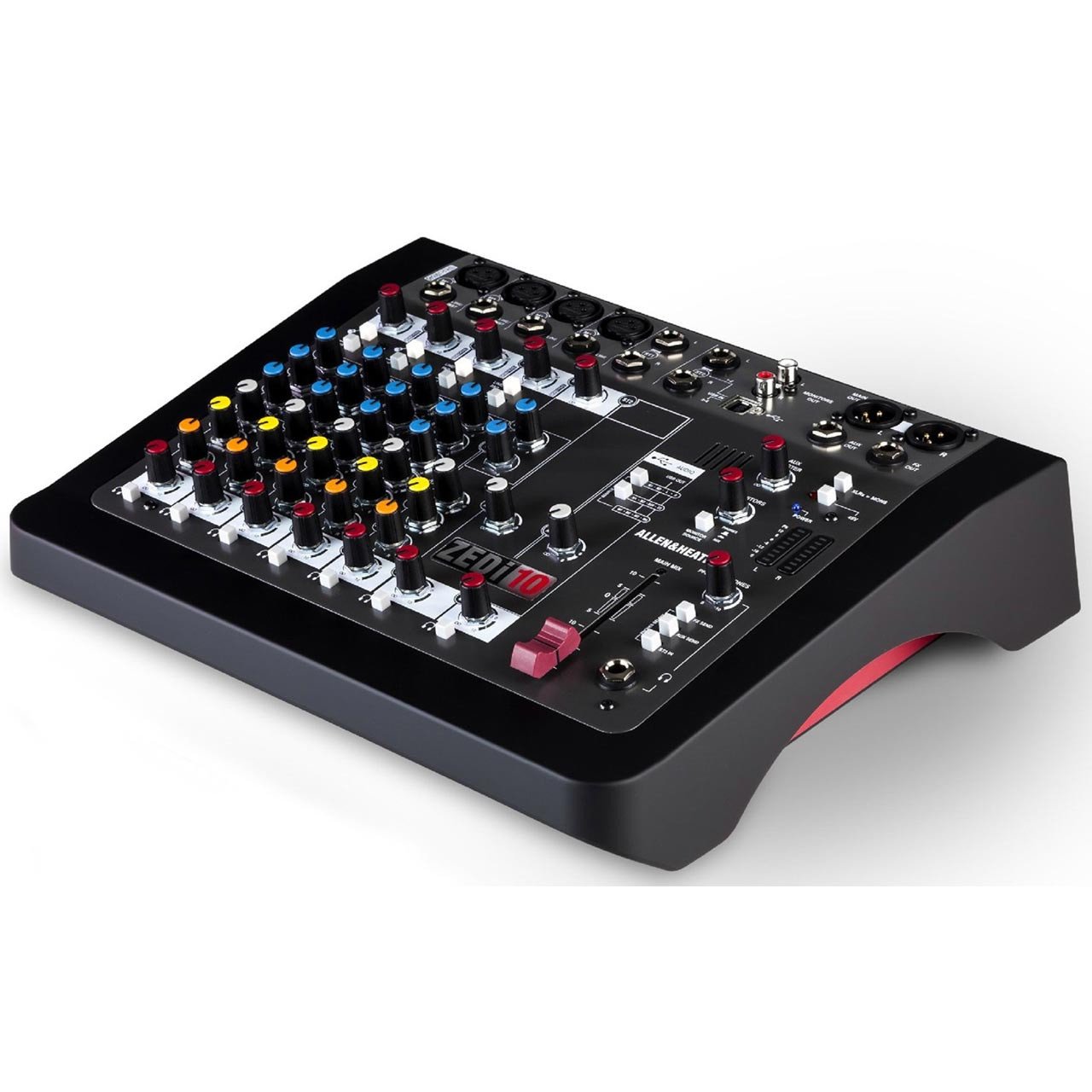

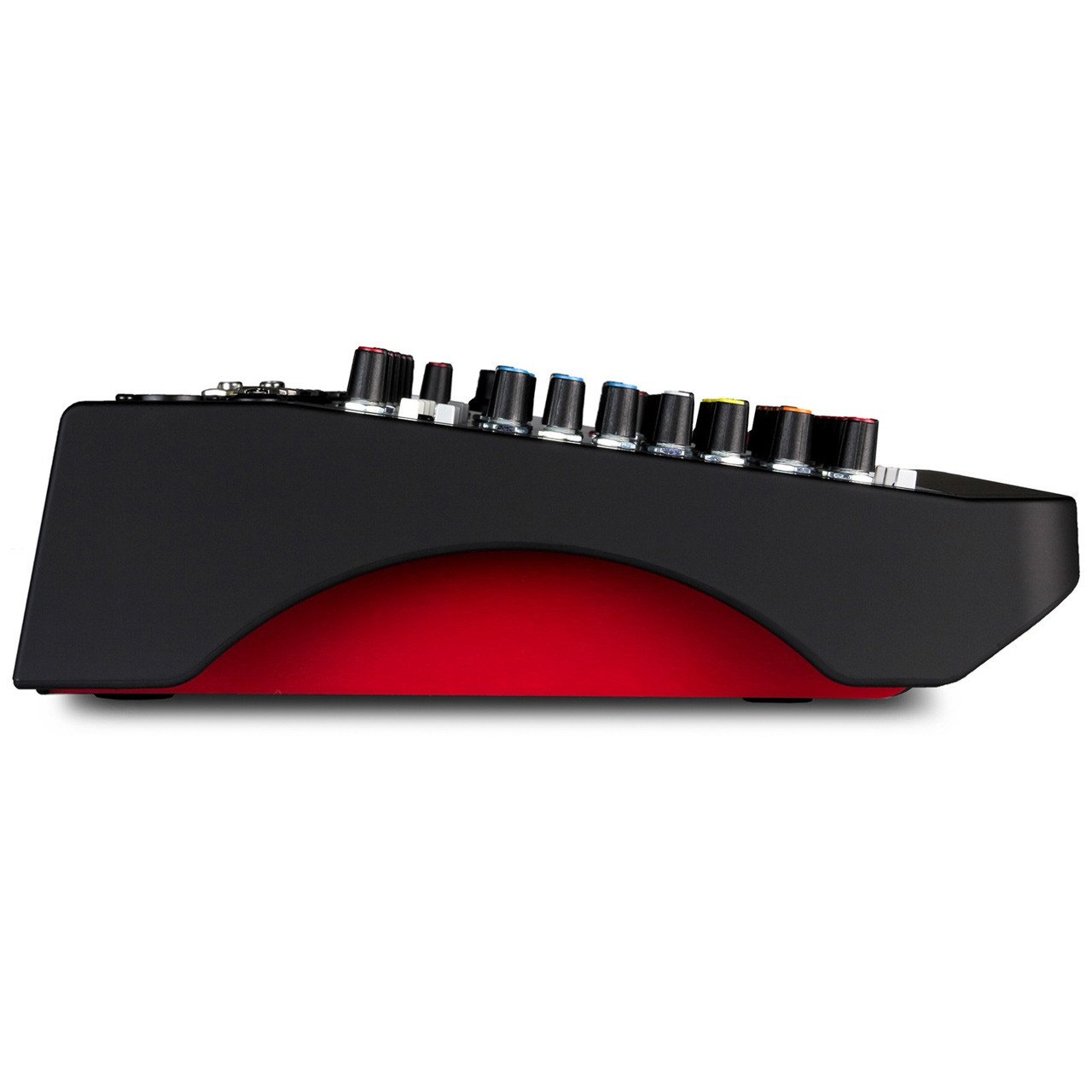

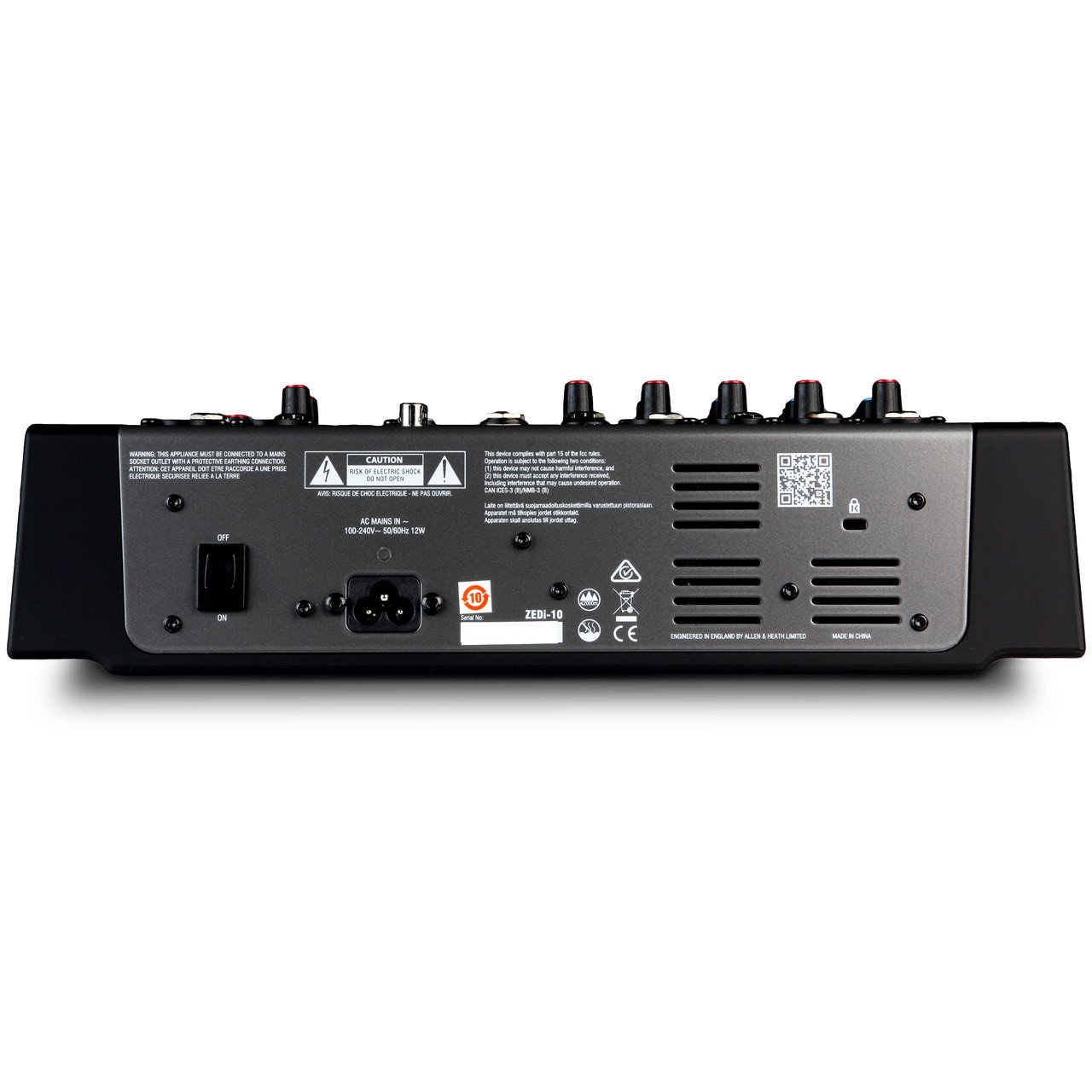

    Allen & Heath ZEDI-10 Hybrid Compact Mixer / 4×4 USB Interface

    Notify me when this product is available:

    The Allen & Heath ZEDI 10 is a compact small format console for studio or live applications, and features a 4 x 4 analog I/O 24 bit 96kHz USB interface. Also included with the ZEDI 10 is a copy of Cubase LE for basic recording and sequencing. The ZEDI 10 boast the four of the GSPre microphone preamps. These are Allen & Heath’s boutique design, and are derivative of the preamps on the GS24 console. Each of the microphone inputs are combi XLR/TRS connectors, with each one capable of high impedance settings for plugging guitar directly into the ZEDI 10.

      • Allen & Heath ZEDI-10 PRODUCT FEATURES:

        4 in, 4 out USB Audio Interface (24-bit/96kHz)
        Cubase LE Software included
        Cubasis LE App included
        4 Mic / Line Inputs with separate XLR and TRS jack sockets
        2 Stereo Inputs with TRS jack sockets
        2 Guitar DI high impedance inputs, eliminating the need for DI boxes
        Lo-cut filter for cleaning up unwanted low frequency noise
        3 band EQ for easy creative and corrective tonal shaping
        FX out for connecting external effects units
        Aux out for connecting a monitor speaker or in-ear / headphone monitoring
        60mm smooth travel fader on main mix
        XLR main outputs
        Flexible signal monitoring
        8 LED signal metering
        48V Phantom Power for condenser mics
        Robust internal power supply

        HEIGHT: 96.5mm (3.8”)
        WIDTH: 332.9mm (13.1”)
        DEPTH: 274.6mm (10.8”)
      • Allen & Heath ZEDI-10 SYSTEM REQUIREMENTS:

        USB Audio In/Out USB 2.0 compliant
        Bit Depth 24 bit
        Sample Rate 44.1, 48, 88.2, 96kHz
        Current Version - Windows 7 (32 and 64bit), Windows 8.x - released November 2015
        Please visit the Allen & Heath website via the link below for more information on Cubase LE & Cubasis LE App included.

        ** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **

    Need more info on the ZEDI-10? Click HERE for the official Allen & Heath product listing >>>
