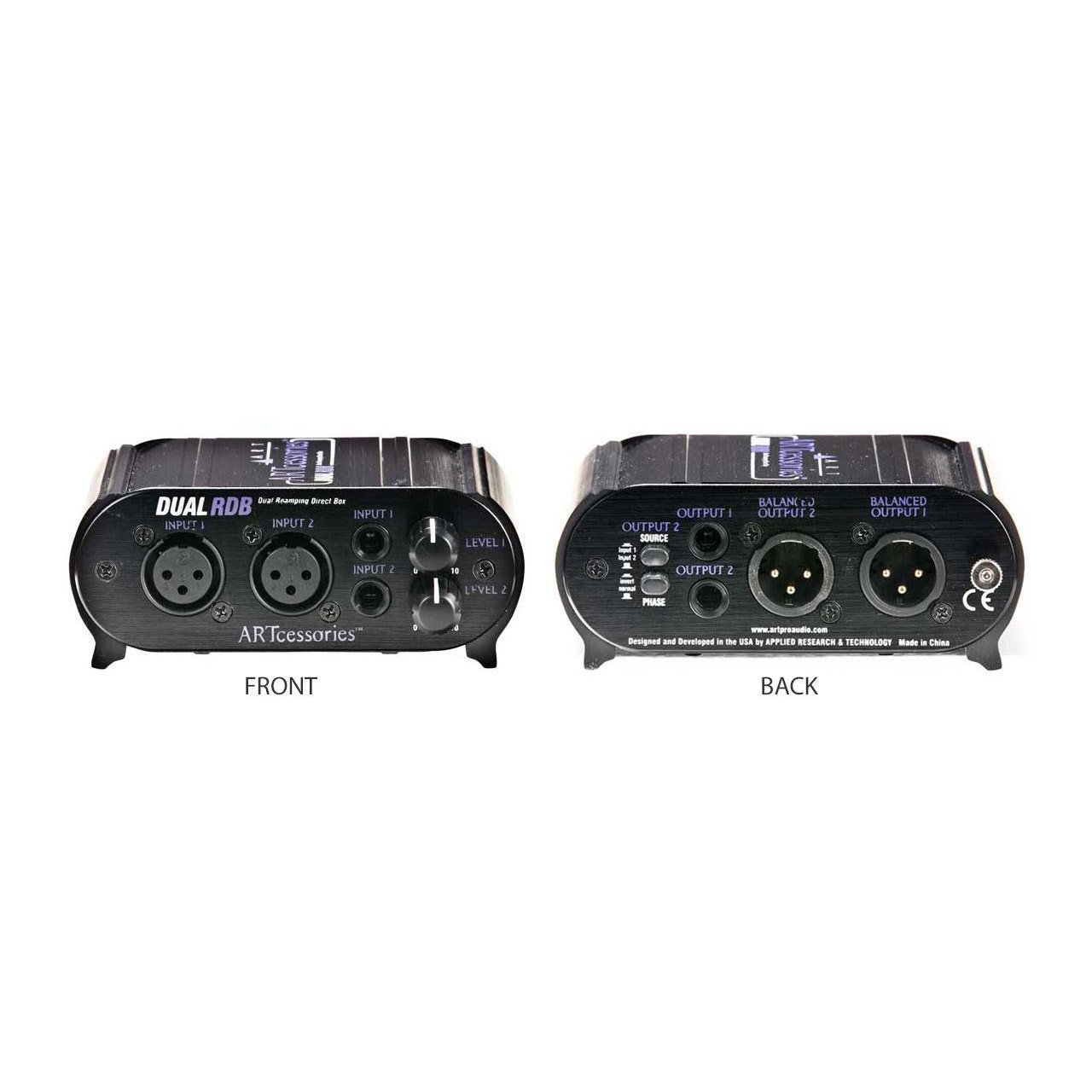

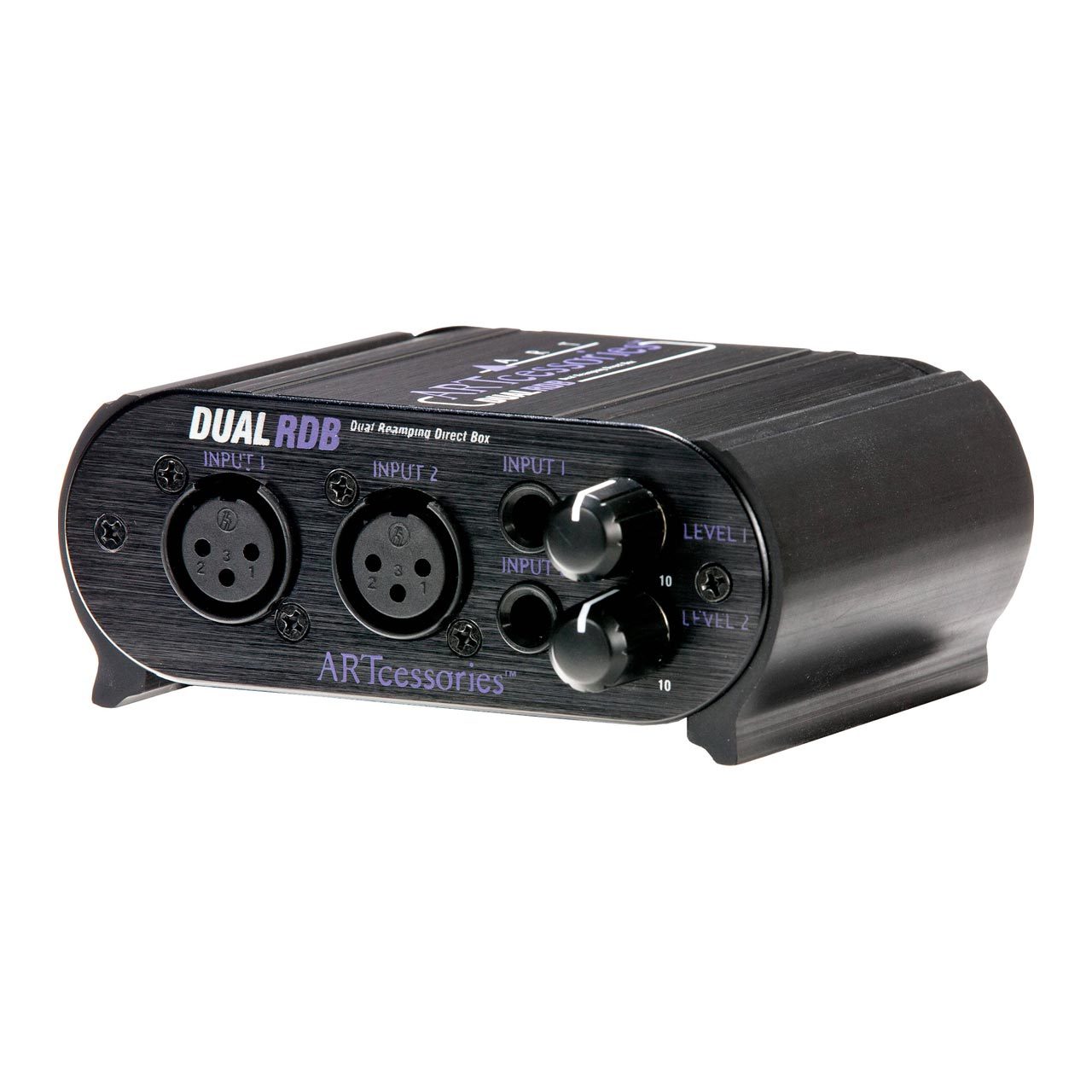

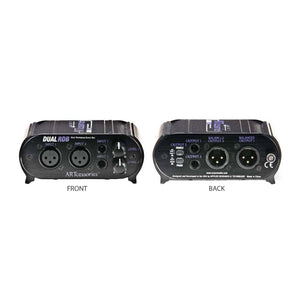

The ART Dual RDB is a versatile 2-channel DI that enables you to connect dual mono or stereo line-level signals from a computer, interface, iOS device or other consumer audio device to XLR microphone inputs, or 1/4-inch instrument inputs.
The Dual RDB accepts 1/4" TRS and XLR line level inputs and outputs mic or instrument levels. The Dual RDB's variable level controls allow volume control to be set at the source rather than in the studio, AV room, audio closet or installation rack. A 20Hz to 20kHz frequency response ensures the Dual RDB will function transparently with any high quality audio source.
The unit has two high quality isolation transformers that prevent ground loops when connecting various systems together.
Feature Summary: Dual ¼-inch TRS and XLR balanced line level inputs Transformer isolated XLR balanced microphone level outputs Transformer isolated ¼-inch TRS balanced instrument level outputs 20Hz to 20kHz Frequency Response Variable Level Controls with Mute Channel Two source selectable between Channel One or Channel Two Input Channel Two output phase switch
Applications: Re-amping interface for multiple amps Stereo/Dual direct box Variable Input pad for mic or instrument inputs Stereo Audio/Video interface to low level inputs
ART Dual RDB TECHNICAL SPECIFICATIONS:
Frequency Response: 20 Hz - 20 kHz, ± 0.5 dB @ +4 dBu Total Harmonic Distortion: .01% @ 1kHz, +18 dBu, <.05% @ 100Hz, +18dBu Channel Separation: > 80 dB (typical) Input Connections: 1/4” TRS balanced, XLR balanced female Thru Connections: 1/4” TRS balanced, XLR balanced female Insertion Loss: -20dB @100k Ω load, -25dB @600 Ω load Dimensions: 47mm x 117mm x 99mm (HWD) Weight: 0.40 kg
