ARTP_PHANTOM1CE

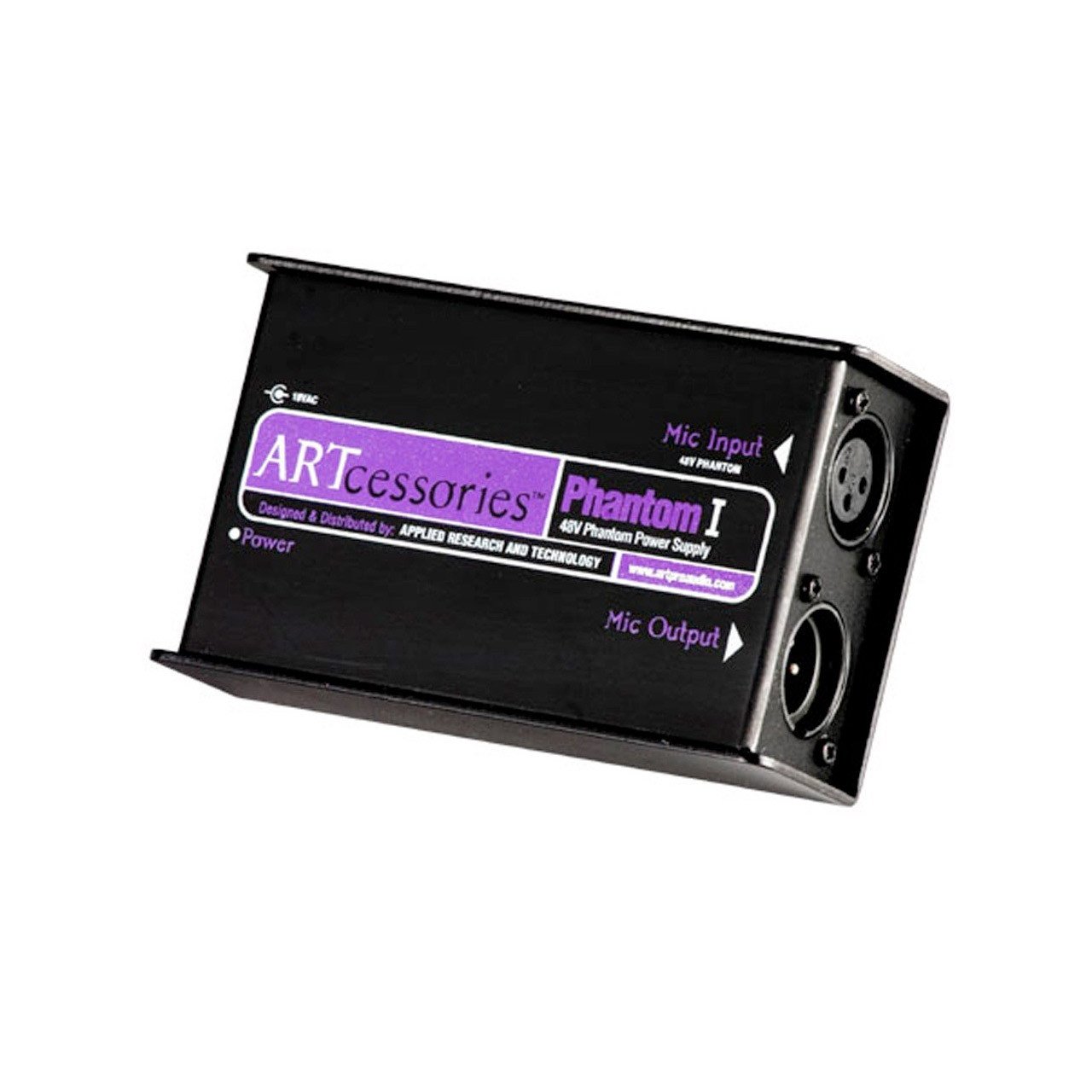

ART Phantom I 48V Phantom Power Supply

$95.00 $119.00 You Save 20% ($24.00)

The ART Phantom I is an independent phantom power supply for a single microphone that requires 48V. It features single a XLR input and output and a sturdy and compact design. The ART Phantom I is powered from the included 18V DC adapter. For battery powered phantom power, please see the ART Phantom II Pro.

Type: Microphone Accessories

VIDEO
FEATURES
TECH SPECS

ART Phantom I Features:
Different condenser microphones specify different amounts of required phantom power. As a rule these ratings can range from 48 volts all the way down to 9 volts. Fortunately, there is some flexibility in terms of matching phantom voltage to your mic. A rough rule of thumb would be "more is better."

For example, a 24-volt condenser mic will run perfectly on 48 volts. In fact, mics rated at as little as 9 volts can often operate on 48 volts, but you should check with the manufacturer first. Conversely, a mic will generally perform best driven by not less than its rated voltage so, for a 48V mic, you would obtain best results with 48 volts of phantom power. The Phantom I is a great choice for the above needs.
ART Phantom I Specifications:
Input Connections: XLR female
Output Connections: XLR male
Frequency Response: 10Hz - 25kHz
Output Phantom Power: 48V DC +/- 2V
Output Noise: -115 dBV
Current Drain: 14mA
Power: 18V DC (Adapter included)
Dimensions: 5.25x2.75x1.75 inches (130mm x 74mm x 45mm)
Weight: 1.3 lbs (315g)
