ART (Applied Research & Technology)

ARTP_PROMPAIICE

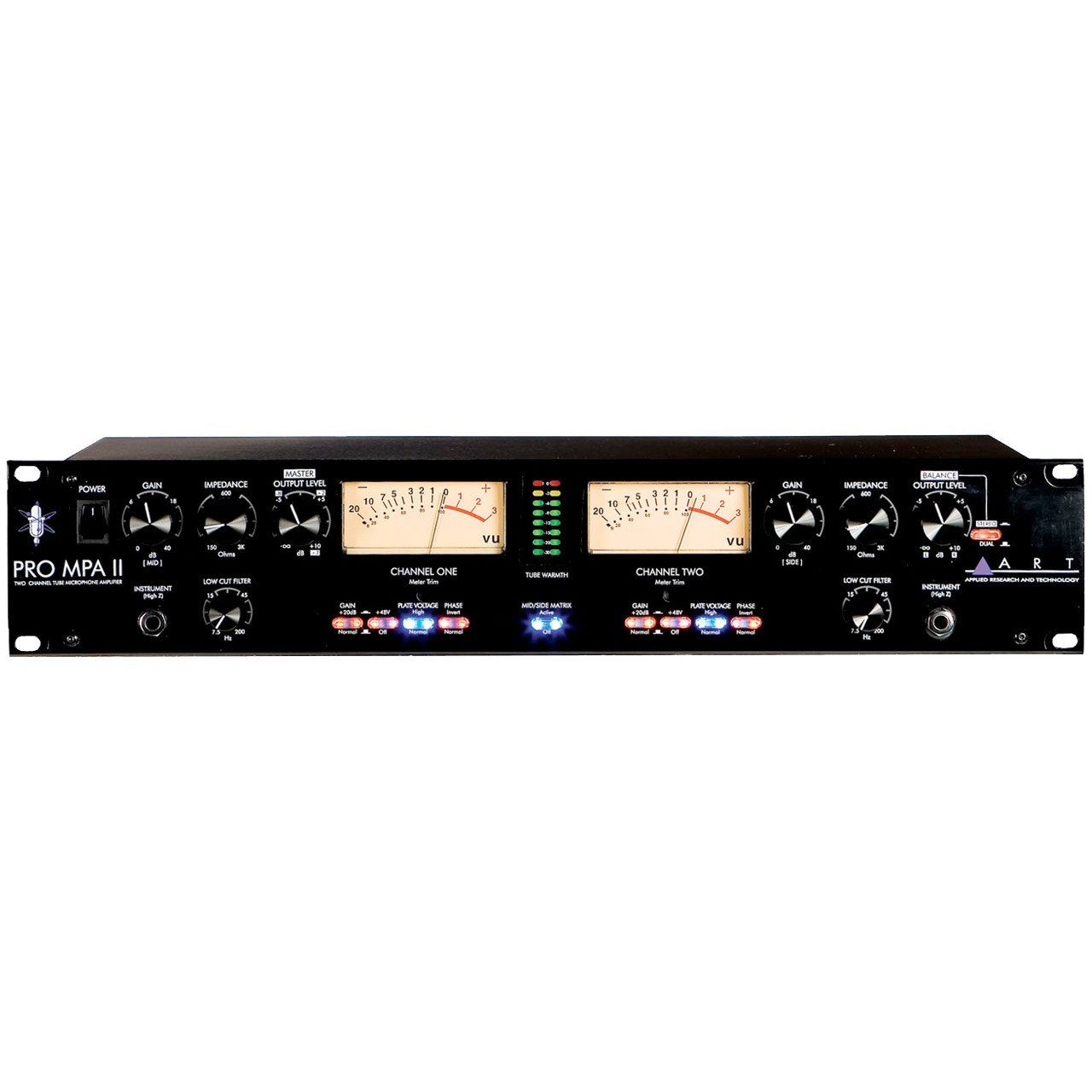

ART Pro MPA-II Two Channel Mic Preamp

The ART Pro MPA-II is an affordable dual-channel tube microphone pre-amp with VU meters. The Pro MPA-II will surprise you. At this price point, the Pro MPA-II rivals many other tube preamps that cost a lot more. Key features on the MPA-II are variable input impedance, dual mono or stereo operation, M/S stereo miking support, dual gain stage, instrument inputs on the front, and a low cut filter per channel. Check out some user reviews from Gearslutz and SOS.


Features

  • Variable Input Impedance For Flexible Microphone Voicing (150 Ohms To 2400 Ohms)

  • Selectable Plate Voltage

  • Large VU Meters

  • Backlit Function Switches

  • Discrete Class-A Input Microphone Preamplifier

  • Low Noise at Lower Gain Settings

  • Extremely Low Total Harmonic Distortion (THD)

  • Wide Frequency Response

  • Additional Front Mounted Instrument Input Jack

  • Supports Mid/Side Miking Technique

  • Operates at +4dbm/-10dbv Output

  • Selectable Stereo/Dual Operation of Output Controls

  • Automatic Instrument Input Selection

Specifications:

  • Frequency Response: 15Hz to 48kHz (+0, -1dB) @ normal plate voltage

  • 15Hz to 120kHz (+0, -1dB) @ high plate voltage

  • Total Harmonic Distortion: <0.005% (typical)

  • CMRR: > 90dB

  • Dynamic Range: > 110dB ("A" weighted)

  • Equivalent Input Noise: -129dBu (XLR, "A" weighted)

  • Input Impedance: 150-3000 Ohms adjustable (XLR), > 800K Ohms (Instrument)

  • Maximum Gain: 75dB

  • Maximum Input Level: +19dBu (cannon)

  • Maximum Instrument Input: +17dBu

  • Maximum Output Level: +27dBu (XLR)

  • Output Impedance: <47 Ohms (XLR)

  • Meter Calibration: 0 VU = +4dBu outupt (+4dB mode) / 0 VU = -10dBV output (-10dB mode)

  • High Pass Filter: Single pole, 10-200 Hz adjustable

  • Power Requirements: USA - 105 to 125 VAC / 60 Hz Export units configured for country of destination

  • Dimensions: 8.75"D x 19.0"W x 3.50" H (222mm x 482mm x 88mm)

  • Weight: 10.5 lbs (4.5 kg)

Need more info on the ART Pro MPA-II?
