ART (Applied Research & Technology)

ARTP_SCCCE

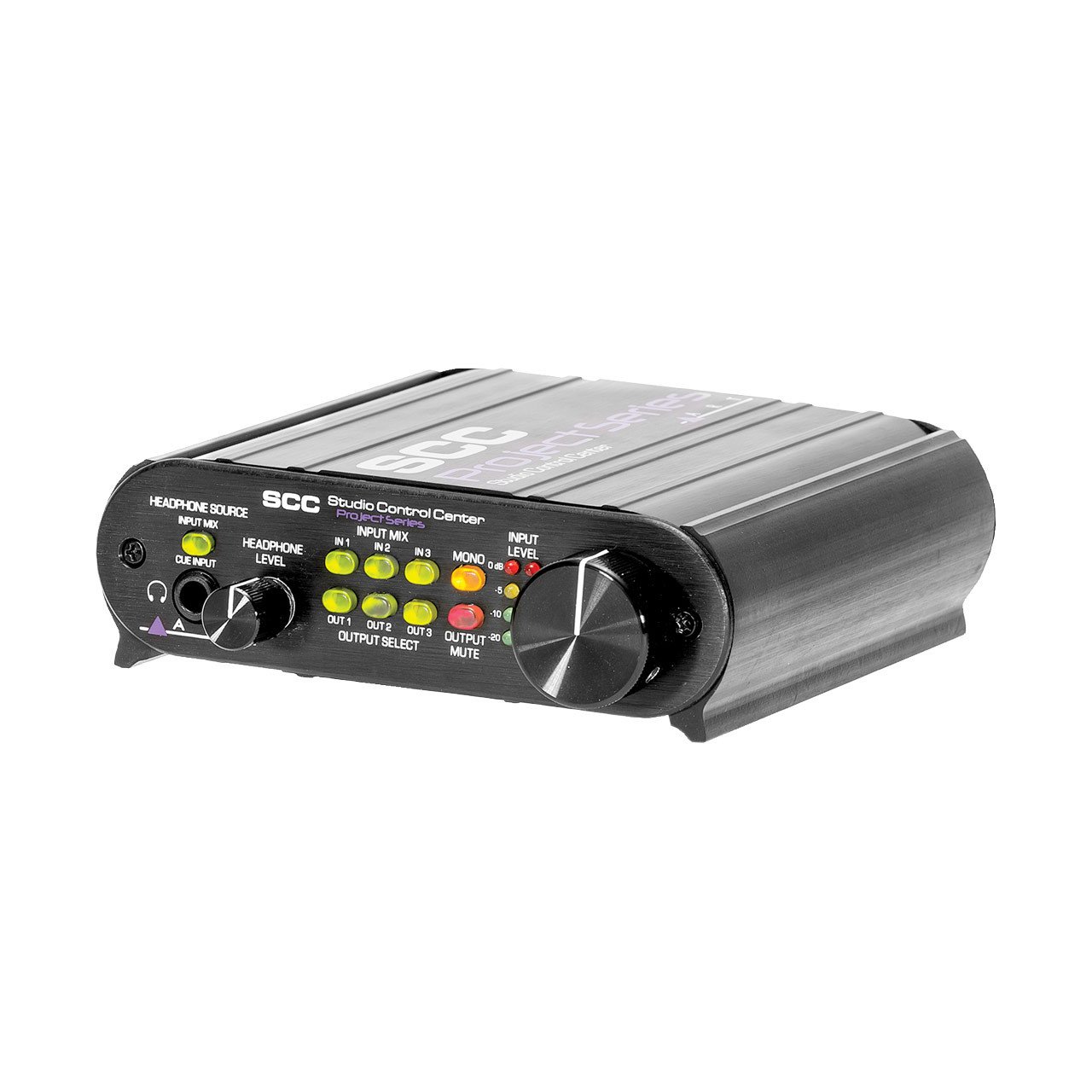

ART SCC Studio Control Center


The Studio Control Centre (SCC) by ART is a monitor controller with 3 x stereo inputs and outputs, a dedicated headphone amp and large master volume dial. Other key features include selectable main or cue input source for the headphone mix, signal blending of the input sources and metering.


    • ART SCC PRODUCT FEATURES:

      Select or Blend up to Three Stereo Input Sources
      Three Selectable Stereo Balanced Outputs
      Large Format, Wide Range Low Distortion Volume Control
      Separate Headphone Output with Selectable Main or Cue input Sources
      Mono Switch & Output Mute Switches
      Input and Output Trim Controls
      Input Level Metering
      Solid All Metal Project Series Stackable Case
      External Low Noise Power Supply
    • ART SCC TECHNICAL SPECIFICATIONS:

      Frequency Response: 10-100kHz + 0.5dB
      Total Harmonic Distortion: <0.004% @ 20-20kHz
      Maximum Gain: +23 dB (balanced in-out), +20dB (Cue input to Headphone output)
      Input Impedance: 9k Ω balanced (CH1, CH2), 5k Ω unbalanced (CH3, Cue)
      Maximum Input Level: +21dBu balanced inputs, +20 dBu unbalanced inputs
      Maximum Output Level: +18dBu balanced (OUT1-OUT3)
      Equivalent Input Noise: <-96 dBu (balanced inputs), <-102dBu (Cue Input)
      Headphone Out: 1/4-inch Stereo TRS headphone jack
      Headphone Level: 100mW (x2) @100 Ω
      CMRR: >50 dB

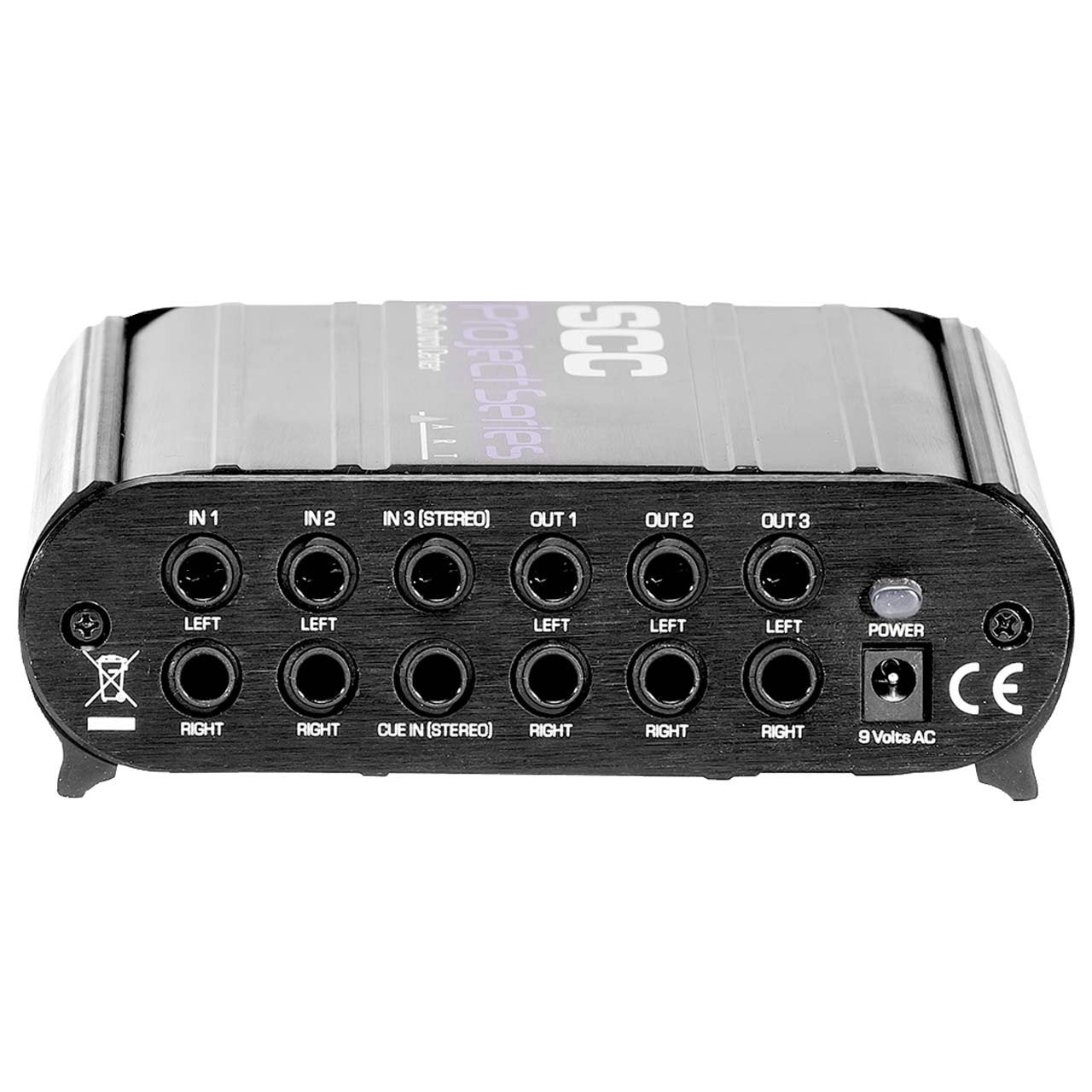

      Output Connectors: OUT1-OUT3: 1/4-inch Balanced TRS
      Chassis Type: All aluminum black anodized with rubber sides
      Power Requirements: 9VAC @ 1000mA (external)
      Dimensions: 1.75"H x 5.9"W x 6.5"D (44.5mm x 150mm x 165mm)
      Weight: 2.5 lbs (1.14 kg) with power supply and packaging
      Notes: 0 dBu = 0.775Vrms
