ART (Applied Research & Technology)

ARTP_USBDUALPREPS

ART USB Dual Pre Project Series

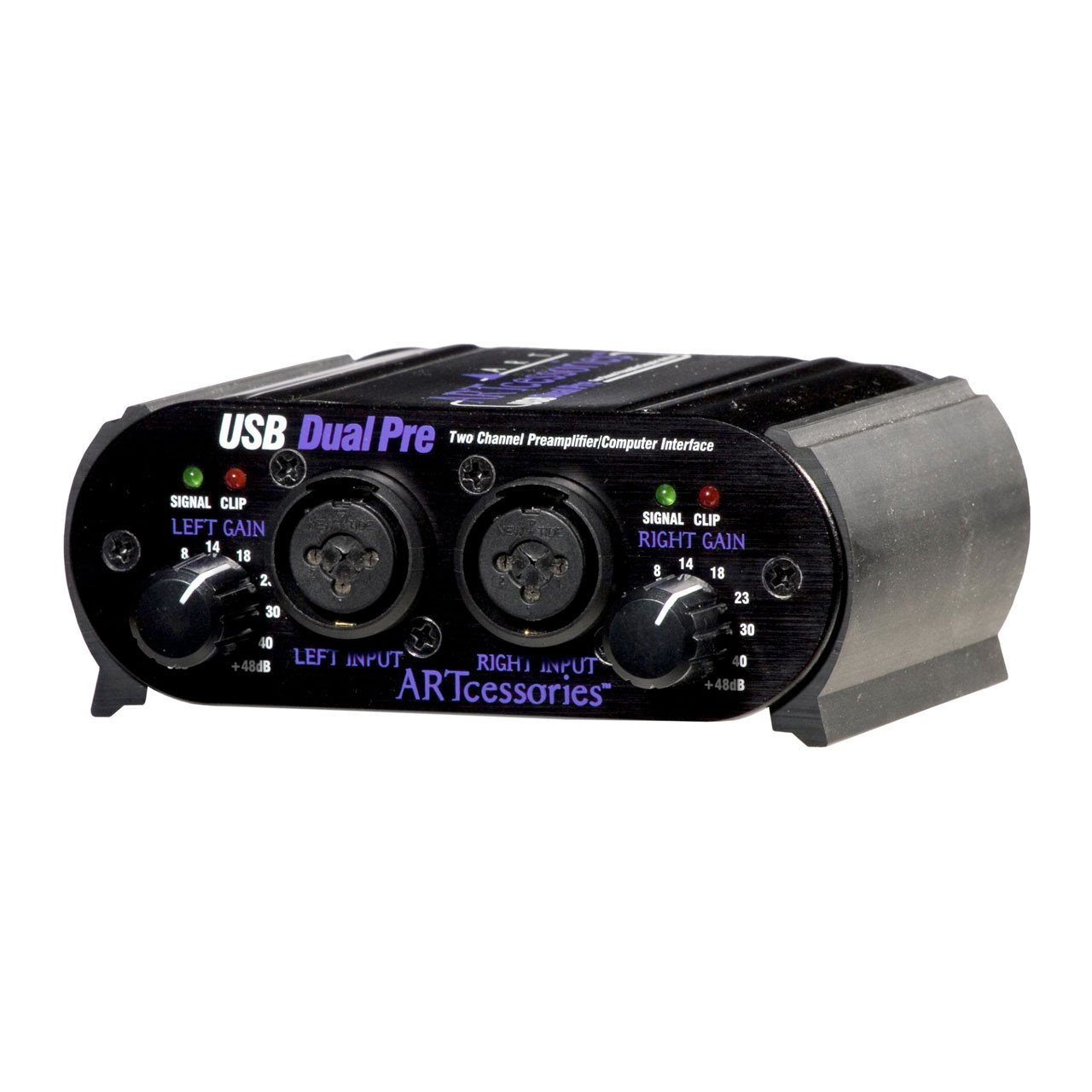

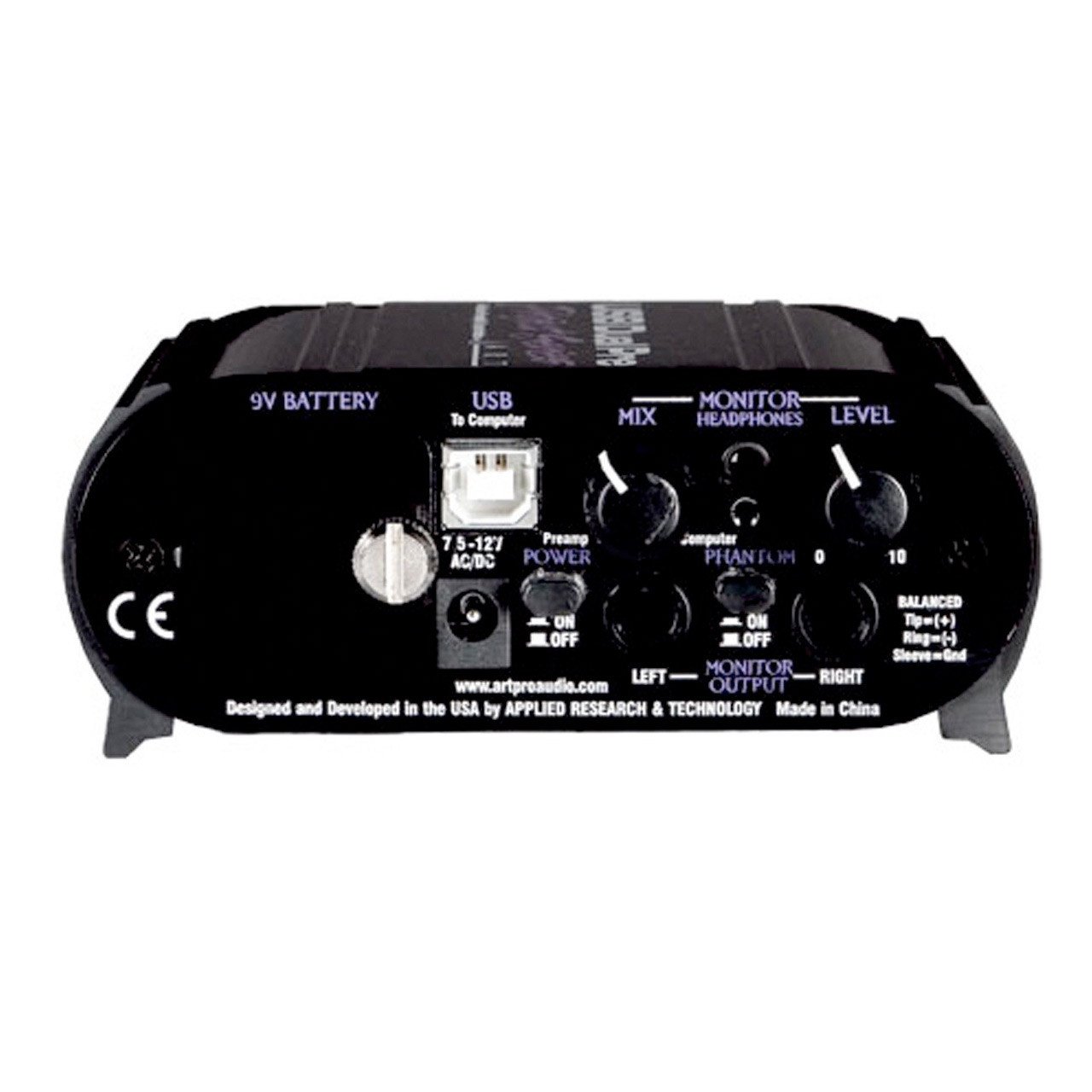

The ART USB Dual Pre is a dual input preamp and USB audio interface. The USB Dual Pre is rugged and ideal for location recording - being battery powered, along with project studio recording. Each preamp offers 48dB of gain over combi XLR/TRS connectors, and there are LED lights indicating signal present and clipping. On the back plate, you have access to the 9v battery compartment, headphones with a master level, and two TRS outputs. The Dual Pre USB offers a Mix dial to blend the input signal and playback from your computer.


    • ART USB Dual Pre Features:

      The USB Dual Pre is powered via the USB bus. An internal 9 Volt battery, or optional external 12V power supply (or any combination of USB, battery & power supply) can be used depending on application. When running powered by battery alone, you should expect in excess of 50 hours of operation with phantom power off. Battery life will drop to approximately 20 hours (depending on microphone) when phantom powering is engaged (still enough time to get through an average session).

      The built-in low noise +48 Volt phantom power supply allows you to power up to 2 microphones as well as the preamplifier when running from any power sources including the USB bus.

      For monitoring, an 1/8-inch TRS mini headphone jack with level and monitor mix controls on the rear allow for latency free local monitoring of the inputs while recording as well as playback monitoring of the USB bus. The monitor mix is also routed to the 1/4-inch TRS balanced outputs. This lets you use the 1/4-inch outputs as either preamplifier outputs or as the monitor feed to your powered monitors.
    • ART USB Dual Pre Specifications:

      USB Connectivity to Desktop and Laptop Computers
      Low Noise Fully Balanced XLR and 1/4-inch TRS Combi Inputs
      Up to 48 dB of Clean Gain n Built-in Low Noise Phantom Power Supply
      Latency Free Monitoring Mix and Level Controls
      Independent Channel Gain Controls
      1/4-inch TRS Balanced Monitor and 1/8-inch Headphone Monitor Outputs
      Includes Audacity Recording & Production Software
      Flexible 3-way Power from USB, External Supply, or 9 Volt Battery
      Includes USB Cable - Everything Needed To Start Recording Today!
    • ART USB Dual Pre System Requirements:

      The USB interface is fully compliant with the USB 1.1 specification and uses USB adaptive mode for playback and USB asynchronous mode for record. It will work with the USB audio device drivers built into Windows 98SE/ME/2000/XP/Vista and Apple OS9.1/OSX computers with native USB support. No special drivers are needed.

      *** Windows 7 Users - Please read this FAQ ***

      ** Please note, system requirements may change. For the most recent system requirements please visit the manufacturer's official product listing **
