  • ARTP_VLA500

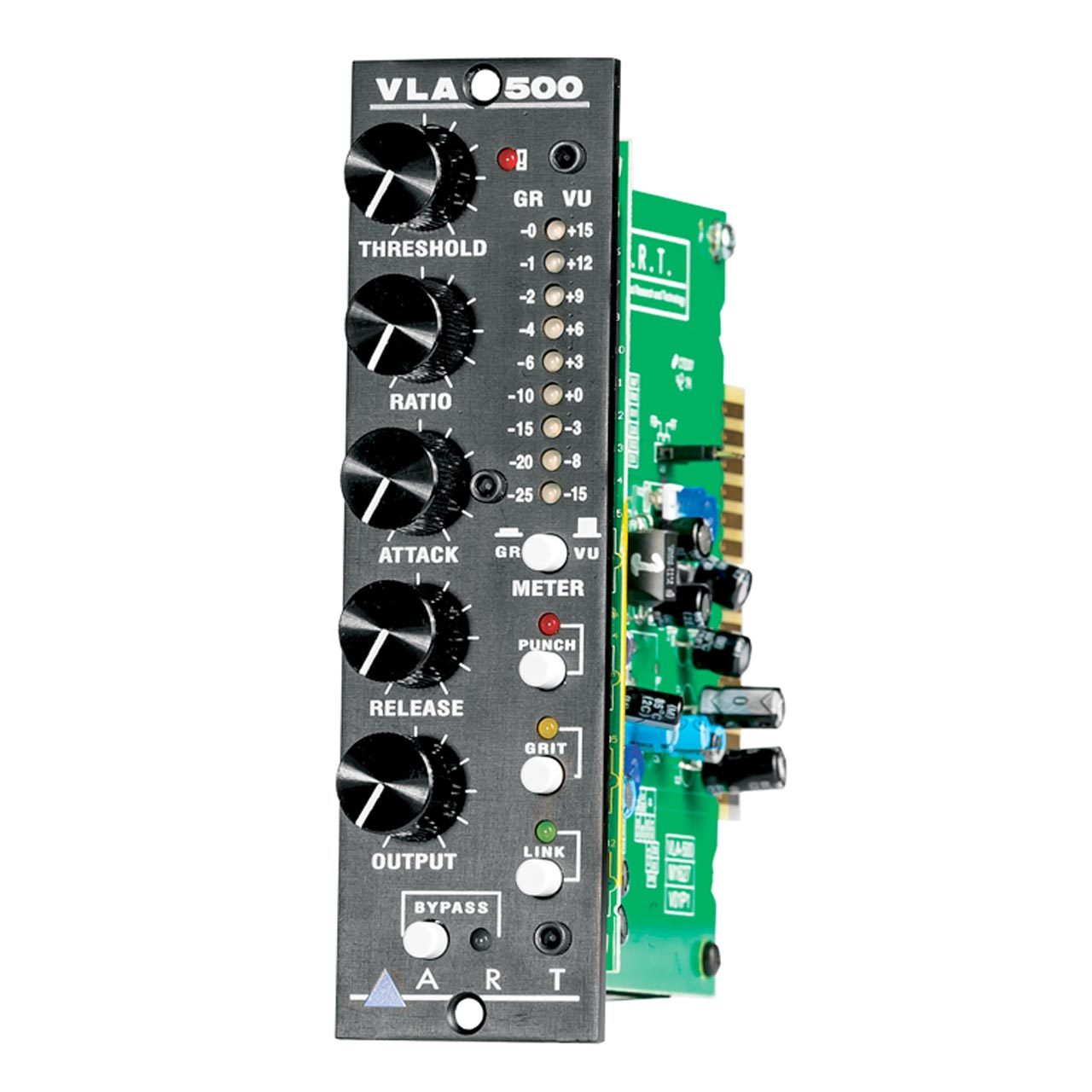

    ART VLA-500 - 500 Series Compressor

    2 In Stock

    The VLA-500 by ART, is a 500 series single channel VCA-less Vactrol opto-style compressor. It's basic design has been based on the ART PRO-VLA. The VLA-500 has two additional tone shaping modes - Punch and Grit, providing contrasting harmonic variations.


        500 Series Form Factor Compressor Module
        Based on Popular PRO-VLA Technology
        VCA-less Vactrol Opto-Compressor Design
        Two Additional Selectable Solid State Tone Shaping Circuits ('Punch' & 'Grit')
        Variable Threshold, Ratio and Output Controls
        Stereo / Multi-Channel Linkable
        LED Metering

        Equivalent Input Noise -102dBu ('A' weighted)
        Input Impedance 10K Ω
        Output Impedance 100 Ω
        Inputs Level +20dBu
        Output Level +20dBu
        Output Gain +20dB max
        Frequency Response 20Hz to 100KHz (+/- 0.5dB)
        Dynamic Range >120dB (20-20KHz)
        Attack Time 0.25msec. to 50msec. variable
        Release Time 150msec. to 3 sec, variable
        Slope Variable: 2:1 to 20:1
        Total Harmonic Distortion <0.003% (@1kHz, typical)
        Power Requirements 80mA (75mA @+ 15V, 4mA@48V)
        Max Gain Reduction 30dB
        Dimensions 5.23" H x 1.49" W x 6.6" D
        Weight 0.7 lbs (0.32kg)
    Need more info on the ART VLA-500? Click HERE for the manufacturer's website >>>
