Audio-Technica

AT AE2300

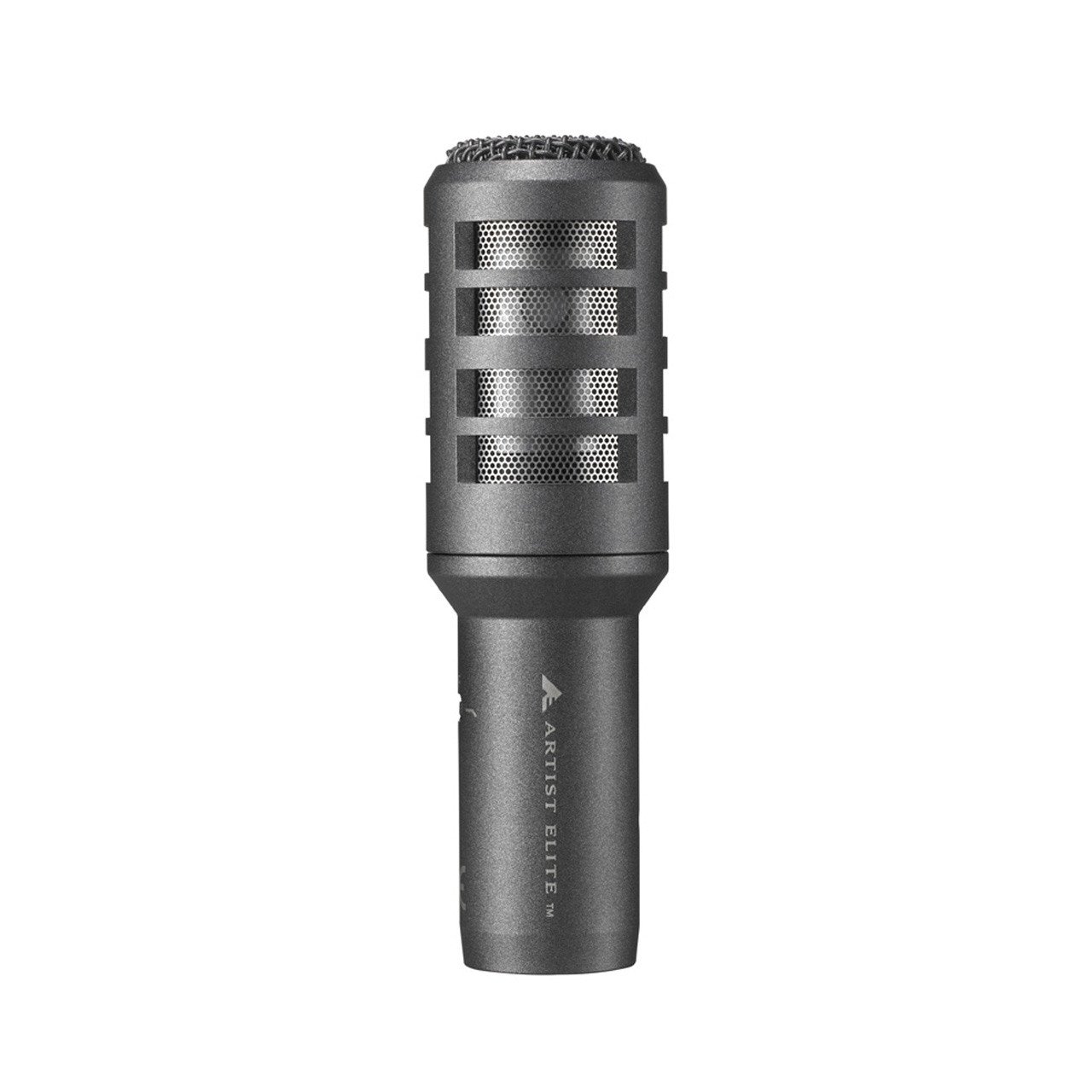

Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone


The AE2300 is a dynamic instrument microphone with a cardioid polar pattern. The AE2300 features Audio-Technica’s proprietary double-dome diaphragm - specifically designed to add clarity to high-frequency sources and transients. The AE2300 is an excellent choice of microphone live or in the studio for a variety of instruments such as guitar amps, brass, woodwind, drums and percussion.


    • AE2300 PRODUCT FEATURES:

      Proprietary double-dome diaphragm construction that improves high-frequency and transient response

      Maintains directionality across the entire frequency range

      Minimal off-axis coloration (frequency response is nearly identical at 0°, 90°, and 180°) helps to maintain phase cohesion in multiple microphone setups

      Switchable low-pass filter removes harsh, high-frequency hiss without negatively affecting the overall tone of an instrument

      Low-profile design allows microphone to be placed easily and unobtrusively in a wide variety of setups

      Rugged, brass metal construction ensures dependable performance in live music applications

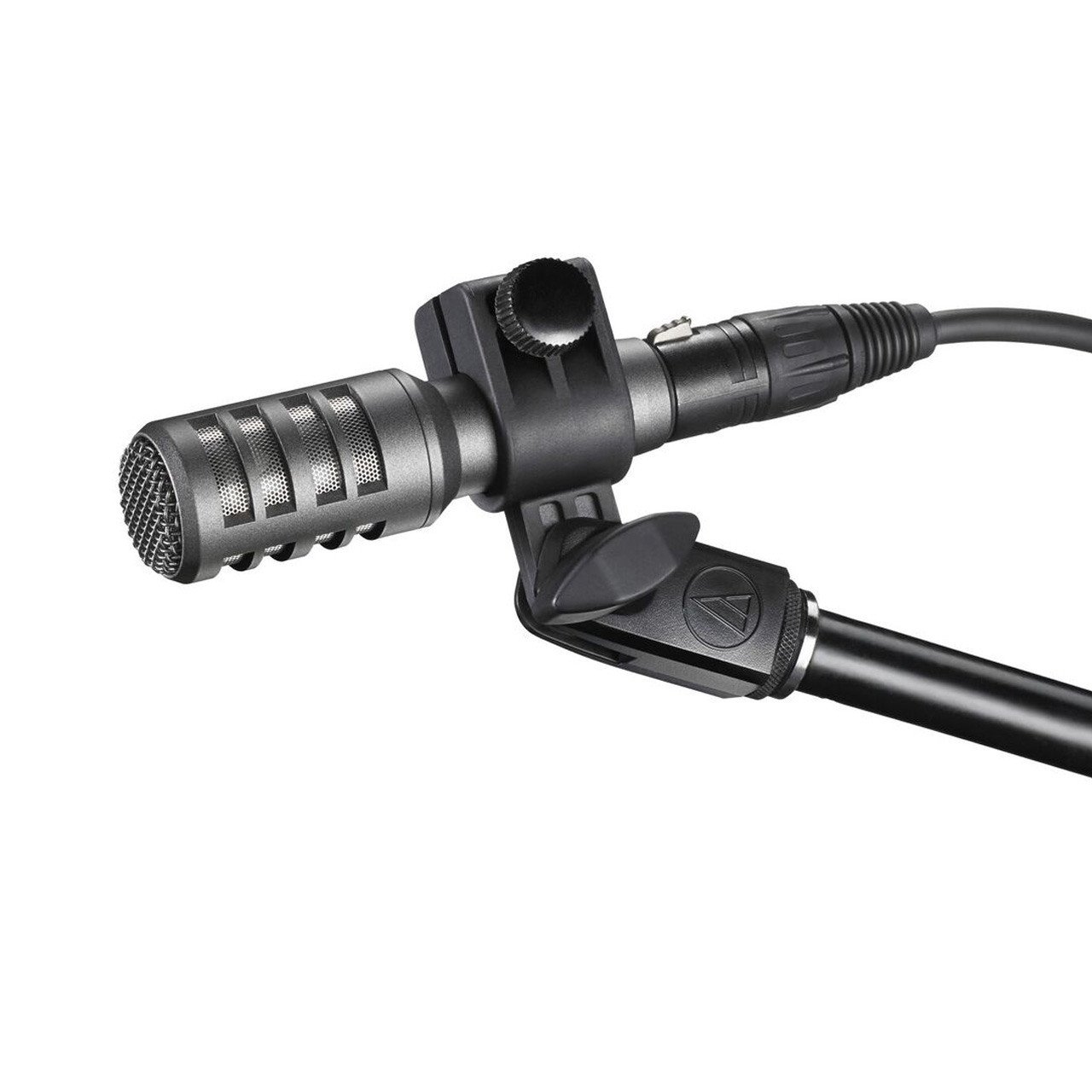

      Includes AT8471 isolation stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, and a soft protective pouch

    • AE2300 TECHNICAL SPECIFICATIONS:

      ELEMENT
      Dynamic
      POLAR PATTERN
      Cardioid
      FREQUENCY RESPONSE
      60 – 20,000 Hz
      OPEN CIRCUIT SENSITIVITY
      -57 dB (1.4 mV) re 1V at Pa
      IMPEDANCE
      250 ohms
      WEIGHT
      138g
      DIMENSIONS
      95.6mm long, 28mm maximum diameter
      OUTPUT CONNECTOR
      Integral 3-pin XLRM-type
      ACCESSORIES
      AT8471 isolation stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch
      AUDIO-TECHNICA CASE STYLE
      S4
