Audio-Technica

AT-XP3

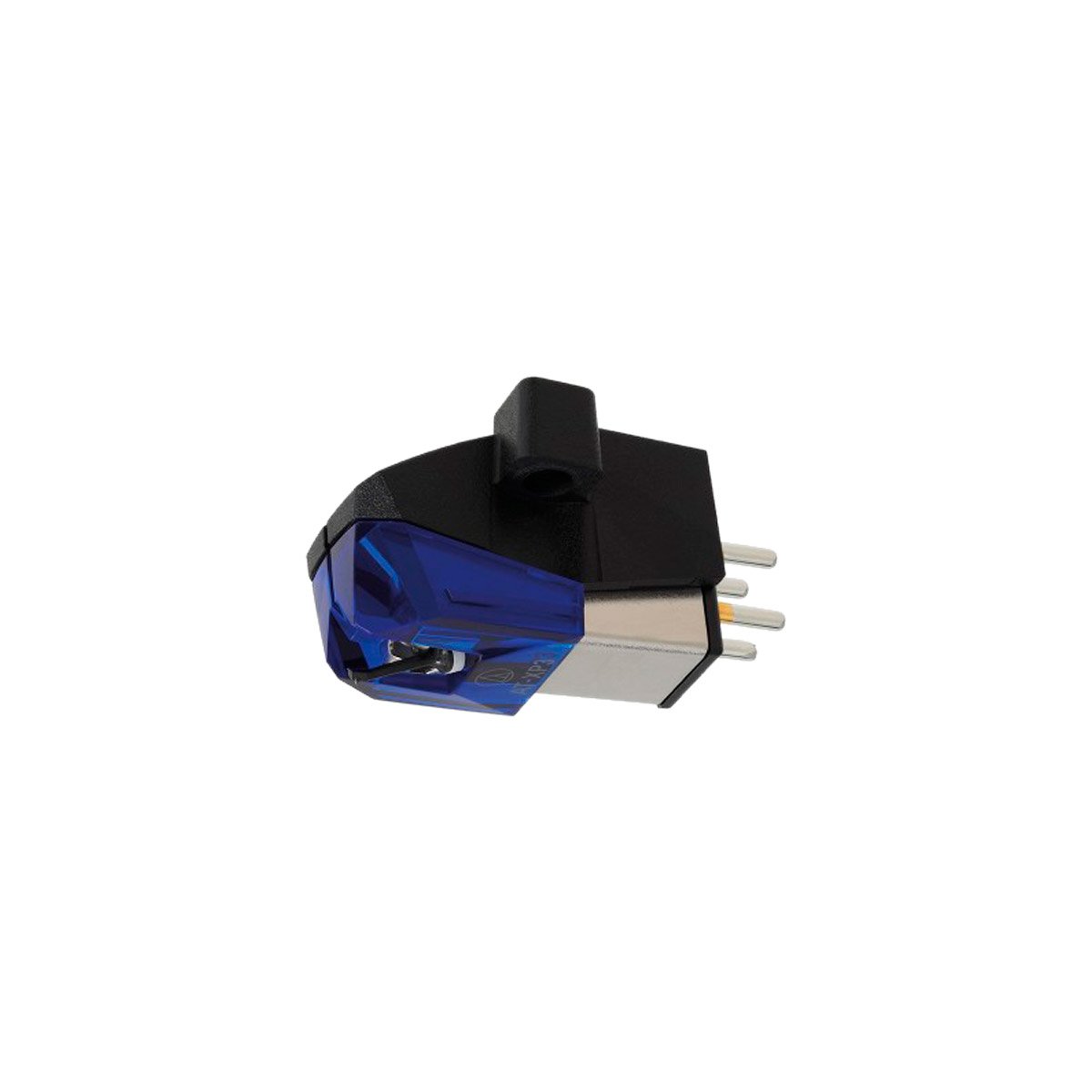

Audio-Technica AT-XP3 Moving Magnet DJ Cartridge


Please contact me with information about availability and pricing for Audio-Technica AT-XP3 Moving Magnet DJ Cartridge




The AT-XP series cartridges provide a high quality sound for vinyl DJ’s. Offering all of the features of a DJ cartridge, but with a Hi-fi sound, the XP series are perfect for the stage and club DJ who prioritises sound quality. The AT-XP3 phono cartridge is specially designed to deliver high-fidelity performance.


    • Product Features:

      Audiophile DJ cartridge with conical stylus

      Excellent Tracking ability

      Durable robust design for high-quality specialist DJ playback

      Carbon fiber-reinforced ABS cantilever

      Superior sound without compromise

      VM dual magnet construction

    • Technical Specifications:

      Model AT-XP3
      Mounting Half-inch
      Frequency Response 20 to 18,000 Hz
      Channel Separation 20 dB (1 kHz)
      Output Channel Balance 2.0 dB (1 kHz)
      Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec)
      Vertical Tracking Angle 20 degrees
      Vertical Tracking Force Range 2.0 to 4.0g (standard 3.0 g)
      Stylus Shape Conical
      Stylus Size 0.6 mil
      Stylus Construction Bonded Round Shank
      Cantilever Carbon reinforced ABS
      Coil Impedance 6,700 ohms (1 kHz)
      Coil Inductance 550 mH (1 kHz)
      Static Compliance 20 x 10 – 6 cm / dyne
      Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
      Recommended Load Impedance 47,000 Ω
      Recommended Load Capacitance 100-200 pF
      Cartridge Weight 6.2g
      Dimensions 17.2 x 17.8 x 28.3 ( H x W x D mm)
      Replacement Stylus ATN-XP3
      Accessories Included Two 11 mm installation screws;
      Two 8 mm installation screws;
      Two washers
      Two Nut
      Non-magnetic screwdriver
