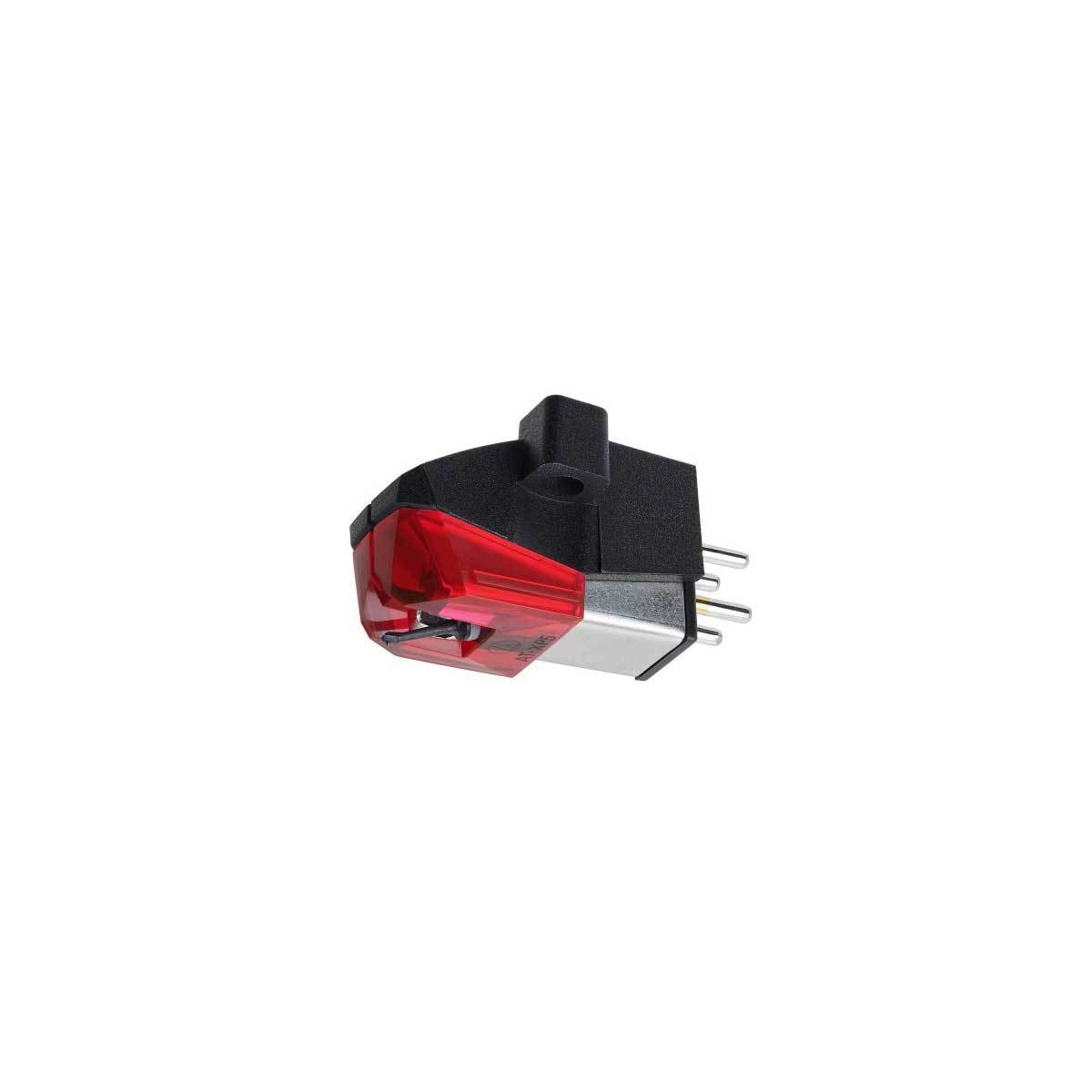

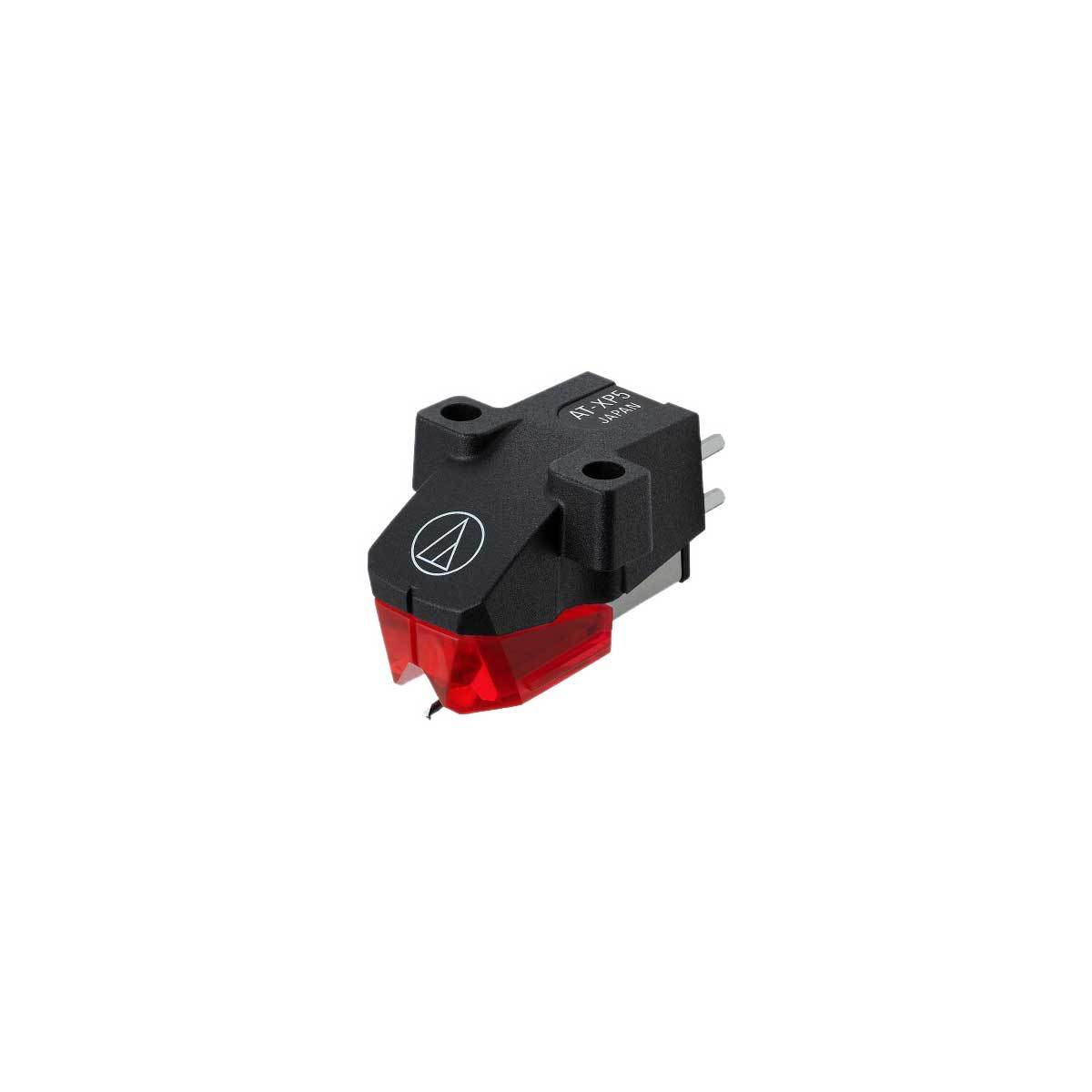

    Audio-Technica AT-XP5 DJ Cartridge

    Notify me when this product is available:

    The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

      Coming Soon!

        • Product Features:

          Durable design for high-quality specialist DJ playback

          Cartridges designed for DJ venue applications for their Hi Fi audio Performance

          VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus

          Audiophile experience associated with DJ’ing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards

          Carbon ABS cantilever

          Great visibility of stylus tip for DJ use

          High-rigidity and Low-resonance cartridge housing

          Durable design for high-quality DJ playback

          Replacement Stylus: ATN-XP5

        • Technical Specifications:

          Type: VM Dual Magnet
          Mounting: Half-inch
          Frequency Response: 20 - 18,000 Hz
          Channel Separation: 20 dB at 1kHz
          Output Channel Balance: 2.0 dB
          Output Voltage" 5.5 mV (mV at 1 kHz, 5 cm/sec)
          Vertical Tracking Angle: 20°
          Vertical Tracking Force Range: 2.0 - 4.0g

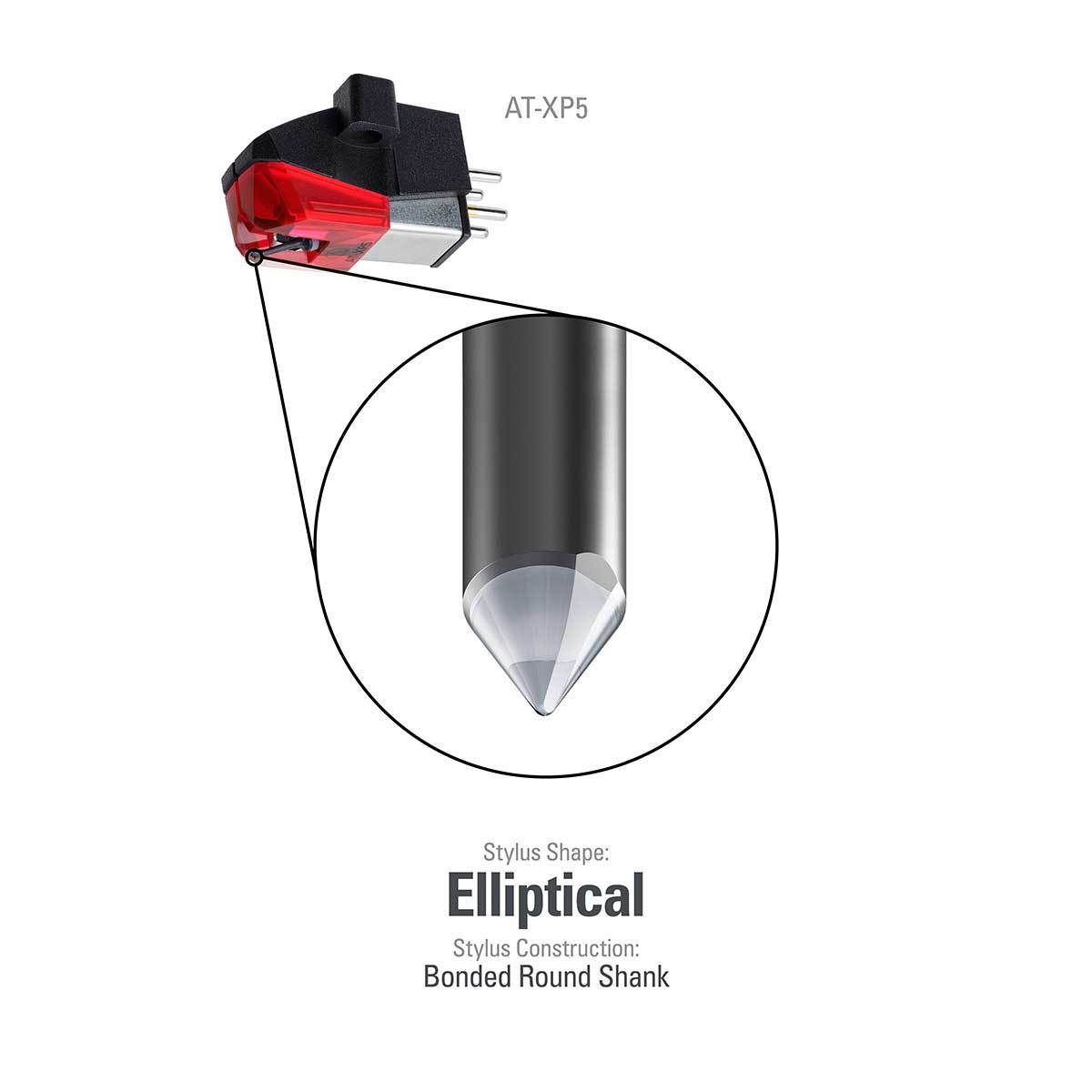

          Stylus Shape: Elliptical
          Stylus Size: 0.3 x 0.7 mil
          Cantilever: Carbon Fibre Reinforced ABS
          Coil Inductance: 1.0 H (1 kHz)
          Static Compliance: 20 x 10-6 cm/dyne
          Dynamic Compliance: 6.0x10-6cm/dyne (100Hz)
          Recommended Load Impedance: 47,000 ohms
          Recommended Load Capacitance: 100-200 pF
          Weight: 6.2g
          Dimensions: H17.2×W17.8×D28.3mm
          Replacement Stylus: ATN-XP5

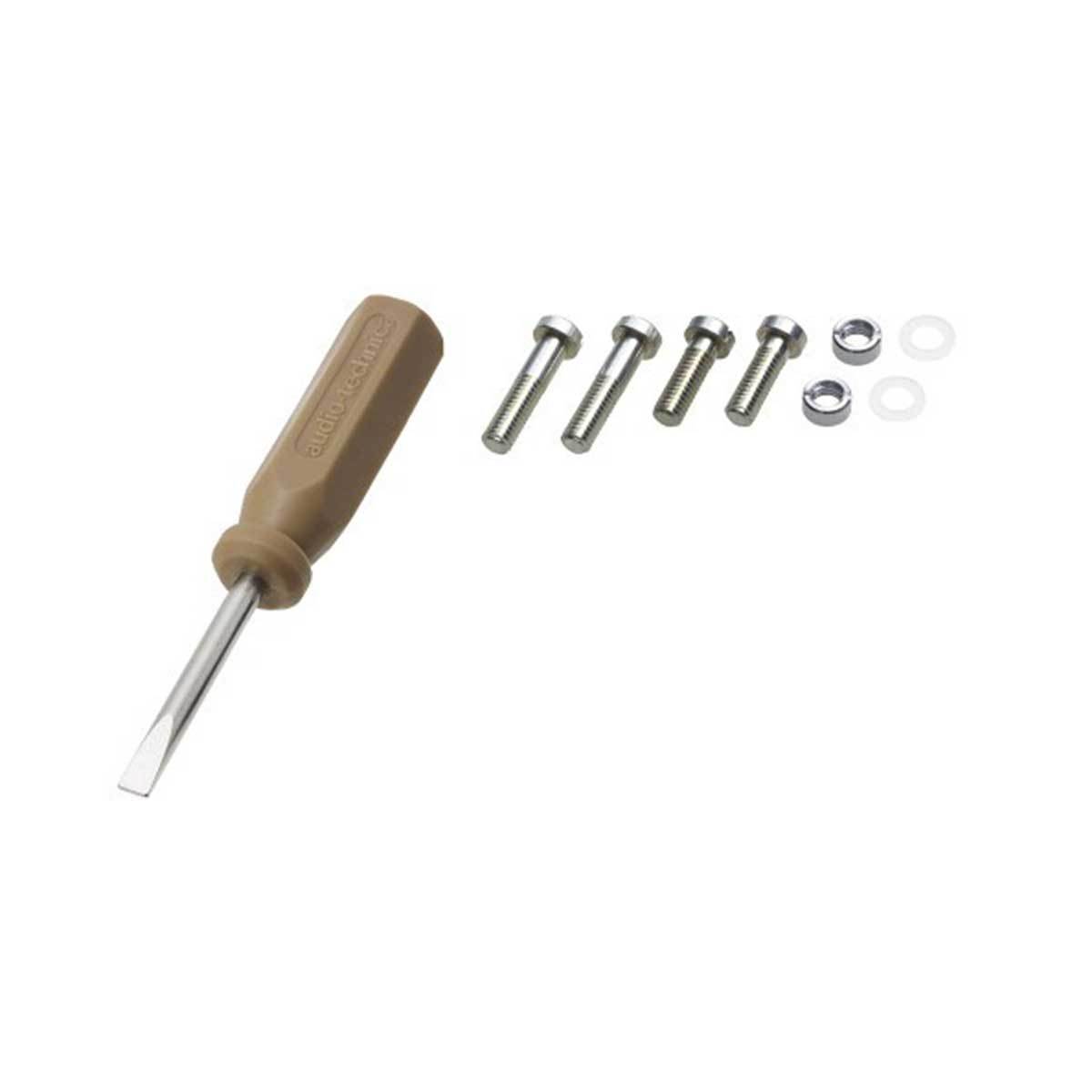

          Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
          Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
