  • Home / Products / Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    Turntable Accessories - Audio-Technica AT-XP7 DJ Cartridge
    $249.00

    Audio-Technica

    AT AT-XP7

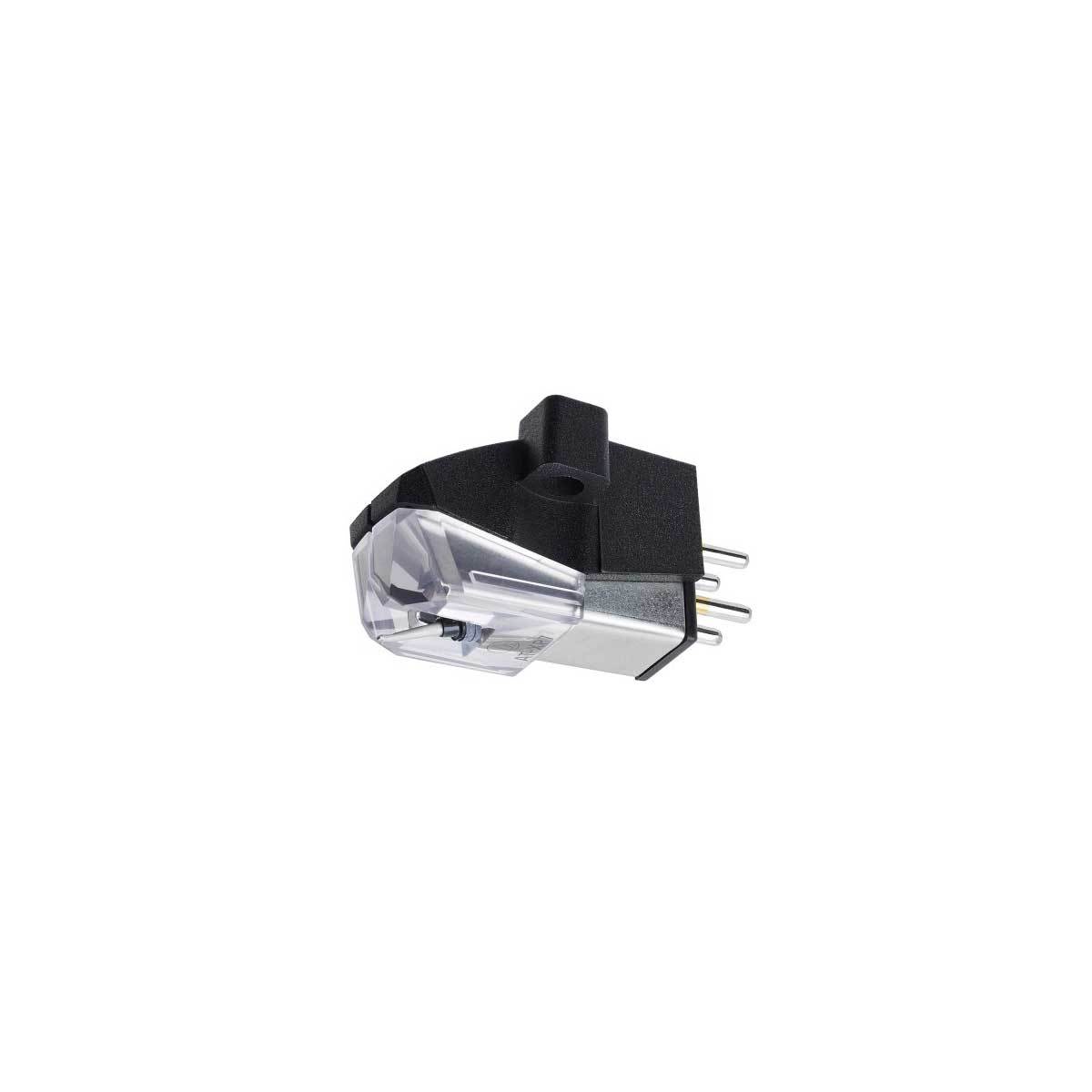

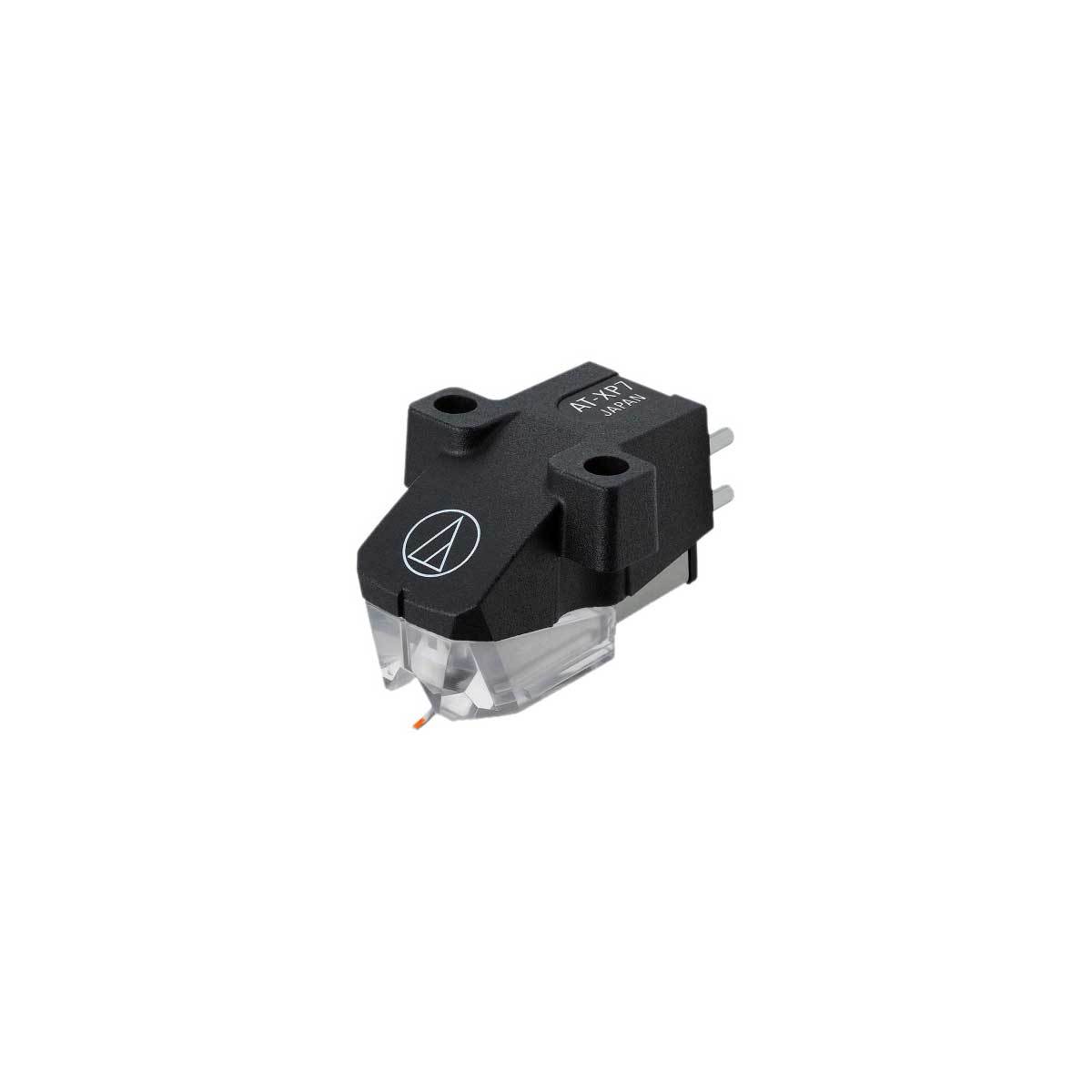

    Audio-Technica AT-XP7 DJ Cartridge

    Notify me when this product is available:

    The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

    Coming Soon!



    Type: Turntable Accessories

      • Product Features:

        Durable robust design for high-quality specialist DJ playback

        Cartridges designed for DJ venue applications for their Hi Fi audio Performance

        Great visibility of stylus tip for instant positioning in dark environments

        Audiophile experience associated with DJ’ing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards

        VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus

        Tapered aluminium cantilever

        Stainless wire suspension enables expressive higher frequency for clearer sound

        High-rigidity and Low-resonance cartridge housing

        Replacement Stylus: ATN-XP7

      • Technical Specifications:

        Type: VM Dual Magnet
        Mounting: Half-inch
        Frequency Response: 20 - 20,000 Hz
        Channel Separation: 22 dB at 1kHz
        Output Channel Balance: Output Channel Balance
        Output Voltage: 6.0 mV (mV at 1 kHz, 5 cm/sec)
        Vertical Tracking Angle: 20°
        Vertical Tracking Force Range: 2.0 - 4.0g

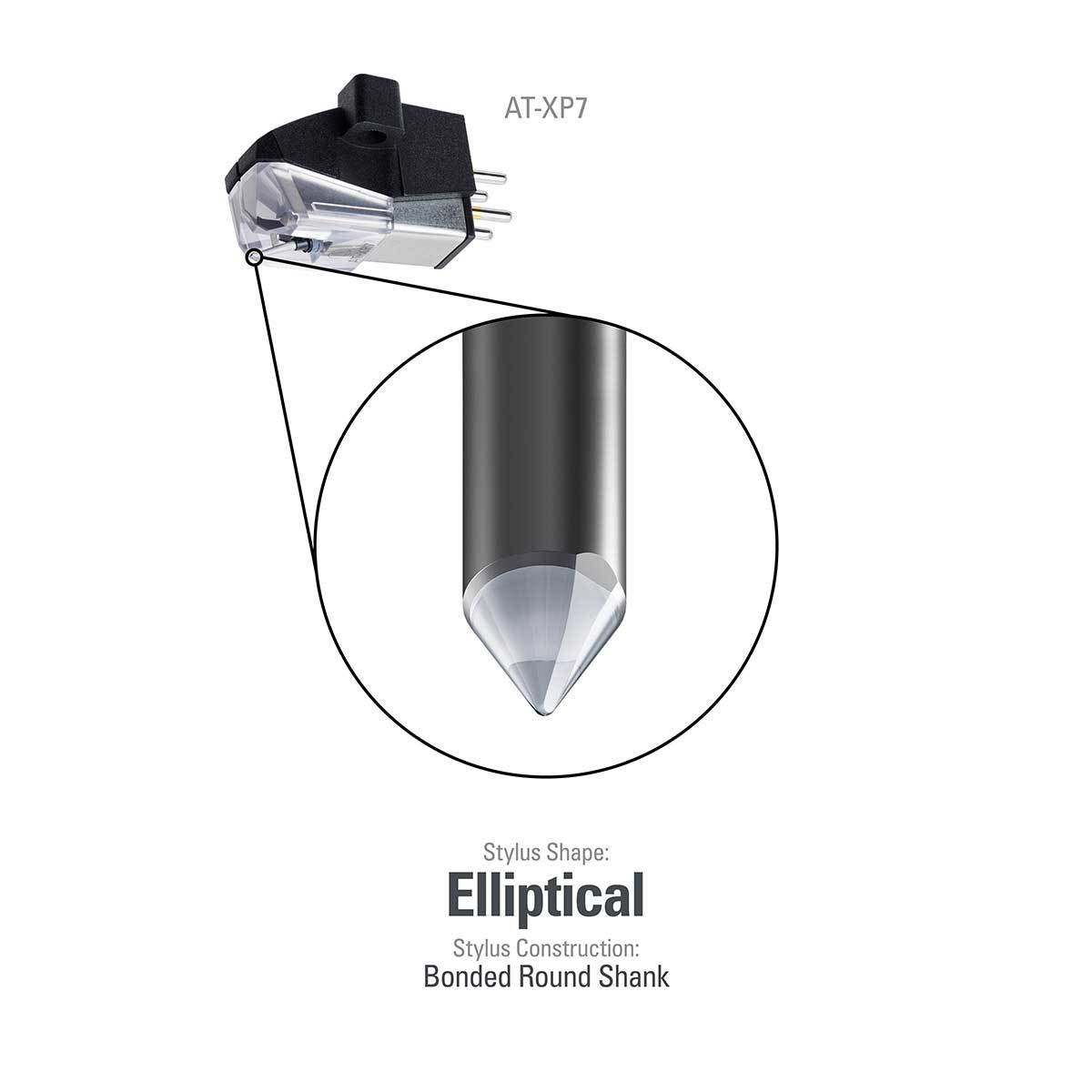

        Stylus Shape: Elliptical
        Stylus Size: 0.3 x 0.7 mil
        Stylus Construction: Bonded Round Shank
        Cantilever: Aluminium tapered Pipe
        Coil Inductance: 1.0 H (1 kHz)
        Static Compliance: 20 x 10-6 cm/dyne
        Dynamic Compliance: 8.0x10-6cm/dyne (100Hz)
        Recommended Load Impedance: 47,000 ohms
        Recommended Load Capacitance: 100-200 pF
        Weight: 6.2g
        Dimensions: H17.2×W17.8×D28.3mm
        Replacement Stylus: ATN-XP7

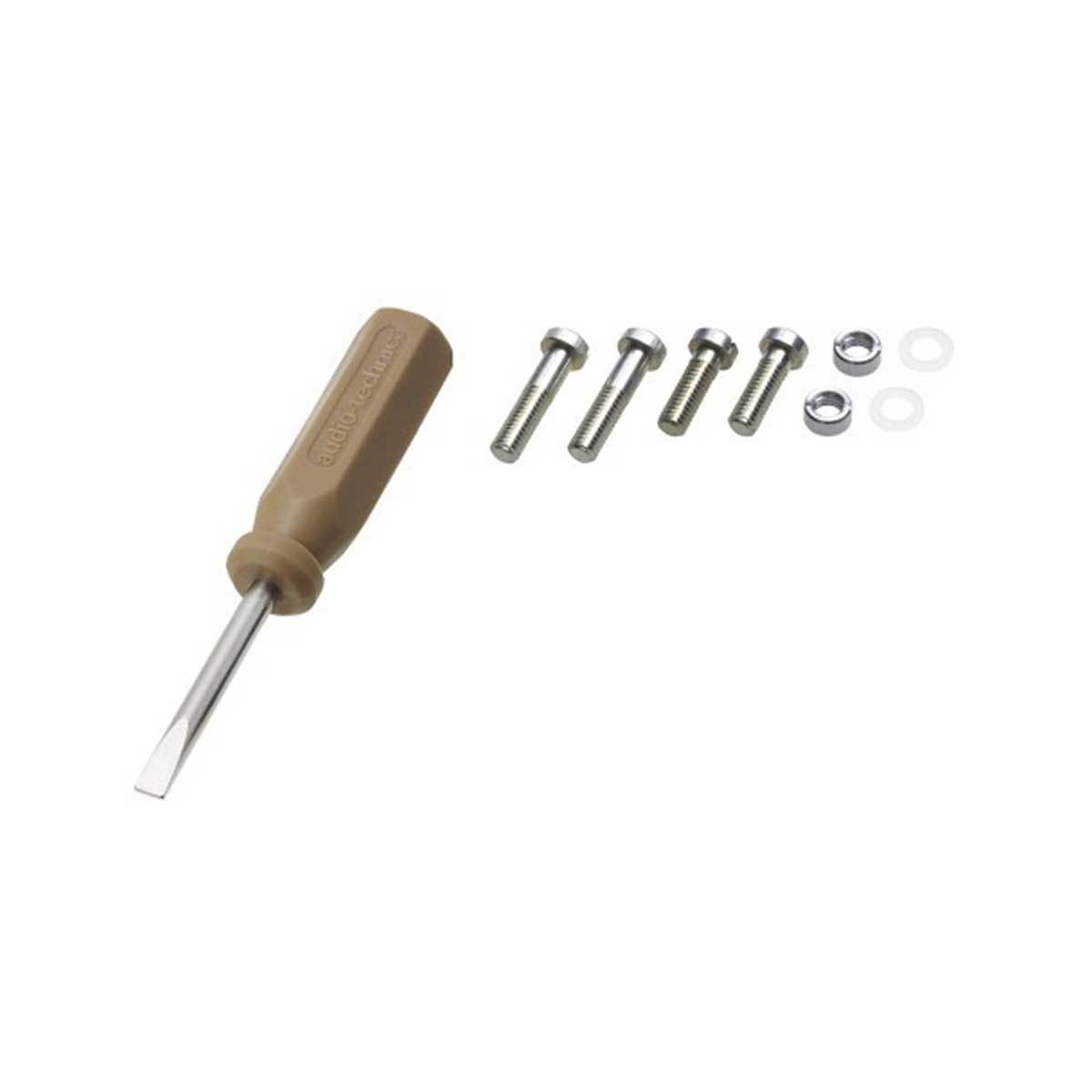

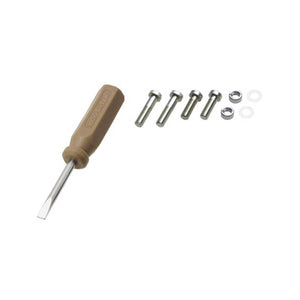

        Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
        Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
