Audio-Technica

AT AT4047

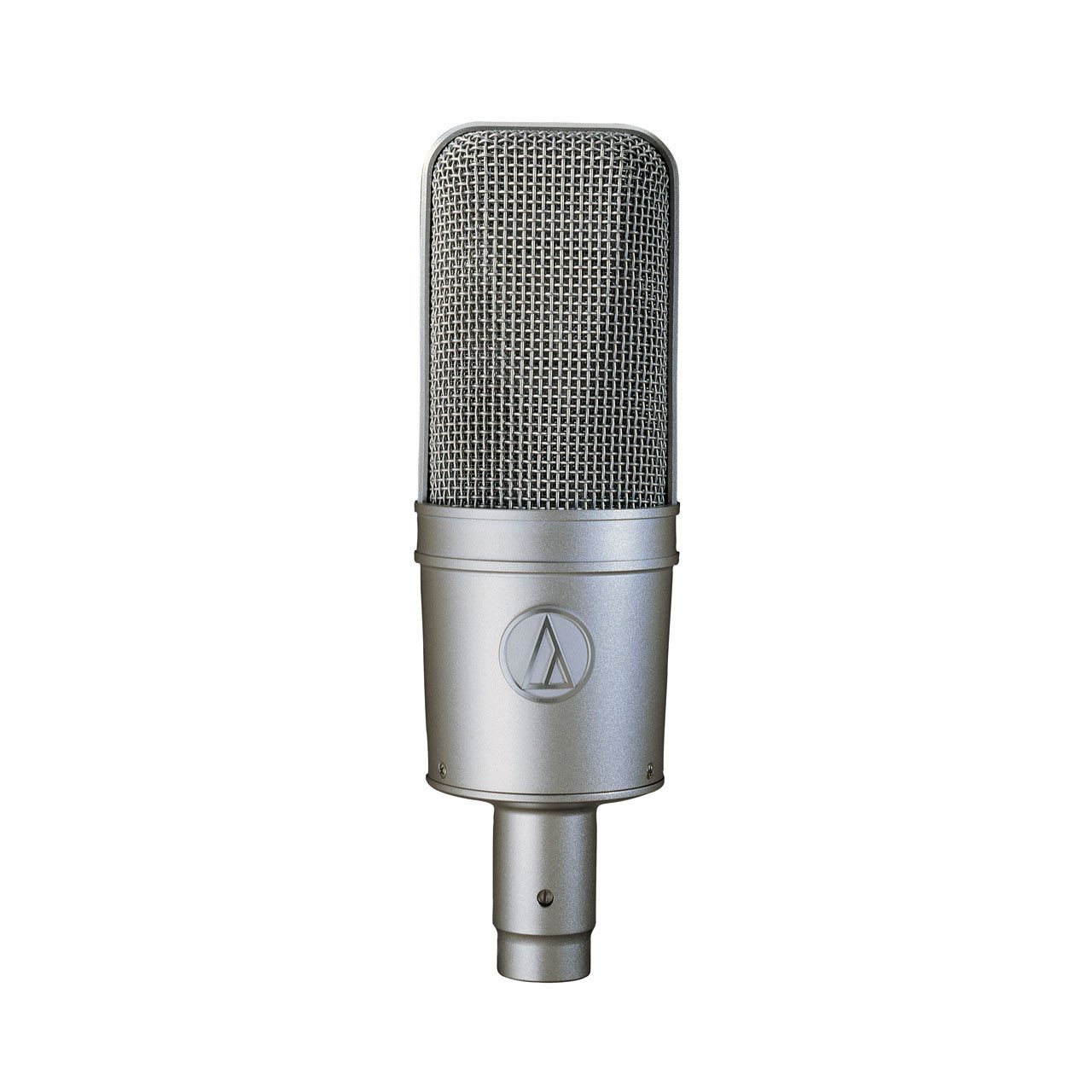

Audio-Technica AT4047 - Large diaphragm FET condenser Microphone


The beautiful sounding Audio-Technica AT4047 - great for vocals! Comes complete with shock-mount and case. The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound.


    • Audio-Technica AT4047 PRODUCT FEATURES:

      Designed for critical studio, live sound and broadcast applications
      Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
      Exceptionally low self-noise, wide dynamic range and high SPL capability
      Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
      Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
      Vintage silver-matte finish on microphone and shock mount
      Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
      State-of-the-art surface-mount electronics ensure compliance with Audio-Technica's stringent consistency and reliability standards
      Switchable 80 Hz hi-pass filter and 10 dB pad

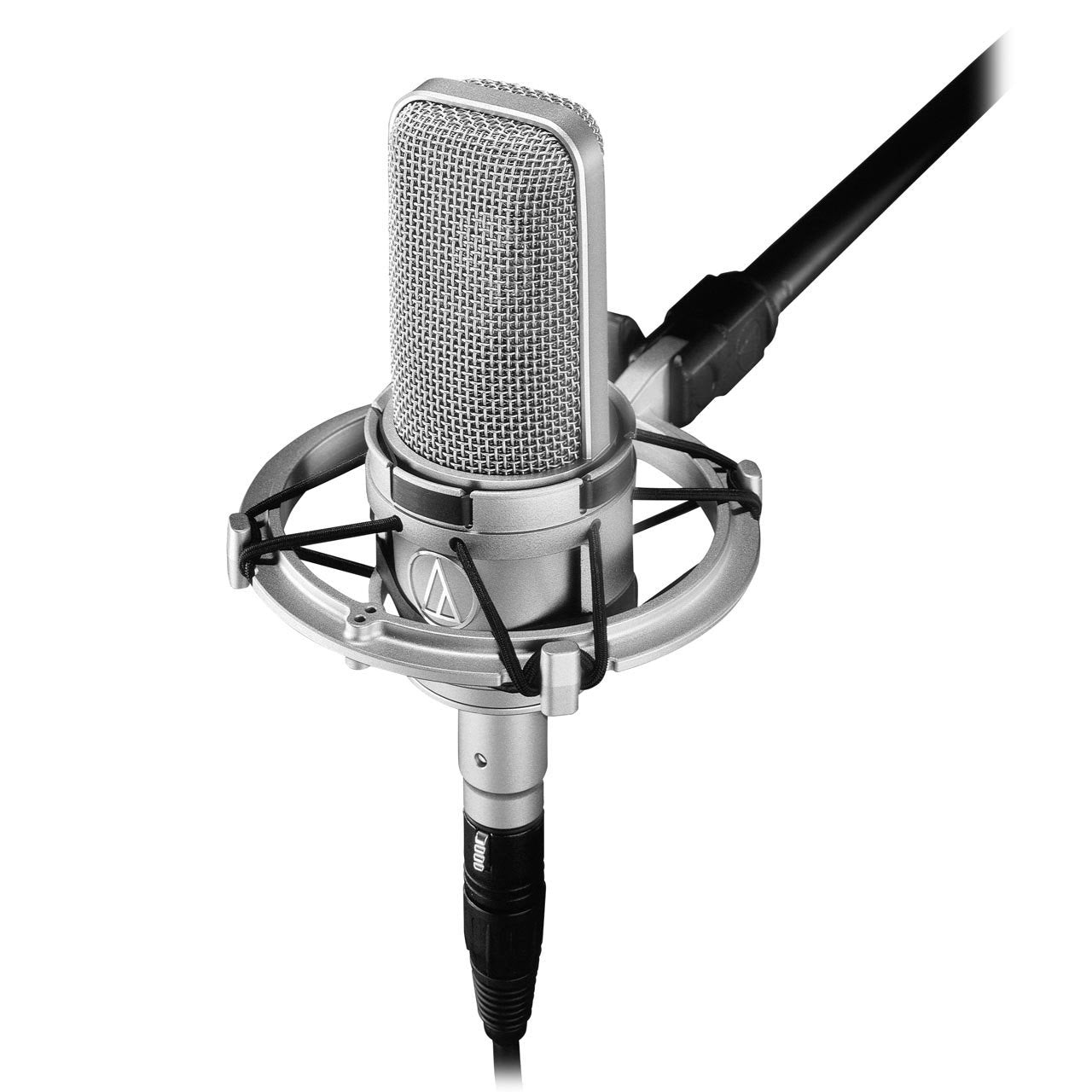

      Custom shock mount provides superior isolation
      Also available as the AT4047SVSC with the AT8430 isolation stand clamp

    • Audio-Technica AT4047 TECHNICAL SPECIFICATIONS:

      Element
      Externally-polarized (DC bias) condenser
      Polar Pattern
      Cardioid
      Frequency Response
      20-18,000 Hz
      Low Frequency Roll Off
      80 Hz, 12 dB/octave
      Open Circuit Sensitivity
      -35 dB (17.7 mV) dB re 1V at 1 Pa
      Impedance
      250 ohms
      Maximum Input Sound Level
      149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
      Dynamic Range
      140 dB, 1 kHz at Max SPL
      Signal to Noise Ratio
      85 dB, 1 kHz at 1 Pa
      Phantom Power Requirements
      48V DC, 3.0 mA typical
      Weight
      410g
      Dimensions
      170mm long, 53.4mm maximum body diameter
      Output Connector
      Integral 3-pin XLRM-type

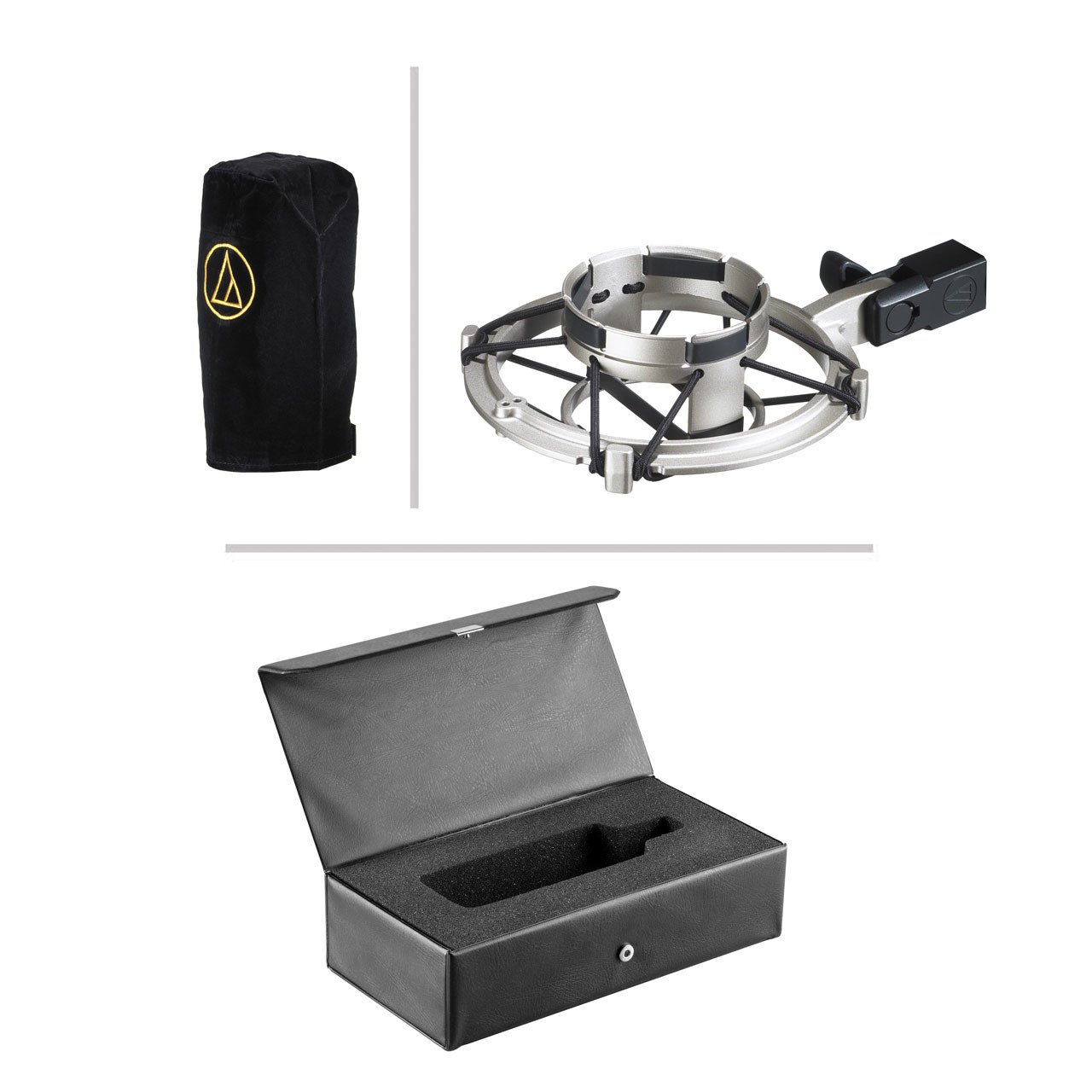

      Accessories
      AT8449SV shock mount for 5/8″-27 threaded stands; protective carrying case
