Audio-Technica

AT AT 4047MP

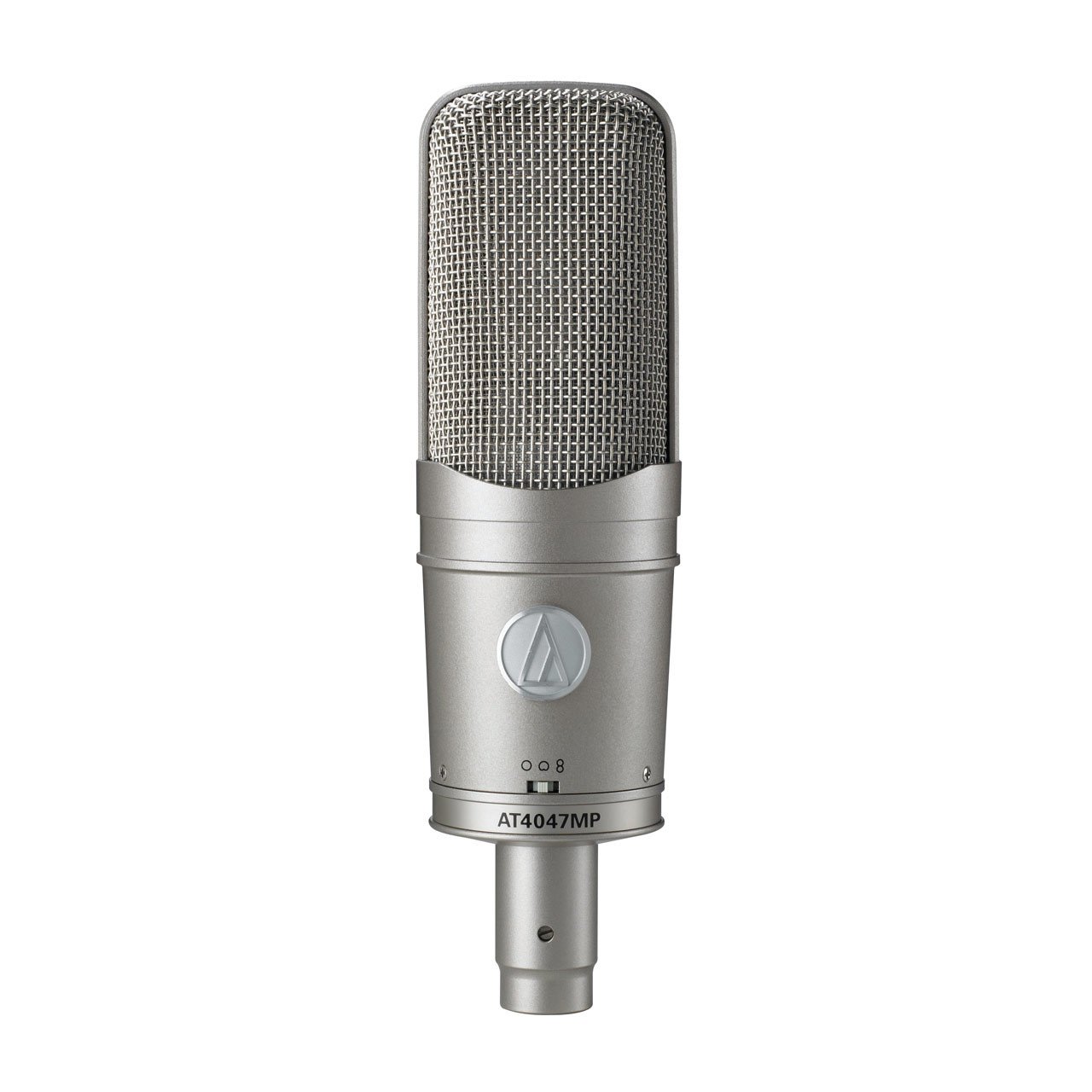

Audio-Technica AT4047MP Multi pattern Condenser Microphones


The 4047MP is the multi-pattern version of the beautiful sounding 4047. Great for stereo miking applications, and features the same FET technology as the 4047 too! Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers. This Microphone features the following polar patterns: cardioid, omni and figure-of-8.


    • Audio-Technica AT4047MP PRODUCT FEATURES:

      Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
      Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
      Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
      Exceptionally low self-noise, wide dynamic range and high SPL capability
      Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
      Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
      Vintage silver-matte finish on microphone and shock mount
      Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

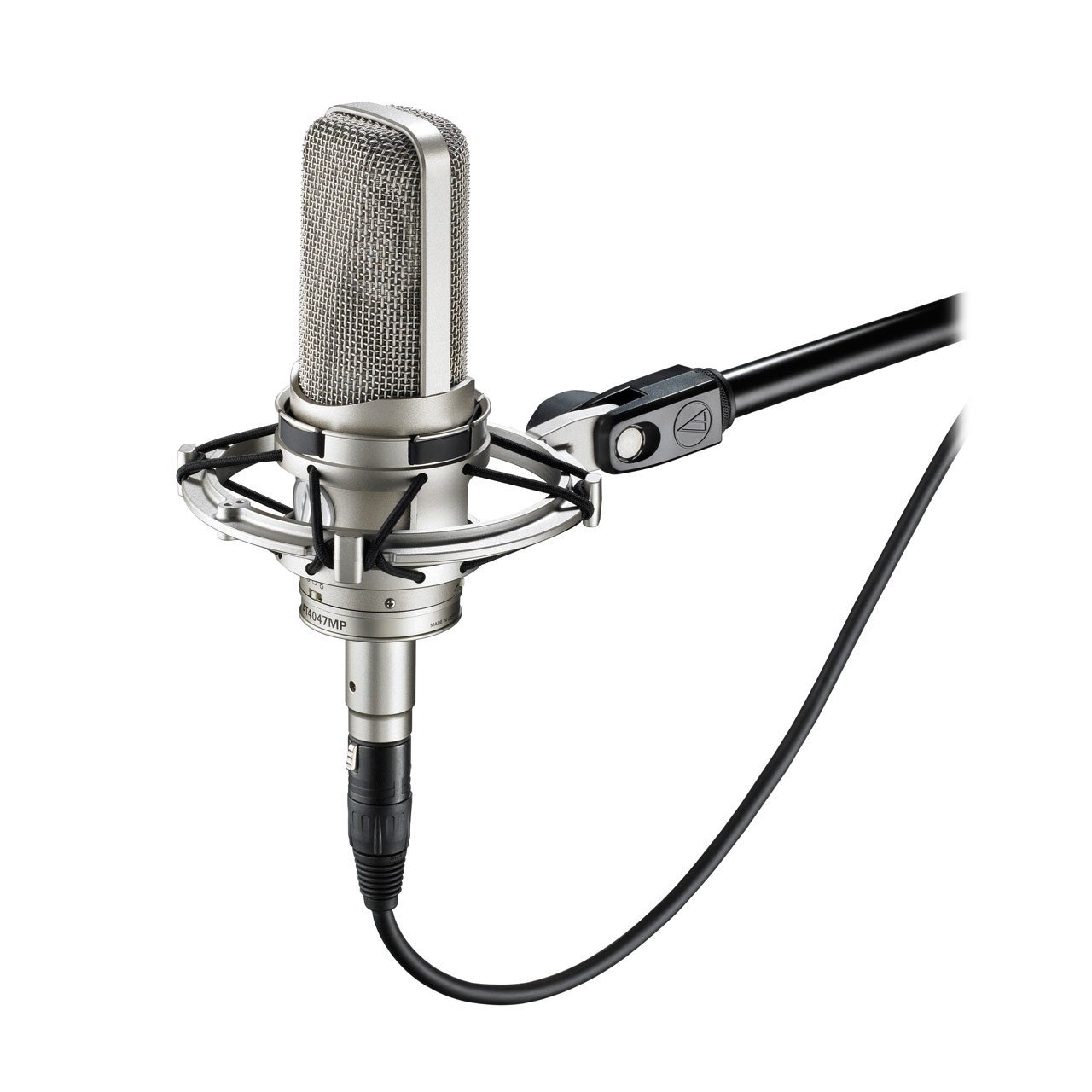

      Custom shock mount provides superior isolation
      Integral 80 Hz high-pass filter switch and 10 dB pad switch

    • Audio-Technica AT4047MP TECHNICAL SPECIFICATIONS:

      Element
      Externally-polarized (DC bias) condenser
      Polar Pattern
      Cardioid, Omnidirectional, Figure-of-eight
      Frequency Response
      20-18,000 Hz
      Low Frequency Roll-off
      80 Hz, 12 dB/octave
      Open Circuit Sensitivity
      -42 dB (7.9 mV), re 1V at 1 Pa
      Impedance
      100 ohms
      Maximum Input Sound Level
      155 dB SPL, 1 kHz at 1% T.H.D.; 165 dB SPL, with 10 dB pad (nominal)
      Noise
      14 dB
      Dynamic Range (Typcial)
      141 dB, 1 kHz at Max SPL
      Signal-to-Noise Ratio
      80 dB, 1 kHz at 1 Pa
      Phantom Power Requirements
      48V DC, 3.4 mA typical
      Switches
      Polar selection; Flat, roll-off;10 dB pad (nominal)
      Weight
      524 g
      Dimensions
      188mm long, 53.4mm maximum body diameter
      Output Connectors
      Integral 3-pin XLRM-type

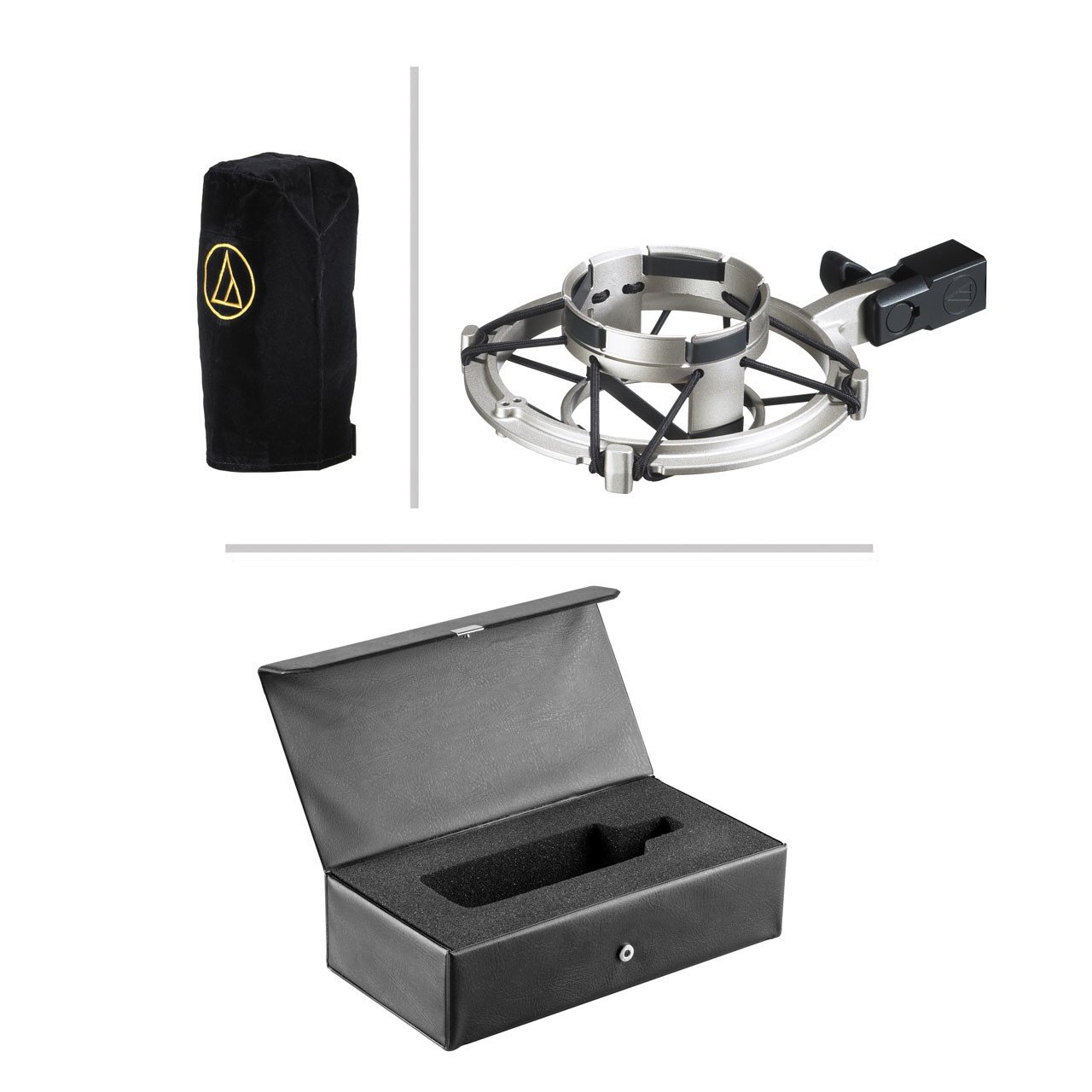

      Accessories Furnished
      AT8449/SV shock mount for 5/8″-27 threaded stands; microphone dust cover; protective carrying case
      Audio-Technica Case Style
      R1

Need more info on the AT4047MP? Click HERE for the official Audio-Technica product listing >>>
