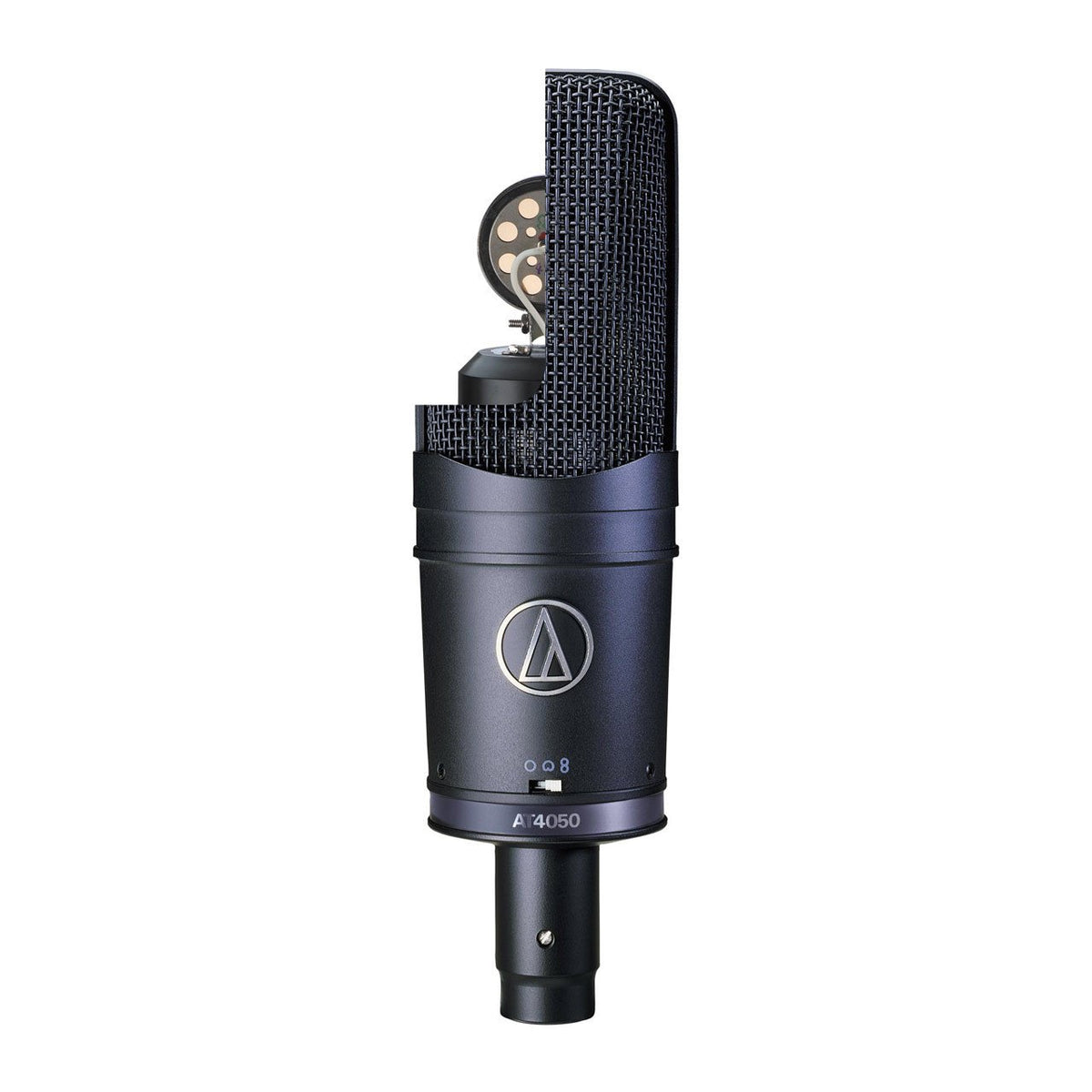

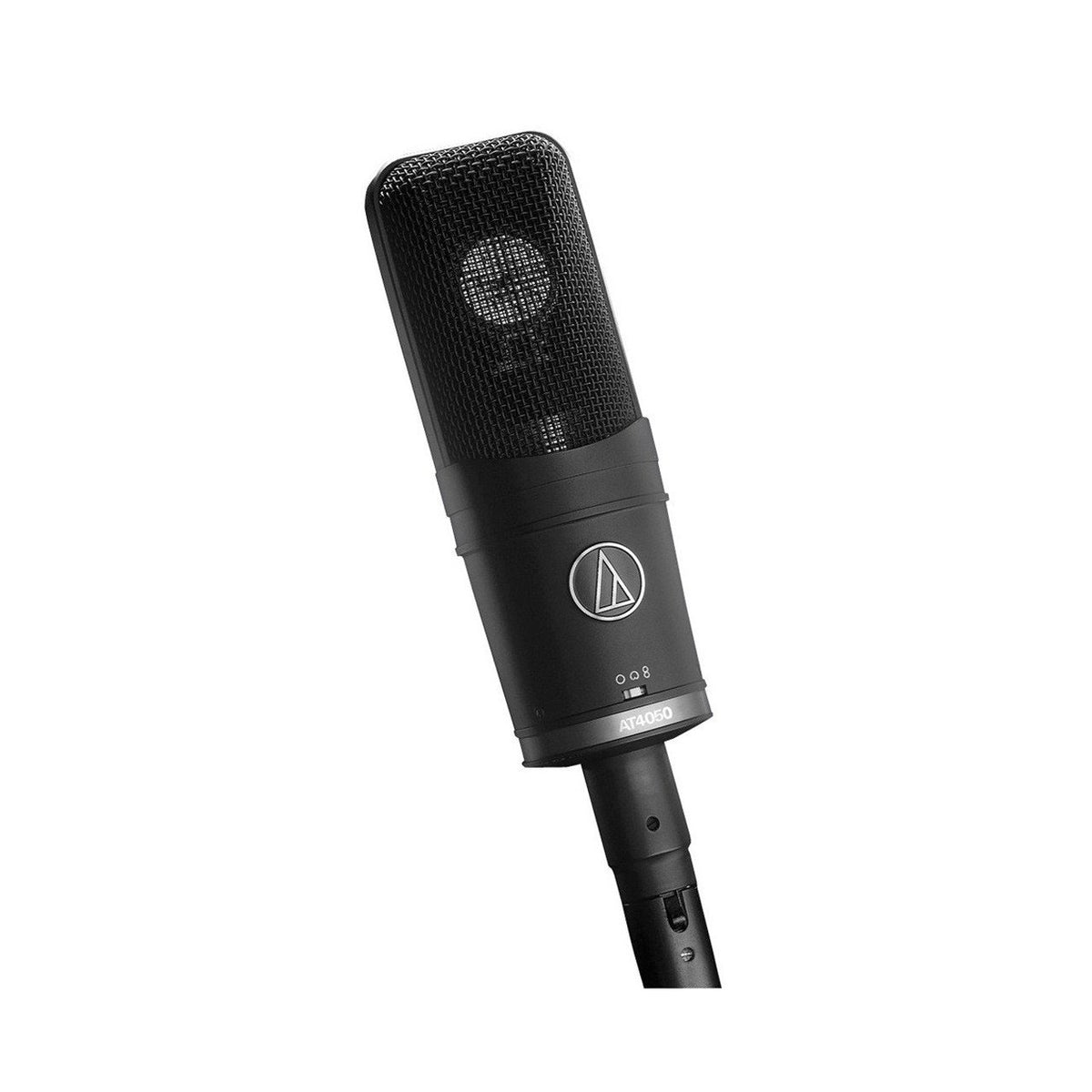

Audio-Technica AT4050 - Large diaphragm multi-pattern condenser Microphone


A clean and detailed sounding multi-pattern condenser microphone, that sounds great on vocals and acoustic guitar. Being multi pattern you can pair the Audio Technica AT4050 with a cardioid microphone for mid side recording techniques. This microphone presents excellent value for money for someone looking for a clean, transparent sound in the studio. Meet the studio condenser that captures every nuance. With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities: high-SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. Its dual large diaphragms are gold-vaporized and aged for consistent, outstanding performance. A precision-machined, nickel-plated brass acoustic element baffle provides rock-solid element stability and exceptional sensitivity.


    • Audio-Technica AT4050 PRODUCT FEATURES:

      Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
      Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
      The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
      Three switchable polar patterns: omni, cardioid, figure-of-eight
      Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
      State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
      Switchable 80 Hz hi-pass filter and 10 dB pad

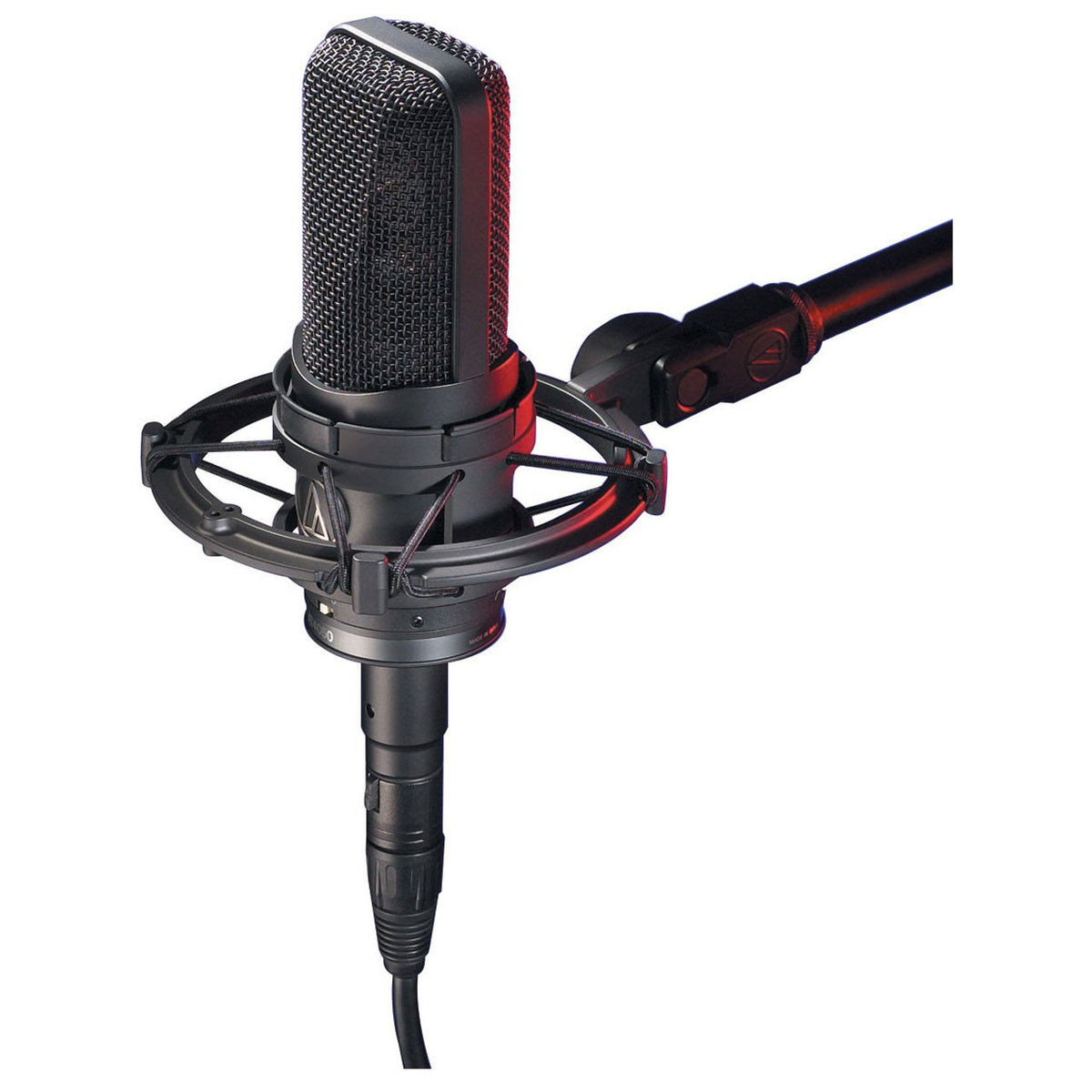

      Custom shock mount provides superior isolation

    • Audio-Technica AT4050 TECHNICAL SPECIFICATIONS:

      Element
      Externally-polarized (DC bias) condenser

      Polar Patterns
      Cardioid,
      Omnidirectional,
      Figure-of-eight

      Frequency Response
      20-18,000 Hz

      Low Frequency Roll-Off
      80 Hz, 12 dB/octave

      Open Circuit Sensitivity
      -36 dB (15.8 mV), re 1V at 1 Pa

      Impedance
      100 ohms

      Maximum Input Sound Level
      149 dB SPL, 1 kHz at 1% T.H.D.;
      159 dB SPL, with 10 dB pad (nominal)

      Noise
      17 dB

      Dynamic Range (typical)
      132 dB, 1 kHz at Max SPL

      Signal-To-Noise Ratio
      77 dB, 1 kHz at 1 Pa

      Phantom Power Requirements
      48V DC, 4.2 mA typical

      Switches
      Polar selection;
      Flat, roll-off;
      10 dB pad (nominal)

      Weight
      510g

      Dimensions
      188mm long, 53.4mm maximum body diameter

      Output Connectors
      Integral 3-pin XLRM-type

      Accessories Furnished
      AT8449 shock mount for 5/8″-27 threaded stands; microphone dust cover; protective carrying case

      Audio-Technica Case Style
      R1

Need more info on the AT4050? Click HERE for the official Audio-Technica listing >>>
