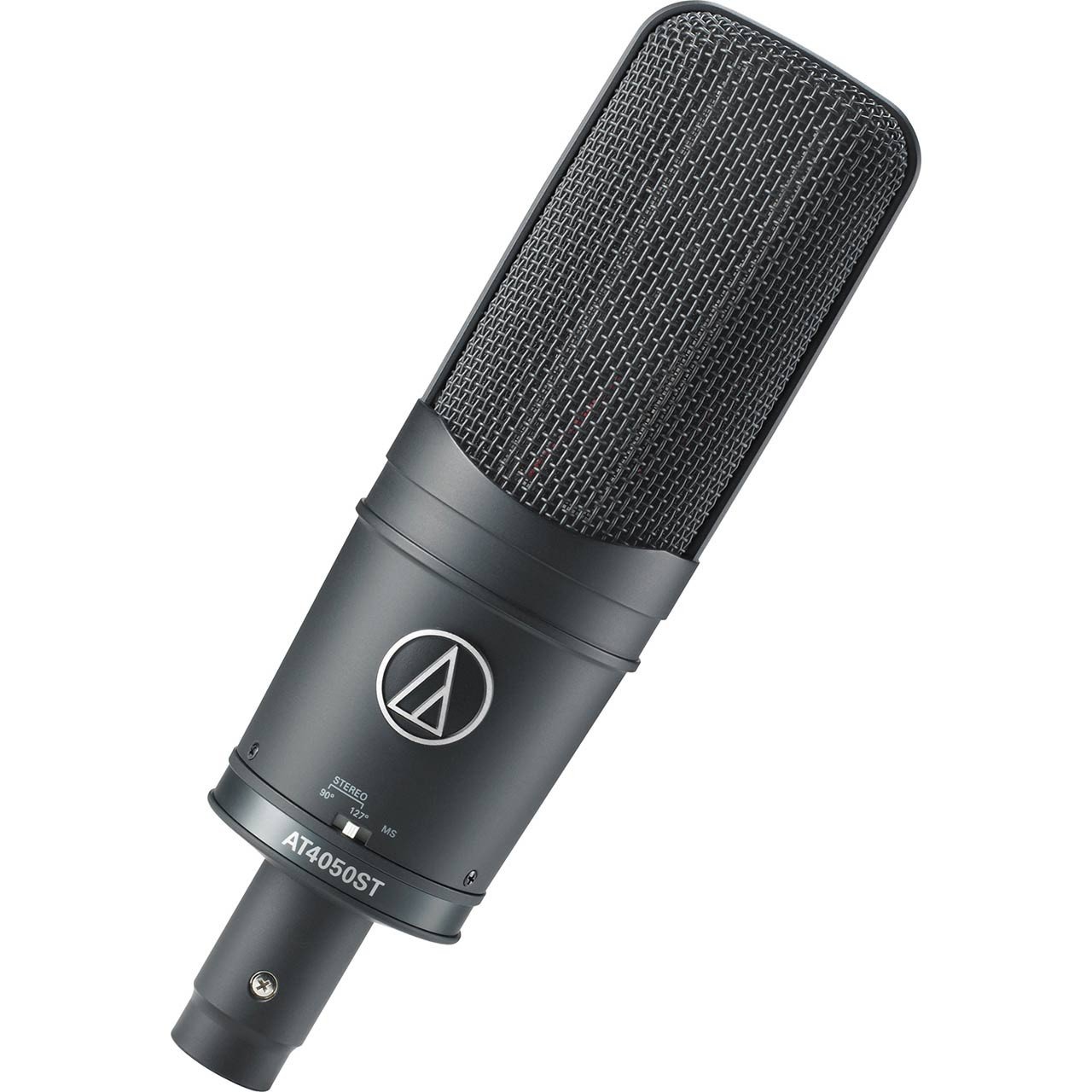

Audio-Technica AT4050ST - Stereo version of AT4050

Audio-Technica AT4050ST PRODUCT FEATURES:

Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement

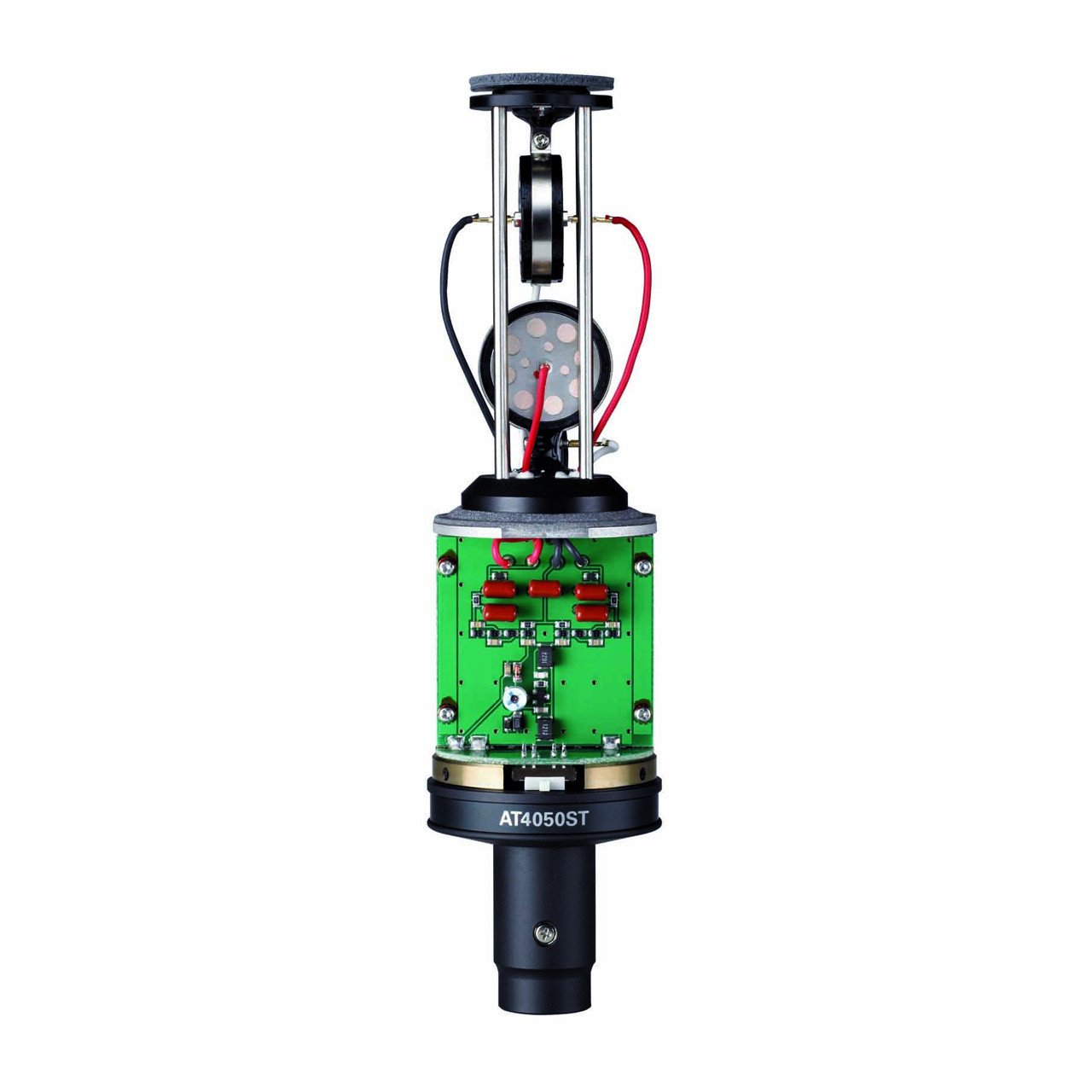

Independent cardioid and figure-of-eight condenser elements

Switch selection of Mid-Side mode and two internally matrixed stereo modes

Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone

Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use

Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

Integral 80 Hz high-pass filter switch and 10 dB pad switch

State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards

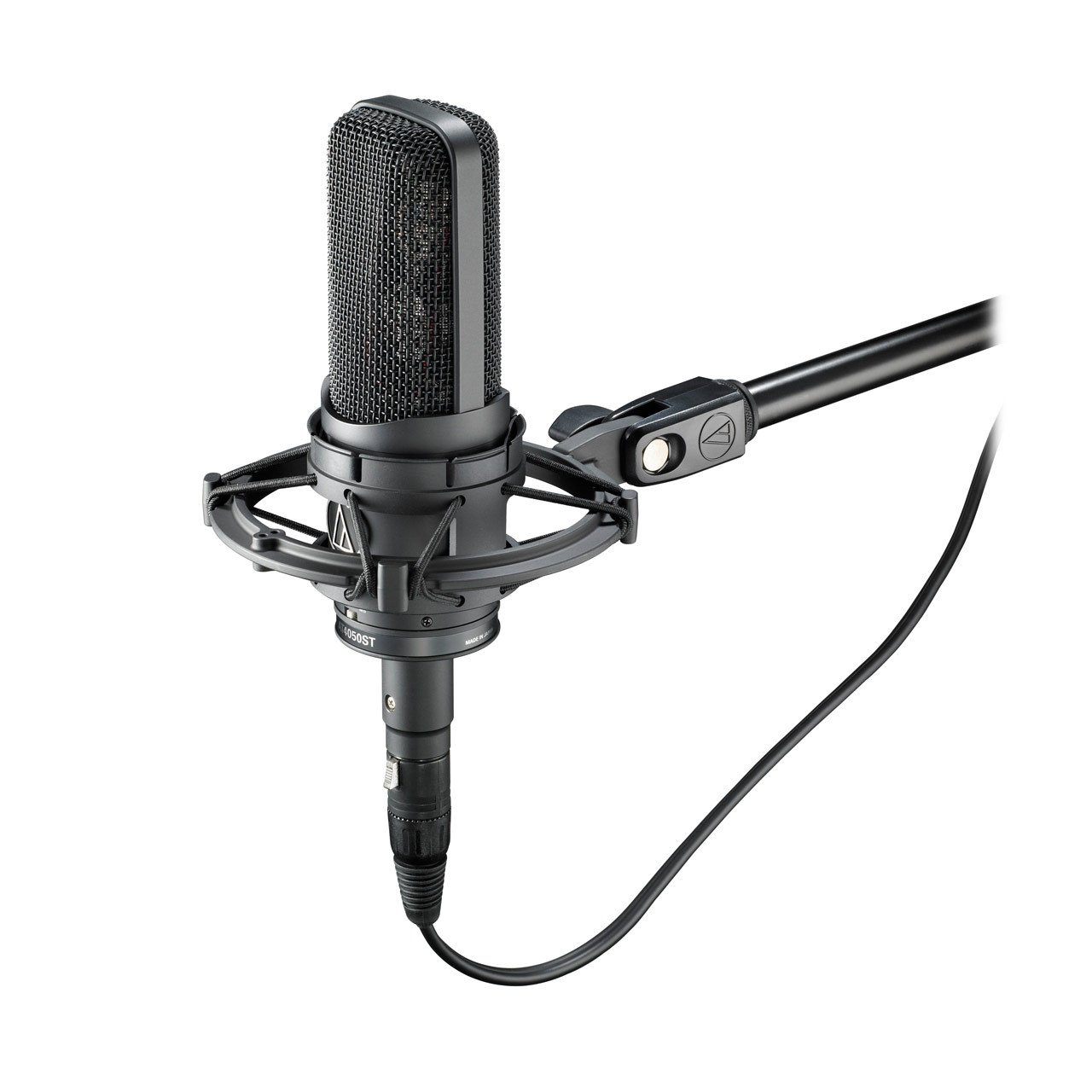

Custom shock mount provides superior isolation

Audio-Technica AT4050ST TECHNICAL SPECIFICATIONS:

Element
Externally-polarized (DC bias) condenser

Polar Pattern
Cardioid and Figure-of-eight

Frequency Response
20-18,000 Hz

Low Frequency Roll-off
80 Hz, 12 dB/octave

Open Circuit Sensitivity

Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa
Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa
Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa
Side: -36 dB (15.8 mV) dB re 1V at 1 Pa

Impedance
50 ohms

Maximum Input Sound Level
Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.;159 dB SPL, with 10 dB pad (nominal)

Noise

Stereo 90°: 25 dB SPL
Stereo 127°: 16 dB SPL
Mid: 15 dB SPL
Side: 17 dB SPL

Dynamic Range (Typcial)

Mid: 134 dB, 1 kHz at Max SPL
Side: 132 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio

Stereo 90°: 69 dB, 1 kHz at 1 Pa
Stereo 127°: 78 dB, 1 kHz at 1 Pa
Mid: 79 dB, 1 kHz at 1 Pa
Side: 77 dB, 1 kHz at 1 Pa

Phantom Power Requirements
48V DC, 6.4 mA typical (both channels total)

Switches
90°, 127°, M-S; Flat, roll-off; 10 dB pad (nominal)

Weight
517g

Dimensions
193mm long, 53.4mm maximum body diameter

Output Connector
Integral 5-pin XLRM-type

Cable
5.0 m long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end

Accessories Furnished

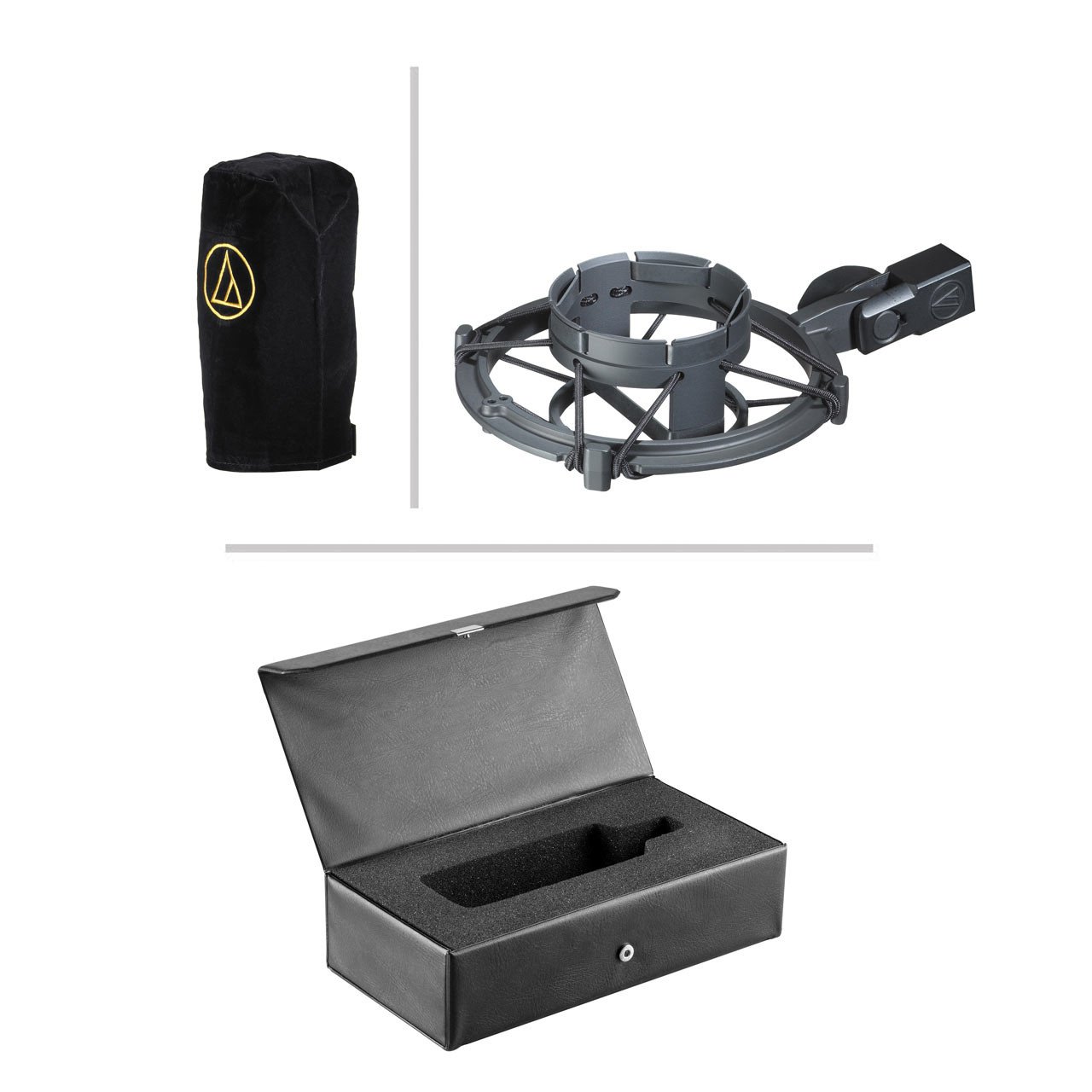

AT8449 shock mount for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; microphone dust cover; protective carrying case

Audio-Technica Case Style
R1
