Audio-Technica

AT AT4060

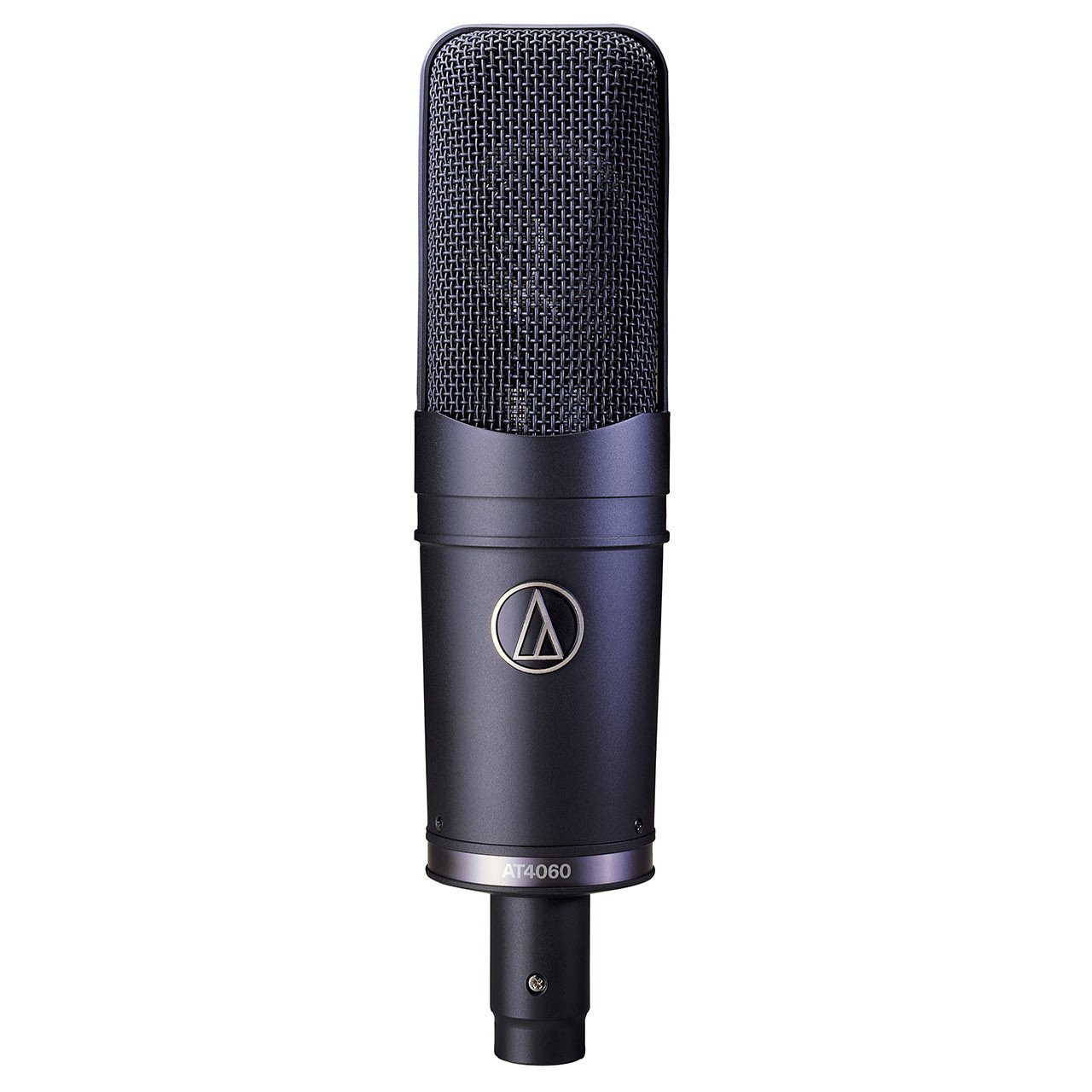

Audio-Technica AT4060 Cardioid Condenser Tube Microphone


The Audio Technica AT4060 valve microphone is an amazing microphone for recording vocals. This microphone really shines - It has a silky smooth top end and breaths life into any vocal performance. You won't be disappointed by this high quality microphone. The Audio-Technica AT4060 tube condenser microphone brings that classic warmth of a vintage tube mic. With a dynamic range that far exceeds that of many other tube microphones, it is capable of capturing subtle nuances in vocal and instrumental performances that may otherwise be missed.


    • Audio-Technica AT4060 PRODUCT FEATURES:

      Vintage tube sound with the versatile performance necessary for the most demanding studio applications
      Wide dynamic range, low self-noise and high max SPL capability
      The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use

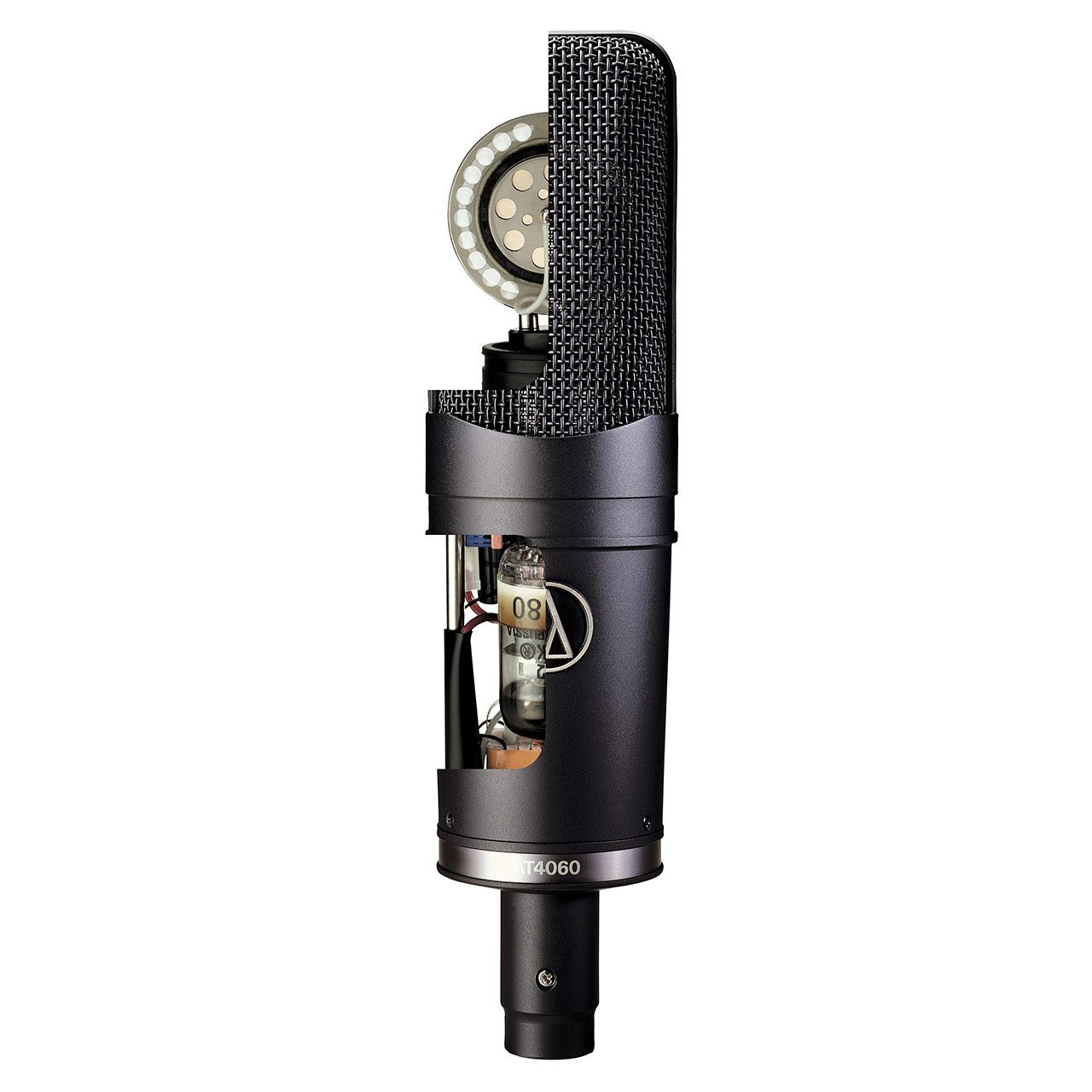

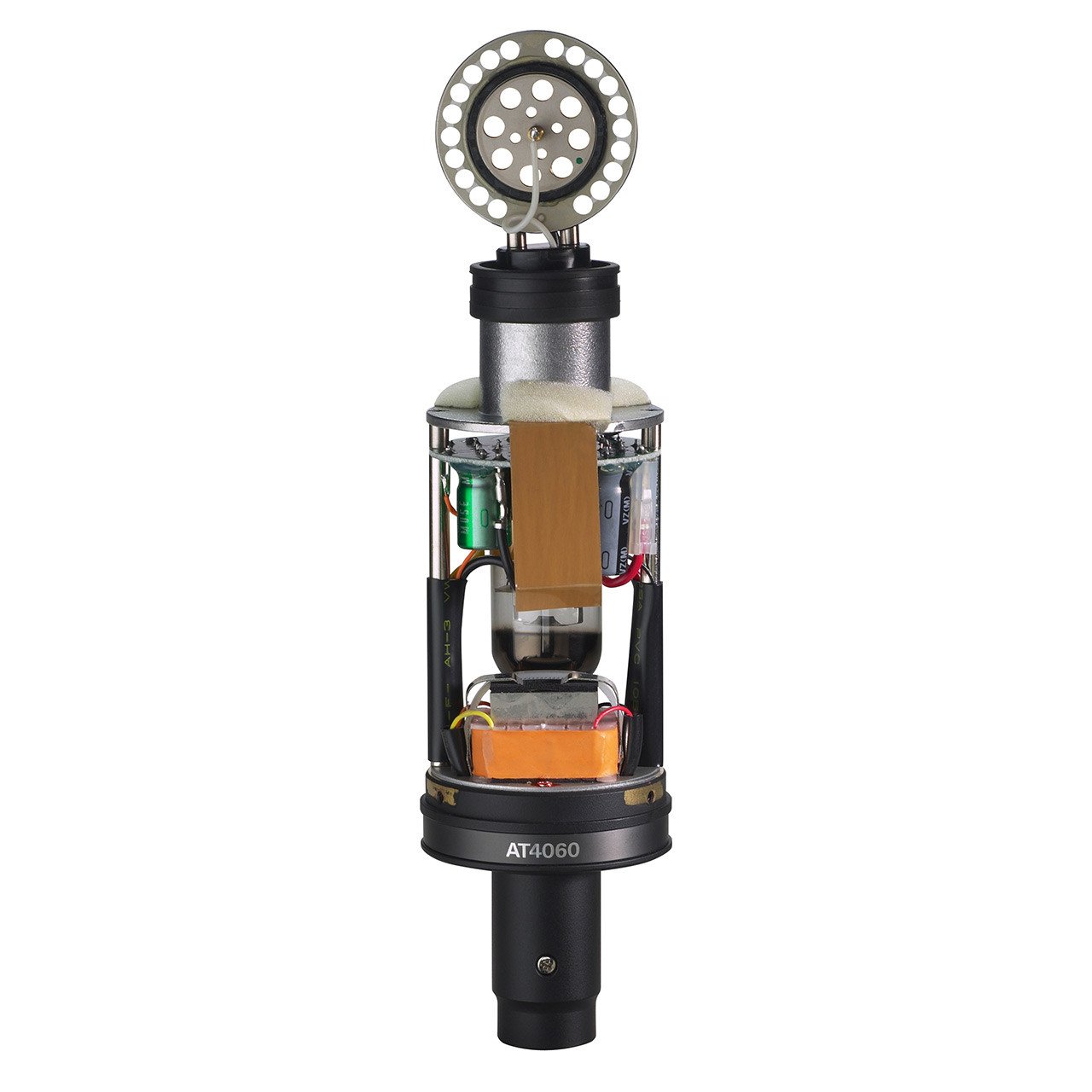

      Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
      Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
      Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
      Hand-selected tubes are individually tested and aged to maintain peak performance
      Large coupling transformer provides superior low-frequency linearity

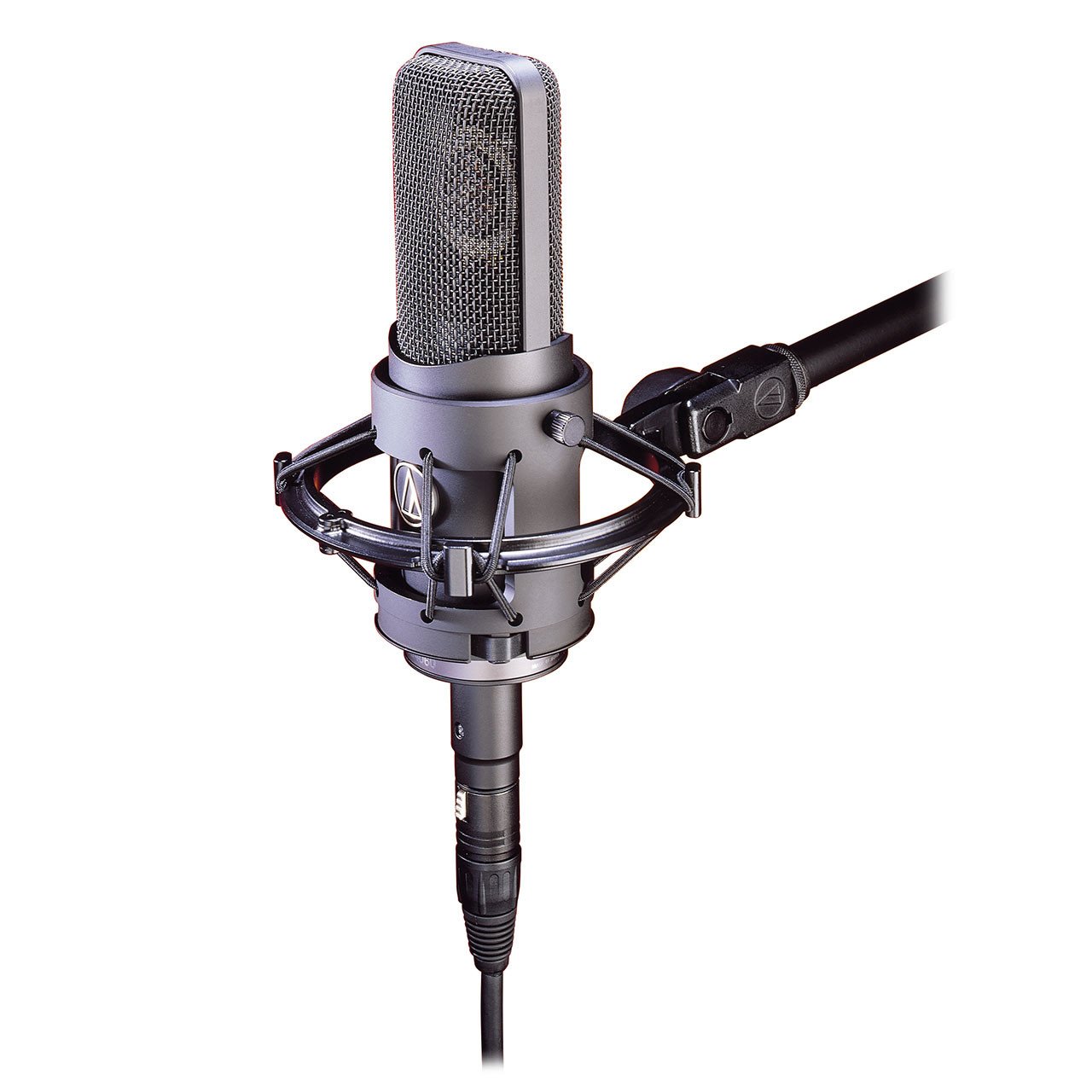

      Custom shock mount provides superior isolation
    • Audio-Technica AT4060 TECHNICAL SPECIFICATIONS:

      Element
      Externally polarized (DC bias) condenser
      Polar Pattern
      Cardioid
      Frequency Response
      20-20,000 Hz
      Open Circuit Sensitivity
      34 dB (19.9 mV) re 1V at 1 Pa
      Impedance
      200 ohms
      Maximum Input Sound Level
      150 dB SPL, 1 kHz at 1% T.H.D.;
      149 dB SPL, 1 kHz at 0.5% T.H.D.
      Noise
      19 dB SPL
      Dynamic Range (typical)
      131 dB, 1 kHz at Max SPL
      Signal-To-Noise Ratio
      75 dB, 1 kHz at 1 Pa
      Power Requirements
      AT8560 power supply (120V/230V AC)
      Weight (Microphone)
      640g
      Weight (Power Supply)
      1.9kg
      Dimensions
      Microphone: 210mm long, 53.4mm maximum body diameter
      Power Supply: 210mm W x 225m D x 44mm H
      Output Connector
      XLRM-type (on power supply)
      Cables
      10m cable with 6 pin XLR-type connectors for use between microphone and power supply; AC power supply cable
      Accessories Furnished
      AT8560 power supply; AT8447 shock mount for 5/8″-27 threaded stands; rack-mount adapters for power supply; protective mic carrying case
