Audio-Technica

AT ATM350W

Audio-Technica ATM350W Cardioid Condenser Instrument Microphone

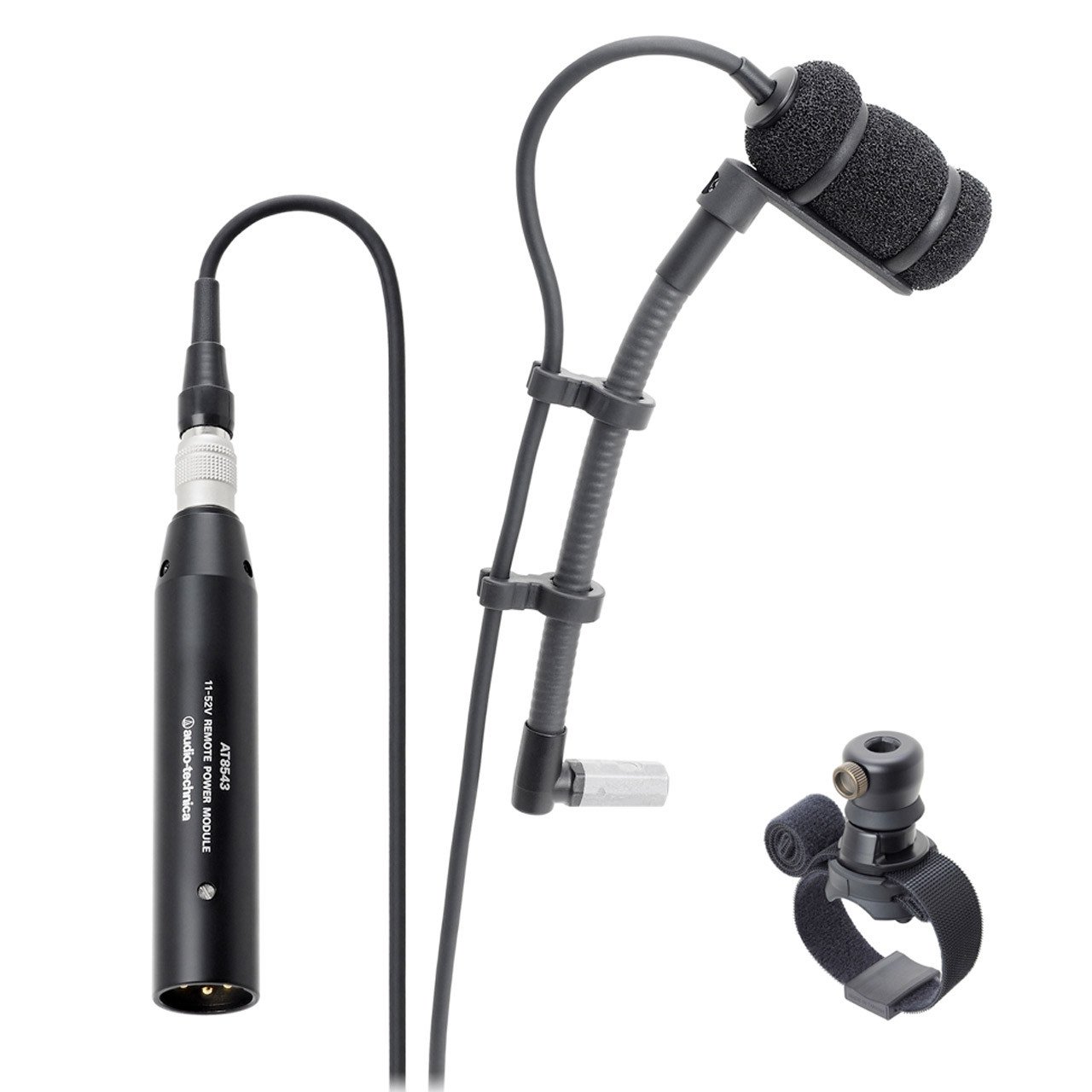

The Audio-Technica ATW350W kit includes a mounting velcro strap designed especially for woodwind instruments. The ATW350 mic is attached to the foam protective windshield at the end of a 5-inch gooseneck style boom arm. The ATW350 microphone is ideal for live situations, featuring excellent off axis noise rejection, and it can also handle high levels of SPL before distortion. The ATW350W is an excellent solution for close-miking in the studio, as the cardioid condenser capsule offers a transparent and detailed sound quality for recording.


    • Audio-Technica ATM350W Features:

      Low-profile mic design for minimum visibility
      Crisp, clear, well-balanced microphone response, even at high SPLs
      Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

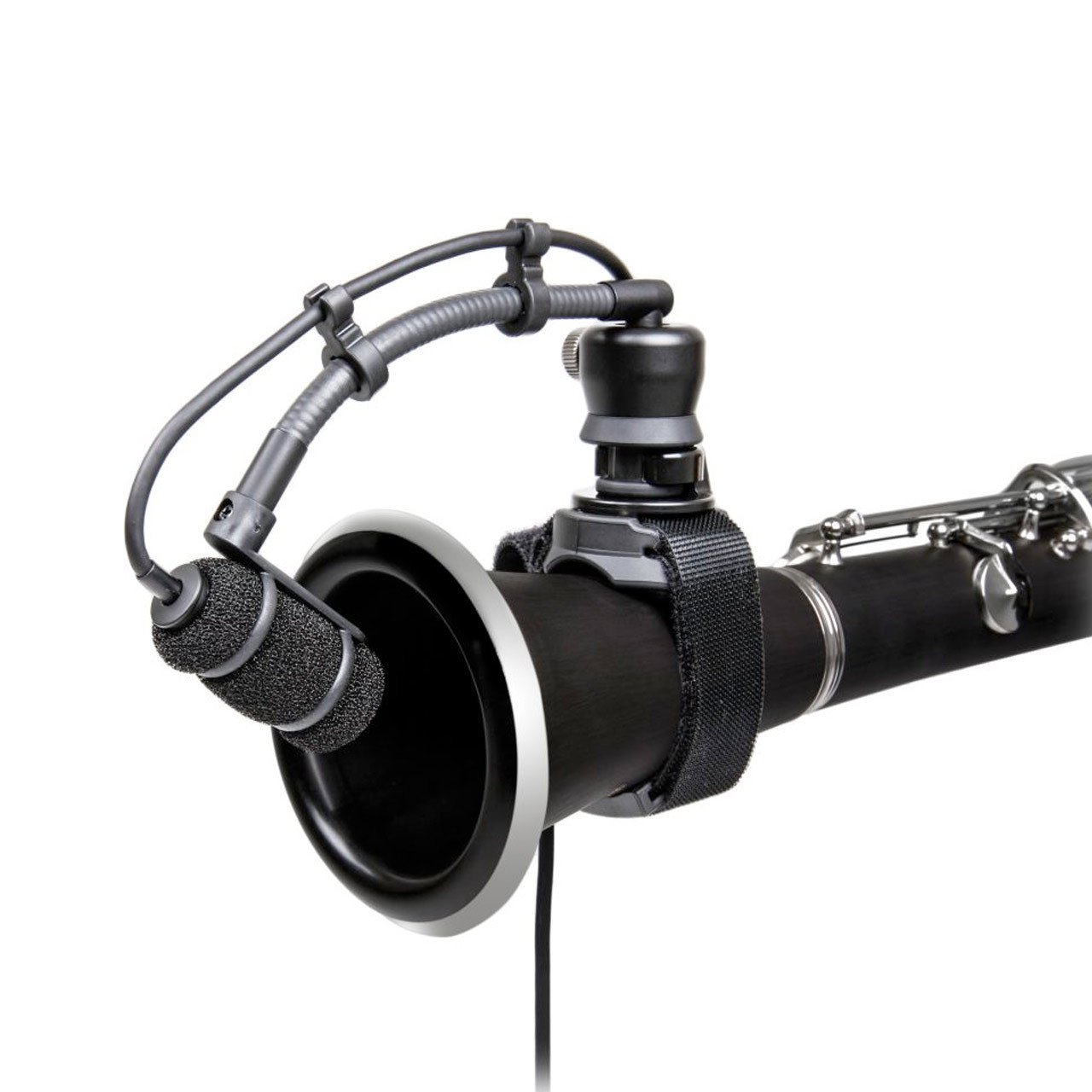

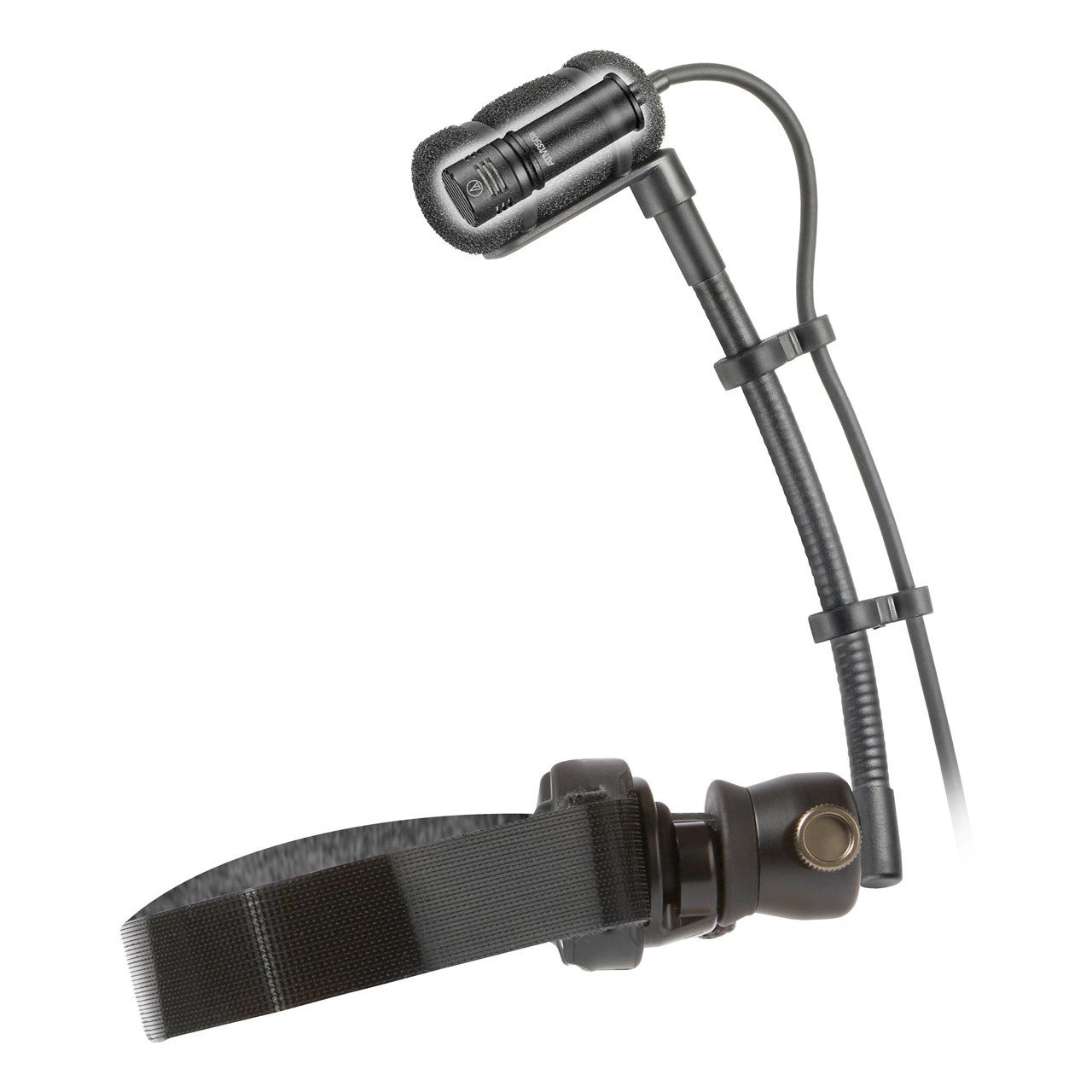

      UniMount® woodwind mount attaches securely to any woodwind instrument via a flexible strap, providing excellent shock resistance for the microphone
      Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
      In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
      Interchangeable elements available for hypercardioid and omnidirectional polar patterns
      Included violin mount with hook-and-loop fastener provides an additional mounting option
    • Audio-Technica ATM350W Specifications:

      ATM350W Clip-on condenser Inc:
      AT8543 PS, AT8490 gooseneck, AT8468 velcro, AT8491W woodwind mount

      ELEMENT
      Fixed-charge back plate, permanently polarized condenser
      POLAR PATTERN
      Cardioid
      FREQUENCY RESPONSE
      40 – 20,000 Hz
      LOW FREQUENCY ROLL-OFF
      80 Hz, 12 dB/octave
      OPEN CIRCUIT SENSITIVITY
      –49 dB (3.5 mV) re 1V at 1 Pa
      IMPEDANCE
      200 ohms
      MAXIMUM INPUT SOUND LEVEL
      159 dB SPL, 1 kHz at 1% T.H.D.
      DYNAMIC RANGE (typical)
      130 dB, 1 kHz at Max SPL
      SIGNAL-TO-NOISE RATIO
      65 dB, 1 kHz at 1 Pa
      PHANTOM POWER REQUIREMENTS
      11– 52V DC, 3.5 mA typical
      SWITCH
      Flat, roll-off
      WEIGHT (MICROPHONE)
      14.5 g
      WEIGHT (POWER MODULE)
      90 g
      DIMENSIONS (MICROPHONE)
      37.8 mm long, 12.2 mm maximum body diameter
      DIMENSIONS (POWER MODULE)
      92 mm long, 18.9 mm diameter
      OUTPUT CONNECTOR (POWER MODULE)
      4.0 m long (permanently attached to microphone), 3.2 mm diameter, 2-conductor shielded cable with HIROSE HR10-type connector
      OPTIONAL INTERCHANGEABLE ELEMENTS
      UE-H hypercardioid (100°); UE-O omnidirectional (360°)
      ACCESSORIES

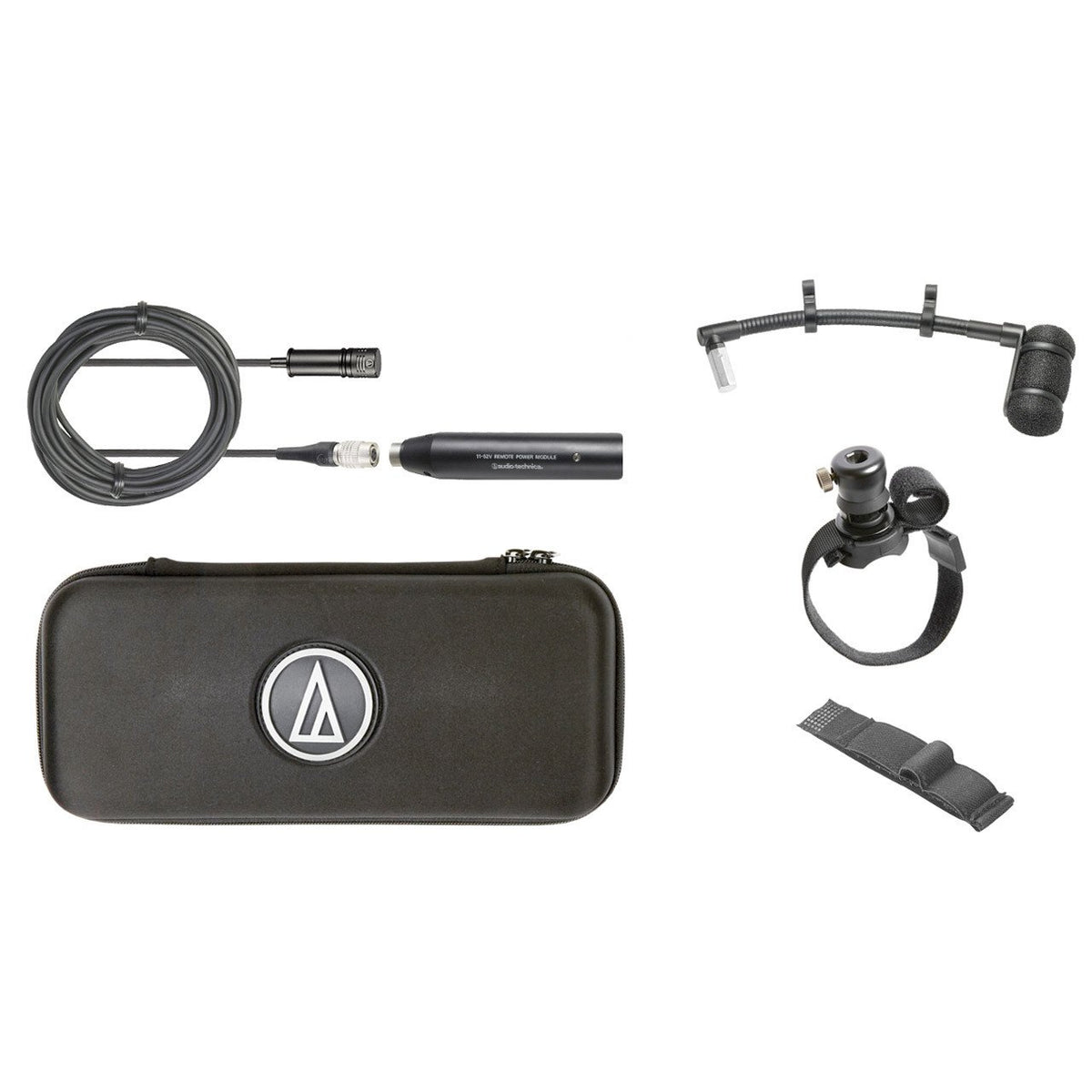

      ATM350a cardioid condenser microphone; AT8543 power module; AT8491W UniMount® woodwind mount; AT8490 UniMount® 5″ gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
