Audio-Technica

AT ATW-RU13

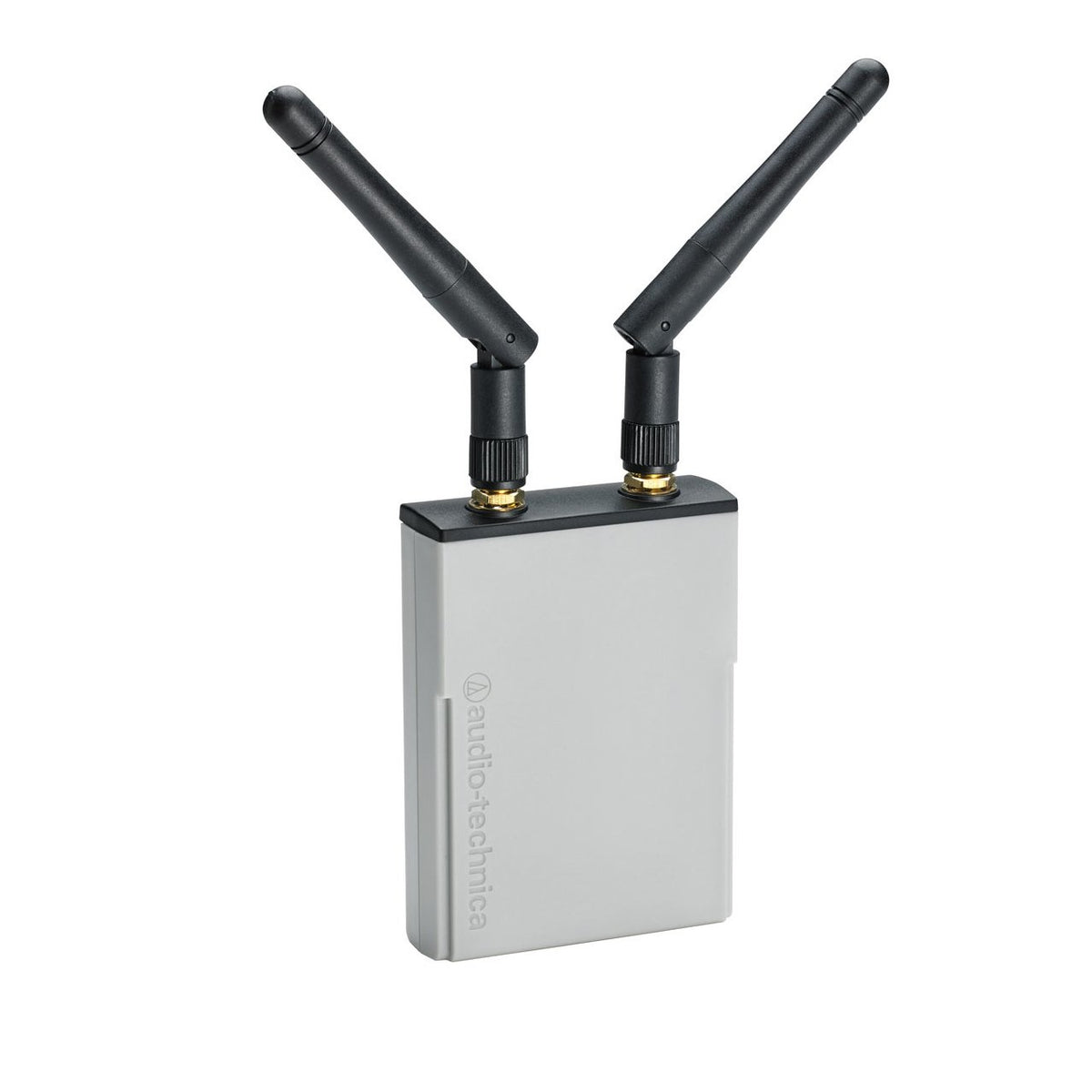

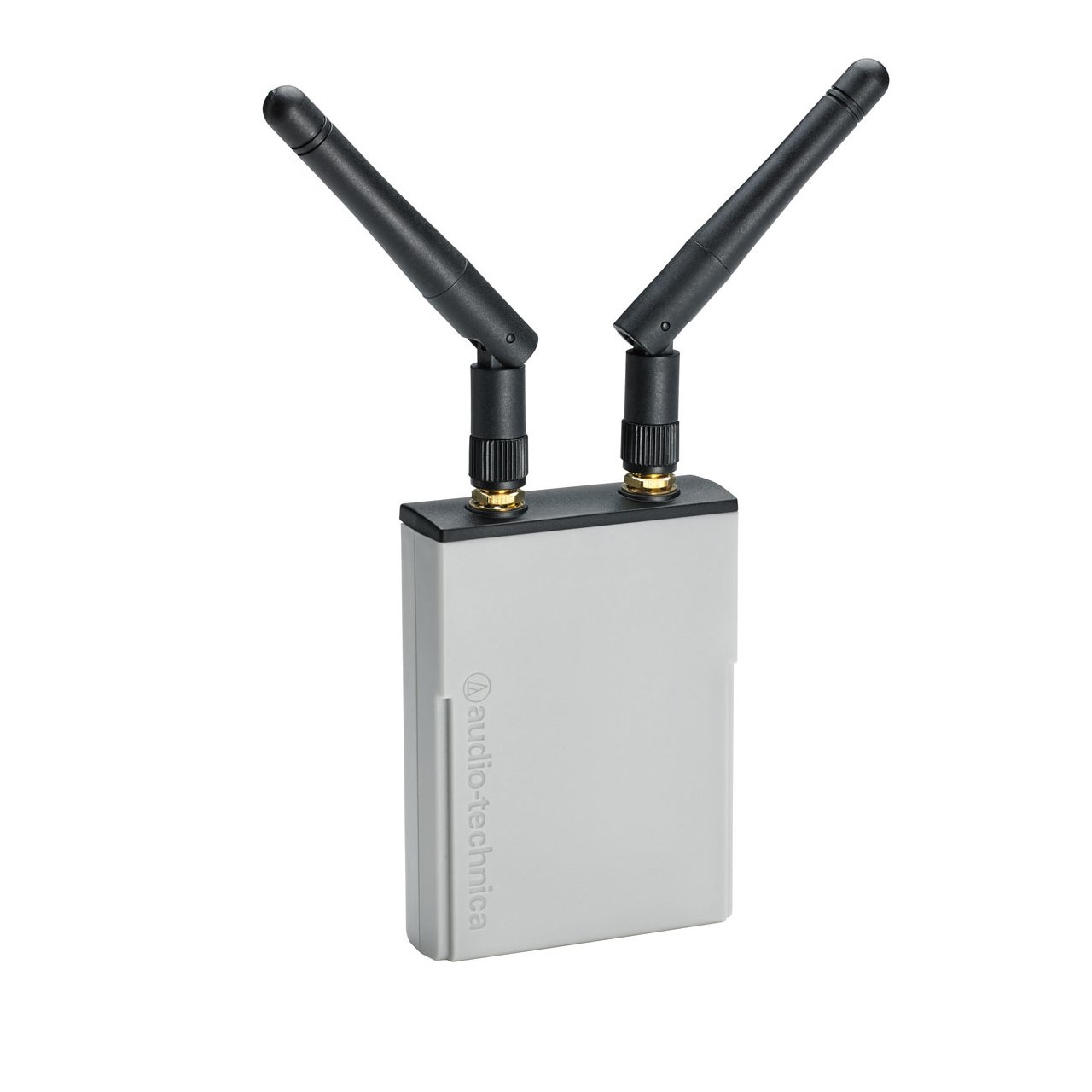

Audio-Technica ATW-RU13 Receiver unit for System 10 PRO systems


The ATW-RU13 is a receiver unit, that features dual detachable antennas. Designed to be used in conjunction with the Audio-Technica System 10 Pro Wireless systems.


    • Audio-Technica ATW-RU13 PRODUCT FEATURES:

      The ATW-RU13 receiver unit features two detachable antennas that screw onto the face of the unit via SMA connectors. The rear of the unit is equipped  with a ¼”-20 thread socket for mounting the receiver unit remotely to a tripod  or other device with a ¼” screw. An RJ45 connector, also on the rear of the unit, allows a remotely mounted receiver unit to be connected to the chassis  with UTP cable. An LED status indicator, located between the mount socket and the RJ45 connector, blinks slowly when the receiver unit is  not paired with a transmitter, blinks quickly during the pairing process, and  illuminates solidly green once the receiver unit is paired with a transmitter. An AT8690 RU13 Holder is supplied for each receiver unit, providing a convenient means to mount the unit remote.
    • Audio-Technica ATW-RU13 TECHNICAL SPECIFICATIONS:

      Receiving System

      Diversity (frequency/time/space)

      Diversity (frequency/time/space)

      Remote Receiver Connector: RJ45
      Link Connector: RJ12

      Dimensions

      209.8mm W x 44mm H x 169.3mm D

      Weight

      940 grams

      Accessories

      Antennas, AT8690 RU13 holder

Need more info on the Audio-Technica ATW-RU13?
