Audio-Technica

ATW-T3201

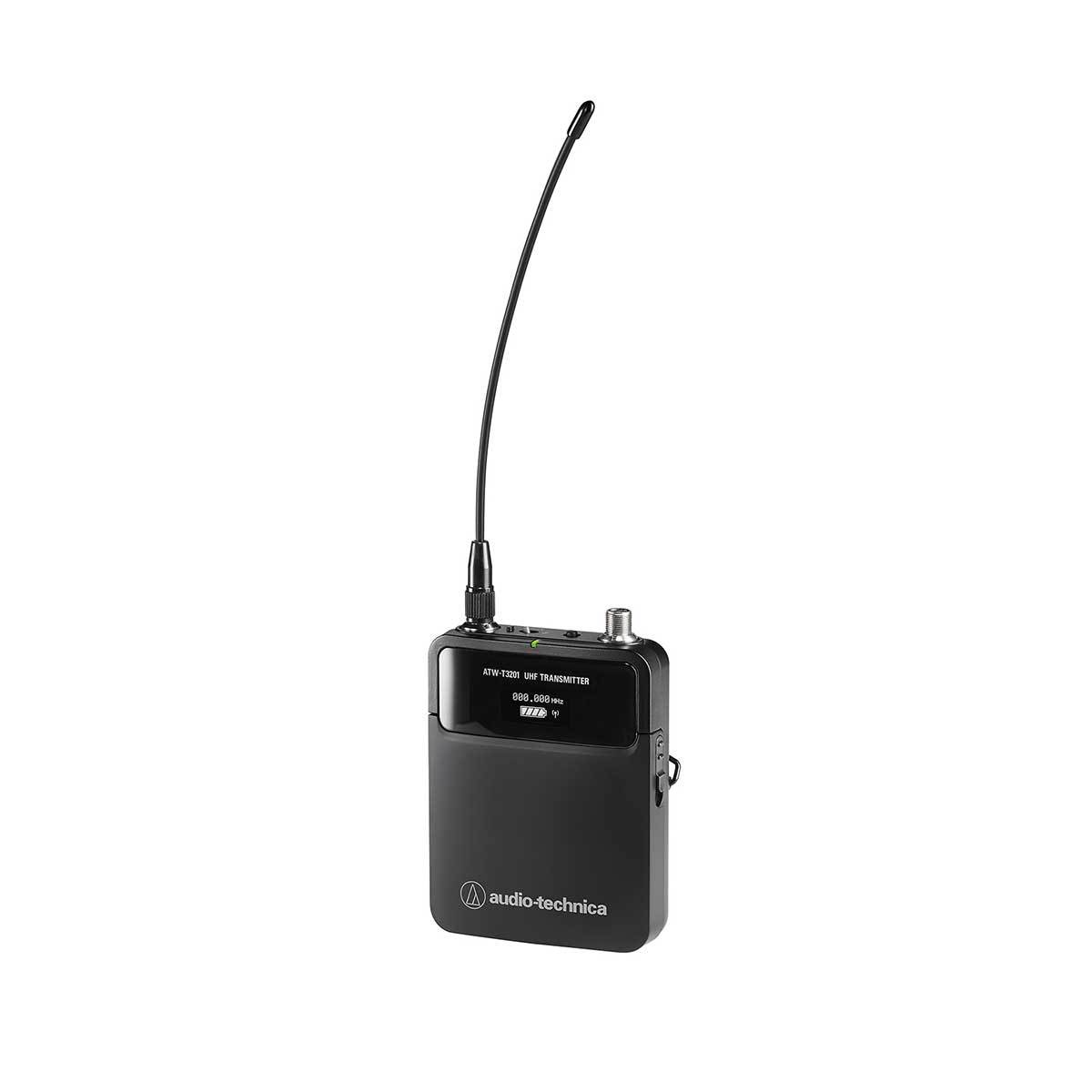

Audio-Technica ATW-T3201 3000-Series - Body-Pack Transmitter

All transmitters operate using two AA batteries and feature high- and low-level RF output settings. The low-level setting extends battery life while retaining a strong RF signal link. Charging terminals on the base of each transmitter work with the optional ATW-CHG3 and ATW-CHG3N charging docks to recharge AA NiMH batteries. Each transmitter’s OLED screen presents a great deal of setup and operating information, including battery indicator, mute status and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental activation. A dual-color status LED illuminates green when power is on and red when the transmitter is muted or battery power is low.

Transmitters have a selectable high-pass filter and a gain setting that can be adjusted in 2 dB increments. As with the receiver, transmitter settings can be locked.

The ATW-T3201 body-pack transmitter features a tactile mute toggle switch (defeatable) for physical confirmation of the mute status when the transmitter display is not visible. It also has a multifunction button that can be programmed to perform one of two functions when pressed and held: turn off RF transmission or switch to a preselected backup frequency to avoid interference. (The multifunction button can also be disabled.) An input is available on the transmitter for lowimpedance microphone, and high-impedance musical instrument or line input. The transmitter supplies 5V DC bias to power condenser microphones. The rugged cH-style screw-down 4-pin input connector provides secure connection to cH-style lavalier mics, headworn mics, and cables. The durable metal body-pack transmitter features a field replaceable whip antenna, OLED screen, and a secure, locking battery compartment door.


    • Product Features:

      3000 series wireless body-pack transmitte
      60 MHz UHF tuning bandwidth in each of 6 available frequency bands
      Body-pack transmitter features tactile mute toggle switch
      Unique multifunction button to switch to a backup frequency
      IR sync functionality for ease of setup
      Rugged 4-pin cH-style screw-down connector provides secure connection

    • Technical Specifications:

      RF Power Output

      High: 30 mW, Low: 10 mW (switchable), at 50 Ω

      Spurious Emissions

      Following Federal and National Regulations

      Input Connections

      4-Pin screw down cH-Style Connector
      Pin 1: GND
      Pin 2: INST INPUT
      Pin 3: MIC INPUT
      Pin 4: DC BIAS +5V

      Battery Type

      Two 1.5V AA, not included

      Battery Life

      High: 8.0 hours / Low: 9.0 hours (alkaline)
      High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
      Depending on battery type, usage and environmental conditions.

      Dimensions

      64 mm x 82 mm x 23 mm (W x D x H)

      Net Weight

      102 g
