Audio-Technica System 10 PRO - ATW1301 Rack-Mount Digital Wireless Body-Pack System

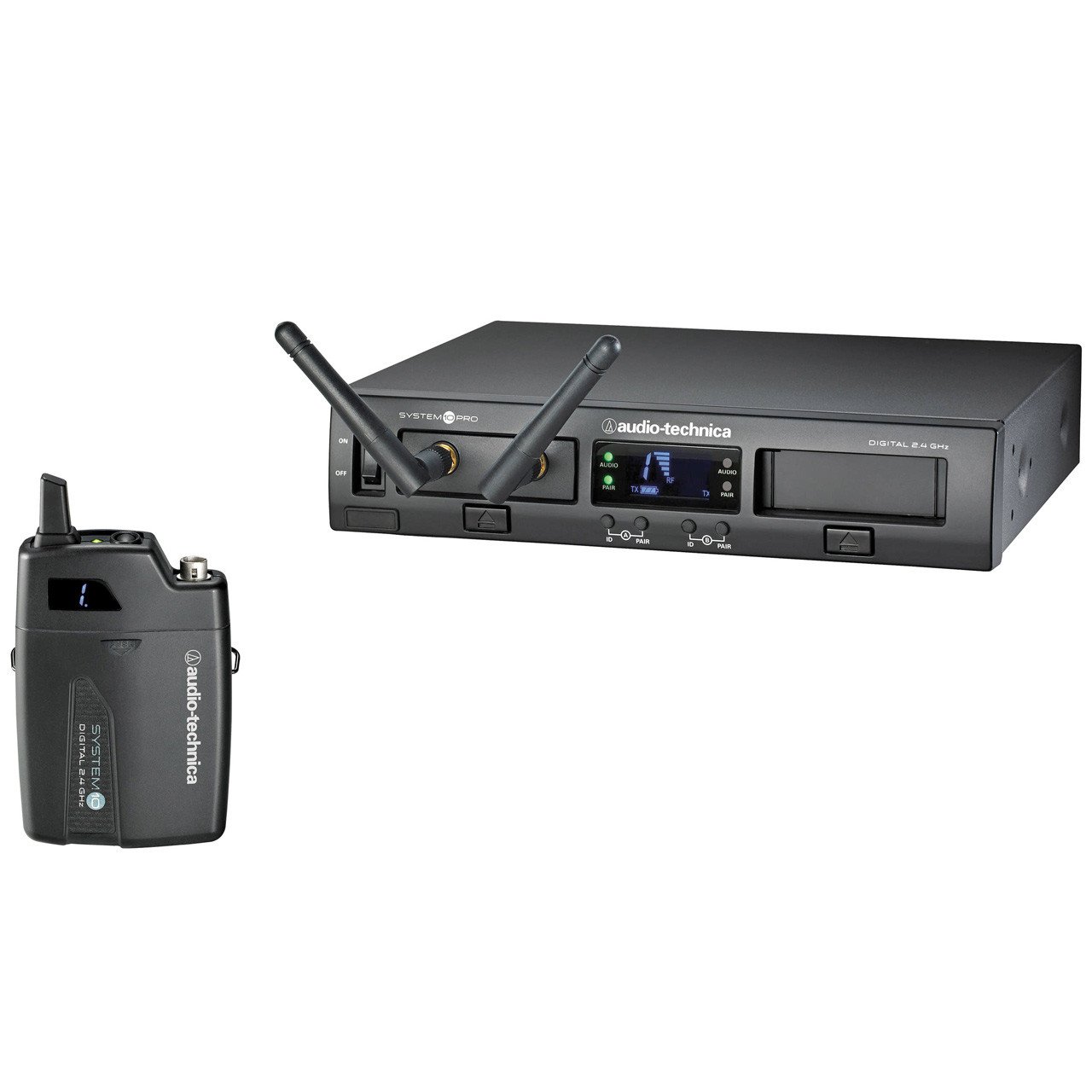

Audio-Technica’s Body-Pack System includes one ATW-T1001 transmitter with discrete level adjustment to match the gain settings on your receiver and minimise the risk of unwanted level changes by the performer. Great new features in the System 10 Pro include movable antennas via CAT5 run, automatic frequency and transmitter allocation, and multi-receiver set-ups are now possible! Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two ATW-T1001 UniPak® body-pack or ATW-T1002 handheld transmitters, or one of each. Both the receiver chassis and transmitters feature easy-to-read displays.

ATW1301 Pro Body-Pack System includes:

ATW-RC13, ATW-RU13, ATW-T1001


    • ATW1301 PRODUCT FEATURES:

      Audio-Technica’s System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 100 meters away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.



      Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

      Features

      Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

      Operates in the 2.4 GHz range – completely free from TV interference

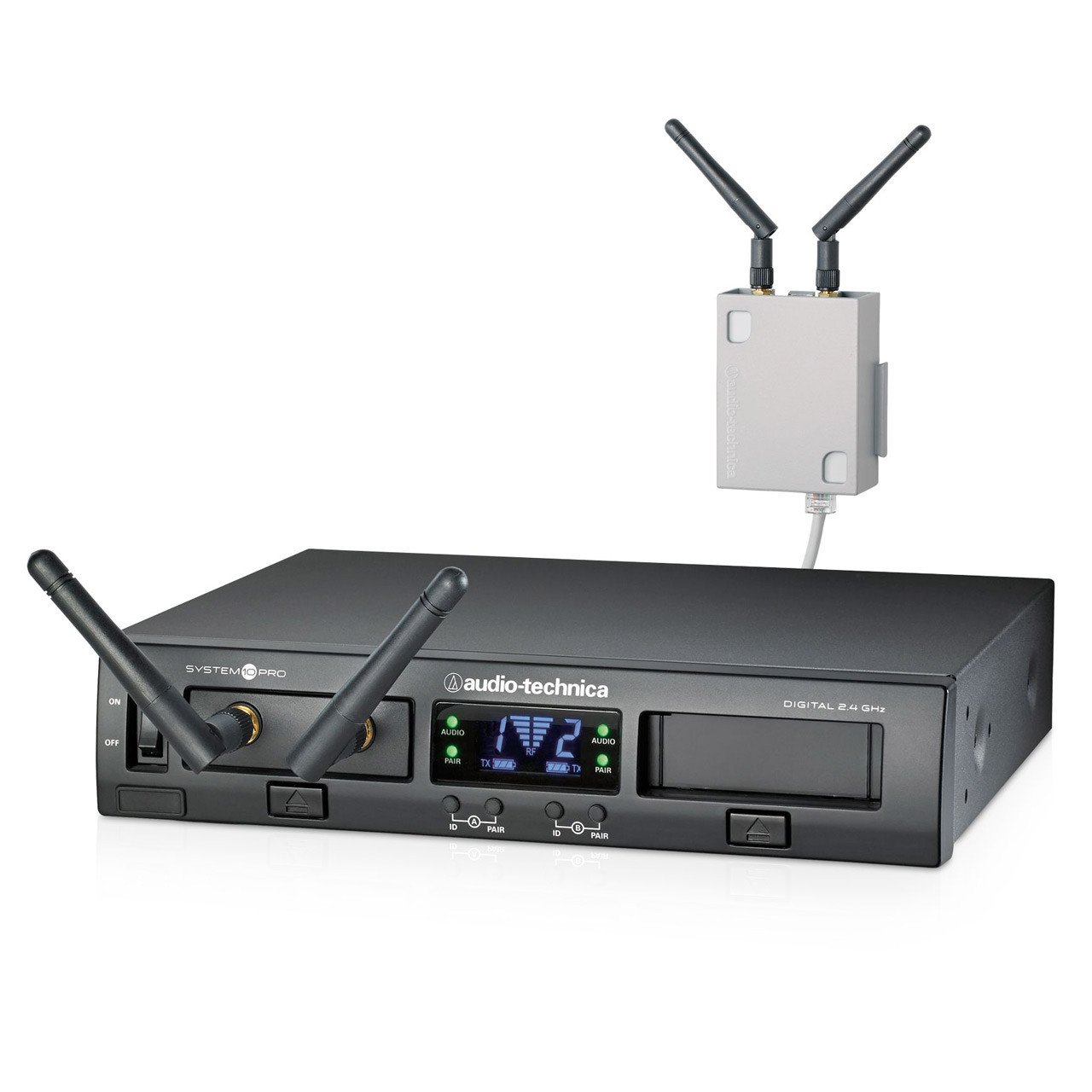

      Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility

      Up to five chassis (ten receiver units) can be linked and used simultaneously

      Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations

      Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status

      Automatic frequency selection for seamless, interference-free operation

      Extremely easy operation with instantaneous channel selection, sync, and setup

      Three levels of diversity assurance: frequency, time & space

      Ground-lift switch helps eliminate audible hum caused by ground loops

    • ATW1301 TECHNICAL SPECIFICATIONS:

      Overall System Specifications

      Operating Frequencies
      2.4 GHz ISM band
      Dynamic Range
      >109 dB (A-weighted), typical
      Total Harmonic Distortion
      <0.05% typical
      Operating Range
      60 m (200′) Open range env. with no interfering signals
      Operating Temperature Range
      0° C to +40° C Battery performance may be reduced at very low temperatures
      Frequency Response
      20 Hz to 20 kHz



RECEIVER SPECIFICATIONS


      Receiving System
      Diversity (frequency/time/space)
      Output Connectors
      Remote Receiver Connector: RJ45
Link Connector: RJ12
      Maximum Output Level
      XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV
      Power Supply
      100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
      Dimensions
      209.8 mm W x 44 mm H x 169.3 mm D
      Net Weight
      940 grams
      Accessory Included
      Power supply
      Accessories Included
      AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

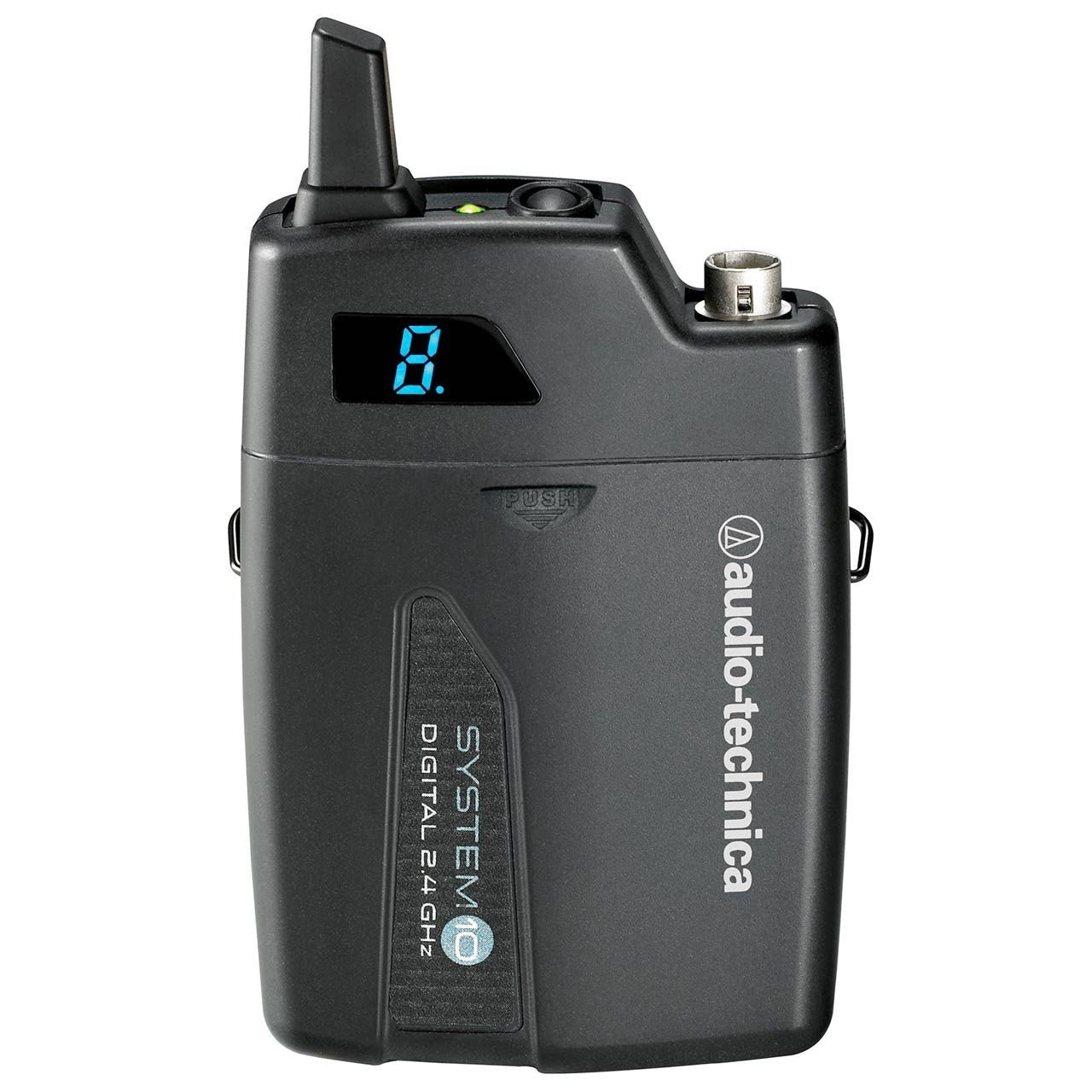

      BODY-PACK TRANSMITTER SPECIFICATIONS

      RF Power Output
      10 mW
      Spurious Emissions
      Following federal and national regulations
      Input Connections
      Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
      Batteries
      Two 1.5V AA
not included
      Battery Life
      >7 hours (alkaline)
Depending on battery type and use pattern
      Dimensions
      70.2 mm W x 107.0 mm H x 24.9 mm D
      Net Weight
      100 grams

    • SYSTEM REQUIREMENTS:

      N/A
