Audio-Technica

AT ATW-1102

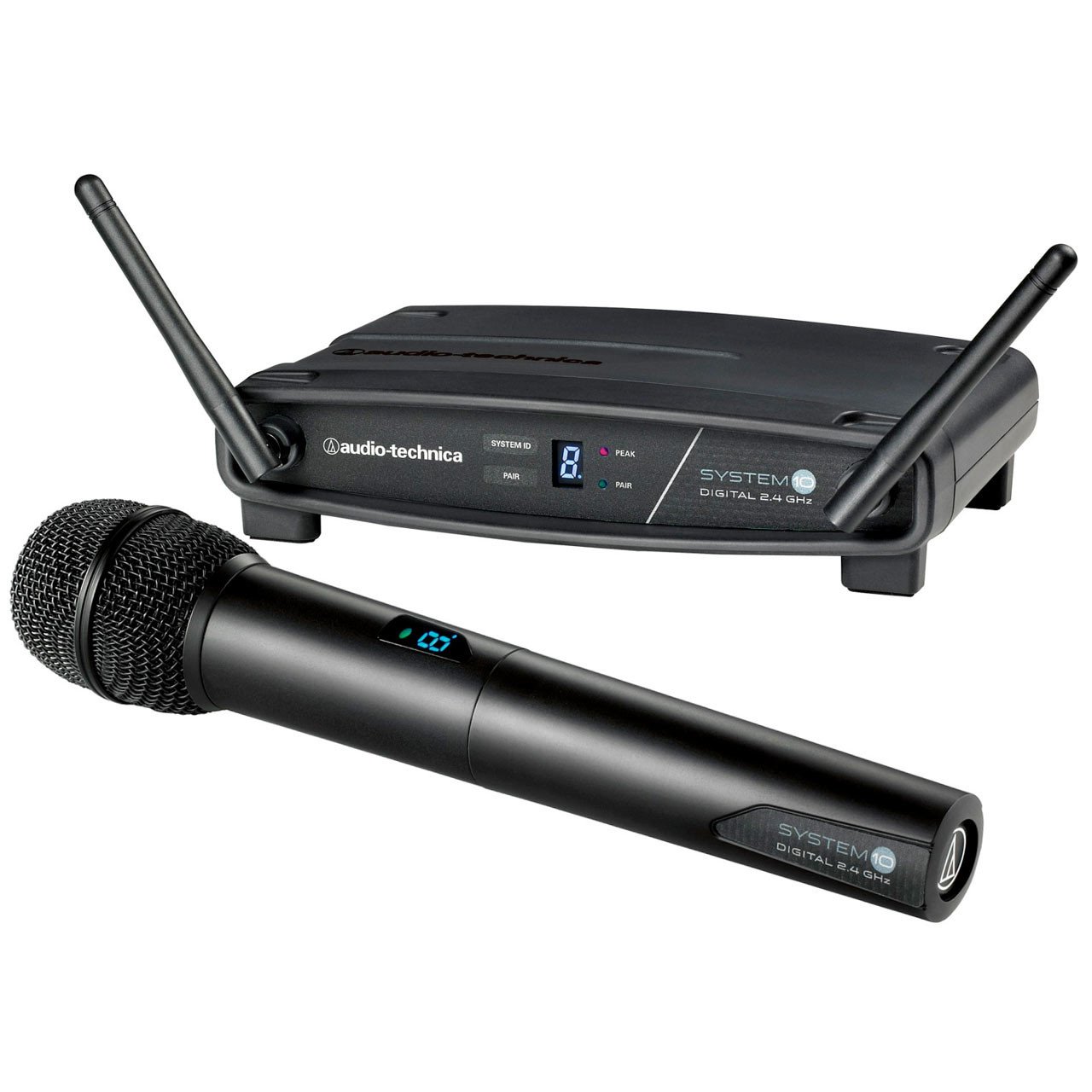

Audio-Technica System10-HH Wireless Handheld Microphone System


The System10-HH is a cost effective digital wireless microphone system from Audio-Technica, that offers clear, detailed sound quality and simplicity in operation. The package includes the ATW-R1100 receiver, and ATW-T1002 handheld Transmitter. The receiver has balanced and unbalanced outputs for plugging directly into a mixer, and the handheld transmitter has an operational range of up to 30 meters.


    • Audio-Technica System10-HH Features:

      Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
      2.4 GHz range – completely free from TV interference
      Three levels of diversity assurance: frequency, time, & space
      Automatic frequency selection for seamless, interference-free operation
      Extremely easy operation with instantaneous channel selection, sync, and set-up
      State-of-the-art digital receiver for reliable performance
      Balanced XLR and unbalanced 1/4” output jacks with level control
    • Audio-Technica System10-HH Specifications:

      OVERALL SYSTEM SPECIFICATIONS
      Operating Frequencies: 2.4 GHz ISM band
      Dynamic Range: >109 dB (A-weighted), typical
      Total Harmonic Distortion: <0.05% typical
      Operating Range: 30 m (100′) typical
      Open range environment with no interfering signals: Operating Temperature Range
      0° C to +40° C (32° F to 104° F): Battery performance may be reduced at very low temperatures
      Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)

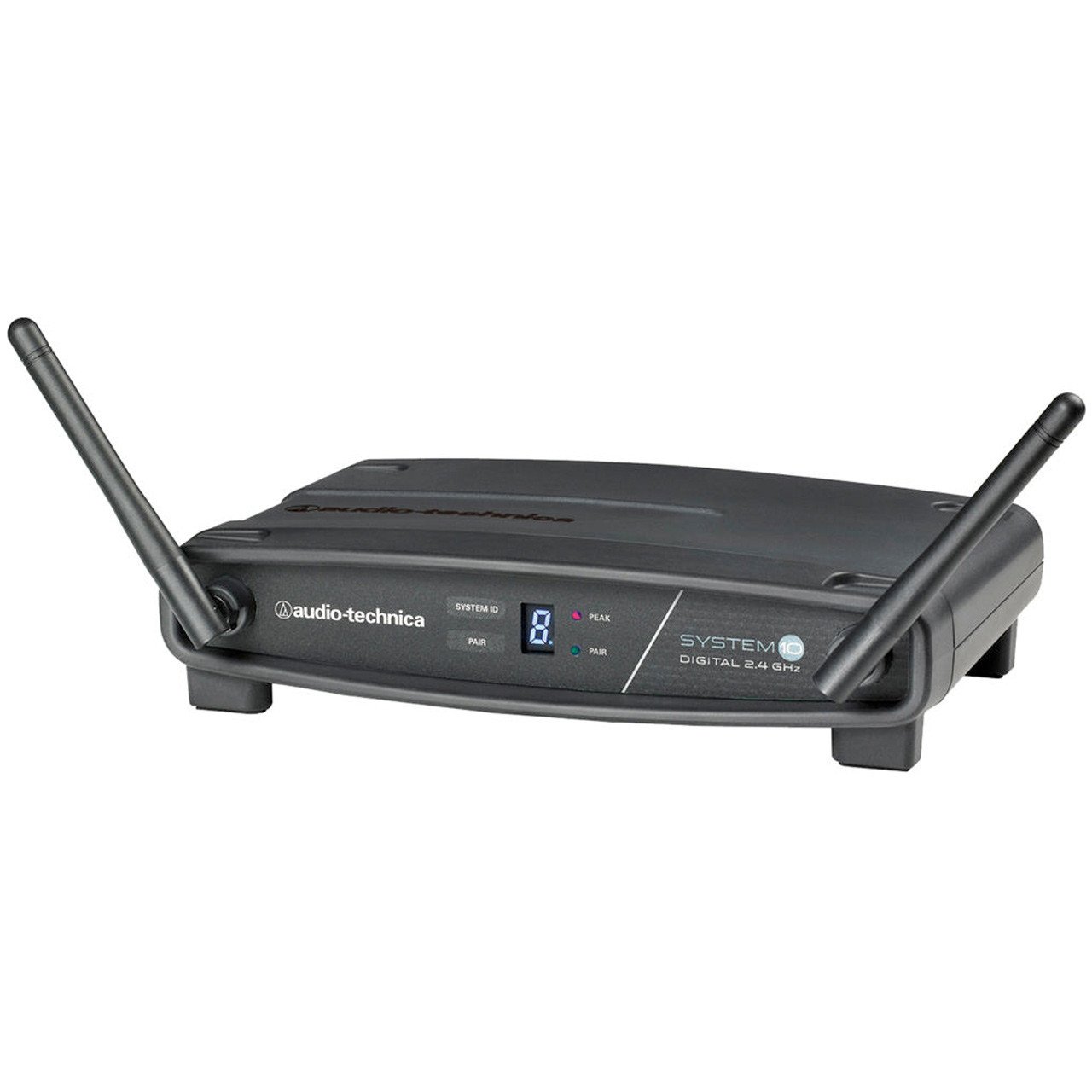

      RECEIVER SPECIFICATIONS
      Receiving System: Diversity (frequency/time/space)
      Maximum Output Level: XLR, balanced: 0 dBV. 1/4″ (6.3 mm), unbalanced: +6 dBV
      Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
      Dimensions: 190.0 mm (7.48″) W x 46.2 mm (1.82″) H x 128.5 mm (5.06″) D
      Net Weight: 290 grams (10.2 oz)
      Accessory Included: Power supply

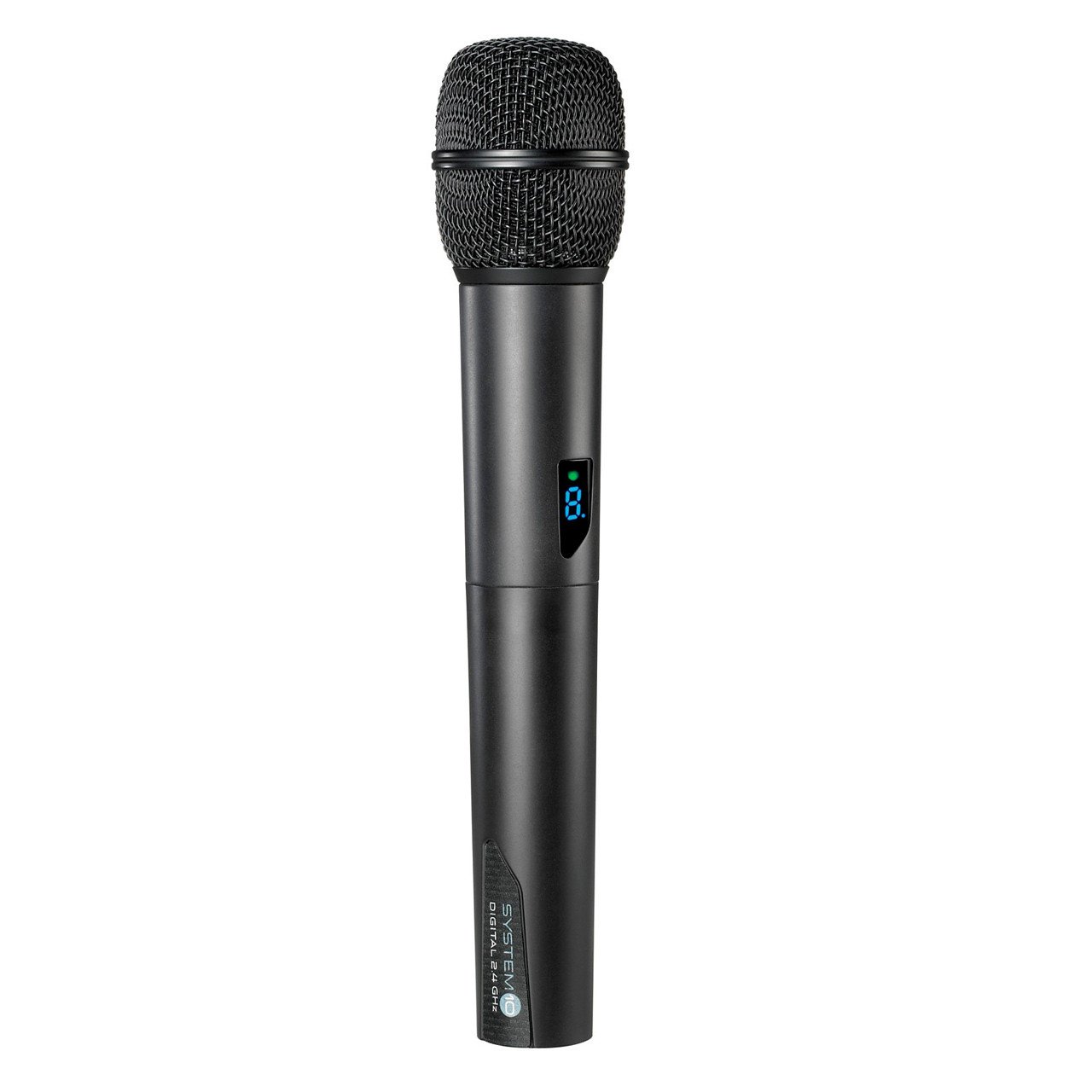

      HANDHELD TRANSMITTER SPECIFICATIONS
      RF Power Output: 10 mW
      Spurious Emissions: Following federal and national regulations
      Batteries: Two 1.5V AA (not included)
      Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
      Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
      Net Weight: 280 grams (9.9 oz) (without batteries)
      Accessory Included: AT8456a Quiet-Flex™ stand clamp
Need more info on the Audio-Technica System10-HH?
