Audio-Technica

AT-VM670SP

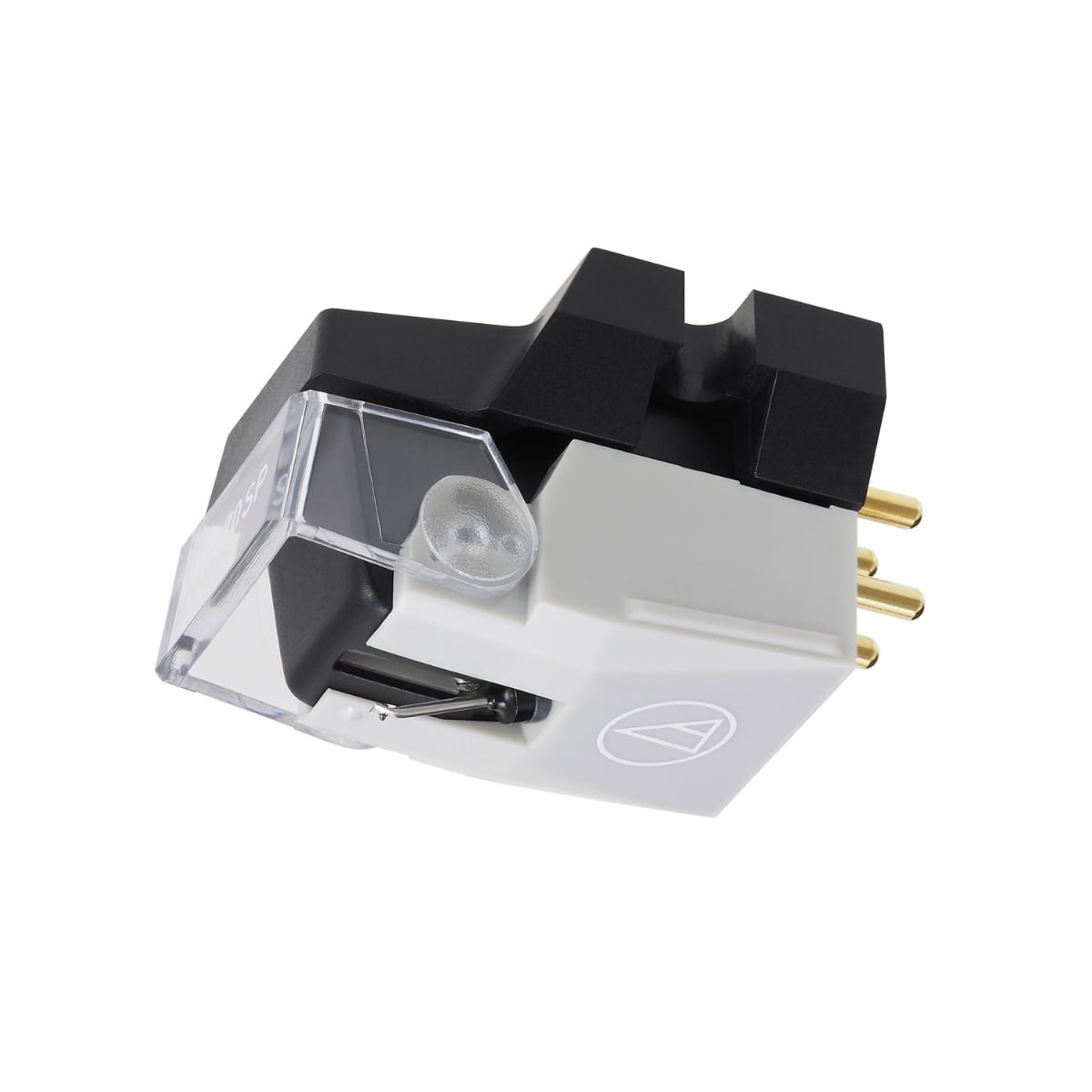

Audio Technica VM670SP Dual Moving Magnet Cartridge for 78 RPM records

1 IN STOCK

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.

Features

  • VM dual magnet cartridge with 3.0 mil conical stylus

  •  Aluminum cantilever

  •  Paratoroidal coils improve generating efficiency

  •  Mono body terminating left and right channels reduce surface noise

  •  Durable low-resonance polymer housing

Specifications

Frequency Response

20-20,000 Hz

Vertical Tracking Force

4.5-5.5 g (5.0 g standard)

Stylus Construction

Bonded round shank

Recommended Load Impedance

47,000 ohms

Output

3.0 mV (at 1 kHz, 5 cm/sec)

Stylus Shape

3.0 mil conical

Cantilever

Aluminum pipe

Mount

Half-inch

Replacement Stylus

VMN70SP

Coil Impedance

1,400 ohms (1 kHz)

DC Resistance

400 ohms

Load Capacitance

100-200 pF

Coil Inductance

230 mH (1 kHz)

Static Compliance

15 x 10-6 cm/dyne

Dynamic Compliance

2 x 10-6 cm/dyne (100 Hz)

Vertical Tracking Angle

23°

Dimensions

17.3 mm H x 17.0 mm W x 28.2 mm D

Weight

6.4 g

Accessories

Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
