  • AVI-TB3RACK

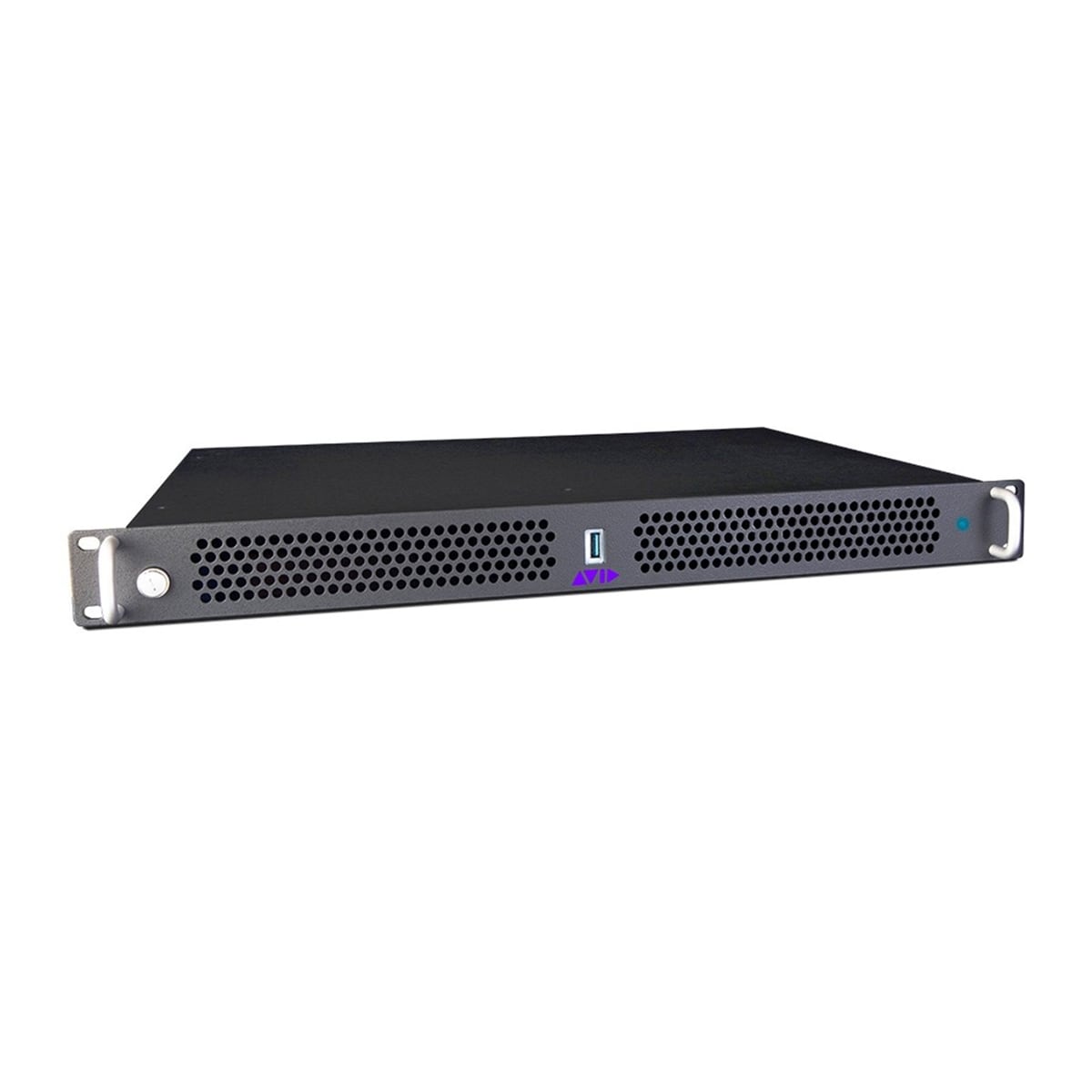

    Avid Pro Tools HDX Thunderbolt 3 Chassis Rack

    5 In Stock

    Bring the power of Pro Tools | HDX to your desktop or studio rack with the Pro Tools | HDX Thunderbolt 3 Chassis, built in partnership with Sonnet. The 1U rack-mountable chassis can house a single HDX PCIe card (not included) and Mac mini, providing portability and easy connection to the latest high-performance computers.

    Features

    Connect HDX through Thunderbolt 3

    Integrate Pro Tools | HDX with Thunderbolt 3-equipped Mac and Windows-based computers—including laptops—with a high-performance, ultra-quiet chassis. Take advantage of the greater processing power today’s machines offer, enabling you to work with more AAX Native plugins on top of AAX DSP.

    Take HDX on the go

    The rackmount chassis can securely house a Mac mini and HDX card, enabling you to configure a powerful yet portable self-contained system.

    Work and travel with peace of mind

    In partnership with Sonnet, the chassis is robustly built with rugged aluminum and steel housing to protect your inside investments during transport and in any environment. It’s custom-designed for the size, power, and heat requirements of HDX, providing the guaranteed performance HDX reliably delivers.

    Specifications

    Avid-qualified Thunderbolt-equipped computer (see details)

    Form factor Available as a desktop or rackmount chassis; desktop and rackmount conversion accessories are also available as options
    PCIe connectivity
    One expansion slot for a Pro Tools | HDX PCIe card (sold separately)
    Thunderbolt connectivity
    Two Thunderbolt 3 ports—one for computer connection and one for daisy-chaining up to five additional Thunderbolt/USB devices
    USB connectivity
    One USB 3.0 port on the front panel of the rackmount chassis
    Mac mini enclosure Internal enclosure to secure optional Mac mini with Thunderbolt 3 ports (rackmount chassis only)
    Bandwidth

    Thunderbolt interface: 40 Gbit/s

    PCIe interface: 2,750 MB/s

    Power supply
    96W
    Operating temperature
    32º–95º F (0º–35º C)
    Dimensions (H x W x D)

    1U rack

    Desktop chassis (with feet): 9.4 x 2.2 x 14.5 inches (238 x 57 x 368 mm)

    Rackmount chassis (with rack ears and rails): 1.7 x 19 x 17.3 inches (44 x 482 x 439 mm)
