    Behringer 1005 Modamp Module

    6 In Stock

    Modular Synthesis

    The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and was used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

    MODAMP MODULE 1005

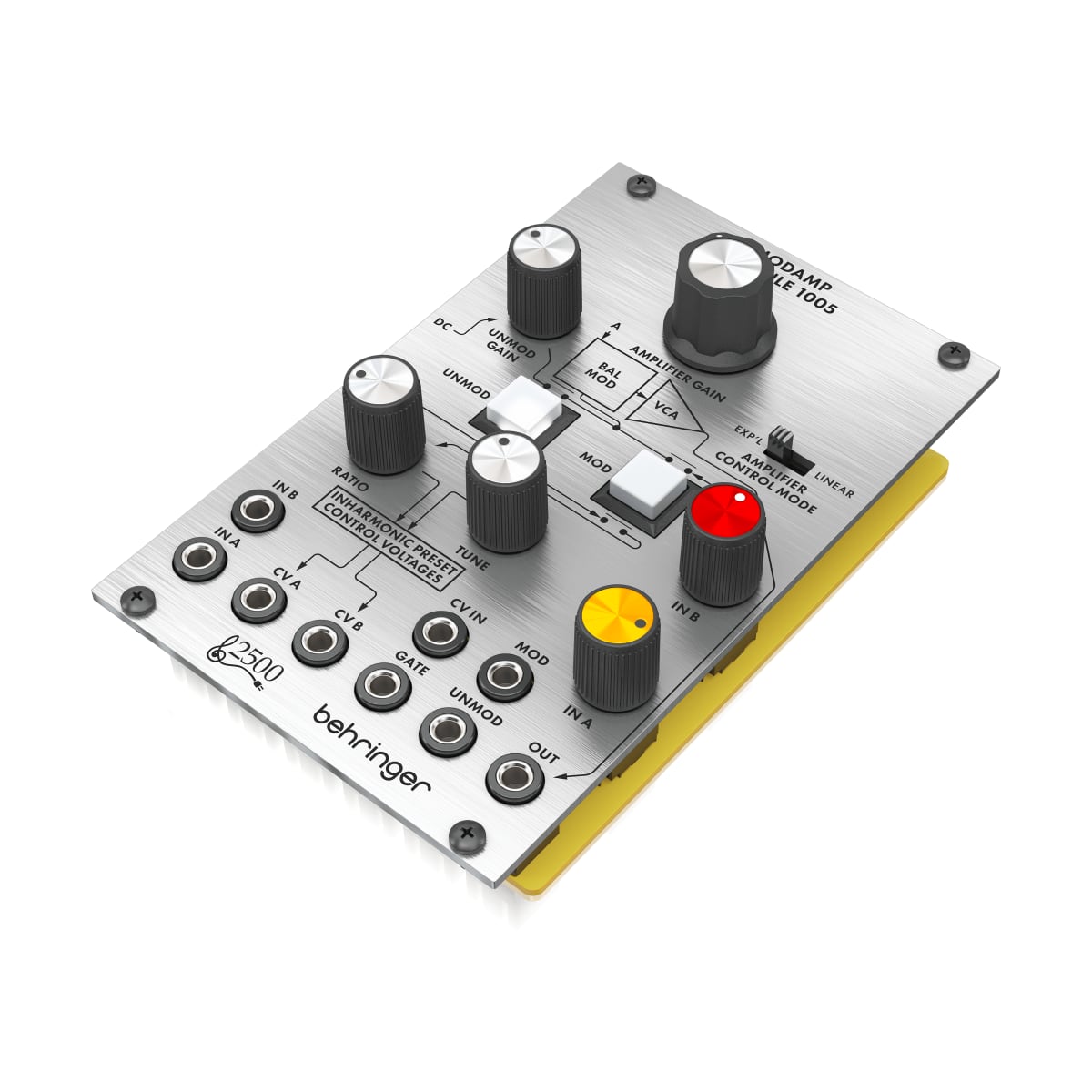

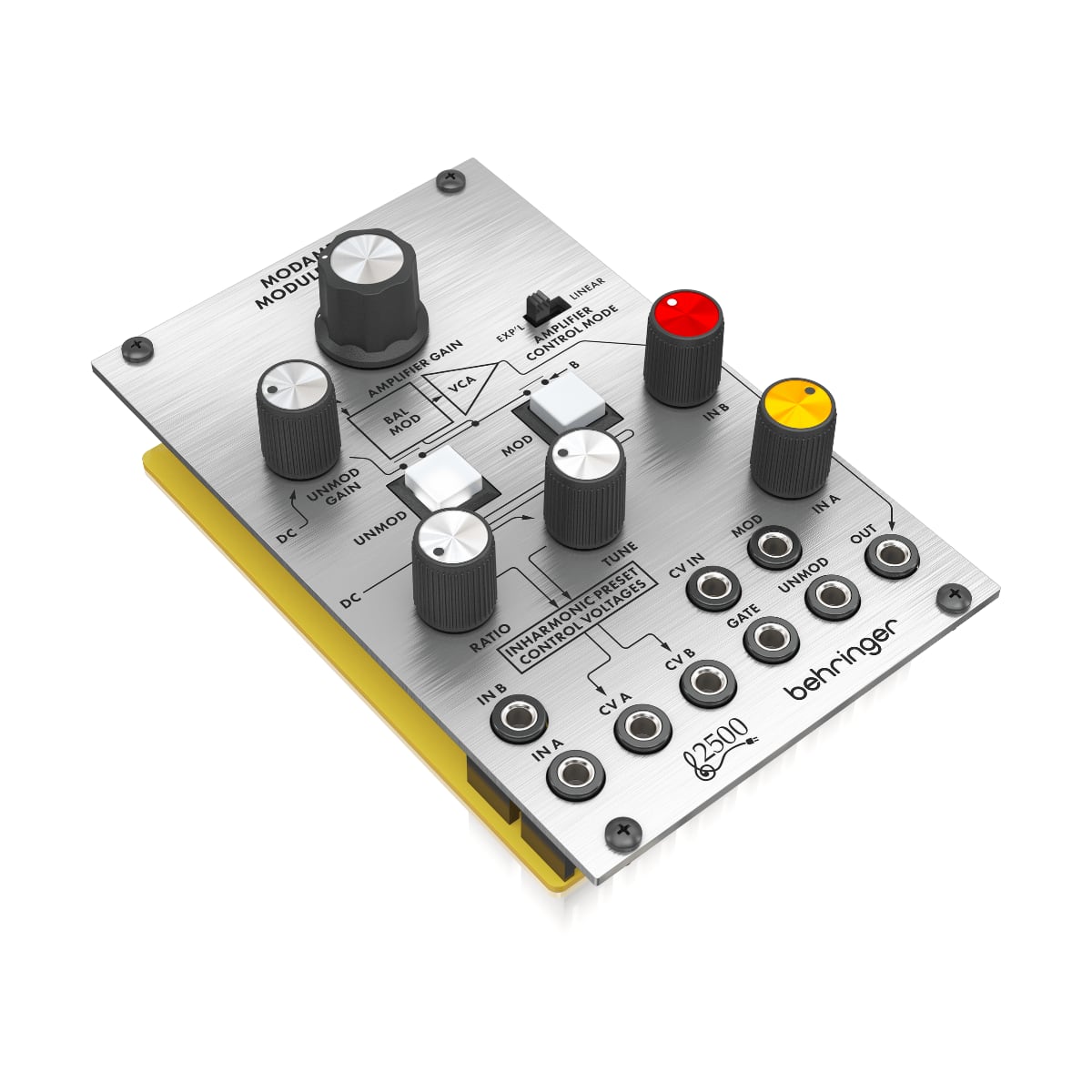

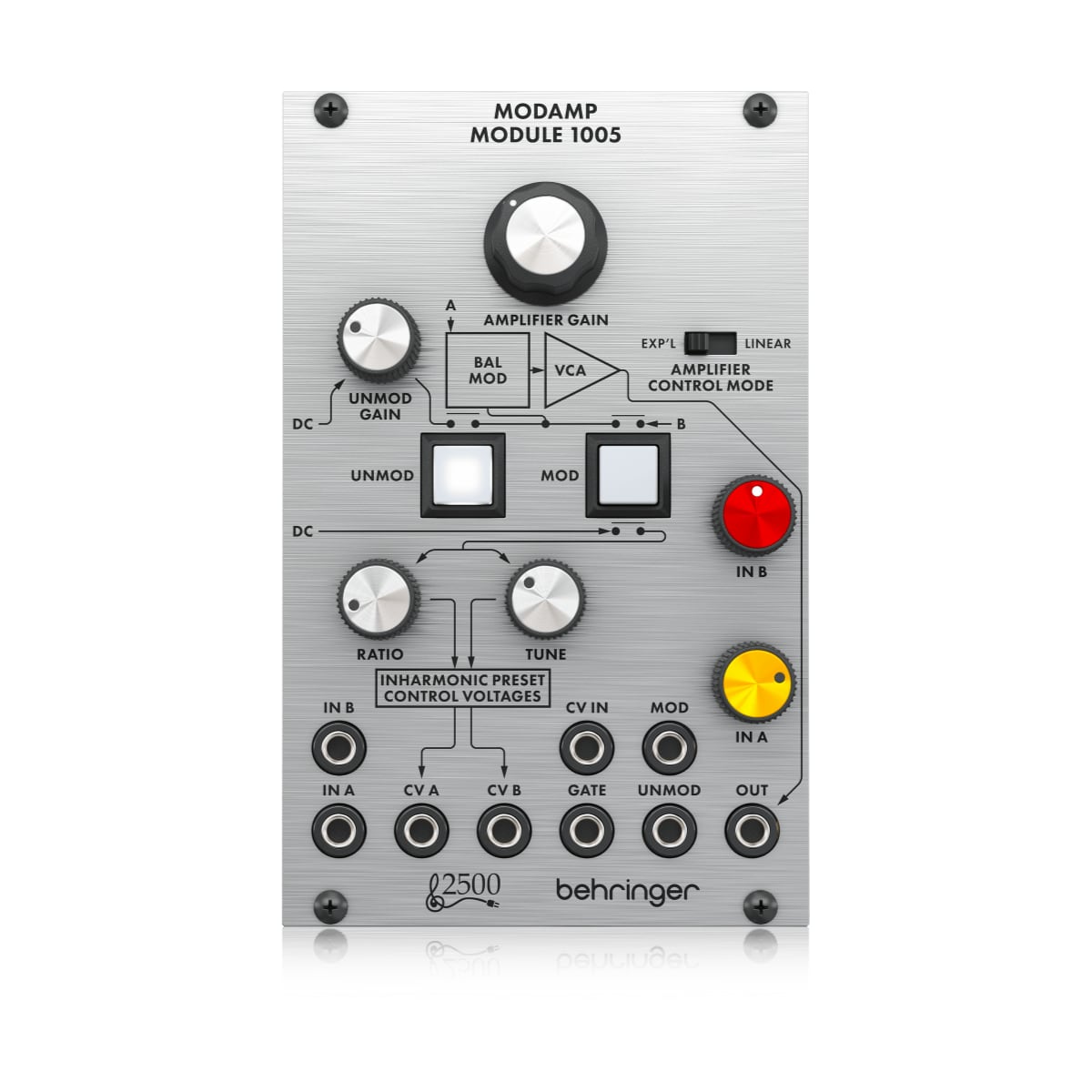

    This is the Behringer 2500 series MODAMP MODULE 1005. An authentic reproduction of the original “System 2500” circuitry from the ’70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the MODAMP MODULE 1005 in with your existing rig or start your modular synth journey from here. Either way, you’re sure to have a lot of fun.

    Make it Ring

    The MODAMP MODULE 1005 is a feature-rich ring modulator to create metallic and bell-like sounds as well as many other modulation effects, modulation can be applied to any signals such as a signal from VCO’s or LFO’s via the INA and IN B jacks and is fed out via the VCA output. The 1005 features INA and INB attenuators, a UNMOD gain control lets you set the gain when in UNMOD mode, a VCA with gain control and a choice of exponential or linear response, Ratio and tune controls allow you to control and balance the frequency of 2 external VCO’s for convenience. The illuminated UNMOD and MOD switches disable or enable modulation effects


    Specification

    Inputs

    In A / B
    Type

    2 x 3.5 mm TS jacks, DC-coupled

    Impedance

    50 kΩ, unbalanced

    Max input level

    10 V P-P

    Gate
    Type

    1 x 3.5 mm TS jack, DC-coupled

    Impedance

    80 kΩ, unbalanced

    Max input level

    +12 V

    Minimum switching threshold

    +4 V

    Mod / un mod
    Type

    2 x 3.5 mm TS jacks, AC coupled

    Impedance

    50 kΩ, unbalanced

    Max input level

    +12 V

    Minimum switching threshold

    +4 V

    CV in
    Type

    1 x 3.5 mm TS jack, DC-coupled

    Impedance

    100 kΩ, unbalanced

    Max input level

    ±10 V

    Outputs

    Out
    Type

    1 x 3.5 mm TS jack, DC-coupled

    Impedance

    1 kΩ, unbalanced

    Max output level

    10 V P-P

    CV A / B
    Type

    2 x 3.5 mm TS jack, DC-coupled

    Impedance

    400 Ω, unbalanced

    CV A Max output level

    ±3 V

    CV B Max output level

    ±6 V

    Controls

    Amplifier gain

    -∞ to unity gain

    Unmod gain

    -∞ to unity gain

    Amp control mode

    1 x sliding switch, Exponential/linear

    Unmod / mod

    2 x button, LED-backlit

    In A / B

    -∞ to unity gain

    Ratio

    ±3 V @ CV B output only

    Tune

    ±3 V @ CV A & CV B outputs

    Power

    Power supply

    Eurorack

    Current draw

    60 mA (+12 V),

    45 mA (-12 V)

    Physical

    Standard operating temperature range

    5° C to 40° C (41° F to 104° F)

    Dimensions

    43 x 81 x 129 mm

    (1.7 x 3.2 x 5.1")

    Rack units

    16 HP

    Weight

    0.16 kg (0.35 lbs)
