New

Behringer

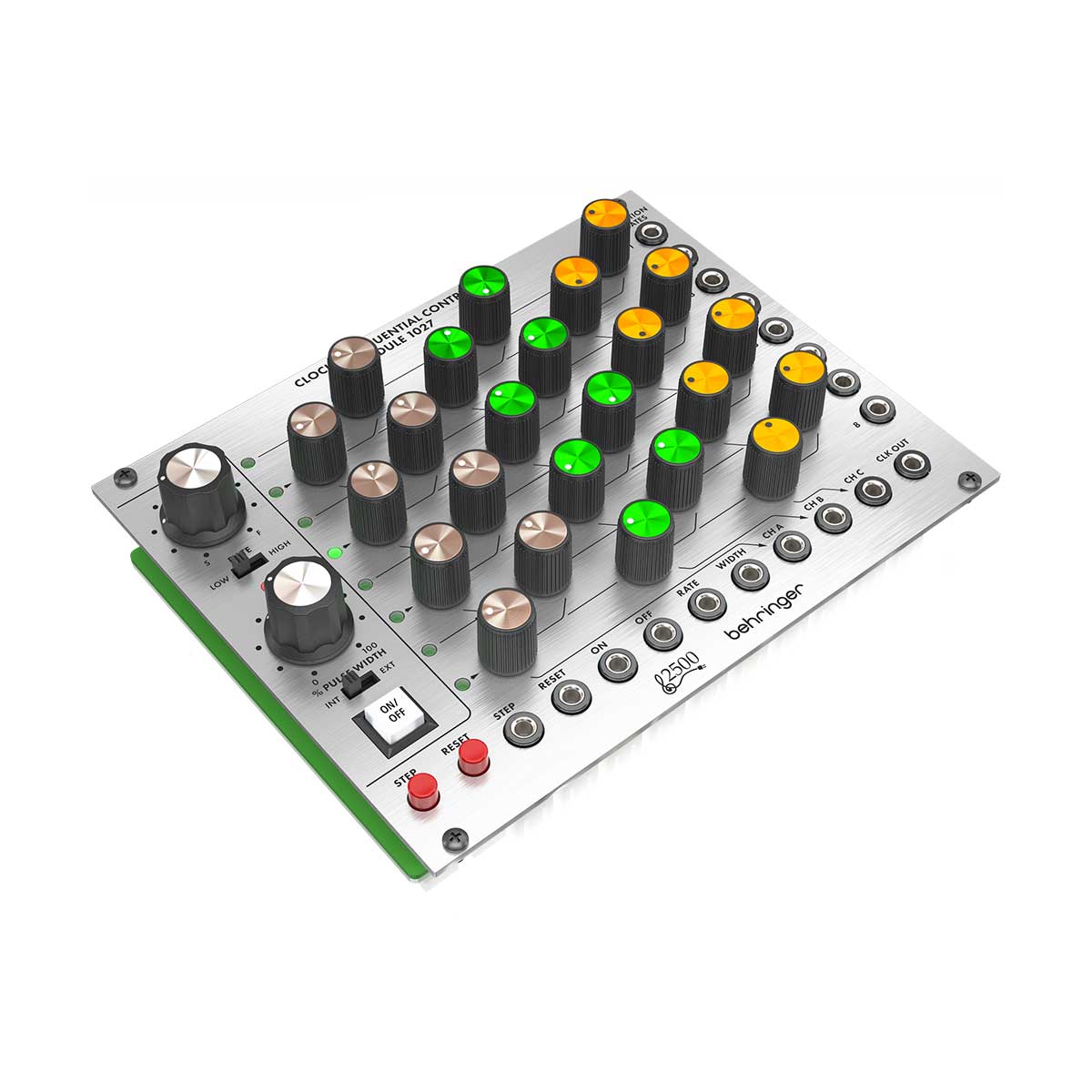

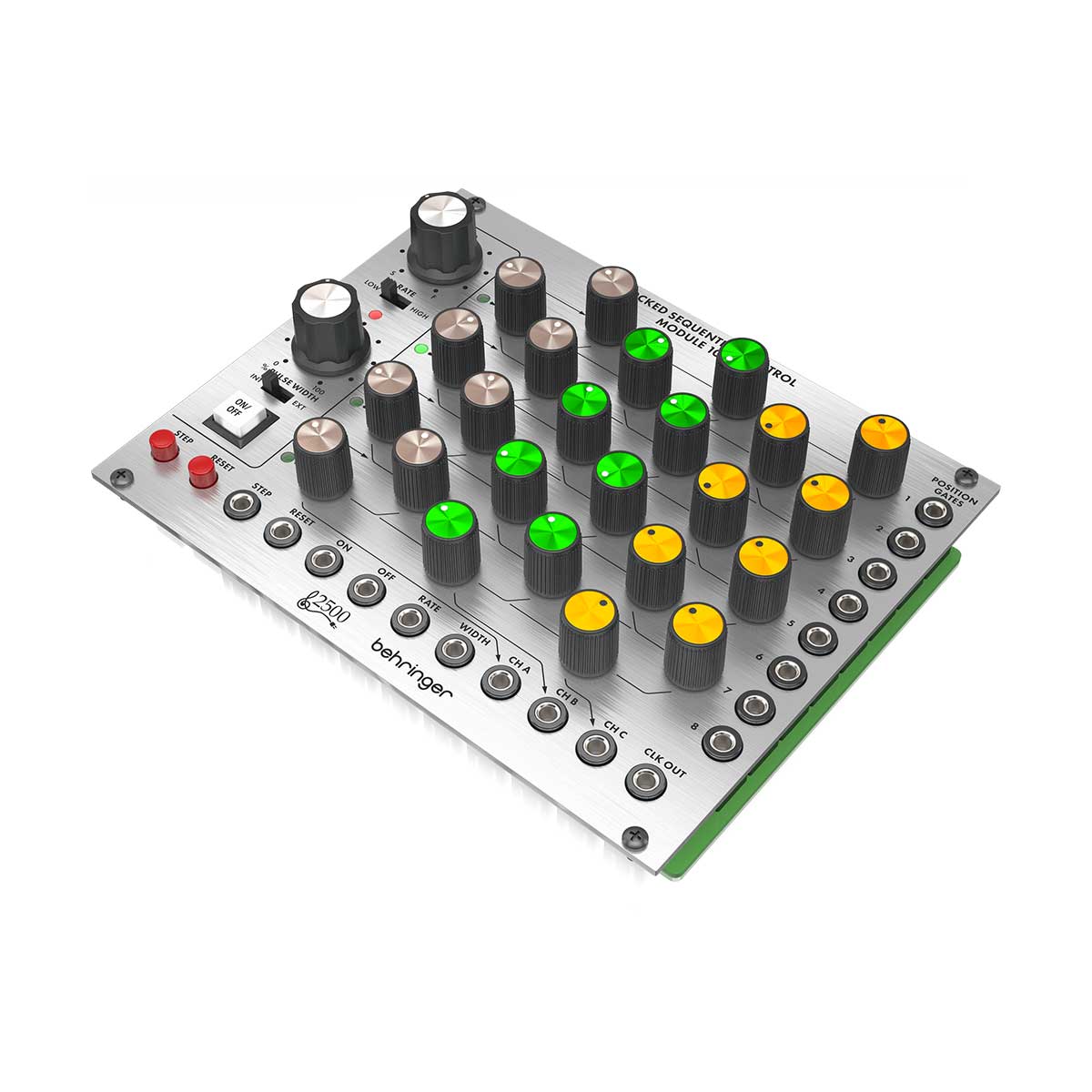

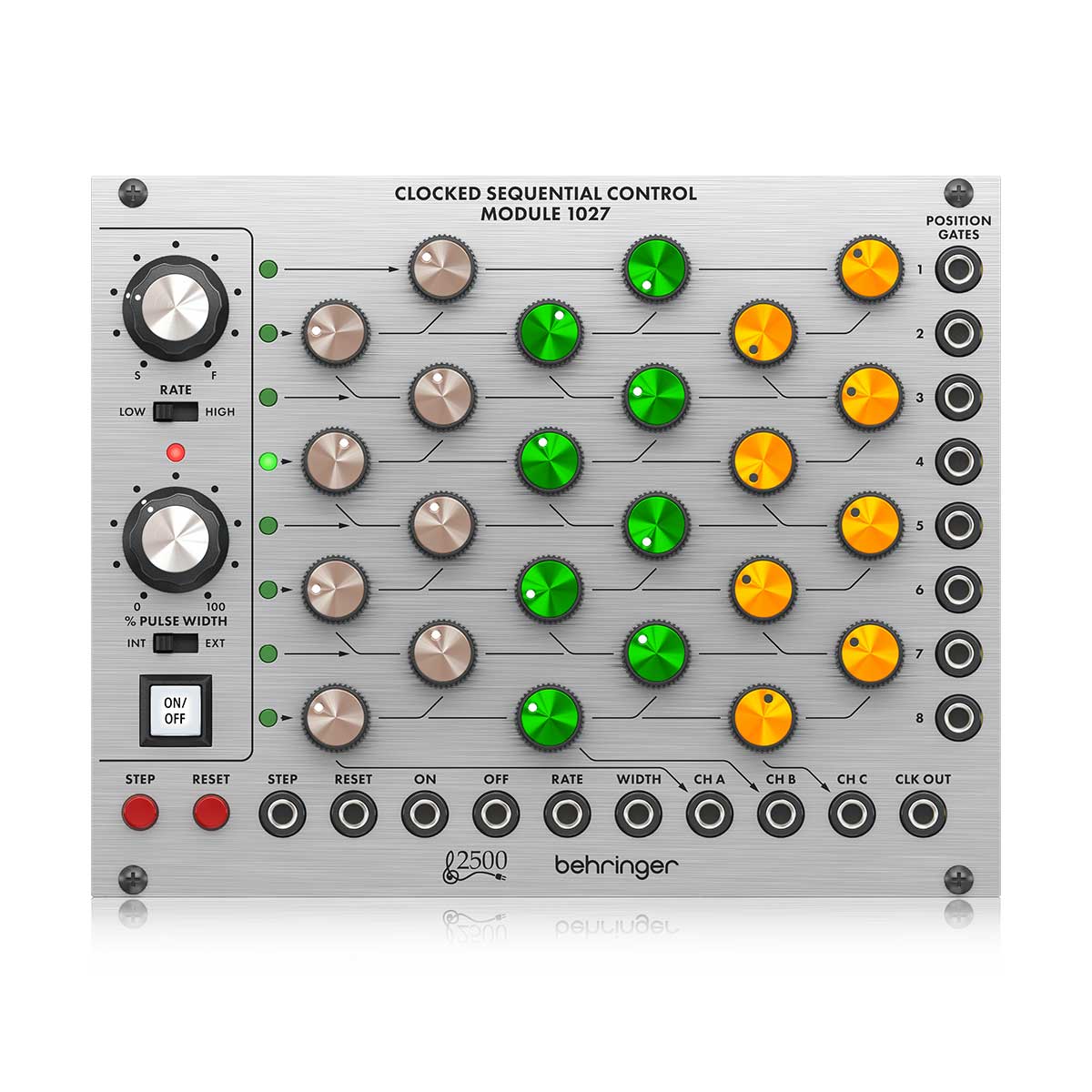

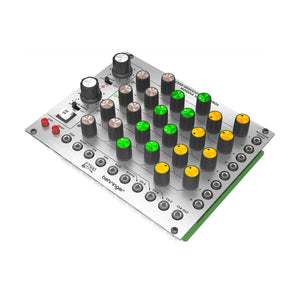

Behringer 1027 Clocked Sequential Control Module

Legendary 2500 Series 8-Position Step Sequencer Module for Eurorack

This is the Behringer 2500 series CLOCKED SEQUENTIAL CONTROL MODULE 1027. An authentic reproduction of the original “System 2500” circuitry from the 70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the CLOCKED SEQUENTIAL CONTROL MODULE 1027 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Features

  • Classic 1027 clocked sequential controller module from the '70s

  • Authentic reproduction of the circuitry from the "2500" Series

  • Contains an integrated circuit 8-step counter and 3 channels (A, B and C) of control voltages

  • 8 rows of 3 controls provide 3 independently adjustable voltage outputs for each step of the counter

  • Built-in time base generator allows the sequencer to step automatically

  • Each row has an adjacent LED indicator to display the sequencer count

  • Illuminated push button is used to start and stop the internal clock

  • Rate of the internal clock can be adjusted from a stepping rate of 20 per minute to 400 per second by adjusting the Pulse Repetition Frequency control and the external rate control signal

  • Internal clock can be turned on and off by applying pulses on the appropriate input connections

  • Clock pulse width and duration of the step voltages is adjusted from 0 to 100% by the Pulse Width control and the external width control signal

  • With the clock turned off the sequencer may be stepped along and reset manually using the front panel push buttons

  • Control voltages on channel A, B and C range between 0 to 10 V

  • The 1027 can be used to control other 2500 Series modules including the 1026 Preset Voltages or 1050 Mix Sequencer modules

  • Cable connections are provided on the rear of the PCB for this purpose (cable included)

  • Eurorack specs: 26 HP, 50 mA +12 V, 30 mA -12 V
