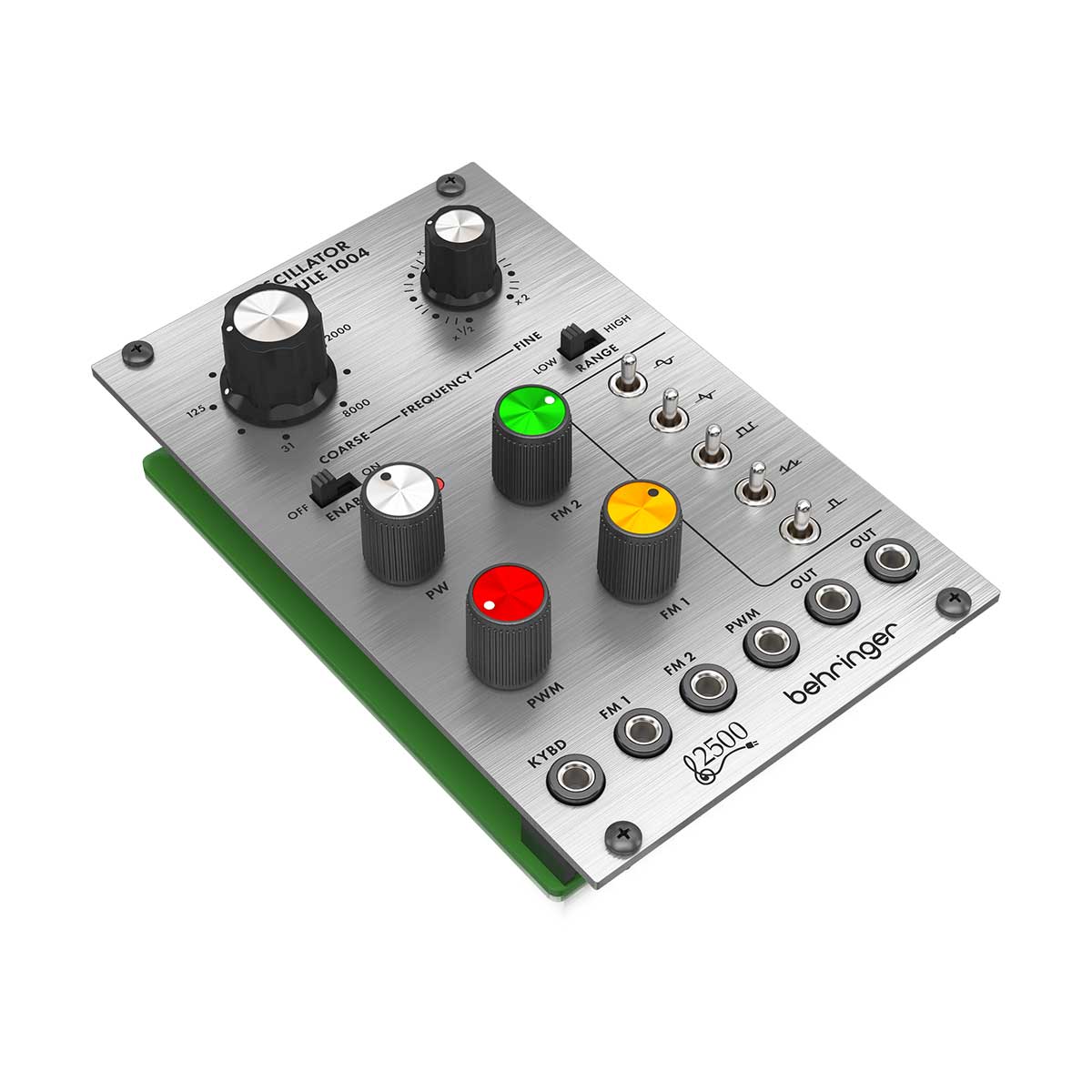

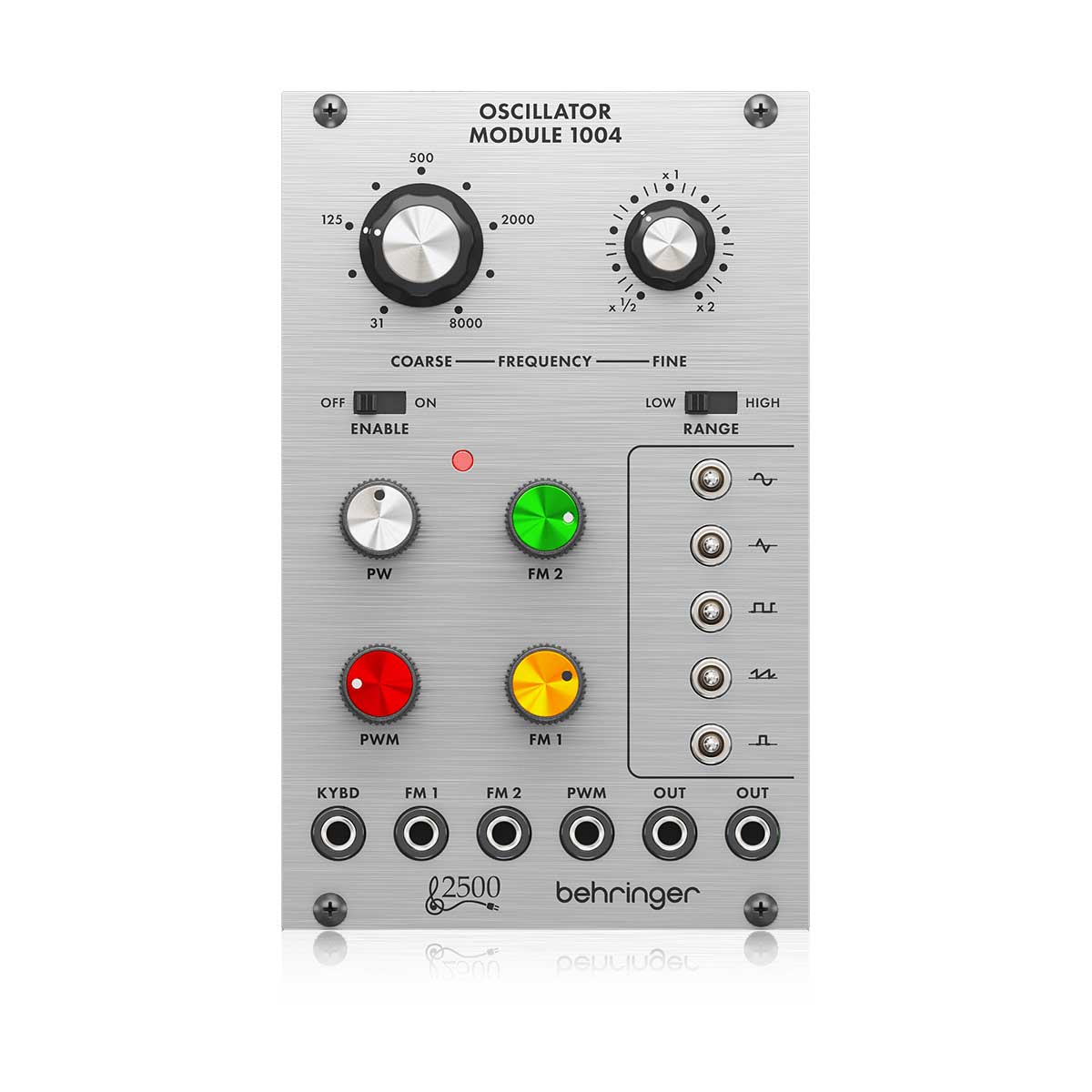

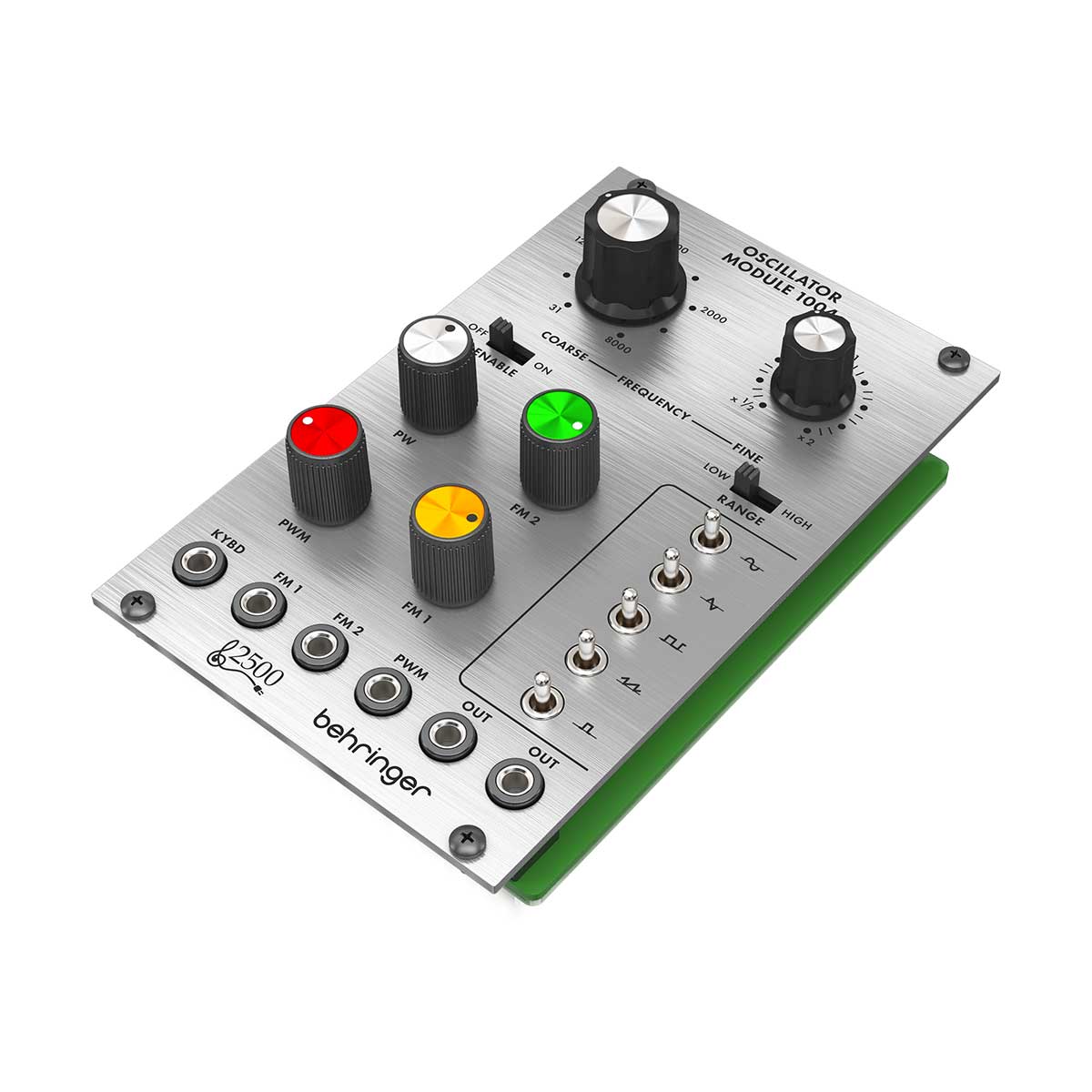

    Behringer 1004 Oscillator Module

    5 In Stock

    This is the Behringer 2500 series OSCILLATOR MODULE 1004. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the OSCILLATOR MODULE 1004 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.


    • Classic 1004 dual analog VCO module from the 70s

    • Authentic reproduction of the circuitry from the 2500 Series

    • VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse

    • Waveforms can be combined and inversed into the audio outputs

    • Output frequency range from 0.03 Hz to 16 kHz in 2 ranges

    • VCO range selectable between Low (LFO) or High (Audio)

    • Coarse frequency control allows adjustment over 10 octaves

    • Fine frequency control adjusts over +/- 1 octave

    • Frequency modulation with 2 inputs and controls responding to 1 V/octave

    • The width of the pulse waveform can be set manually and controlled dynamically

    • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
