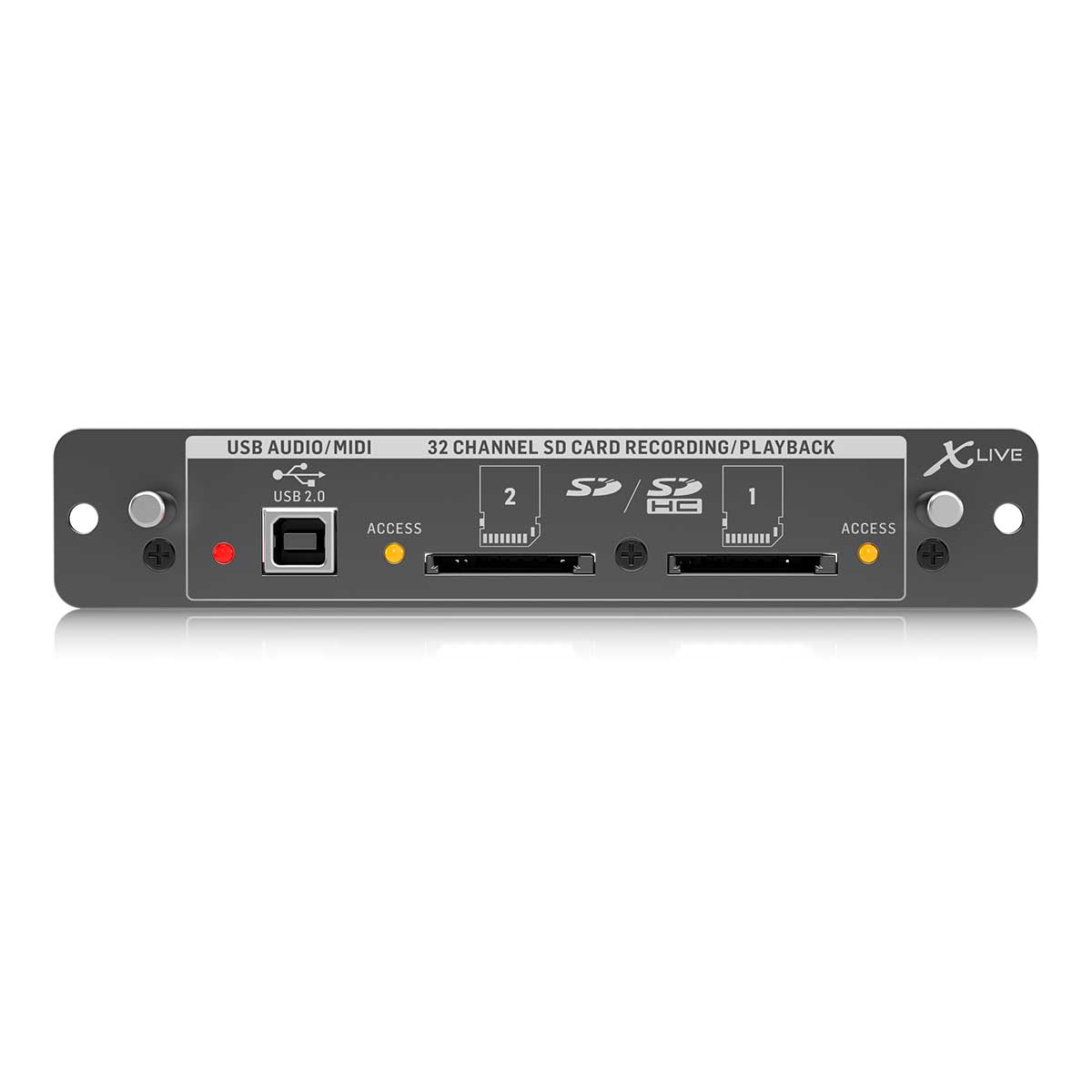

    Behringer X-LIVE 32CH Expansion Card for X32

    Notify me when this product is available:

    The X-LIVE interface card expands on the already stellar performance of the X-USB card that has been standard in X32 consoles for years. The same 32-channel bi-directional audio I/O via USB 2.0 is available, providing 32 channels for recording and playback, plus remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots provides fully independent recording and playback of up to 32 channels of uncompressed WAV files in consistent sessions – up to the maximum capacity of the SD cards. Multi-channel recording without a laptop, as well as virtual sound checks, live backing-track support, accurate marker handling and manipulation, and full remote operation from PC, Android* or iPad* apps and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what X-LIVE can bring to your X32.


    • 32-channel live recording and playback on dual SD/SDHC cards
    • Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files
    • 32-channel, bi-directional USB 2.0 audio/MIDI interface for studio and live recording
    • Independent operation of SD cards and USB recording / playback
    • Remote control via PC, Android* or iPad* apps, assignable controls or compatible hardware control surfaces, such as the BEHRINGER X-TOUCH
    • Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time
    • Unique sample-synchronized automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop
    • Instantaneous live playback with preload and markers in the console UI and remote apps
    • Markers can be set on the fly for identifying song positions while recording or playing back
    • All markers can be edited directly in the console GUI
    • Allows employing PC “Plug Ins” for outboard effects processing via USB
    • Channel routing can be stored and automated for record/playback
    • Secure file handling in the event of power blackout (optional CR123A Lithium cell required)
    • HUI/Mackie Control* emulation for controlling of any compatible DAW software from the console surface
    • Compatible with CoreAudio on Mac OSX* - ultra-low latency ASIO* drivers for Windows* PC available
    • Designed and engineered in Germany
