Bettermaker

Bettermaker Mastering Equalizer

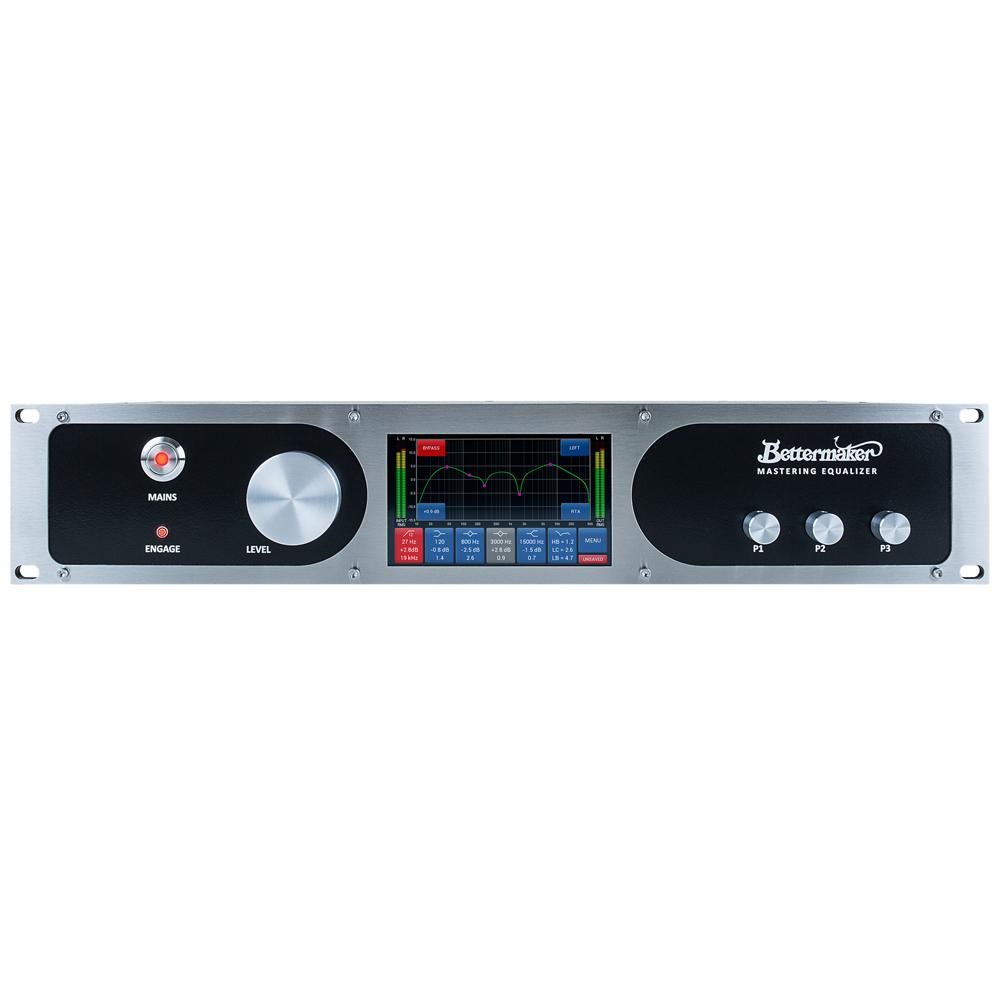

The Bettermaker Mastering Equalizer is an advanced, 100% analog mastering Equalizer. It features USB connectivity with compatibility for MAC/PC – all EQ parameters can be digitally controlled via the sleek touchscreen, and/or in your DAW via a dedicated plugin!


    • Bettermaker Mastering Equalizer Product Features:

      – 399 presets with unique names, total recall, A/B comparison

      – 5-inch capacitive touchscreen with back-light, four encoders with push-button action for ease of control

      – stereo, dual-mono and mid/side operation modes with focus function

      – stereo 12 or 24dB/oct high-pass filter with adjustable cutoff frequency (10Hz – 250 hz; extended to 6Hz with the resonance enabled)

      – four stereo parametric filters with 15dB boost/cut range, variable Q (0.2 – 7):

      – EQ1: 22Hz – 470Hz (bell/shelf)

      – EQ2: 90Hz – 2kHz (bell)

      – EQ3: 480Hz – 10kHz (bell)

      – EQ4: 1kHz – 23kHz (bell/shelf)

      – stereo passive equalizer with extended hi-boost section (air bands – 20 and 28 kHz)

      – stereo, 12dB/oct low-pass filter with adjustable cutoff frequency (2 – 38 kHz)

      – adjustable output level (+/- 10dB)

      – Frequency Search, Gain Lock and Auto-Q functions

      – on-board measurement of PEAK/RMS levels and RTA analyzer

      – on-screen live representation of the equalization curve

    • Bettermaker Mastering Equalizer Technical Specifications:

      Technical specification (all filters enabled, set flat):

      – Frequency response 20Hz to 20kHz (+/- 0.2 dB);

      – Dynamic range: 129 dB @ +18 dBu, 20 kHz BW

      – THD+N: 0.023% @ +4 dBu, 0.1% @ +18 dBu, 20-20 kHz, unity gain, 20 kHz BW

      – CMRR: max 80 dB @ 3 kHz, min 55 dB @ 50Hz, 20 kHz BW

      – Crosstalk: min -110 dB @ 30Hz, max -65 dB @ 20kHz, +18 dBu, 20 kHz BW

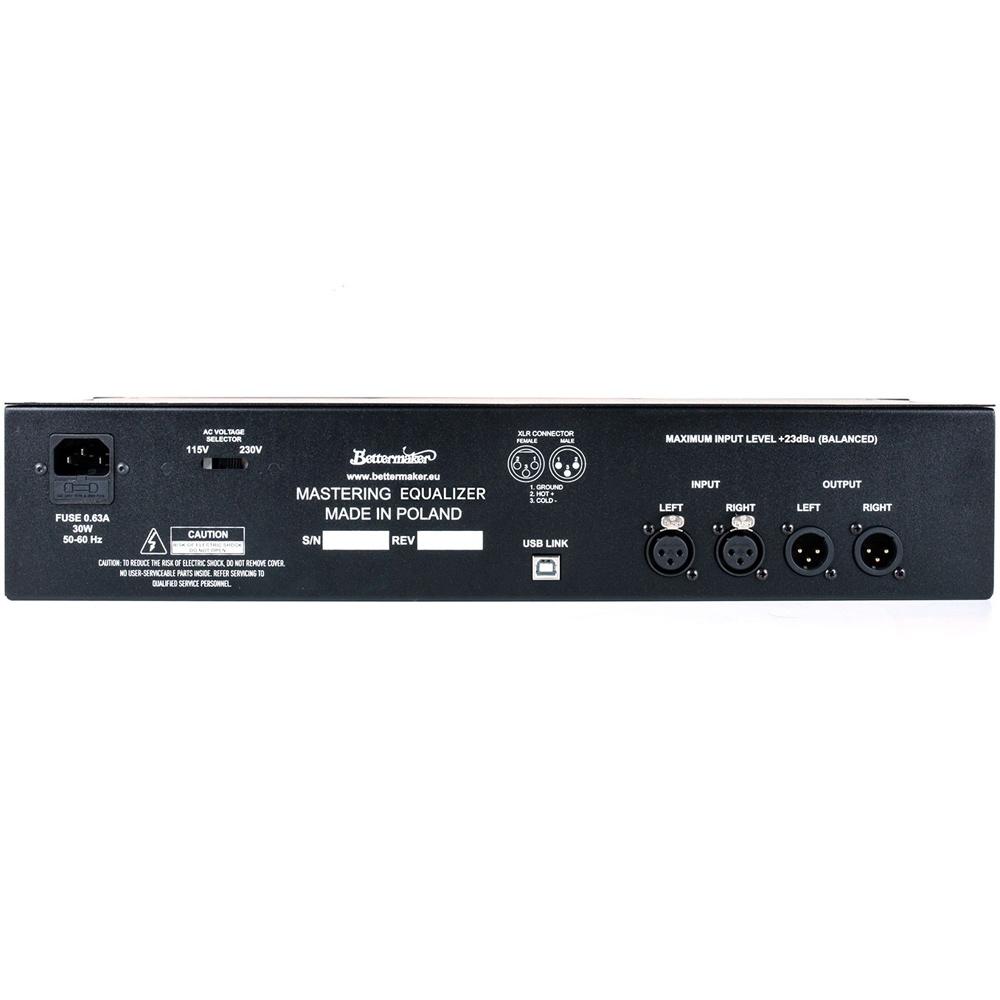

      – balanced stereo input (XLR), 23dBu max input level (THD < 0.1%)

      – balanced stereo output (XLR), 23dBu max output level (THD < 0.1%)

      – Operating Level: +4dBu

      – Input impedance (differential): 48kΩ (for balanced signal)

      – Output Impedance: 50Ω + 50Ω (electronically balanced)

      – 2U enclosure, 230mm deep

      – 115/230V switch

      – advanced linear power supply with toroidal AC mains transformer

      – Maximum power consumption: 20W

      – Shipping weight: 5.5 kg
