    Bome Software BomeBox - MIDI Hub for Stage and Studio

    1 In Stock

    The BomeBox by Bome software is designed to connect all your MIDI and USB gear together, and offers versatile routing without the use of a computer. BomeBox can also run complex MIDI mapping created with MIDI Translator Pro. Ideal for studio and live work.

      • Bome Software BomeBox PRODUCT FEATURES:

        BomeBox™: the MIDI Hub for Stage and Studio
        The BomeBox is the solution for connecting and mapping devices via MIDI, Ethernet, WiFi, and USB (without the need of a computer). Cross-connect USB-MIDI devices (powered by the BomeBox), MIDI 5-pin DIN, other BomeBoxes, and computers.

        MIDI Translator Pro in a Box

        The BomeBox can run basic or complex mappings and scripts on the MIDI data in realtime: load and execute Bome MIDI Translator Pro project files for all your MIDI needs (MIDI Translator Pro is sold separately).

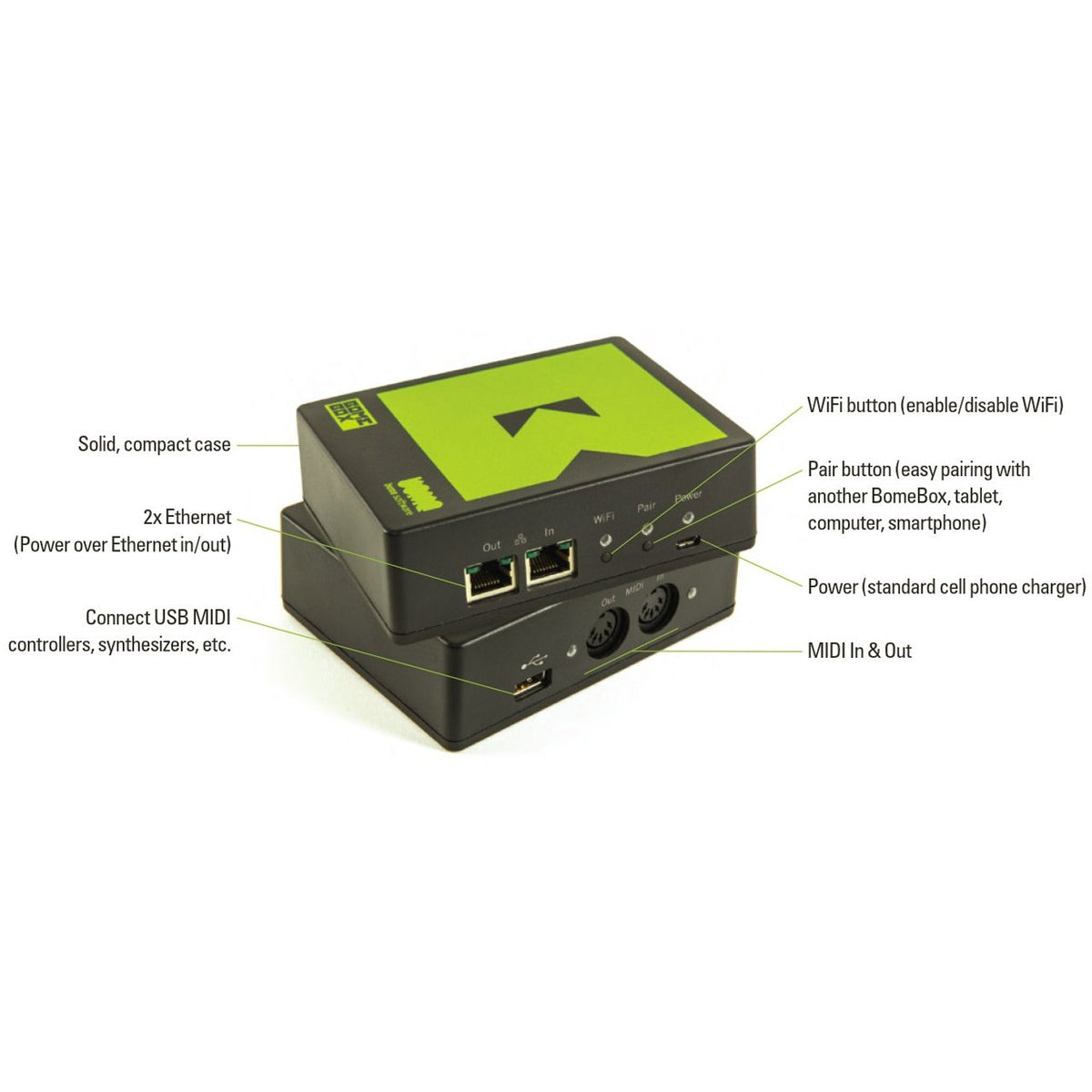

        Key Features:
        Robust, reinforced ABS case
        MIDI-DIN: 1x input, 1x output. You can add more via the USB Host
        USB Host Type A: supports USB-MIDI devices, USB hubs, multi-port USB-MIDI devices
        Built-in MIDI Router: unlimited virtual MIDI patch bay
        Quick reconfiguration via tablet, smartphone, or computer
        Create long distance MIDI connections via Ethernet
        MIDI Networking: centralized access to all MIDI devices connected to the Ethernet network
        Built-in 2-port Ethernet switch
        Wireless MIDI connections via built-in WiFi
        WiFi works as Hotspot, hub, or client
        Connects to Windows and macOS using Ethernet or WiFi (Bome Network tool)
        Unlimited mappings/splits/scenes/conditional routing and MIDI processing with built-in MIDI Translator Pro engine
        Standard power supply: 5V micro-USB
        Extra robust power supply: Power-over-Ethernet (PoE) with 48V
        Pass on PoE and MIDI connections using PoE Out port
        Small and light: 180g / 6.3oz
      • Bome Software BomeBox TECHNICAL SPECIFICATIONS:

        Define arbitrary MIDI Thru connections (routes) from/to all connected MIDI devices
        Web Config for easy configuration from any WiFi enabled device
        For advanced mappings, load & execute MIDI Translator Pro project files
        MIDI Connections to computers using high-speed network protocol via Ethernet or WiFi using Bome Network Tool
        MIDI in & out with very low latency
        USB 2 Host (Type A receptacle) for connecting MIDI controllers, synthesizers, serial ports, USB Hubs, etc.
        2x Ethernet 100MBit/s
        WiFi: 802.11 b/g/n, 2.4 GHz
        Power: uses approx 150mA, either
        via Micro-USB Type B: standard cell phone charger, or
        via Power over Ethernet (PoE, 48V): Ethernet In port
        Provides power for
        connected USB-MIDI devices (max. 1A)
        other daisy chained BomeBoxes via PoE Out (if powered via PoE)
        New Features will be made available via firmware update
        Dimensions: 121mm x 96 mm x 38 mm (4.8″ x 3.7″ x 1.5″)
        Weight: 180g
