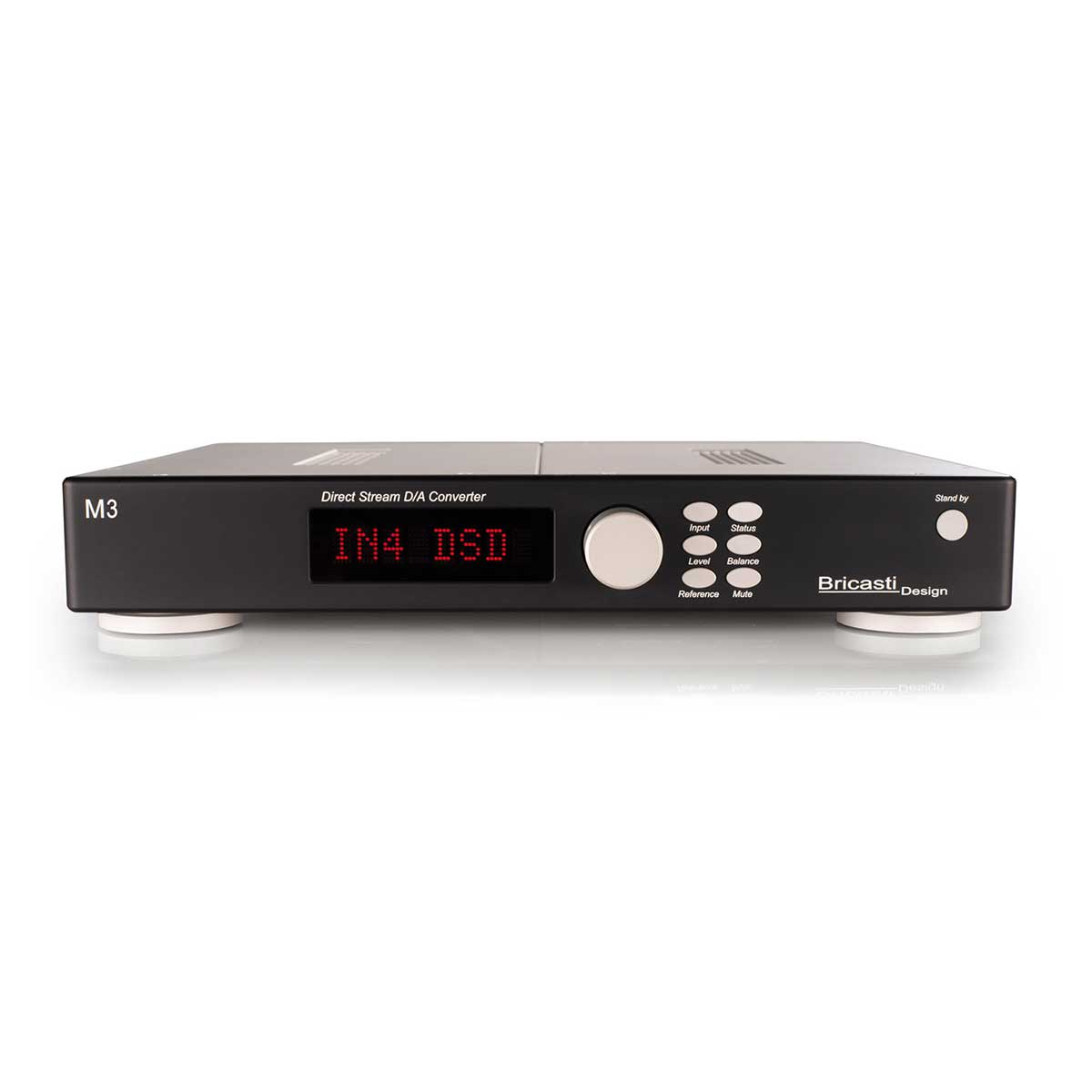

  • Bricasti Design M3 Digital to Analog Converter (DAC)

    Notify me when this product is available:

    The Bricasti M3 DAC offers an incredible array of performance in a more affordable price class. Highlights include two fully differential conversion channels, separate conversion for PCM and native DSD, and a balanced analog level control circuit, making the M3 suitable for all applications. The M3’s digital design employs precision DDS clocking that lowers jitter to extremely low levels, insuring a pure digital signal path without the use sample of rate converters, this combined with superior digital filter design, and Native DSD conversion yields a state of the art digital audio path. The M3’s high-speed low distortion analog path features a bypass-able preamp class analog level control allowing the M3 to be used to drive power amps directly, with no bit loss for optimal analog performance.


    Bricasti M3 Tech Specs

    • Digital Inputs   XLR: AES/EBU 24 bit Single Wire, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2, RJ45: Ethernet (Optional)
    • Sample Rates AES, SPDIF        44.1 kHz, to, 192khz, DSD 64fs as DoP
    • Sample Rates USB       44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native
    • Sample Rates Ethernet           44.1 kHz, to, 384kHz, DSD 64fs, 128Fs Native
    • Jitter    8 psec @ 48k / 6psec @ 96k
    • Balanced Analog Outputs       XLR balanced (pin 2 hot)
    • D/A Conversion           PCM 24 bit delta sigma 8x oversampling, NDSD pure 1 bit conversion for DSD
    • Impedance      40 ohm
    • Output Level   @ 0 db front panel +14.3 dbm 4 db RMS ( bypass mode)
    • Frequency Response @44.1k 10 hz- 20 kHz +0dB, -.2 dB
    • Dynamic Range           >120dB A-Weighted
    • THD+N @ 1k   .0008% @ 0dbfs / .0004% @-30dbfs
    • Unbalanced Analog Outputs  RCA
    • D/A Conversion           PCM 24 bit delta sigma 8x oversampling, NDSD pure 1 bit conversion for DSD
    • Impedance      40 ohm
    • Output level    @ 0 db front panel = +4db 2V rms
    • Frequency Response @ 44.1k 10 hz- 20 kHz -.2 dB
    • Dynamic Range           >120dB A-Weighted
    • THD+N @ 1k   .0008% @ 0dbfs / .0004% @-30dbfs
